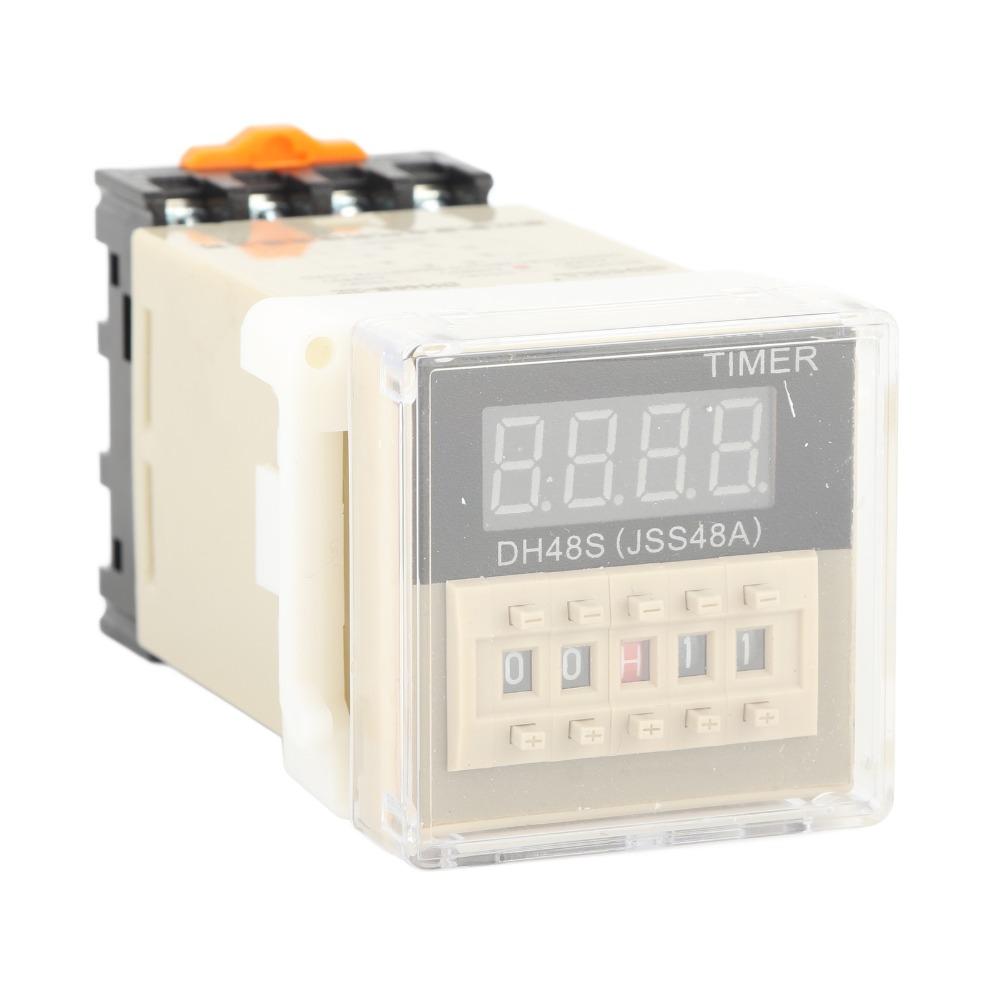

220V Digital Time Relay with Socket Base Double Time Delay Relay Time Relay Automation Systems

Label:Yes Large capacity relay: sensitive, stable and accurate control.Mainly used for outdoor billboards, factory workshops, road lamps and so on. Flexible adjust button: elastic button, suitable for wide spacing, quick adjustment, easy to operate. Integrated circuit: premium material professional welding, fully automatic control, safe and reliable work. Relay and transformer: both adopted of pure copper wire material. The time adjustable range is 0.01S-99H99M, which can satisfy most control requirements

Specifications: Model: DH48S-2Z Rated voltage: 220V Operating Voltage: 85%-110% of Rated Voltage Contacting Capacity: 5A 250VAC Size: 10.3*4.8*4.8cm(4.06*1.89*1.89in) Panel size: 48*48mm(1.89*1.89in) Mounting hole size: 45*45mm(1.77*1.77in) Color: As picture shown Weight: 224g

Method: 1.Power on delay, 2 sets normally closed For example: indicator light set 01S23= 1.23s. Show:2 sets indicator are light for 1.23s, then Put out,and remain unlit 2.Power on delay, 2 set normally open For example: indicator light set 01S23= 1.23s. Show:2 sets indicator are unlit for 1.23s, then light, and remain light 3. Power on delay, 1set normally open, 1 set normally closed For example: indicator light set 01S23 = 1.23s Show:The first set indicator are unlit for 1.23s The second set indicator is light for 1.23s, after 1.23s The first set indicator is light, then remain light The second set indicator is unlit, then remain unlit

Package included: 1 x Digital Time Relay 1 x Socket Base
