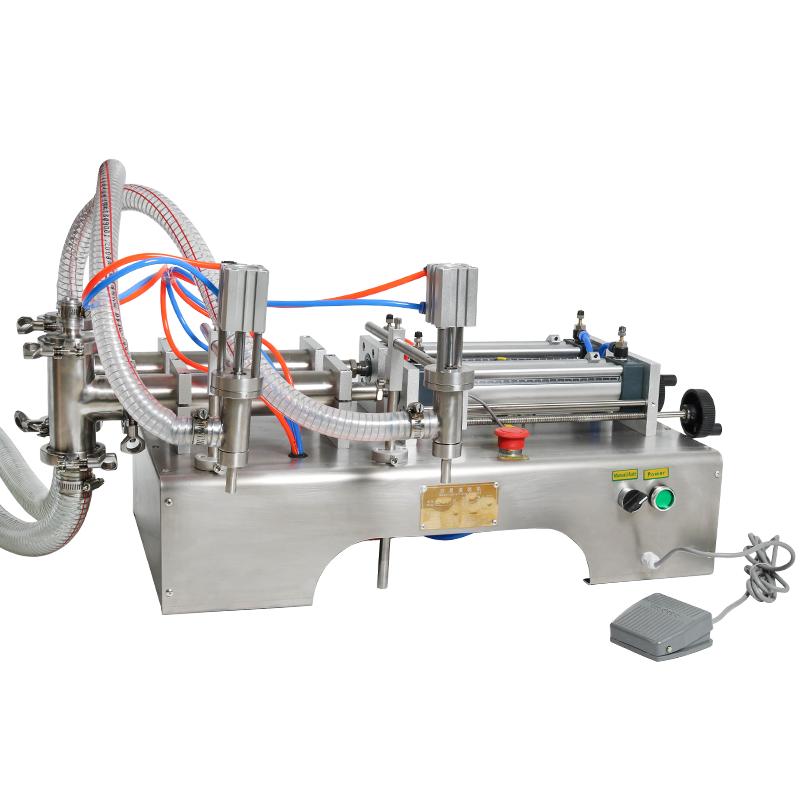

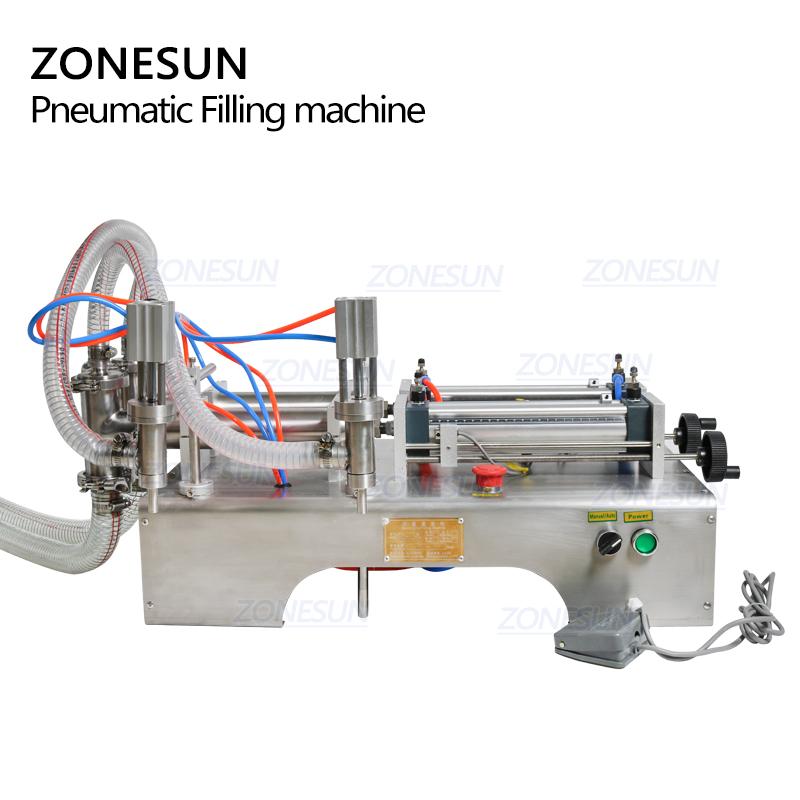

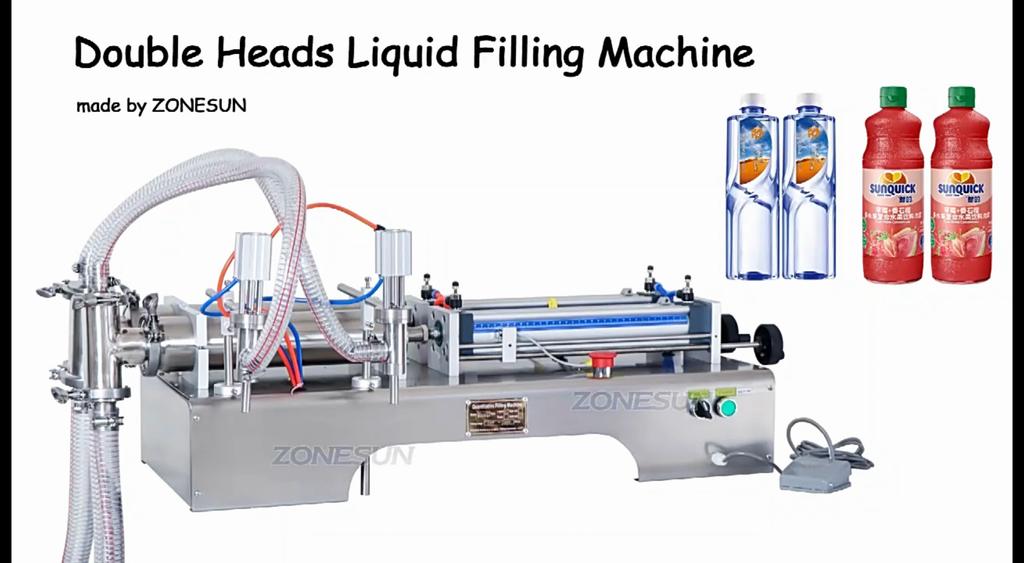

ZONESUN Pneumatic Liquid Filling Machine Double Head Piston Pump Filler for Shampoo Juice Milk Edible Plastic Oil Bottle ZS-YT2

Description · Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others) · All Parts in Contact with Product are Food Grade (SS 304/316) · Stainless Steel Construction · Rugged Rotary Valve System Design · Pneumatic Operation · Silica gel O-ring System(cam bear 200 Celsius degree) · Piston Feed Speed Adjustment · No-drip Option Included and Installed · Extremely Accurate (+/- 1%) · Extremely Easy to Clean and Maintain · Sanitary Stainless Steel Quick Disconnect Fittings · Extremely Easy to Operate · Quick Connect/Disconnect Pneumatic Fittings.

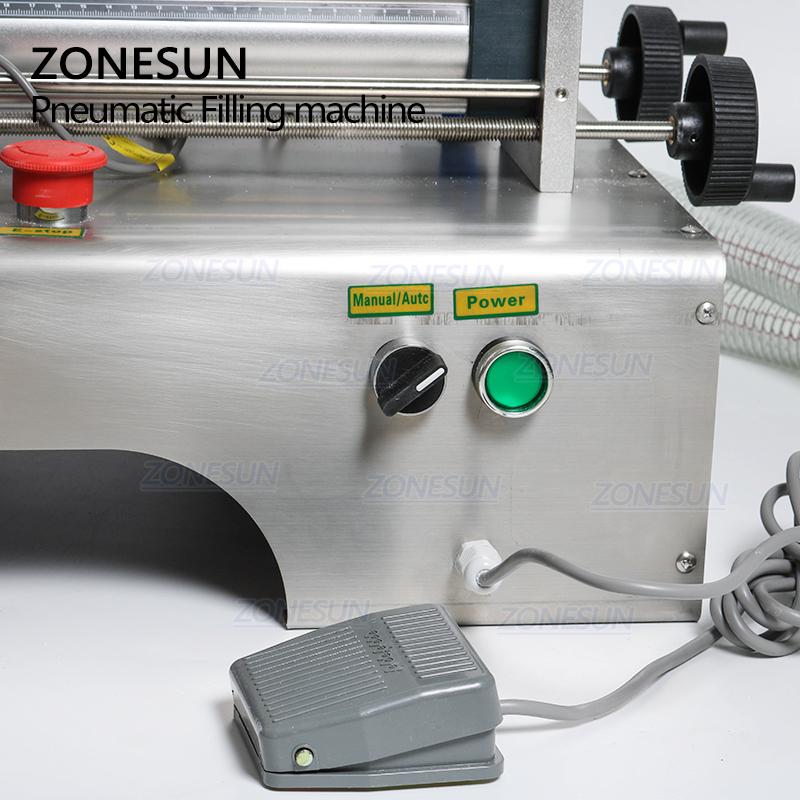

Control Panel

· Semi Auto/Continuous Operation Selector Switch · Air Pressure Gauge · Air Intake Pressure Adjustment · Piston Volume Adjust

Accessory

Air Consumption 3-5KG   0.4-0.6MPa

Wearing parts  :  Silica gel O-ring System (when delivery, I will prepared enough for you use in one year. Customer can buy in the future in their country)

Warranty : one year

Model: double G1WY-L-200

Voltage: 220V/50Hz or 110V/60Hz (Optional)

Pressure: 0.4-0.6mpa

Filling Speed: 5-30 bottles/min

Accuracy: >=±1%

Fillable Range: 10~200ml

Features:

(1) Only for liquid filling,not for paste filling;

(2) Adopts pneumatic working principle, simple operation, high filling precision;

(3) A certain concentration or certain size granular materials ideal filling  equipment;

(4) Stainless Steel Construction;

(5) Rugged Rotary Valve System Design;

(6) Pneumatic Operation, the air compressor should be prepared by the buyer. The requirement of the air compressor:

Pressure: 0.4-0.6MPa;

Power: 750W;

Gas Capacity: >30L

(7) Piston Feed Speed Adjustment;

(8) No-drip Option Included and Installe;

(9) Extremely Easy to Clean and Maintain;

(10) Sanitary Stainless Steel Quick Disconnect Fittings;

(11) Extremely Easy to Operate;

(12) Quick Connect/ Disconnect Pneumatic Fittings;

Application area: T-zone, eyes Effect: acne & blemishes Number of pieces: 1pc. Pieces per set: 1pc. Quantity: 1 Using time: 99year Volume: 200ml Weight: 40kg
