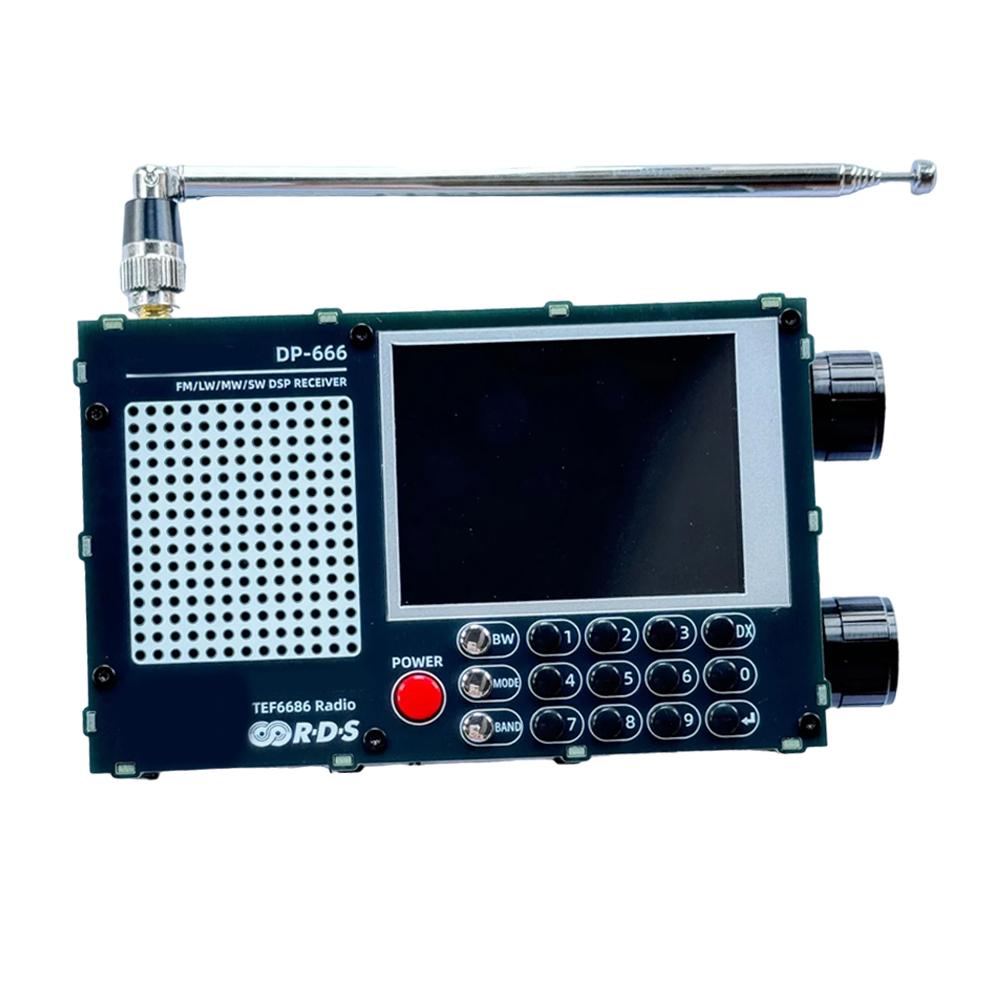

The portable FM/AM radio DP666 is equipped with the advanced TEF6686 chip, providing superior tuning capabilities and functionality.

High-concerned chemical : None DIY Supplies : Electrical Origin : Mainland China Features: 1. This is a high-sensitivity radio based on the NXP high-performance automotive-grade TEF6686 chip, with excellent selectivity and ultra-high sensitivity. This automotive forDSP tuner has a wide range of functions and advanced algorithms (CEQ, EMS, iMS and PACS, noise canceller...), (software defined radio) signal processing, especially in improving multipath, adjacent frequency interference, weak signal processing and noise elimination. 2. This is a radio built on the open source project TEF6686_ESP32 of PE5PVB. In addition to listening to radio stations, the project also supports a wealth of advanced features, such as: almost all RDS (Radio Data System) data display, automatic/manual radio station scanning, squelch function, battery voltage display, changeable themes, multi-language, radio station presets, etc. 3. We redesigned the circuit board based on the mature TEF6686 front-end receiving circuit, and equipped the DP-666 with a 2.8-inch resistive touch LCD color screen based on the open source project. While the portability of the machine, it can display rich RDS information (RDS information requires local radio support); a numeric keyboard has been added to facilitate users to quickly input frequencies; a large-capacity 5000mAH battery supports longer standby time. In short, I hope this portable high-sensitivity travel radio will satisfy you!

PE5PVB project: https://github.com/PE5PVB/TEF6686_ESP32 DP-666 project: https://github.com/flyoob/TEF6686_ESP32

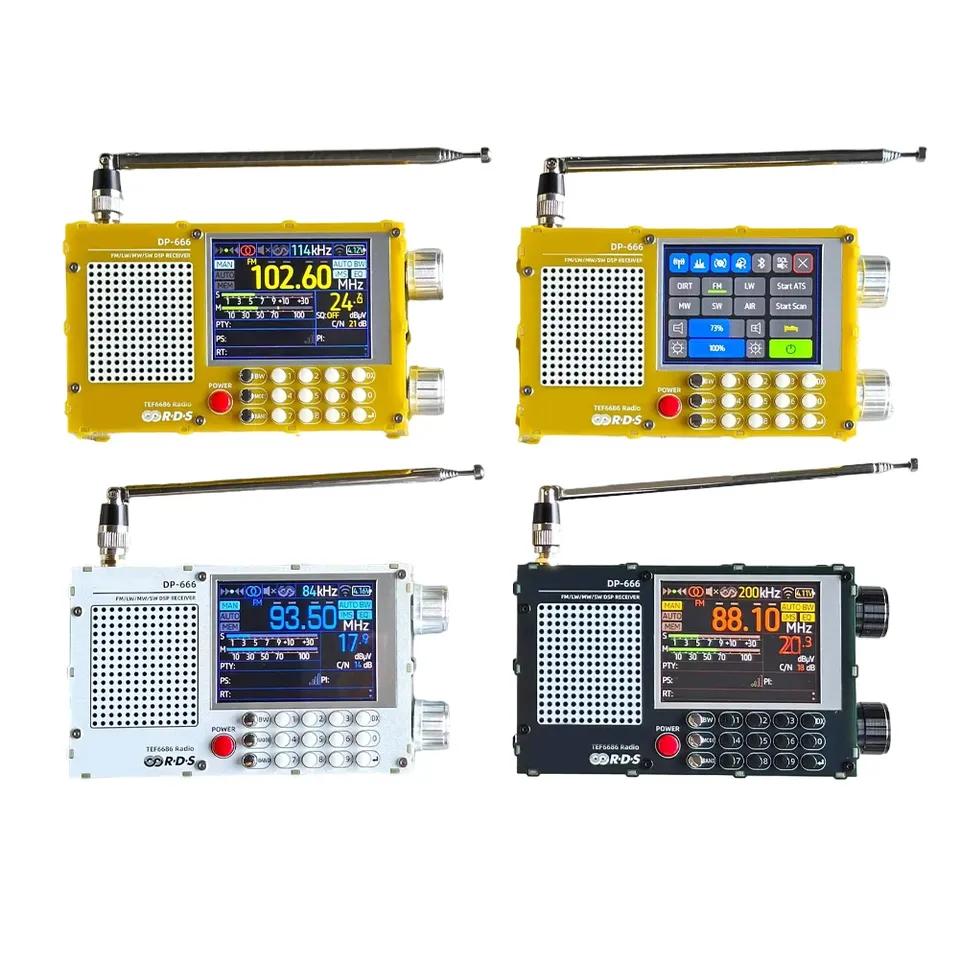

Specifications: Part name: DP-666 radio Material: PCB acrylic board Color: white, yellow, black Size: as shown

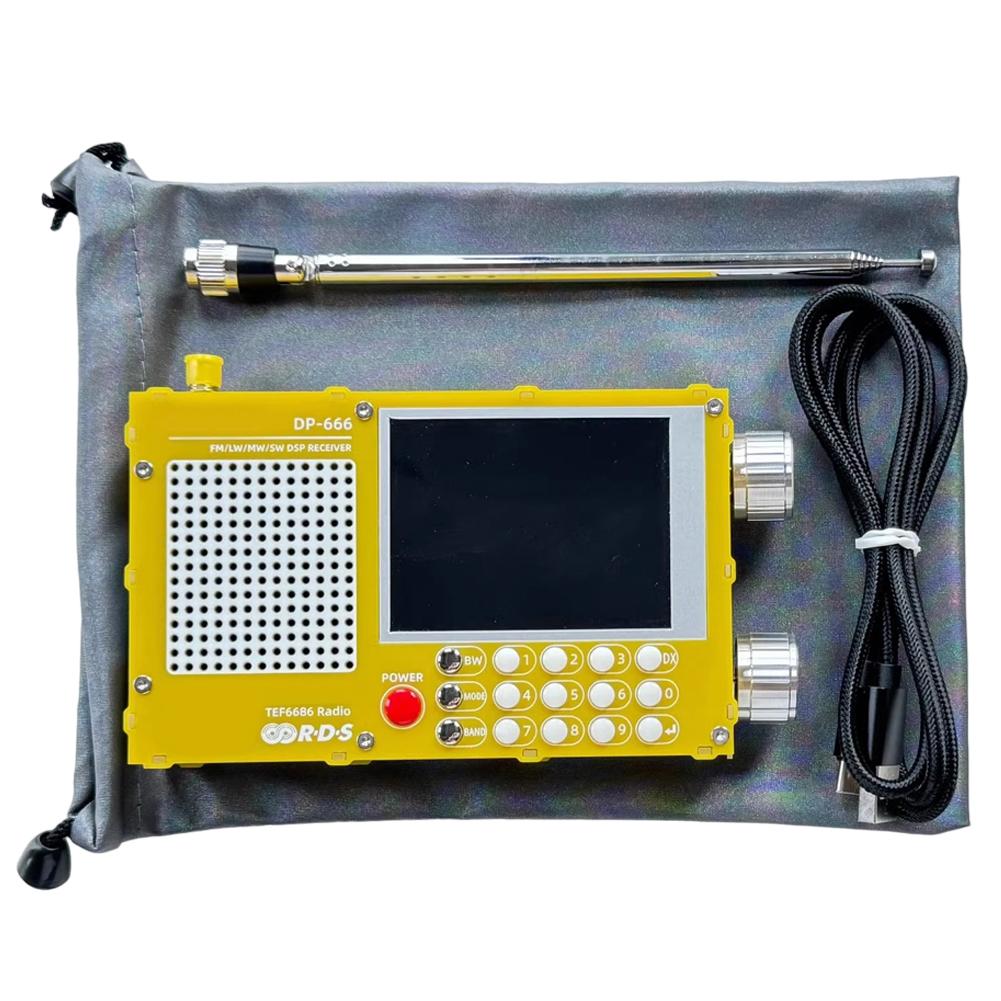

Package contents: 1. Host *1 (3.7V/5000mAh lithium battery installed) 2. High-quality telescopic antenna with SMA connector *1 3. USB-A to TYPE-C 1 meter data cable *1 4. Storage bag *1

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
