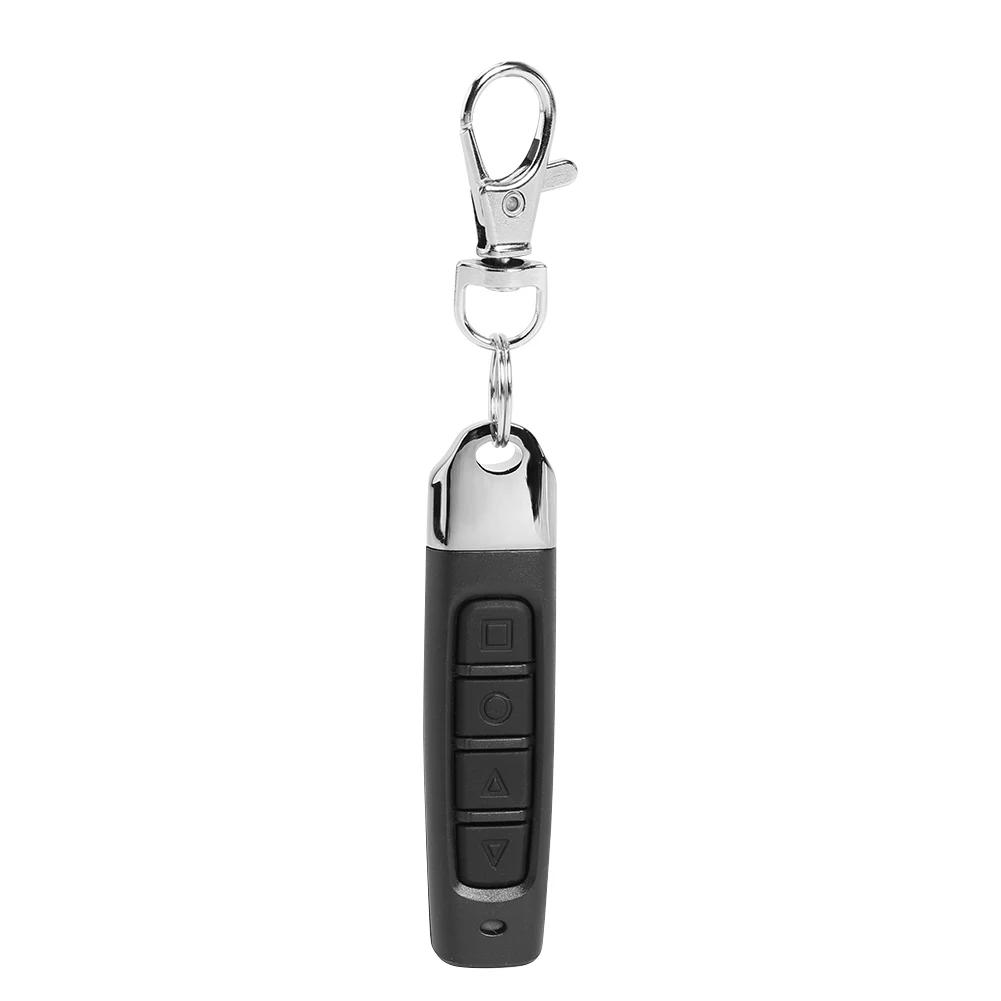

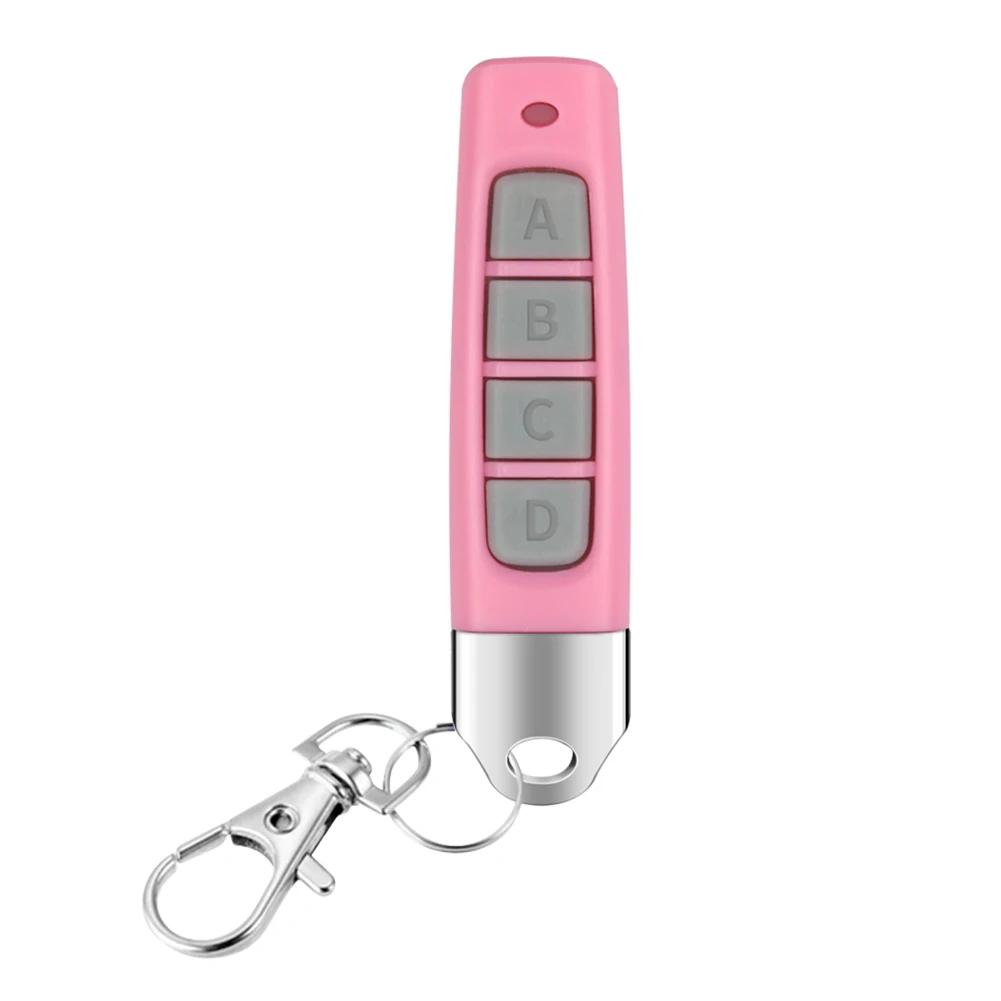

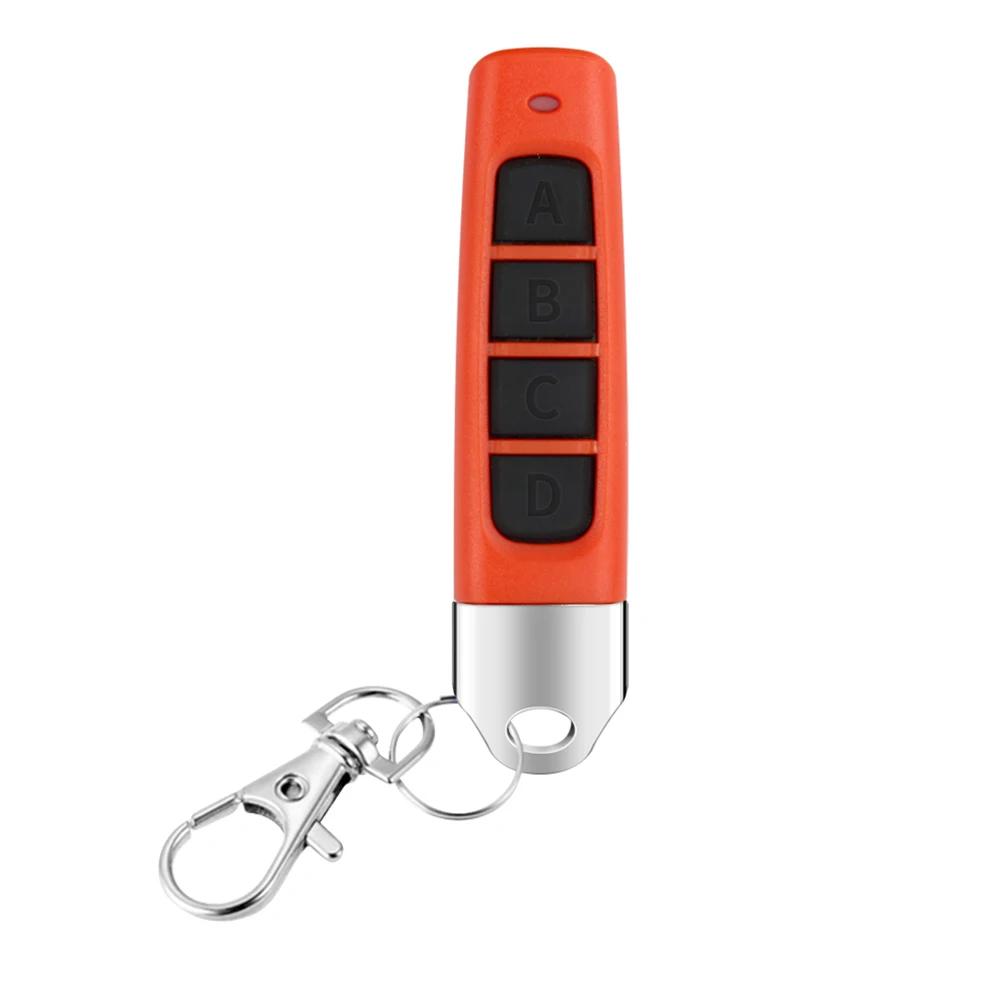

433MHz Cloning Code Plastic 4 Keys Clone Duplicator Battery Powered Remote Control Learning Copy Multifunctional for Garage Gate
Feature:
1. Chip:High performance RF chip is used to stabilize the frequency of crystal oscillator with accurate frequency point;
2. Transmission:Long transmission distance, no directivity; high transmission sensitivity, no signal barrier;
3. Easy to use:Most fixed codes and learning codes can be copied from the wireless remote controller, which is fast in copying and simple in operation;
4. Note:After copying, the original remote control will not be affected; Copy the code automatically and use it directly without coding;
5. Size:The copy remote control is made of high-quality and plastic, and the size is 68x16x15mm.
Specification:
Certification: CE
Origin: Mainland China
Model Number: Copy Remote Control
Model: AK-KB1301A Color
Material: Plastic

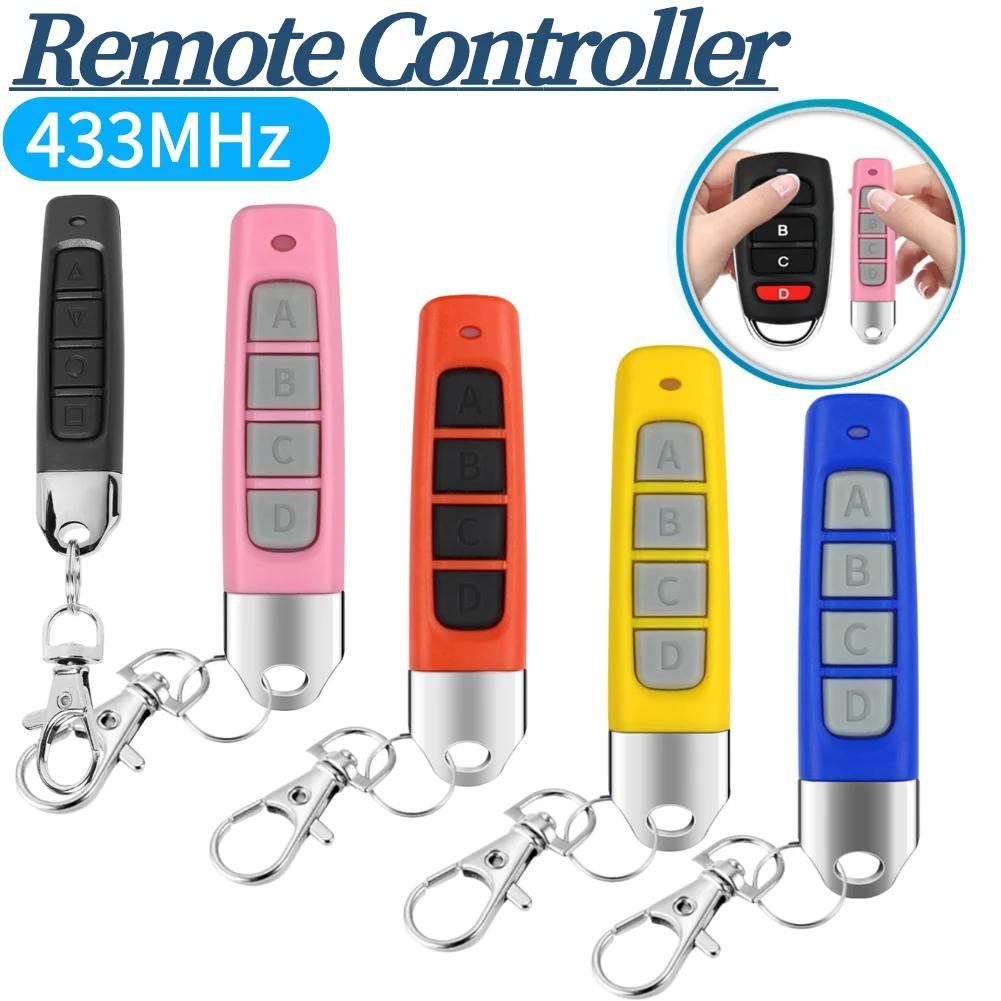

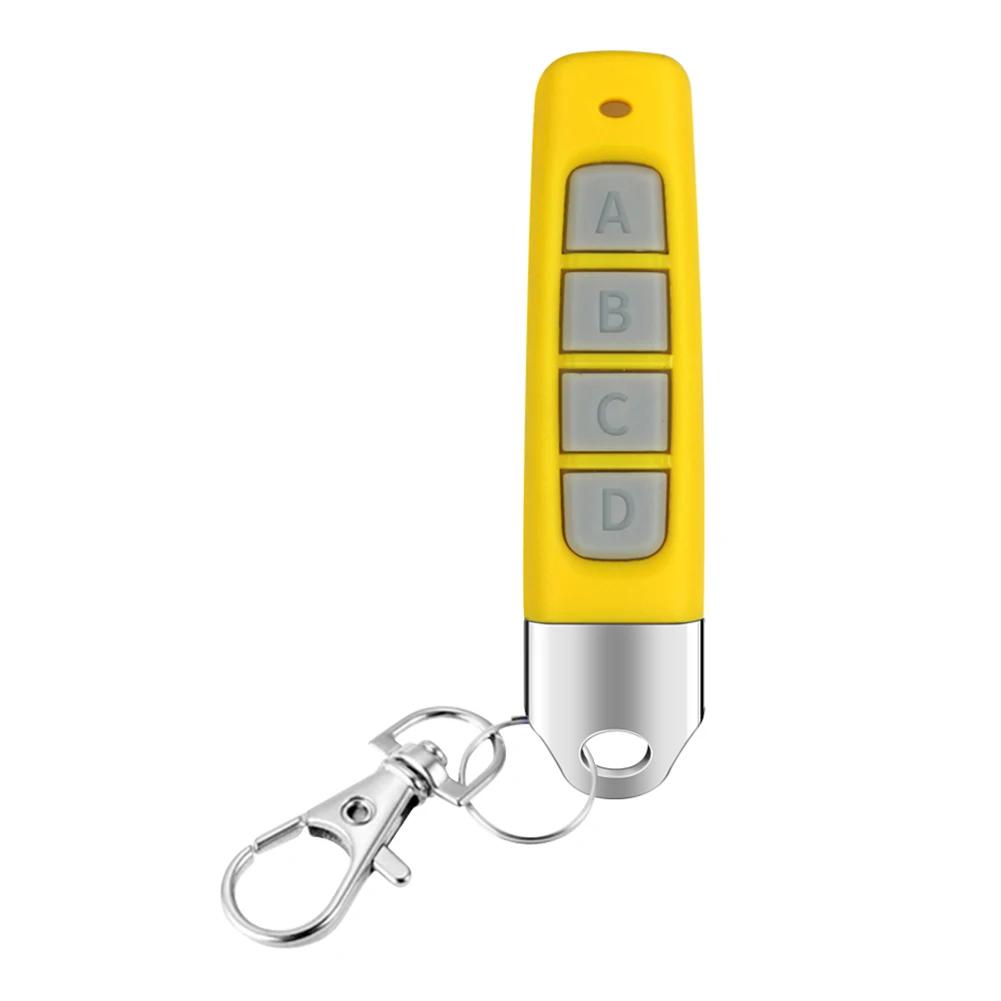

Color: Blue, pink, red, yellow, mixed (optional)
Quantity: 1pc/2pcs/4pcs (optional)
Operating frequency: 433M
Number of keys: Four keys
Type: wireless Remote control
Application: Such as remote controller of electric retractable door, road gate, alarm, etc.
Rated voltage: 12V 27A, battery (including)

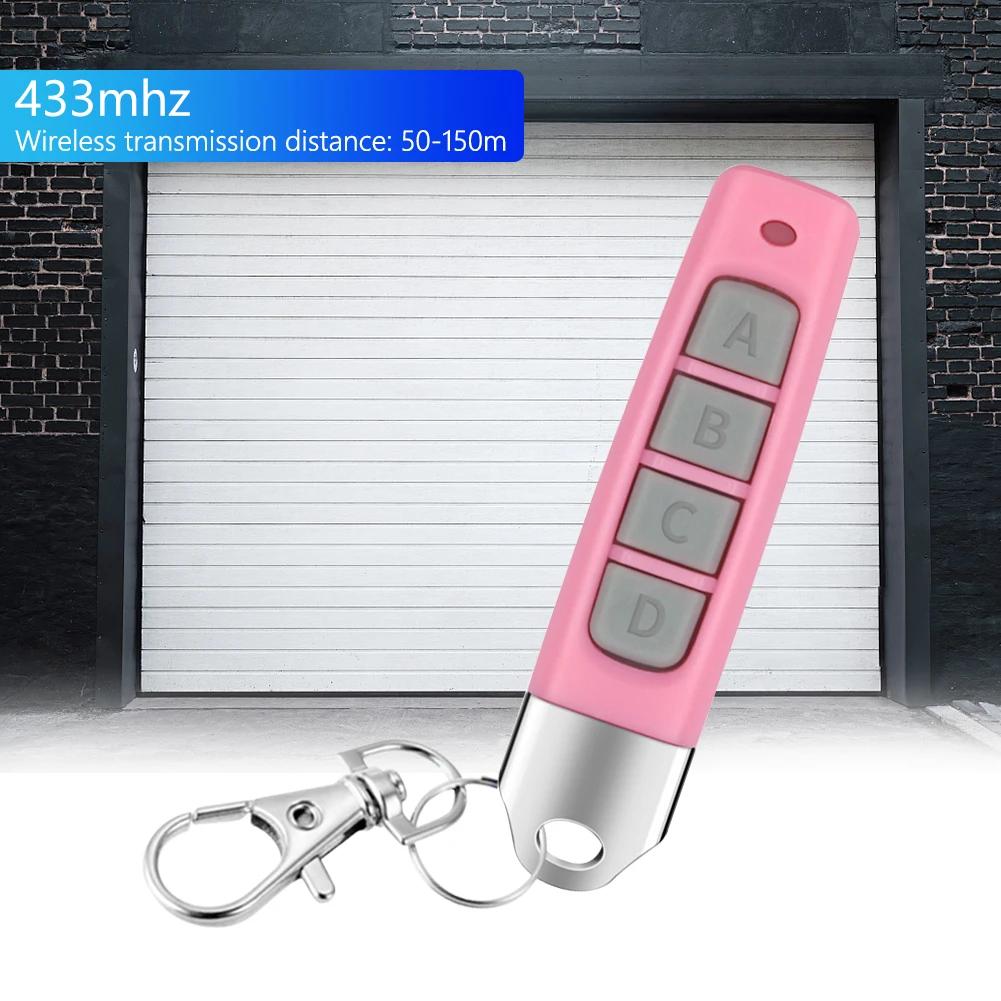

Wireless transmission distance: 50-150m (open space)

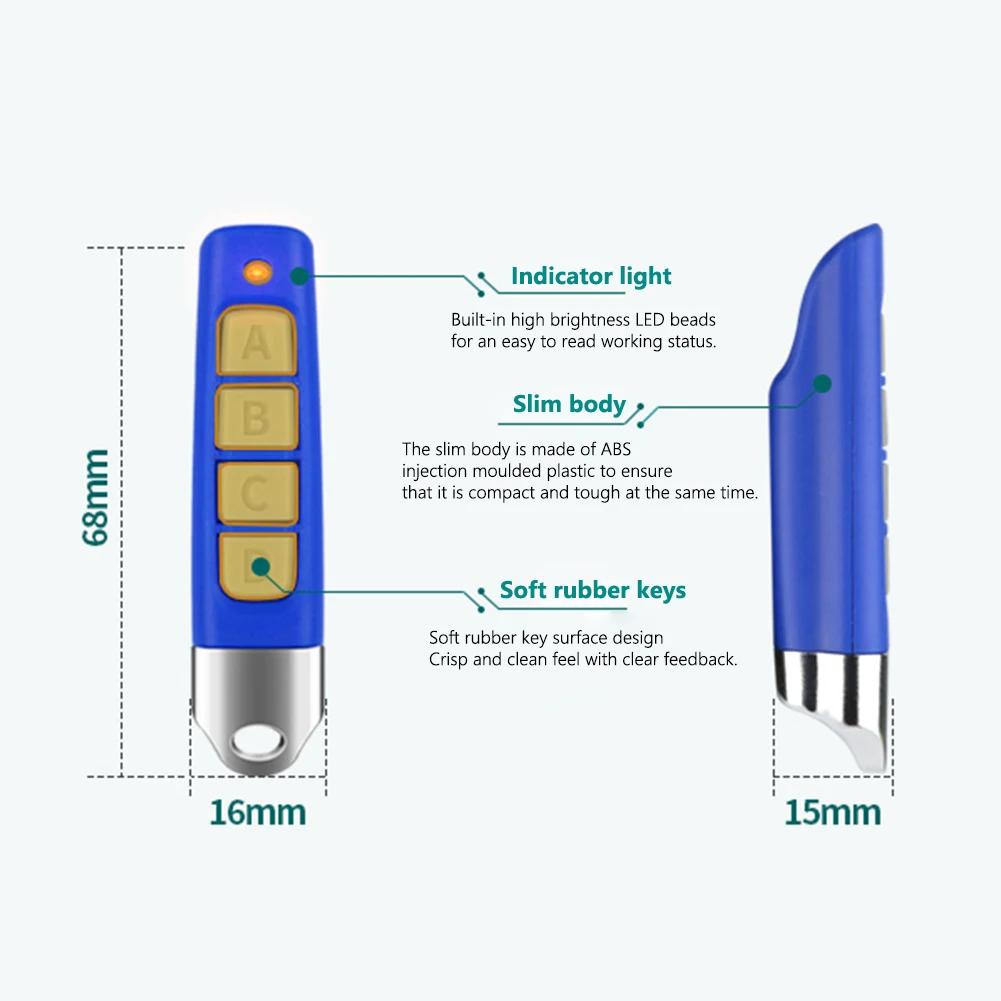

Size: 68x16x15mm/2.68x0.63x0.59in
Weight: 22g
Function:
Multi functional, multi variable, personalized simple design, quick start.
This smart copy remote control is applicable to electric doors, retractable doors and garage doors.
Clone chip type:
2260 (PT2260,SC2260,LX2260,HX2260); 2262 (PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527(EV1527,HS1527,HX1527),FP527,CS5211,SMC918,SMC926,AX5026,AX5326-3,AX5326-4 HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D,HT46F49E,PIC16F629,PIC16F630,etc.
Different chip manufacturers have different prefix chip models, as long as the digital part of the chip is the same model.
Procedure:

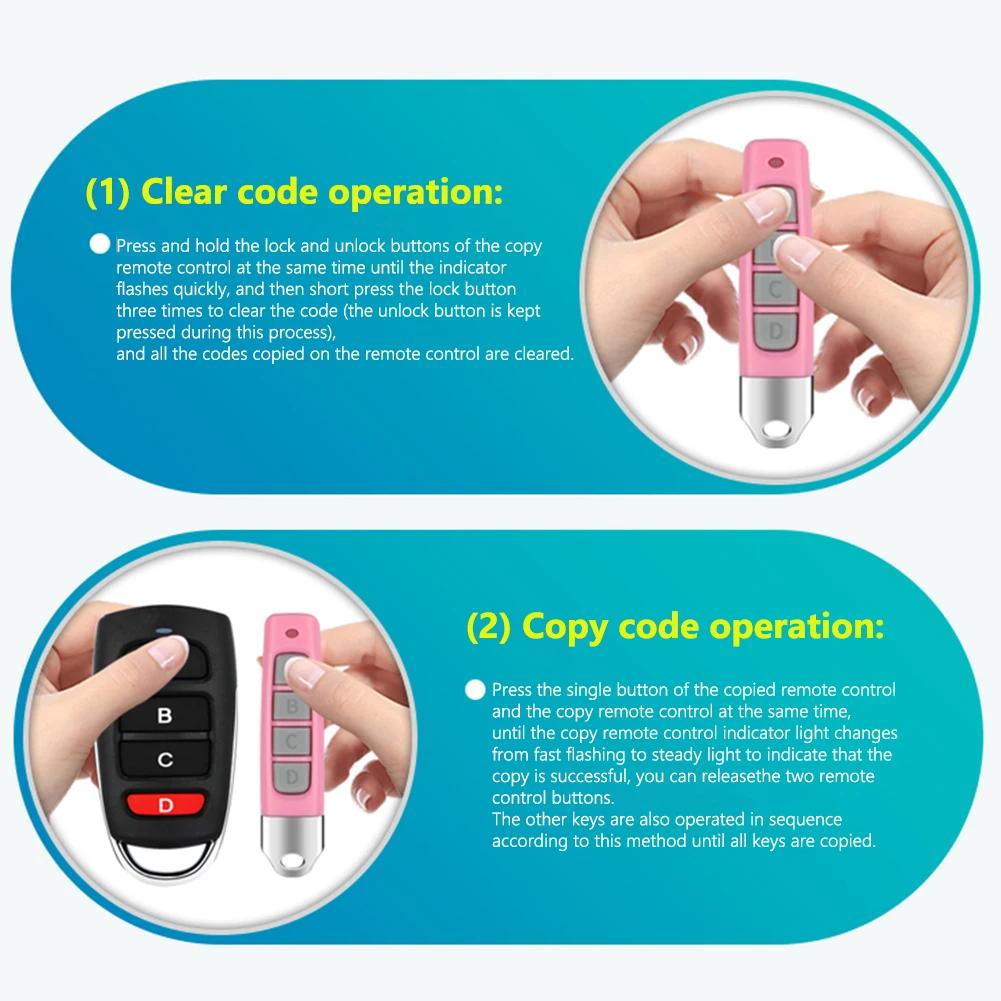

1. Clear code:
Press the unlock key and lock key with two fingers at the same time; The LED lamp flashes rapidly for 3 times in about 2 seconds;
Release one finger (the other hand cannot be released), and then use the loose finger to quickly click on the loose button three times until the LED light flashes quickly; Two fingers can be loosened; Then press any key on the remote control; When the LED light is off, it indicates successful code clearing (all four buttons are empty);
If the light is still on after pressing any key on the remote control, it indicates that the original code has not been cleared successfully and it needs to be cleared again. The cloning can be successful only if the code is cleared successfully. You can clean and clone code repeatedly.
2. Copy:
The original remote control is held in the left hand, and the cloned remote control is held in the right hand. The two remote controls are as close as possible;
Press the first button of both remote controllers at the same time; After about 2 seconds, the LED lights flash twice; After one second, the indicator light flashes continuously, and release the finger;
Press the key again after successful learning, and the light is always on, indicating that the first key code on the original remote control has been copied to another remote control; In the same way, you can open the second key and the third key and etc. in turn
If the copy is successful, the remote control has the same function as the original remote control.
3. Recovery:
When you accidentally clear the copy of the remote control code, you can press the copy of the two keys at the bottom of the remote control at the same time, and the LED light will flash quickly. Press any key and release it, and it will stay on, indicating that the remote control code has been restored.
Before using our duplicate remote control, be sure to delete the existing code from the remote control.
4. How to deal with the situation that some keys can be controlled, while others cannot? You can use clear and restore operations as follows:
(1) Clear the code first;
(2) After the code is cleared, the unsuccessful keys are copied again, and the other keys do not need to be copied;
(3) Then clear the code again;
(4) Recovery code; At this time, the original key that was not successfully copied is now overwritten by the new code, while the original key that was successfully copied is now retained. If the key is not copied successfully after the second time, repeat the above steps until all keys are copied successfully.
Preventive measures:
1. Prerequisites for selecting the remote controller: the original remote controller functions normally, the remote controller chips are the same or compatible, and the remote controller operates at the same frequency.
2. The remote controller can only copy the fixed code, learning code chip and some single-chip remote controllers (see the model of the reproducible chip for the model).
3. Two way remote control, rolling code remote control, and microcontroller encryption program remote control cannot be copied. Such as HCS200, HCS201, HCS300, HCS301, etc.
4. Before copying the remote control, make sure that the existing password on the remote control has been cleared, and check whether the password has been cleared successfully. Otherwise, it cannot be copied.
5. Please ensure that your remote control has enough power and the distance between the two remote controls is as far as possible! If the copy distance is too close, switch different angles to copy. Press and hold the button on the original remote control to send the signal normally, and then press the button on the remote control to ensure that the function is completely copied.
Note:
We usually do not recommend copying the rolling code chip, because there are many uncertainties when copying the rolling code chip.
When copying the rolling code chip remote controller, it is impossible to determine whether the original remote controller chip is an encryption chip. Therefore, we do not recommend copying the scrolling code remote control.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
01-04:
1 X Copy Remote Control
02-08:

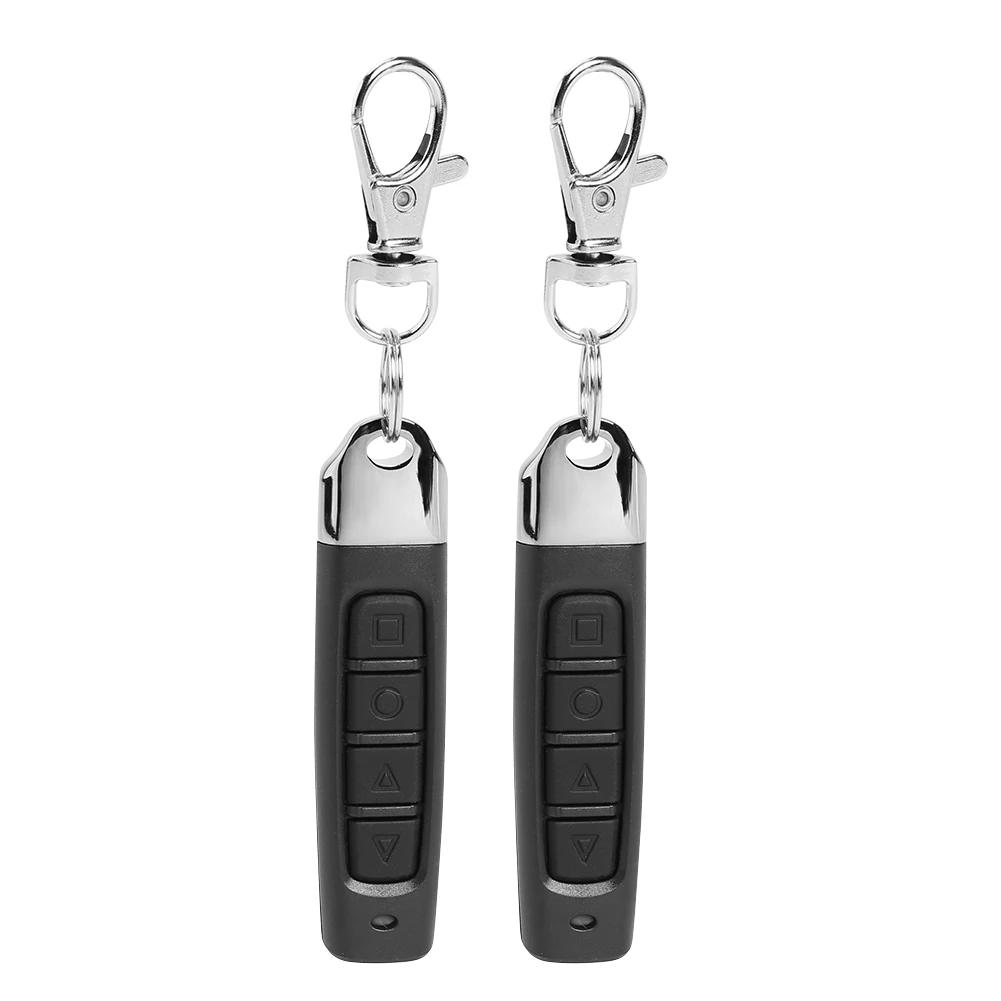

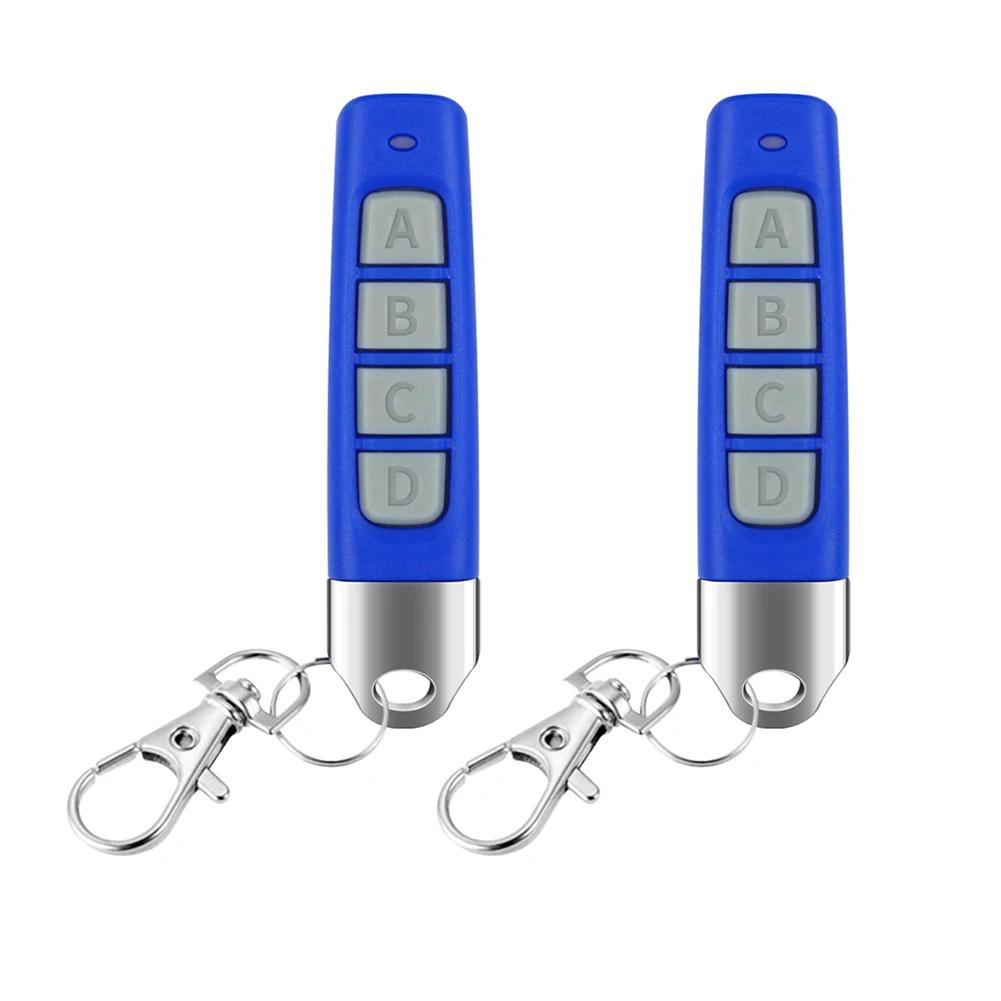

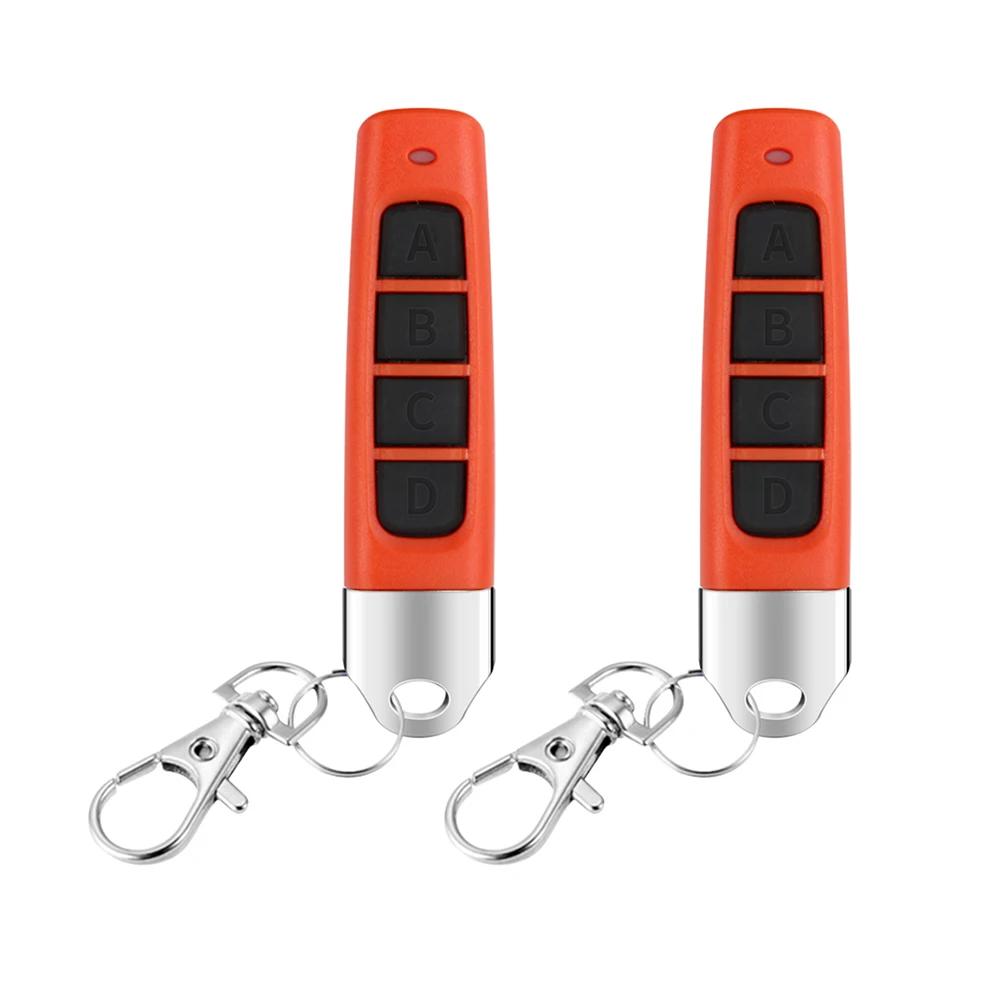

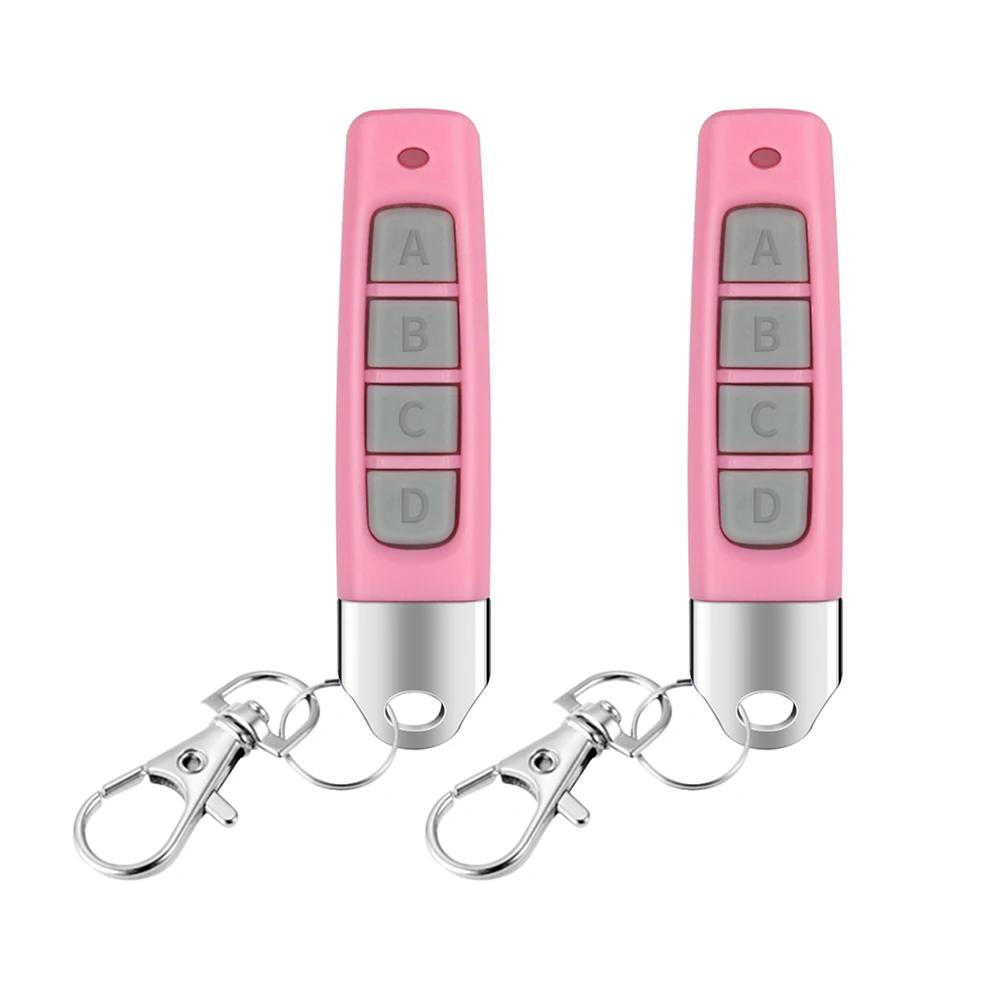

2 X Copy Remote Controls
09:
4 X Copy Remote Controls
