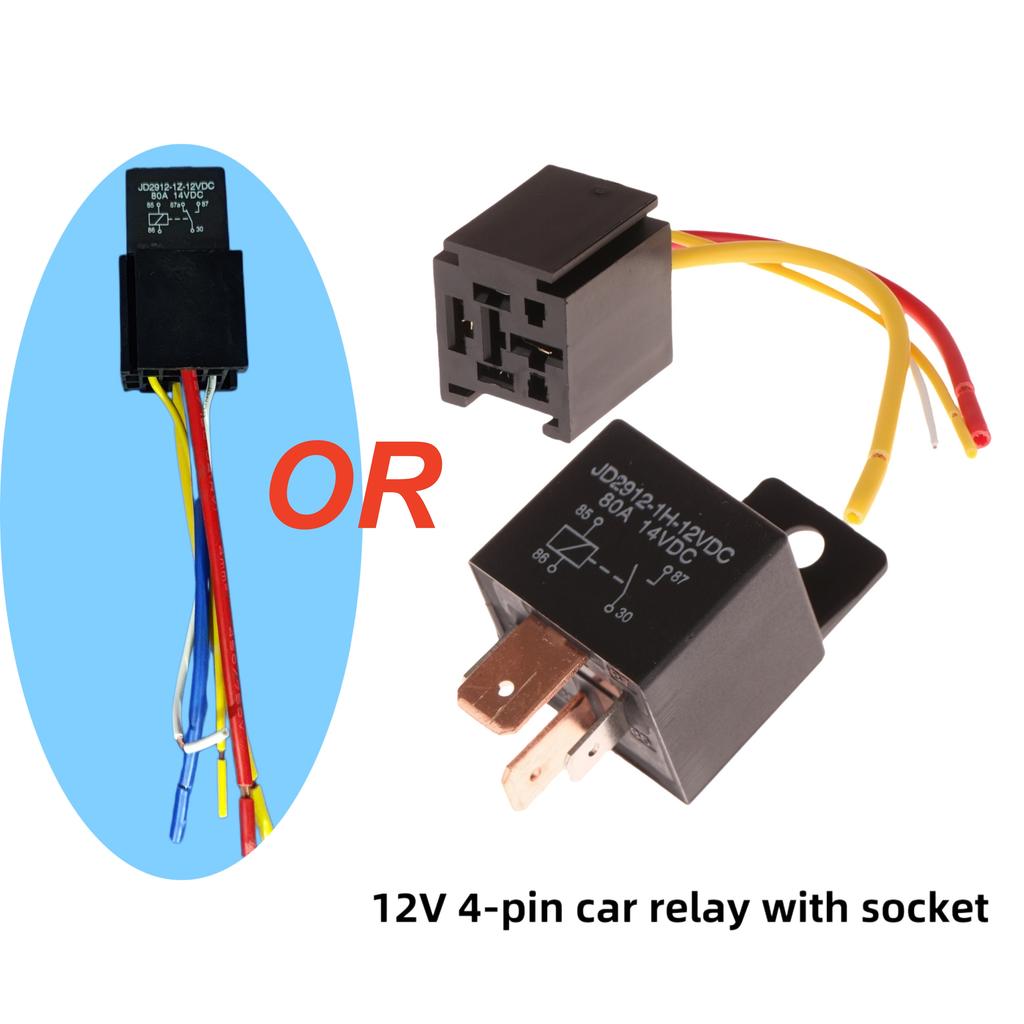

1 Set Head Light Air Conditioner Motorcycles DC12V DC24V Relay 80A 4/5 Pin Waterproof Automotive Relay With Wired Socket

Description Product Name: Automotive Relay Color: Black Product features: Large capacity, switchable 80 ampere current; Contact form: a set of conversions Working temperature: -40 to+125 ℃ Product use: Automotive control device External dimensions (length * width * height) (mm): 28.0 * 28.0 * 25.0 Contact form: 1c 1c: 40A/30A 14VDC Coil voltage: 12VDC, 24VDC Coil power (W): 1.80 Contact resistance: ≤ 50m Ω Insulation resistance: ≥ 1,00M Ω Service life (times): Electrical 1 * 100000 Mechanical 1 * 10000000 Dielectric withstand voltage: 500VAC between open circuit contacts 500VAC between coil contacts Environmental temperature: -40 ℃~+125 ℃ Installation form: quick connect type, socket type Package included: 1*Relay or 1* Socket or 1*Relay+1*Socket

Note: 1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received. 2. Please allow slight manual measurement deviation for the data. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
