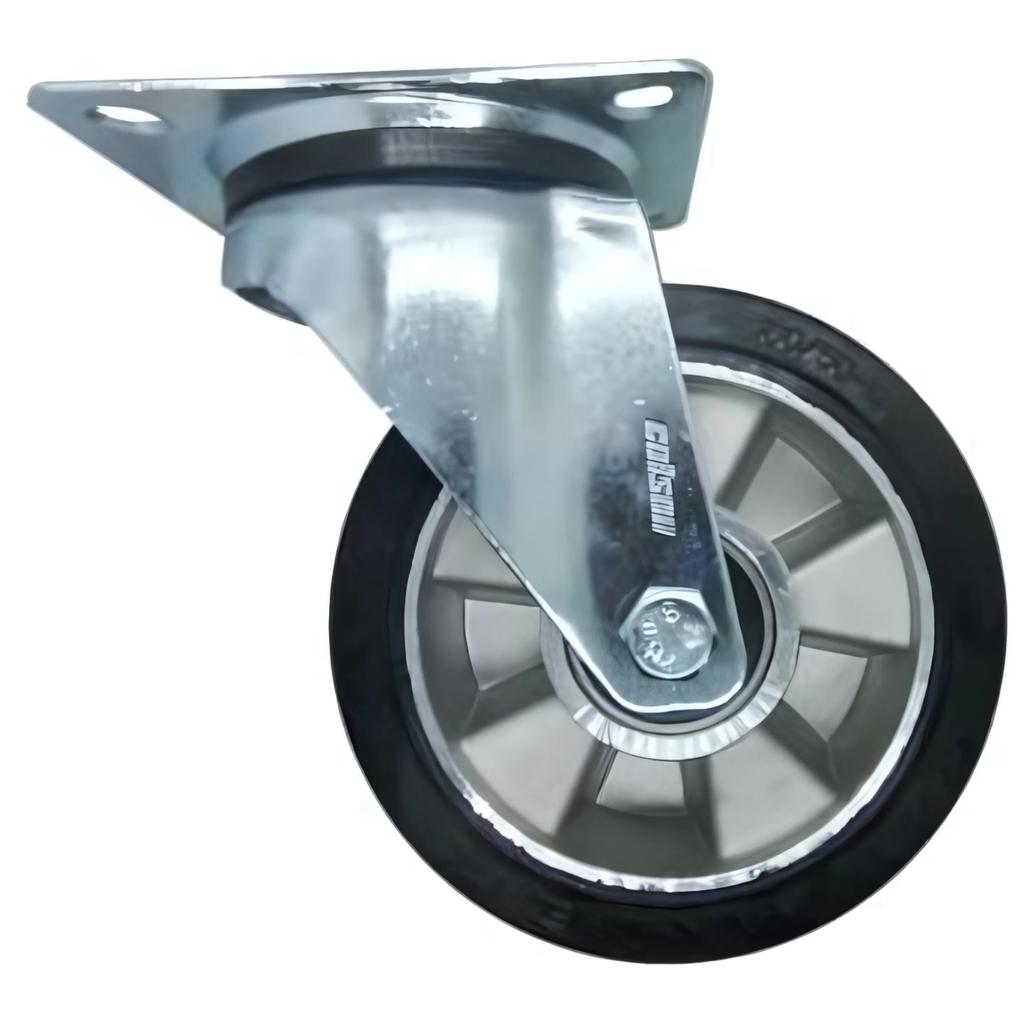

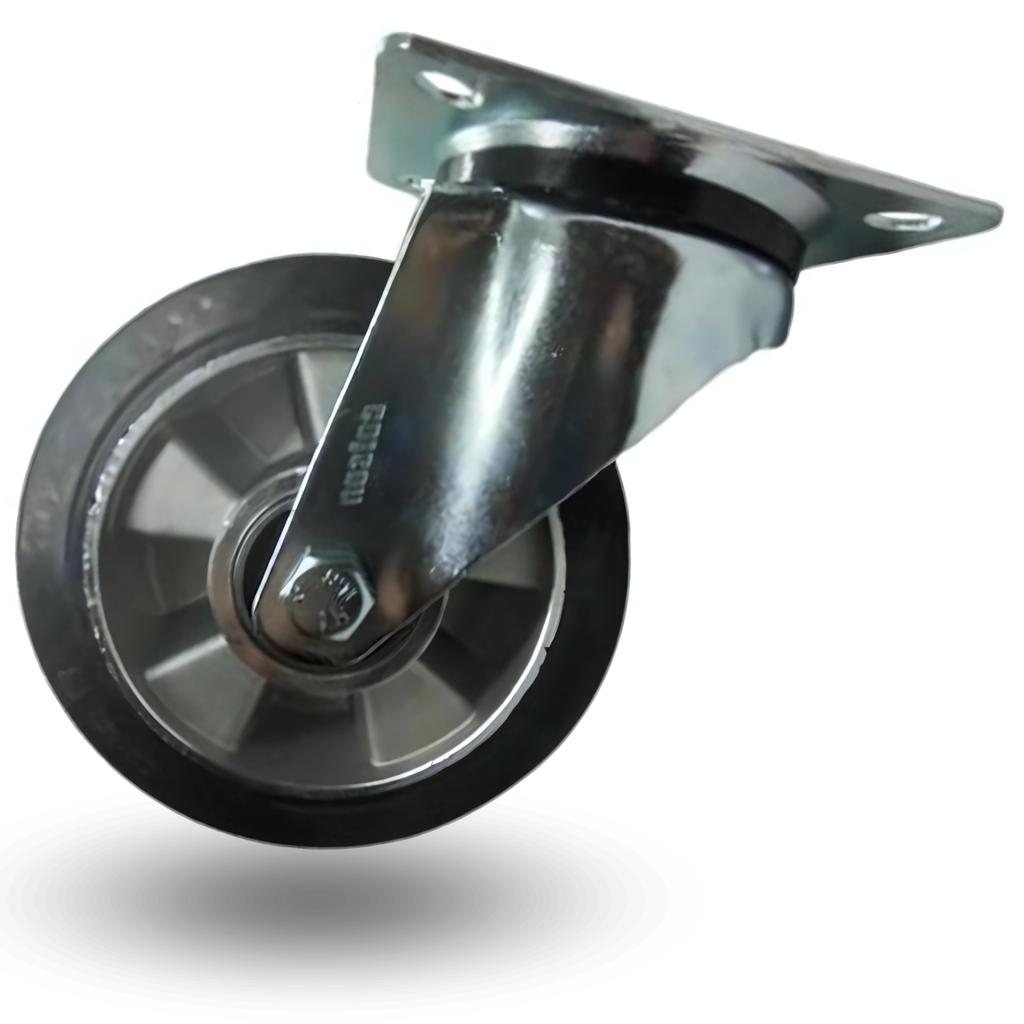

Swivel wheel, trolley set, 160mm, 350kg, JPAB 1603, aluminum-rubber

Swivel wheel trolley set 160mm 350kg JPAB 1603 aluminum-rubber

The auction applies to 1 piece

1️⃣ The most important information

✅ Wheel 160mm

✅ Load capacity up to 350kg (when mounting 4 pcs) load capacity 1050kg )

✅ Tread rubber *

✅ No noise when rolling

✅ Bearing double ball **

✅ Mounted on plate

✅ Tread hardness 67° Shore A

✅ Operating temperature from -20°C/+80 °C

2️⃣ Application :

• all types of transport and warehouse trolleys

• catering and hotel trolleys

• goods baskets, advertising displays

• wardrobes, armchairs, shelves, tables

3️⃣ Which wheel should I choose?

Apart from ground conditions, load capacity is one of the most important criteria for choosing wheels. To determine the required load capacity, the following variables must be known:

• the equipment's own weight

• the maximum load weight or load capacity

• the number of wheels that will be used

The wheel must always be in contact with the ground. In practice, this rarely occurs due to thresholds or unevenness in the ground. As a result, the total load often ends up on three wheels, and the load per wheel increases.

Therefore, the total load must be divided by three wheels instead of four, to achieve a safe load capacity.

When determining the safe total load capacity for a 4-wheeled device, we take into account the weight of the device plus its maximum load. Divide the sum by 3 to obtain the safe load capacity that should be assumed for 1 wheel.

In other cases, the load capacities are distributed as follows:

1) 1 swivel caster + 2 fixed casters

System suitable for small loads. Easily maneuverable, but unstable.

2) 4 swivel casters

Easy to maneuver in all directions, but difficult to operate in a straight line.

3) 2 swivel casters + 2 fixed casters

easy to operate in a straight line, but more difficult when changing direction.

4) 4 fixed sets (2 central upper)

Easy to operate in a straight line, easy to maneuver, but unstable.

5) 2 fixed sets + 4 swivel sets

Recommended setup for heavy loads and long vehicles. Easy to maneuver in all directions and good operation in a straight line.

* Tread rubber

• easy handling on uneven ground

• sound dampening

• high rolling resistance

• limited load capacity

• limited resistance to oils, scum, cleaning agents

** Bearing double ball

Consists of two precision ball bearings, with a steel inner stabilizing ring between them. The RS bearing seals guarantee resistance to environmental influences. They provide excellent rolling properties at maximum permissible wheel load and higher speeds, while also reducing wobble and improving wheel stability.

They guarantee low rolling resistance and quiet, trouble-free operation.
