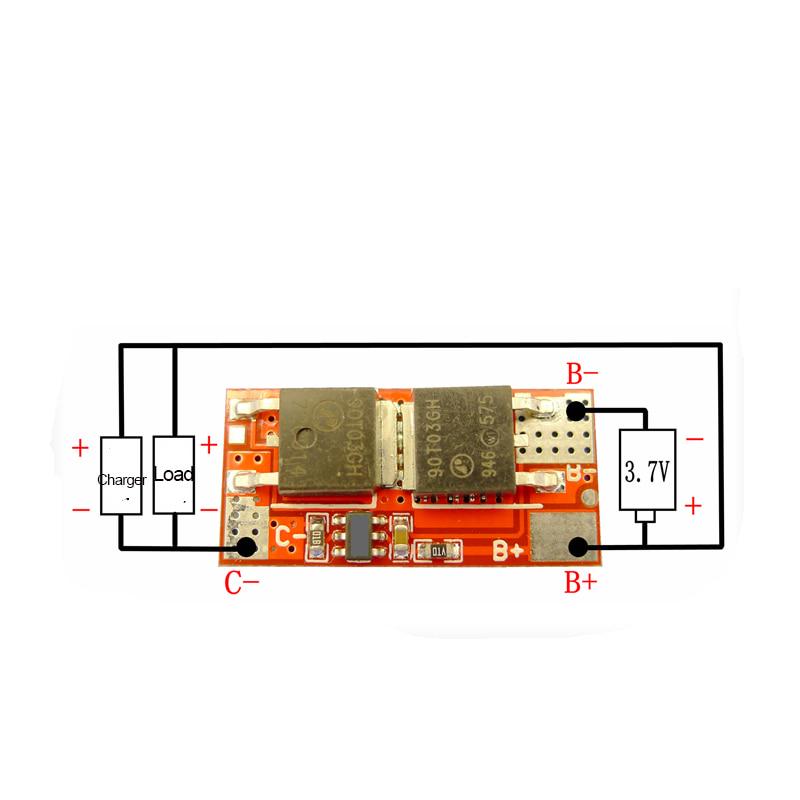

BMS 18650 Li-ion Lipo Lithium Battery Protection Circuit Board Module PCB PCM 18650 Lipo BMS Charger

BMS 1S 2S 10A 3S 4S 5S 25A BMS 18650 Li-ion Lipo Lithium Battery Protection Circuit Board Module PCB PCM 18650 Lipo BMS Charger

100% Brand new and high quality BMS

BMS 25A 3S 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Circuit Charging Board

FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)

Single Cell overcharge protect voltage: 4.23 - 4.28V

Single Cell overcharge rotect recover voltage: 4.08 - 4.18

overcharge protect delay: 0.5 - 1.5S

Single Cell over-discharge protect voltage: 2.72 - 2.88V

Single Cell over-discharge rotect recover voltage: 2.9 - 3.1V

overcharge protect current: 60A

over-discharge protect current: 60A

over-discharge protectdelay: 0.5 - 1.5S

temperature protect: YES

disconnect protect: YES

shortage protect: YES

shortage delay: 100 - 600μS

shortage protect recover: YES

Charging current: 25A

discharging current: 25A

charging voltage : 12.6V for 3S , 16.8V for 4S, 21V for 5S BMS board
