433 Mhz RF Receiver and Transmitter 433Mhz Remote Controls For Arduino Uno Wireless Module Diy Kits

Brand Name: AOKIN Condition: New Type: Voltage Regulator Package: SMD Dissipation Power: diy

Product Features 1.Support ASK / OOK modulation, the receiver sensitivity of -108dBm; 2.Operating frequency: 433.92 MHz, bandwidth of about ± 150KHz; 3.mains input voltage range: 2.2V-5V; Working current: Type :2.1mA (Requirement:VDD=5V) ; Type :2.1mA (Requirement:VDD=3V) 4. Quiescent Current: 1uA 5. Low power consumption; 6. good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification; 7. Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance; 8. multiple transmission rates, the general module for 2KHz, up to 10KHz; 9. Temperature range: -40-85 °C 10. ultra-small size of 30 × 9 × 1 (mm) (can be customized according to customer) 11.External antenna: 32CM single core wire, wound into a spiral

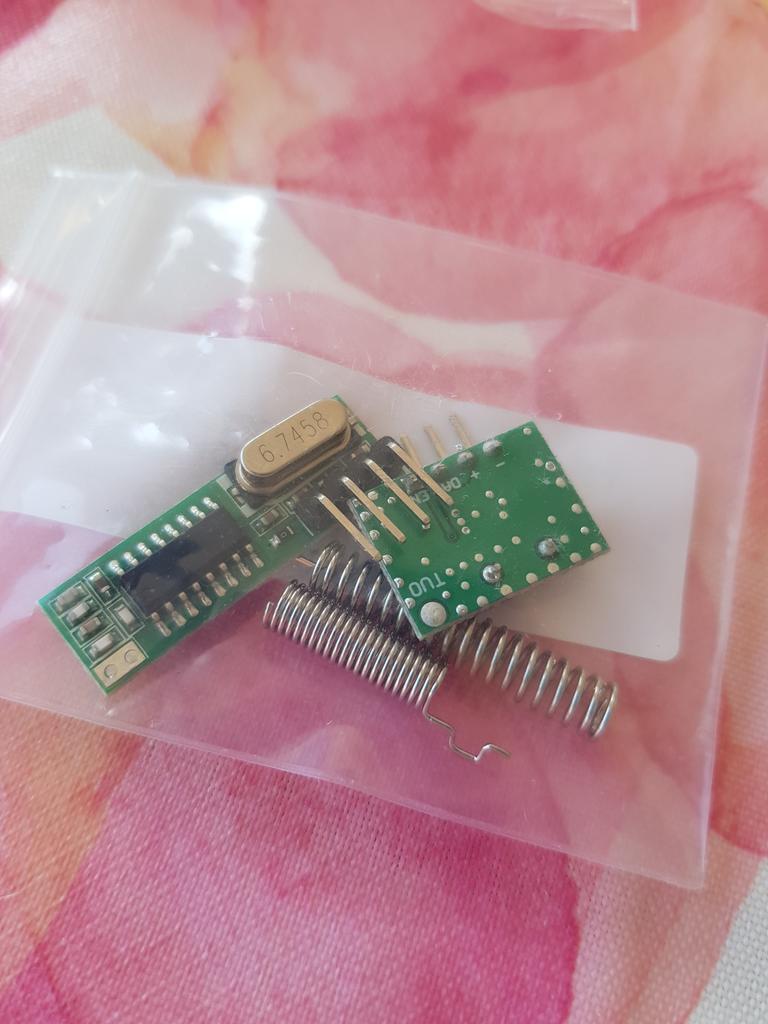

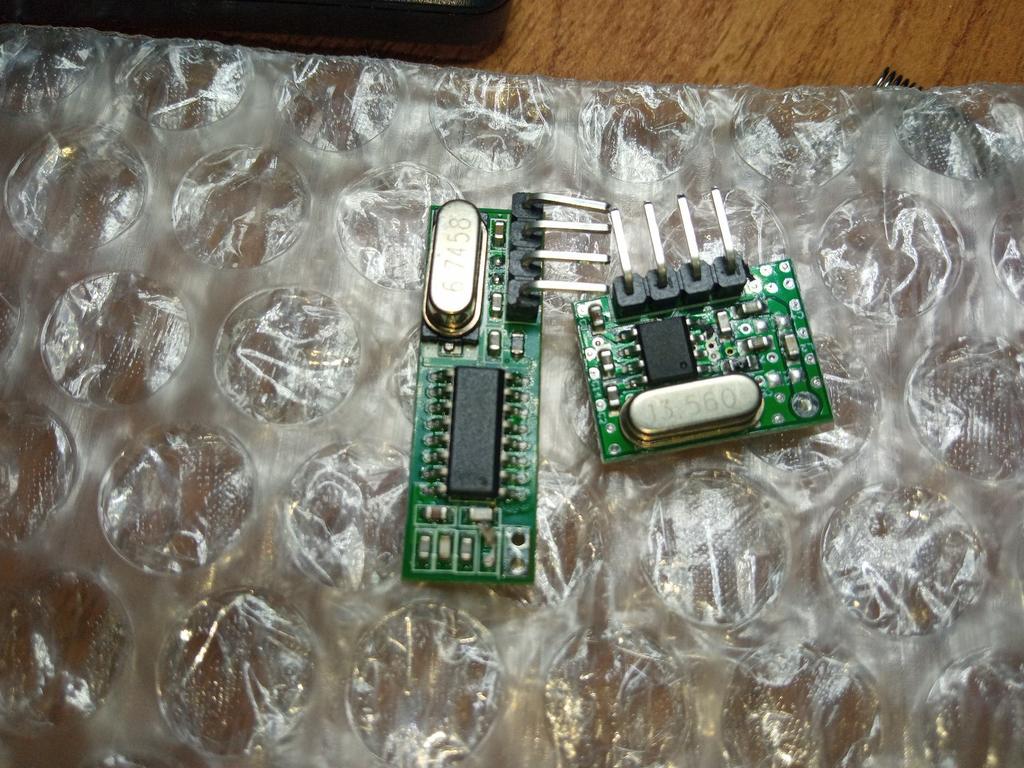

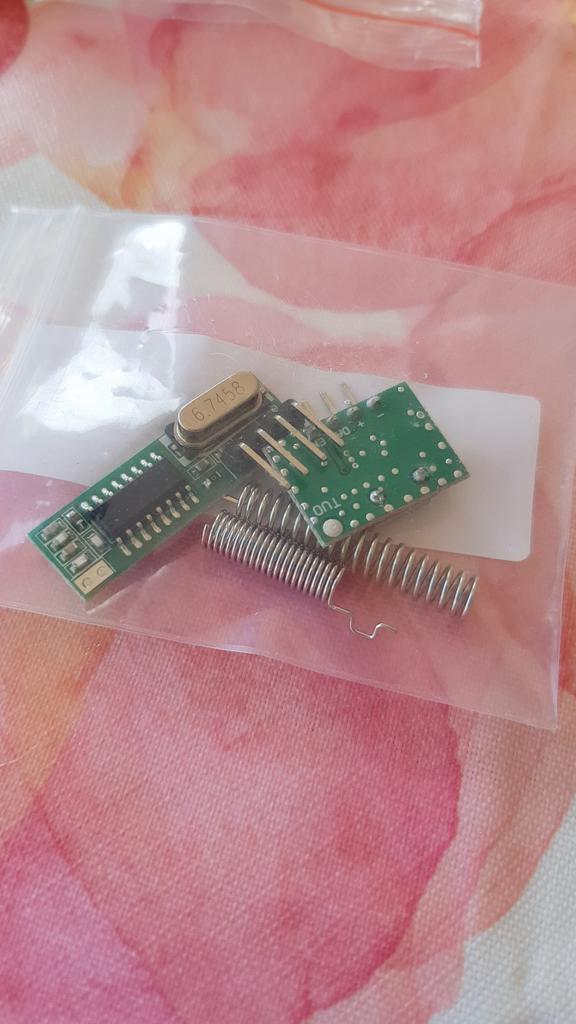

Circuit schematics ( 433.92MHz 2.5kbps typical circuit) Package Included:

1 X Receiver module (RX470-4)

1 X Transmitter module (WL102-341)

2X Antenna (Short antenna for Transmitter; long antenna for Receiver.)
