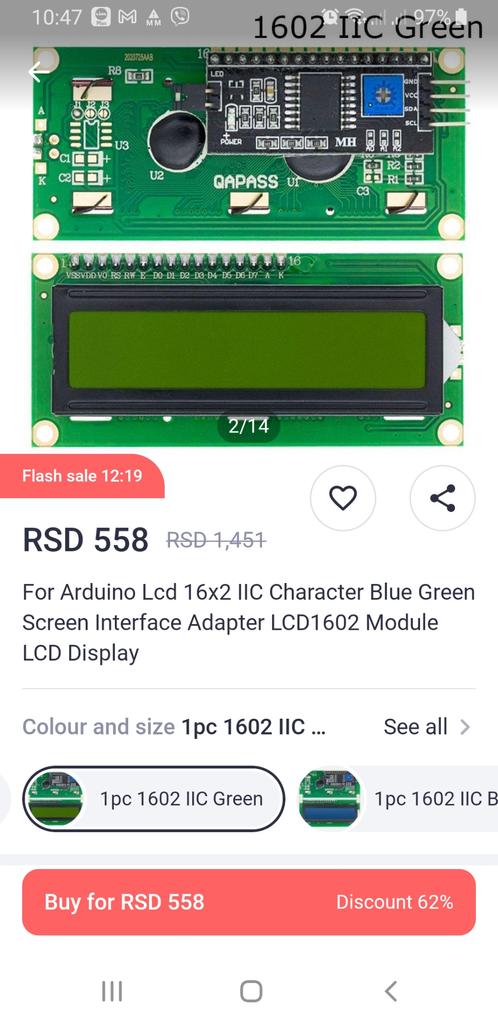

For Arduino Lcd 16x2 IIC Character Blue Green Screen Interface Adapter LCD1602 Module LCD Display

Label:Yes Brand new with high quality Foot 16: back light negative. Wide viewing angle and high contrast. Foot 1: for to power VSS. Foot 3: VL for LCD contrast the adjustment, and then when the power is the weakest contrast, grounded contrast the highest, and the contrast .Through high can produce the "ghost", when used, can pass a 10 K adjust potentiometer contrast. Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices. Built-in industry standard HD44780 equivalent LCD controller. Viewing area size: 64.5mm x 16mm Foot 4: RS for registers choice, high electric usually choose data registers, low electric usually choose instruction register. Foot 6: E end to make can end, when E is driven by high level jump into low electricity at ordinary times, LCD module executive order. Module dimension: 80mm x 35mm x 11mm. Foot 5: R/W signal lines for reading and writing, high electric usually are read operation, low electricity at ordinary times for write operation. When the RS and the R/W common For low electricity can be written instructions at ordinary times, or displays address, when RS for low level R/W high power for at ordinary times can read busy signal, and when RS for high level R/W for low electricity data can be written at ordinary times. Foot 2: VDD take 5 V is power. Features: LCD display module with blue backlight. Foot 15: back light positive. LCM type: Characters. Foot 7 to 14 : D0 ~ D7 for eight two- - way data cables. Voltage: 5V DC. Can display 2-lines X 16-characters. Notice: 1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. Thank for your understanding. 3. 1cm=0.39''.

Package Included: 1x/2x 1602 LCD Display Module
