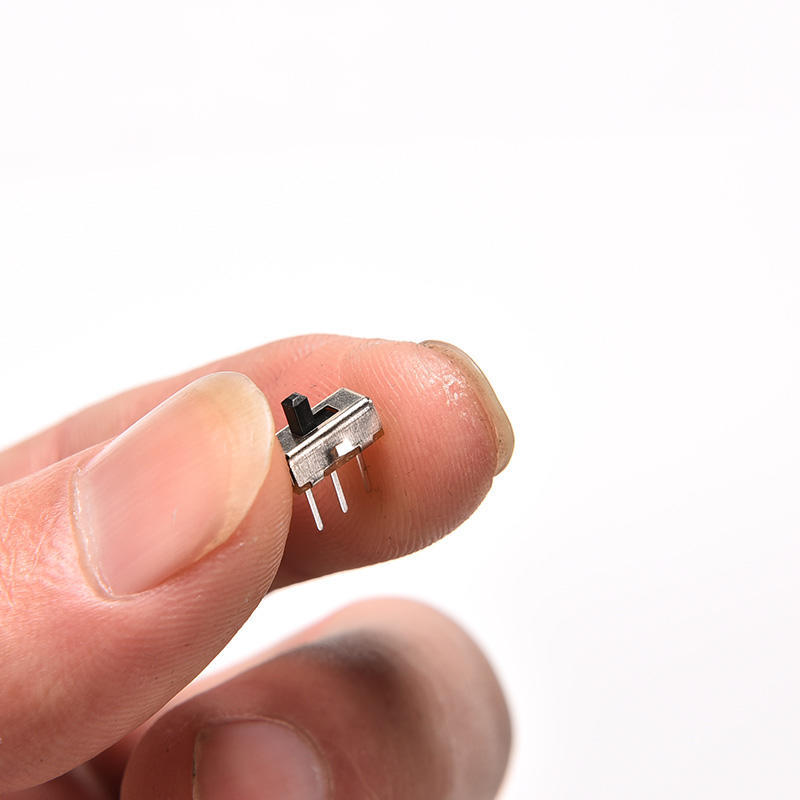

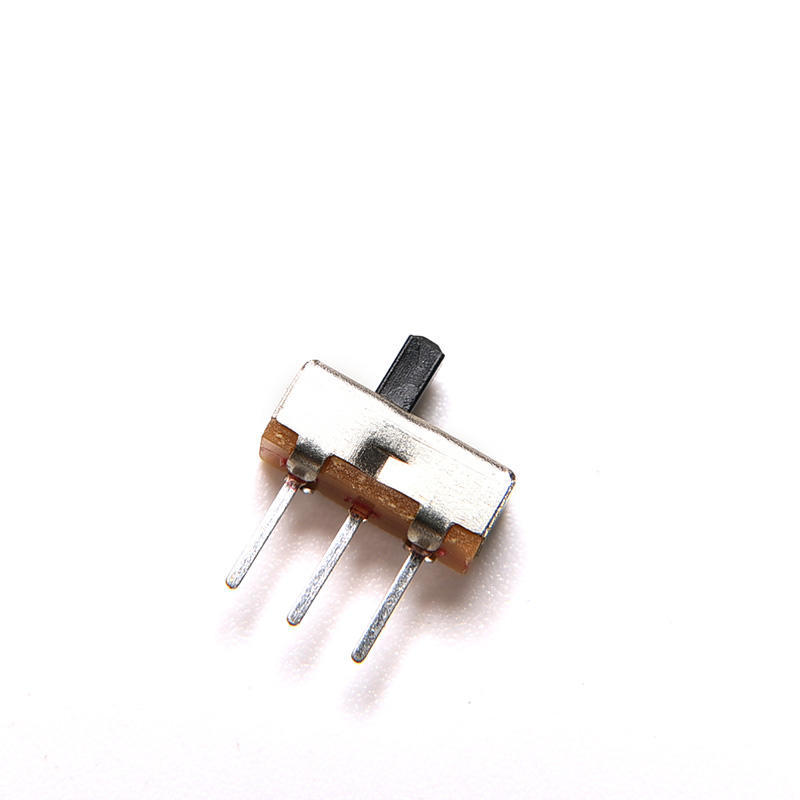

20X Ss12D00G3 2 Position Spdt 1P2T 3 Pin Pcb Panel Vertical Slide Switch

Specification: Specifications: Product Name : Slide Switch Model : SS-12D00G3 Type : 1 Pole 2 Throw Terminal Quantity : 3 Pcs Working Power : 0.5A 50V DC Contact Resistance : 30momega Max Insulation Resistance : 100momega Min at 500V DC Withstand Voltage : AC 500V for 1 min Terminal Length : 3mm/ 0.12" Pin Pitch : 2.54mm / 1" Main Body Size(not include Pins & Knob) : 8 x 4 x 3.8mm/ 0.31" x 0.16" x 0.15"(L*W*H) Switch Total Size : 8 x 4 x 10mm/ 0.31" x 0.16" x 0.39"(L*W*H) Knob Size : 1.5 x 1.5 x 3mm/ 0.06" x 0.06" x 0.12"(L*W*H) Material(External) : Plastic, Metal Main Color : Silver Tone, Black Package Content : 20 Pcs(2) x Slide Switch Description: Features: Easy Structure, Mini Body, 3 Terminal, Vertical Handle, 1 Pole 2 Position, Sliding Knob Actuator. Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc. Also a great component for DIY. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
