Welcome to The Cool Life!
I am a seller in Japan. I ship authentic products from Japan. Please enjoy shopping with peace of mind! You will find great products!
【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

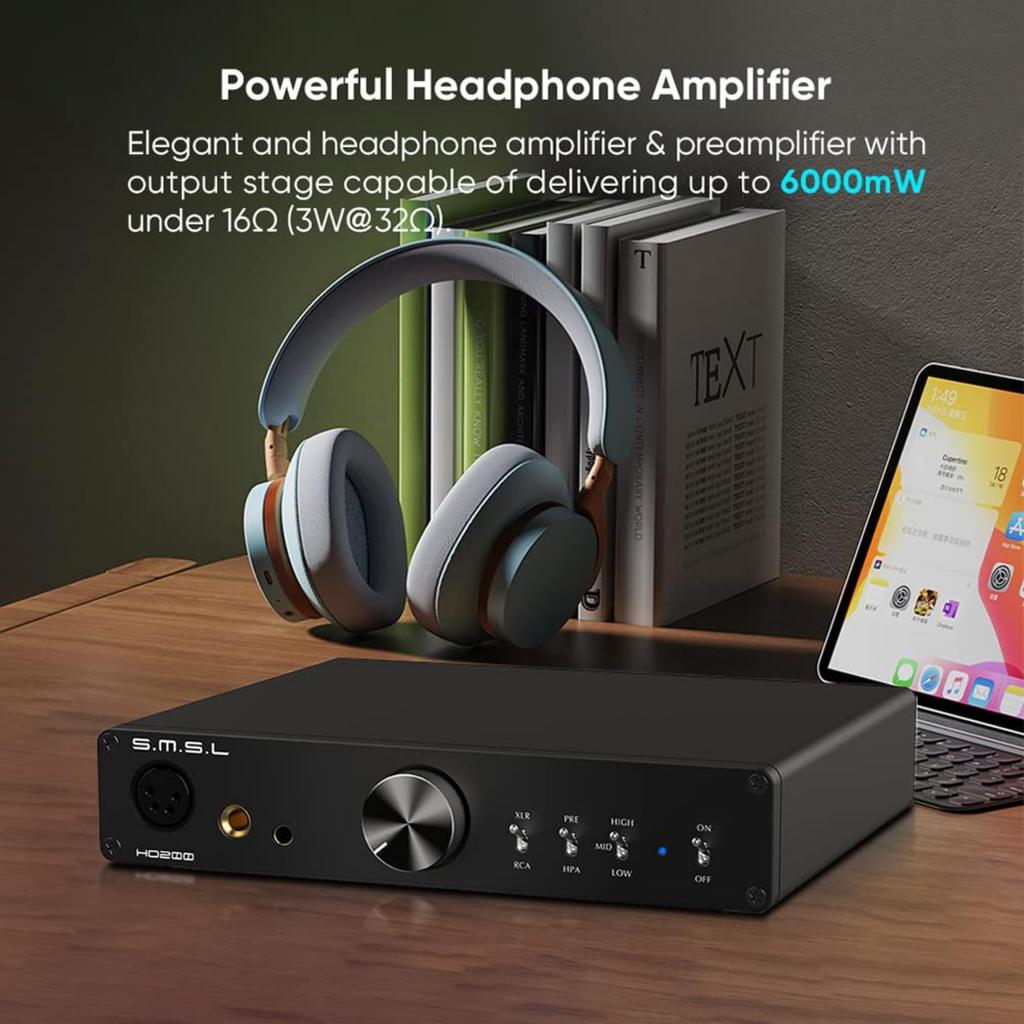

√High power output: SMSL HO200 can not only be used as a headphone amplifier, but also as a high-end preamplifier. Maximum output is 6W at 16Ω and 3W at 32Ω.
√Low Noise Headphone Amplifier: 4 x PLFC ultra-low distortion high precision linear feedback circuit is used. Distortion is as low as 0.00006% and SNR is up to 140dB.

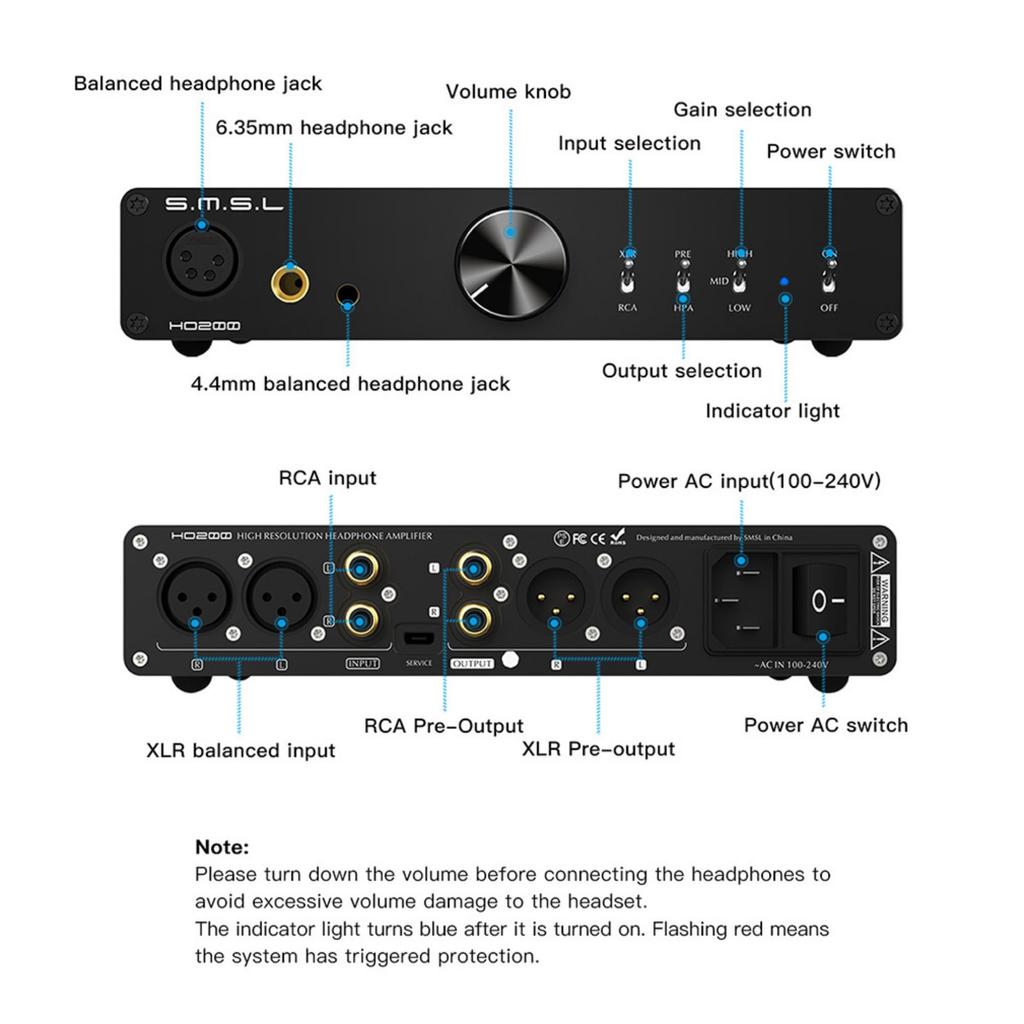

√ Balanced/Single-ended Output: HO200 supports 4-core XLR balanced, 4.4 balanced, and 6.35 single-ended headphone output interfaces respectively to meet your different headphone needs.
√3-stage gain switch: A traditional toggle switch knob is used, and there is a 3-stage gain switch between high, medium and low. More convenient switching gain control with low gain optimized specifically for IEMs!
√Streamlined design: anodizing technology, external aluminum CNC machining shell, excellent workmanship, ultra-compact design, top of the desktop headphone system! Note: The power cable is a 3-pin plug. If a conversion plug is required, please purchase it separately. Or you can pull out the ground pin yourself. We will attach an operation video to the product page. For your reference. If you have any questions during use, please feel free to contact us.

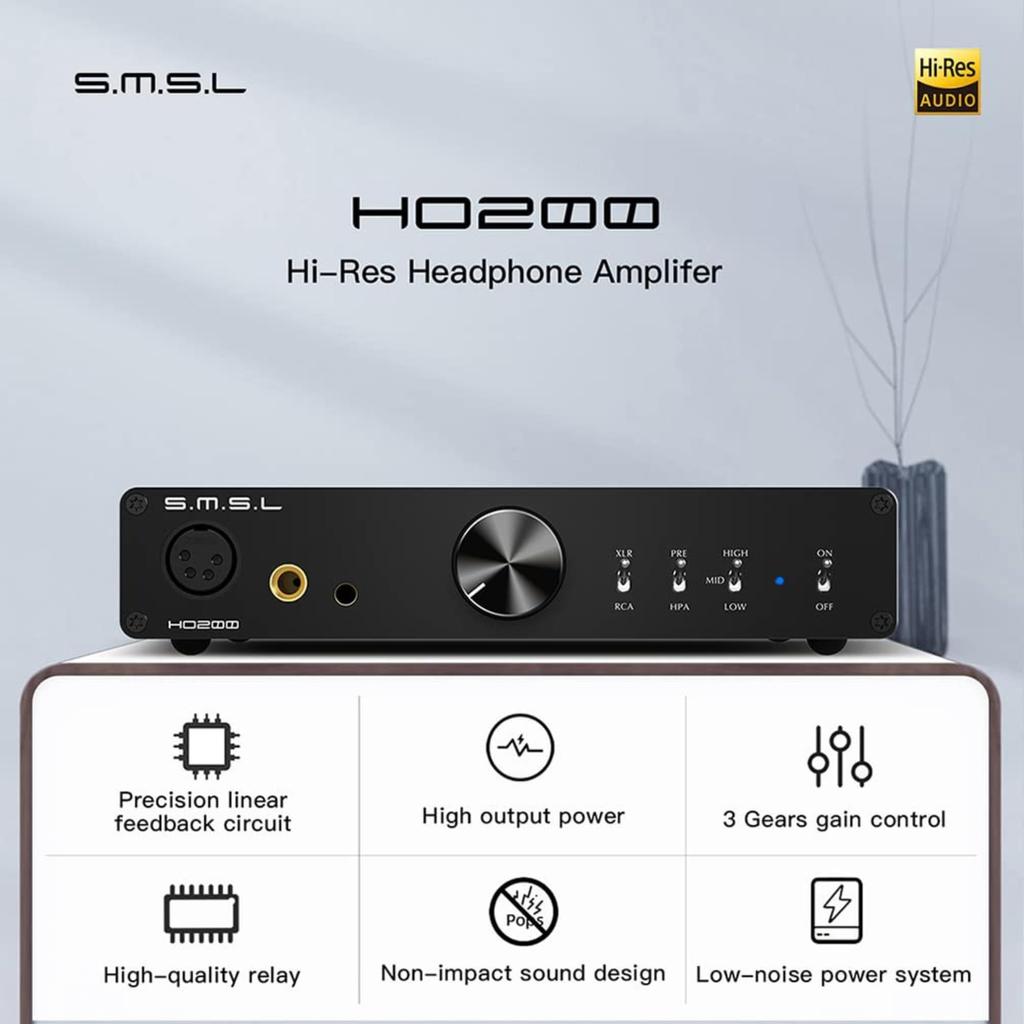

SMSL HO200 Balanced Headphone Amplifier Low Noise Headphone Amplifier Preamp
Product features

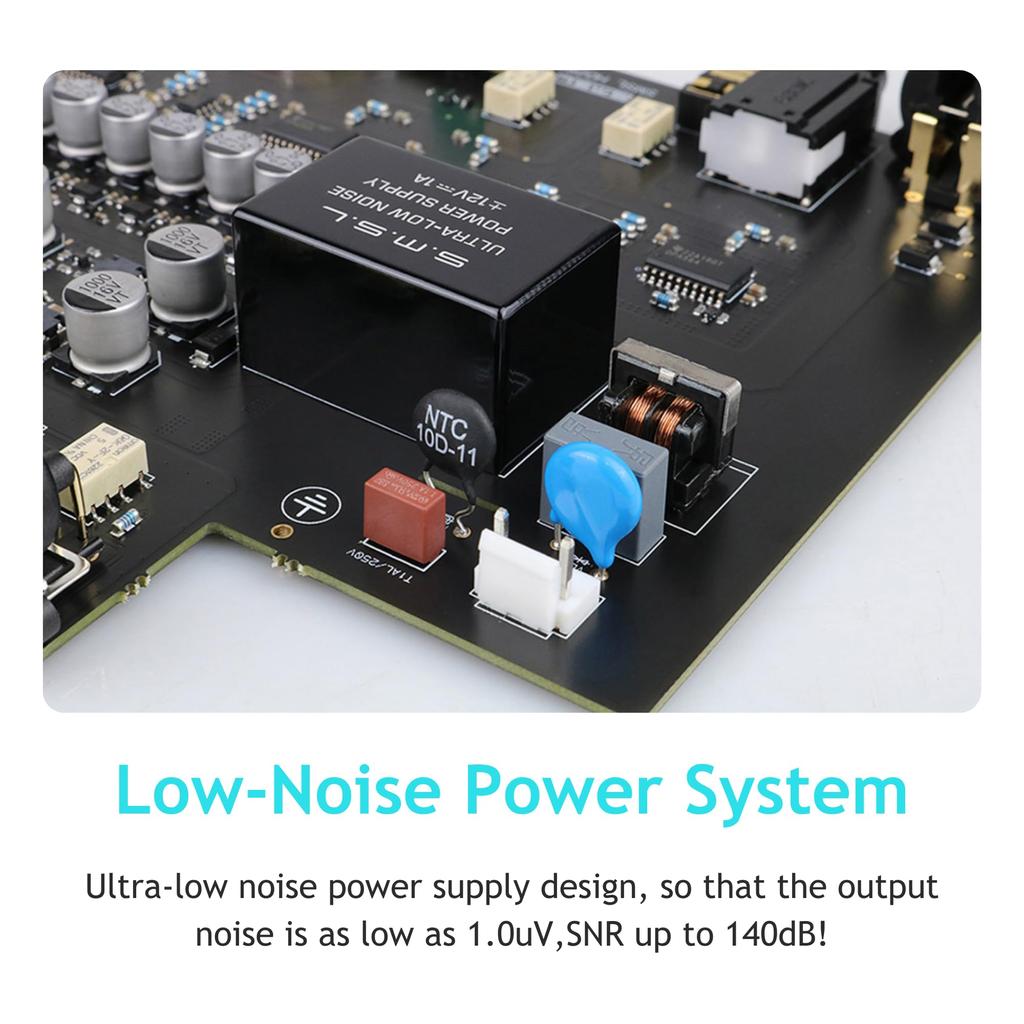

√Ultra low noise power supply design. Output noise is as low as 1.0uV and SNR is up to 140dB.
√Specially designed volume potentiometer greatly reduces channel deviation.
√ High precision low temperature drift resistance, performance is not affected by temperature.
√High quality relay, non-impact sound design, 20Hz and 500Hz frequency response.
√The headphone amplifier has a built-in high efficiency and low noise power system.
√ Fully protect DC, overvoltage, overload protection umbrella, etc.
specification:
Package size: 143x97x38mm
Weight: 1.85KG
Body size: 210 x 170 x 40mm
Weight: 1.23KG
Input: 1*balanced & 1*unbalanced
Headphone output: 1*4.4mm balanced & 1*XLR balanced & 1*6.35mm unbalanced
Pre-output: 1*balanced & 1*unbalanced
Output power: 2*6W (16Ω) & 2*3W (32Ω)
SNR: 140dB
Output noise: 1.0uV
THD+N: -123dB, 0.00006% (1kHz, 32Ω)
THD+N: -120dB, 0.00013% (20-20kHz, 32Ω, -1dB)
THD: ＜ -125dB
Input impedance: 10kΩ
AMP output impedance: around 0Ω
Pre-output impedance: Balanced -44Ω, Unbalanced -22Ω
Frequency response: 20Hz-500kHz (-3dB)
Gain: Balanced - Low (-4dB), Medium (6dB), High (23dB)
Gain: Unbalanced - low (-10dB), medium (0dB), high (17dB)
Power consumption (EN60065): ＜30W
Power consumption in standby mode: ＜ 0.1W
Size: 210*40*170mm (W*H*D)
Weight: 1.23kg
Package list:
1*HO200
1*AC cable
1*Instruction manual
1*Warranty
