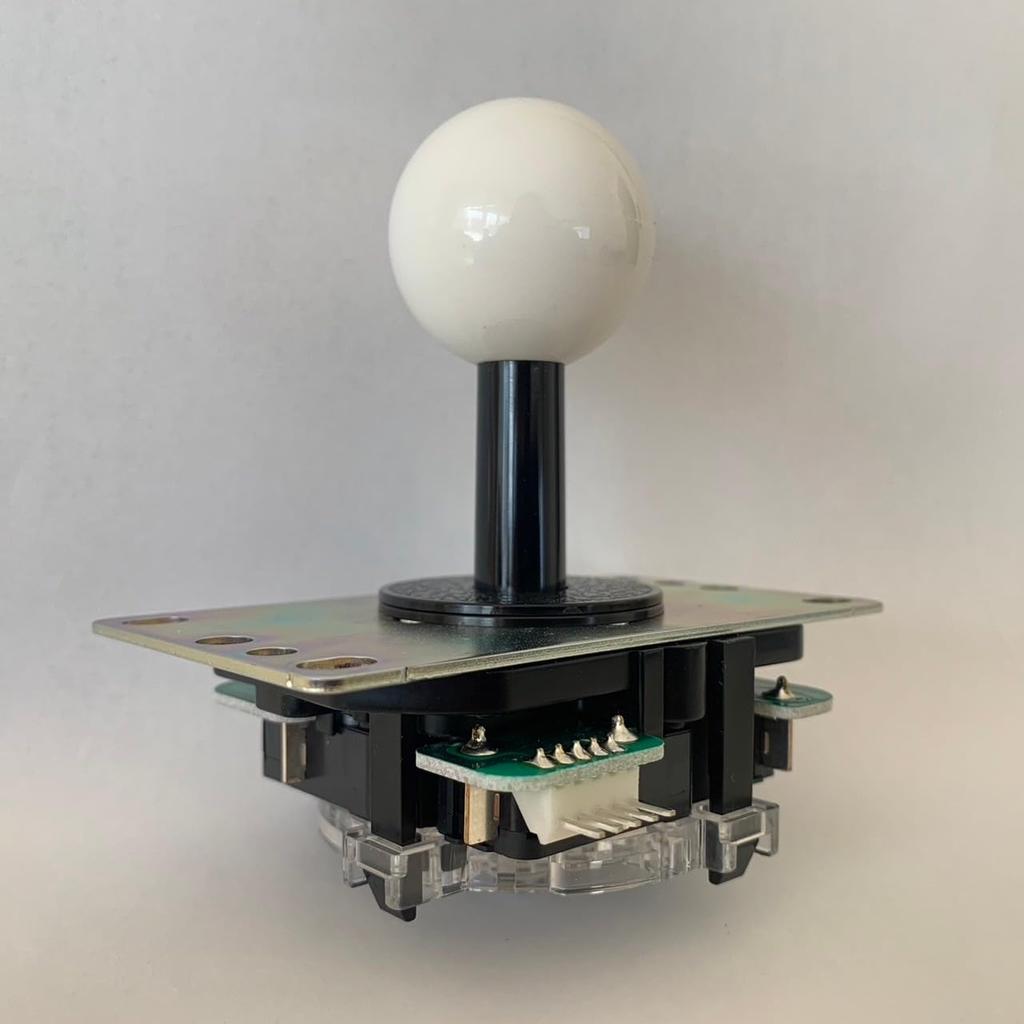

Sanwa Denshi Board Type Joystick Lever White Flat Iron Plate with Shaft Cover JLX-TP-8YT-SK-W

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. This is the successor to the joystick lever, which has the highest rate of adoption by Akebono. Because it is a board-mounted type, wiring is completed just by inserting the connector. Unlike conventional products, it saves you the trouble of inserting each terminal one by one, and there are no wiring mistakes. Since GT-8X is installed as standard, it is possible to switch between 4 and 8 directions by removing the center part and installing it at a different angle, as shown in the 4th photo. In addition, you can select the shape of the guide using the guide tip GTN series (sold separately), and change it to your desired operating feel. *By replacing it with GTN-Y from the GTN series above, it will become equivalent to the 8-sided guide set GT-Y. This product comes with a shaft cover for JLX-TP-8YT-. A lever ball is also included. Installation size 85×40(mm) Tilt angle: +-8.5 degrees
