Feature:
1. CORDLESS MOTOR: Tattoo pen built in cordless motor, strong power, low noise, to provide a high frequency of needling speed, coloring skin damage less, faster coloring, while the machine heat dissipation performance is good.
2. TATTOO PEN: Tattoo pen for most of the tattoo cartridge needles on the market, with an RCA interface for tattoo clip cord, not only for corded operation, but also cordless operation.
3. POWER SUPPLY: 6V, 7V, 8V, 9V, 11V 5 adjustable voltage section to meet the needs of tattoo artists operating different parts of the speed. Standard RCA interface, the closure is tight, not easy to fall.
4. EFFICIENT: Tattoo pen for a long time is not easy to use deformation, rebound frequency, out of the needle stable and powerful, low noise, uniform speed, lasting performance.
5. 1200MAH POWER SUPPLY: Power supply built in 1200mAh high capacity battery, 2 tattoo power supply can be used alternately. Suitable for professional tattoo artists to use, tattoo beginners can also be used to practice.
Specification:
Item Type: Tattoo Pen Power Supply Kits
Material: Aluminum alloy, electronic components
Product Description:
1. Tattoo pen
Needle: used for most of the tattoo cartridge needles on the market
Interface: RCA interface
Tattoo Pen Size:
Length (without needle): Approx. 120mm 4.7in
Diameter: Approx. 34mm 1.3in
Stroke: Approx. 0 x 3.5mm 0 x 0.14in
Out of the Needle Length: Approx. 1-4mm 0.04-0.16in
RPM: 9V 10000RPMmin (drive silicone cartridge needle working speed, non idling speed)
Starting Voltage: 5V
Working Voltage: 4-12V (driving silicone cartridge needle)
2. Tattoo power supply
Interface: RCA interface
Battery: Built in lithium battery 1200mAh
Power Supply Size: Approx. 80 x 26 x 26mm 3.1 x 1 x 1in
Input: DC5V 1A
Output: 6V 7V 8V 9V 11V
Charging Voltage: DC5V1A, TYPE C charging port
Characteristics: Input and output double charge and discharge protection (battery comes with overcharge and overdischarge protection, control board with short circuit overcharge and overdischarge protection for more safety)
Charging Time: 2 hours (charging with a charger higher than 5V is strictly prohibited)
Endurance: 8V voltage for 8 hours of continuous use
Power Operation Instructions:
1. Long press the power button for 2 seconds to switch on and off.
2. Tap the power button 6V, 7V, 8V, 9V, 11V cycle, while the indicator increases with.
3. Each time the power on the default 10V strong start, 0.2 seconds to restore the display of the last used voltage memory.
4. button more than 2 seconds without use, automatically jump to the batterycapacity display, while the indicator is in the breathing flashing state,
Indicator lights 1-5 represent 20percent -100percent power. Tap the power button to automatically return to adjust the voltage state.
5. When charging, the indicator light flashes to show the charging status, full indication of long light, while entering the overshoot protection.
6. The battery inside the charging current limit, the battery capacity of 1200MAH, more than 1A charger 3.5 hours to fill, 8V voltage output can be used continuously for about 8 hours (the voltage of the tattoo used is not the same, the use of time will be different, 8 hours is the theoretical value).
7. This product is mainly suitable for rotary tattoo machine, please do not use for coil tattoo machine.
8. This product does not support the use of while charging.
9. If a short circuit protection during use, just plug in the charger charging will automatically activate.
Tattoo Pen Set Instructions:
Corded Operation: The tattoo machine will be installed on the needle, connect the RCA clip cord and power supply, foot pedal, start the power supply, adjust the voltage can be operated.
Cordless Operation: The tattoo machine will be connected to the RCA interface cordless tattoo power supply, adjust the appropriate voltage, you can operate.
.

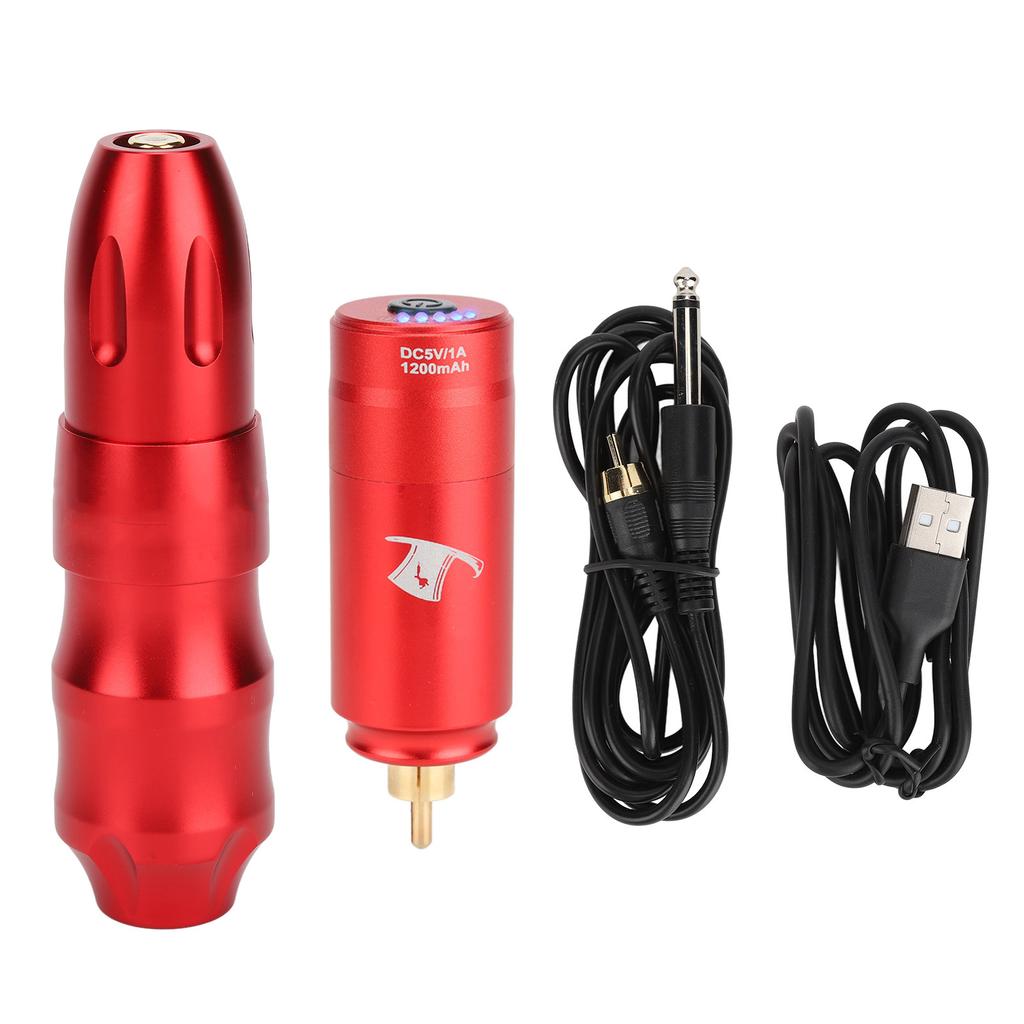

Package List:
1 x Tattoo Pen1 x RCA Tattoo Clip Cord1 x Tattoo Power Supply1 x USB Charging Cable
