6x ATV Motorcycle Relay Wire Harness 12V 4 Pin SPST 30A Fuse Holder 14AWG Cable

12V Fuse Relay Switch Harness Set - 30A ATO/ATC Blade Fuse, 4-Pin SPST Automotive Electrical Relays with Heavy Duty 14 AWG Wires - 6 Pack Features: 12V 4 Prong Relays with 4 Prong Sockets wires 30A high switching capability Coil Voltage: 12V DC Harness: 14AWG

APPLICATIONS This relay can be used in automotive setups, car sound systems, security systems, and various other applications.

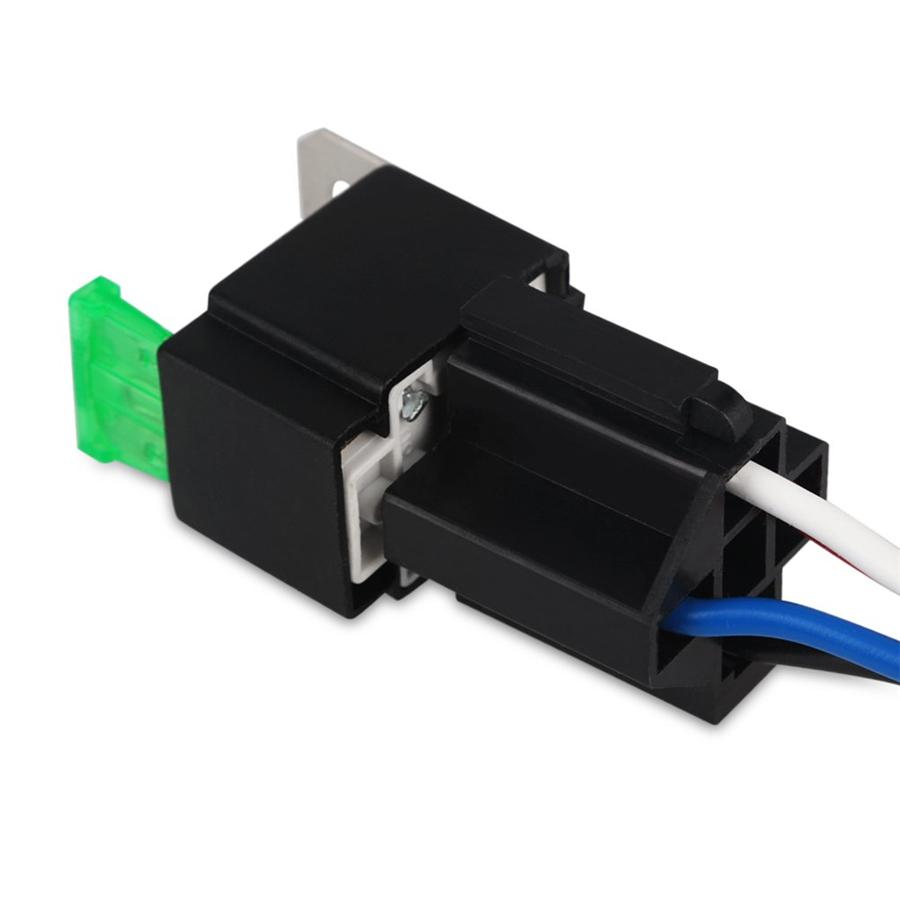

1.Upgraded Version - Automotive relays built in fuse socket with included 30A blade fuse, no need of a separate fuse holder, saving space and money. Heavy duty 14AWG wires for main contact

2.Easy Wiring - The relay sockets come with color-labeled wires for loads/accessories convenient wiring. Black - Ground (85), Red - VDC (30), White - Trigger (86), Blue - Output N/O (87)

3.Neat Mounting Design - The interlocking design of unique male-female slot on each socket edge, easy to connect all relays together, offering clean and neat installation

4.Good Construction - 12V DC (Max@14V DC) and 30A High Switching Capability. Bosch style 4-Pin SPST (Single Pole Single Throw) Relay. Metal mounting bracket on the electrical relay promotes easy installation

5.Wide Application - Wide range of use, greatly used for car lights, fog lamps, wiper, starter, fans, speakers, traction control systems, etc

Instruction of Relays and Harness Sockets: -85: Connected to the ground chassis. Serves as the common ground connection to activate and magnetize the internal coil.

-86: Connected to a positive 12V DC input. This is where a switch connected to 12V DC input will be connected to on the relay.

When power is sent to the relay through pin 86, the circuit is completed with pin 85 connected to a common ground, which activates and magnetizes the internal coil.

-87: Normally open contact, also known as NO.The connection between pin 87 and pin 30 is only made when the internal coil is activated or magnetized.

-30: Common contact which can be connected to a 12V DC power input or to the ground chassis depending on the desired application.

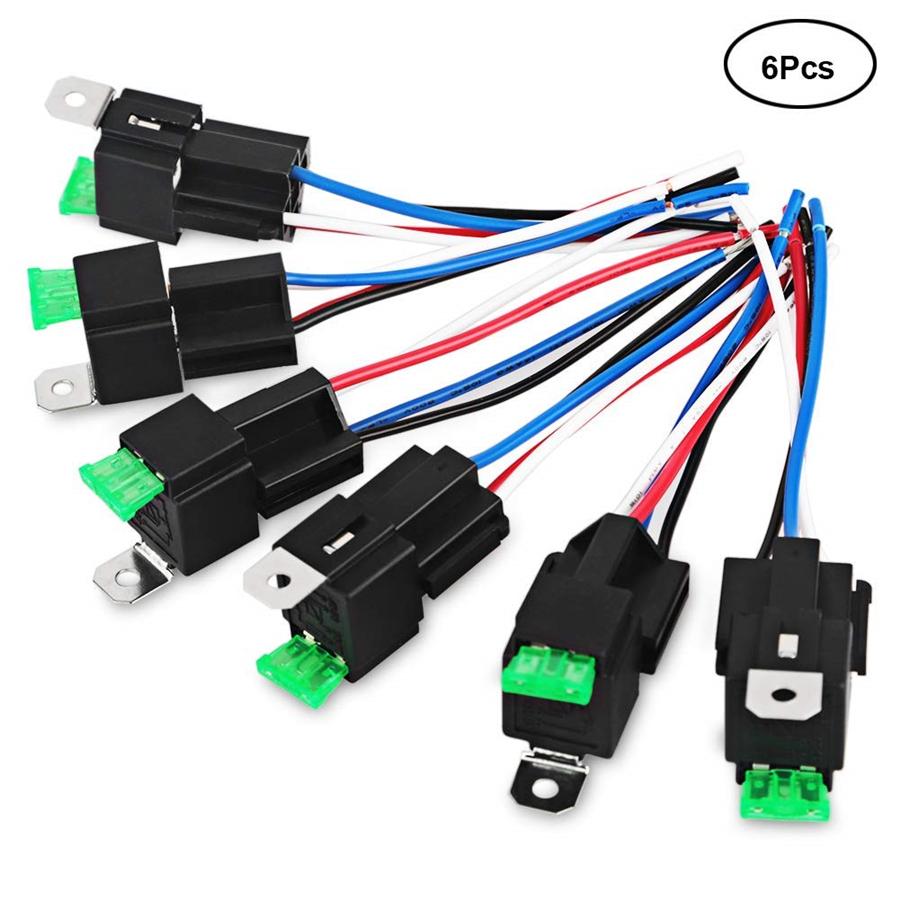

Product Content: 6 * Relays 6 * Relay Harnesses 6 * Blade Fuses
