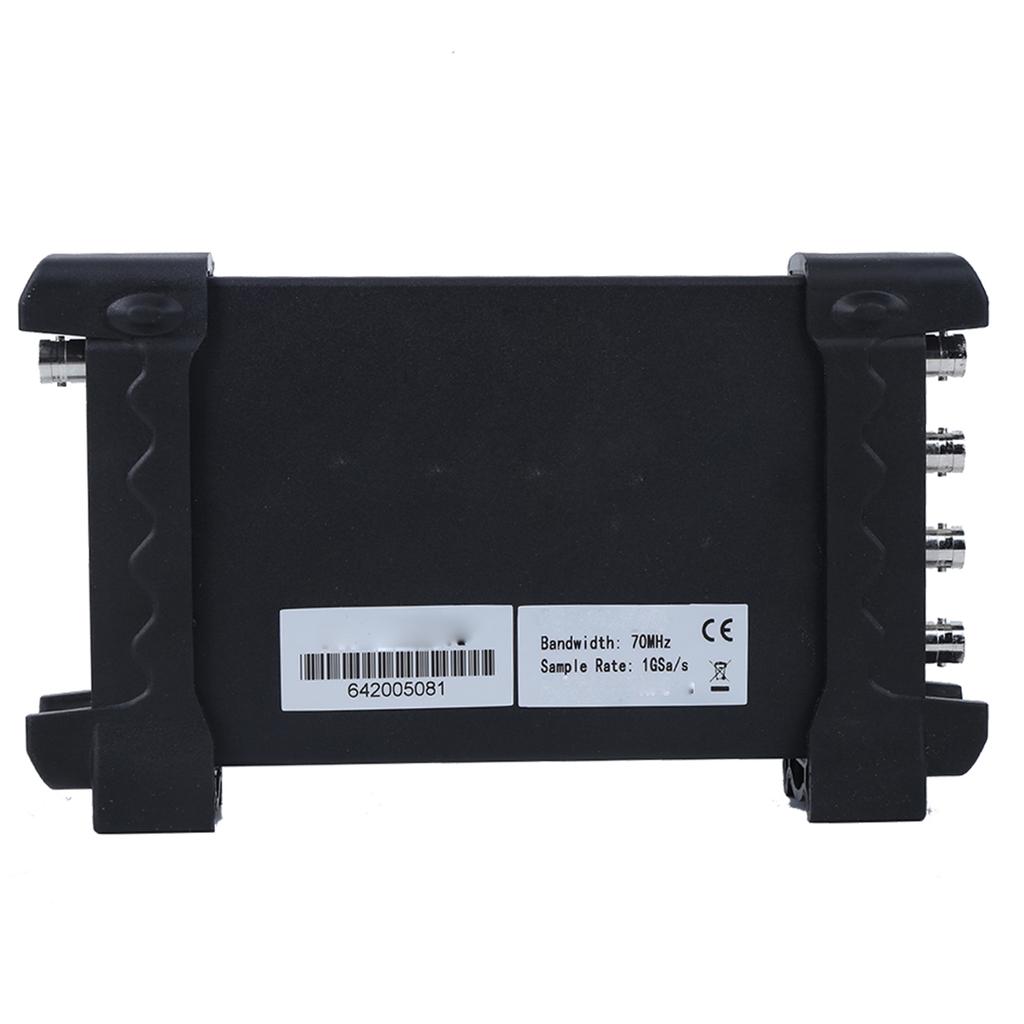

6074BD 4 Channels 70MHz Bandwidth 1GSa S Real Time Sampling Digital Storage Oscilloscope

Features: 4CH oscilloscope & function arbitrary waveform generator. The performance of this model could be even better than the performance of bench top oscilloscope. It has 4 independent analog channels, 1GSa s real time sampling rate, 2mV 10V DIV input sensitivity, and 70MHz 100MHz 200MHz 250MHz bandwidth. Pass fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to bench top oscilloscope, easy to operate with high cost performance. USB2.0 Interface, plug and play device. Good mechanical design with small size which is easy for carrying. The outer case is made by the anodized aluminum. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminum alloy surface is greatly improved. Fit for the portable computers, table PC, and repairing fixing of production line. Suitable for business trip use. Software support: for Windows10, for Windows 8, for Windows 7. The waveform data could be output to EXCEL, BMP, JPG as time and voltage category. More than 20 kinds of automatic measurement function, PASS FAIL Check function, fit for engineering application. Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X Y display. FFT spectrum analyzer. One computer could connect with multiple oscilloscopes, expand the channel number easily. USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument. Provide secondary development library. Specifications: Oscilloscope Model 6074BD Bandwidth 70MHz Channel 4CH Real time Sampling Rate 1GSa s Memory Depth 64K Time Base Precision + 50ppm Time Base Range 2ns div 1000s div (1 2 4 sequences) Input Impedance 1M Ohm 25pF Input Sensitivity 2mV div 10V div Vertical Resolution 8Bit Vertical Displacement Range 2mV 10V div @ x1 probe; 20mV 100V div @ x10 probe 200mV 1000V div @ x100 probe; 2V 10000V div @ x1000 probe DC Gain Accuracy + 3percent Bandwidth 20MHz Trigger Mode Edge, Pulse, Video, Alternative Trigger Source CH1, CH2, CH3,CH4 Waveform Signal Process +, ,x, ,FFT, Invert Cursors Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Arbitrary Waveform Generator Mode Waveform Frequency DC 25MHz DAC 2K 200MHz adjustable Frequency Resolution 0.10percent Channel 1CH waveform output Waveform Depth 2KSa Vertical Resolution 12 bit Frequency Stability <30ppm Wave Amplitude + 3.5V Maximum Output Impedance 50 Ohm Output Current 50mA, Ipeak=50mA System BW 25M Harmonic Distortion

50dBc(1KHz), 40dBc(10KHz) General Features Volume 175mm * 105mm * 25mm Weight 1kg

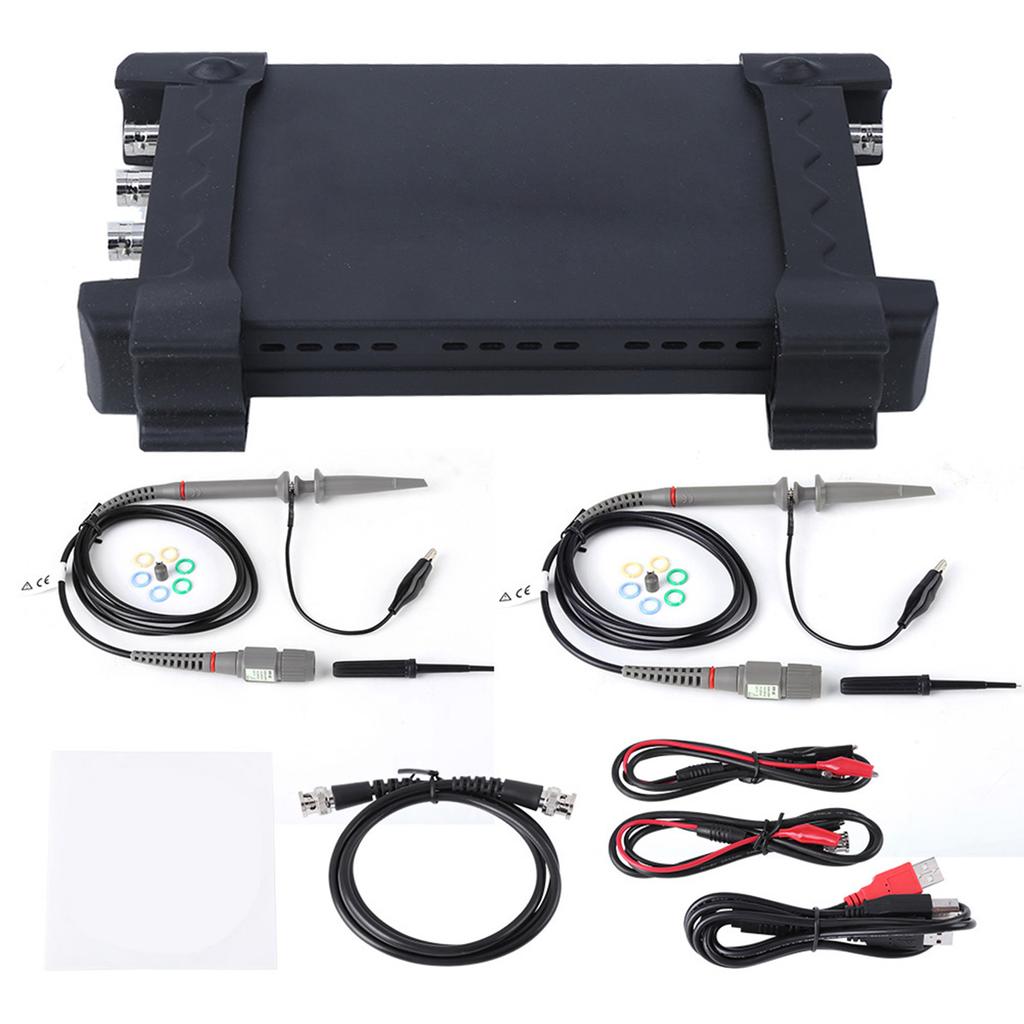

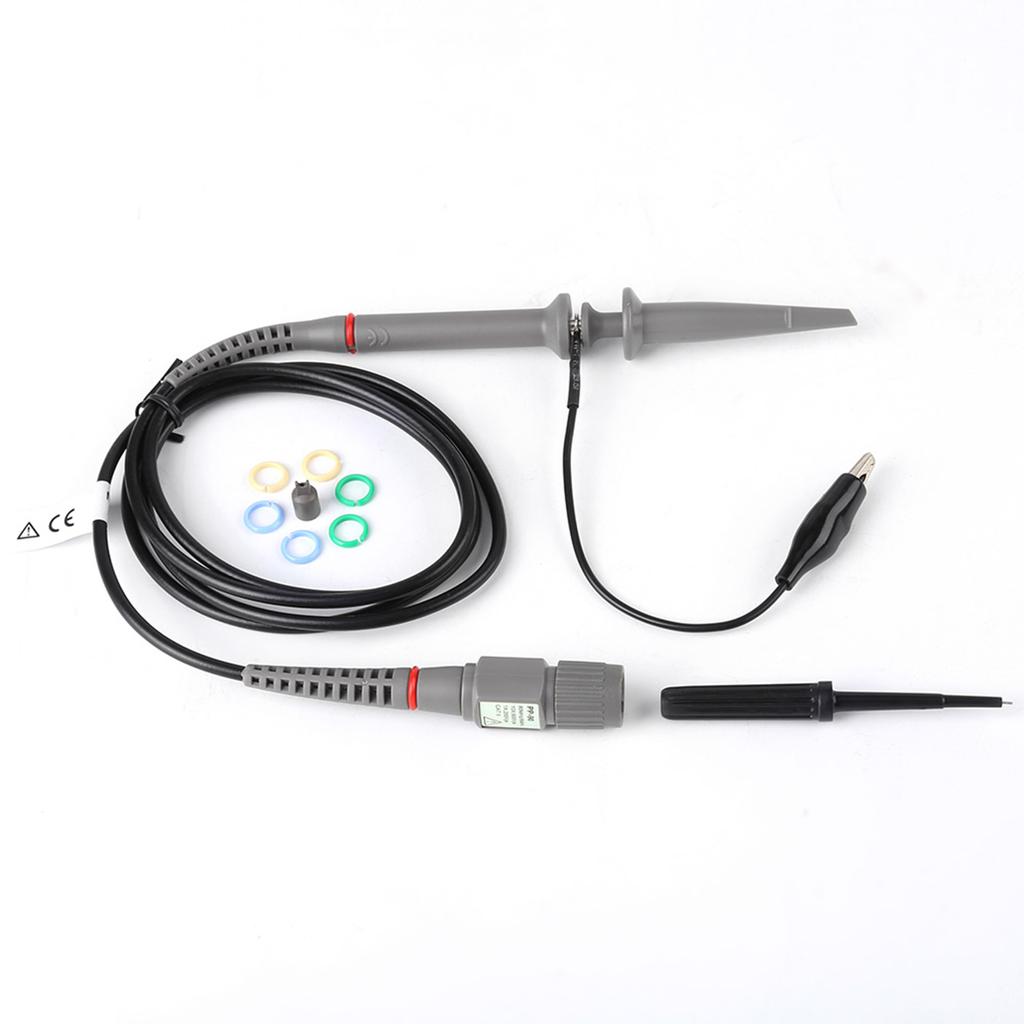

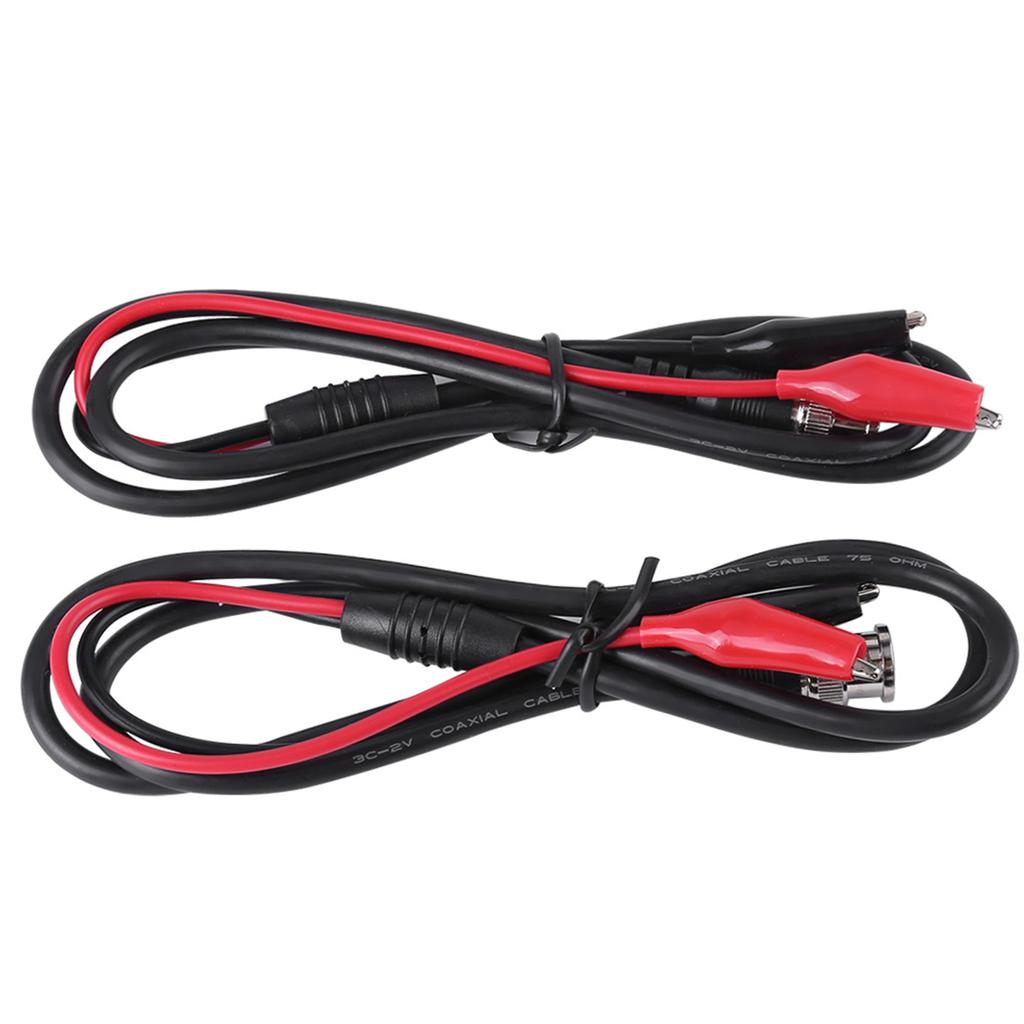

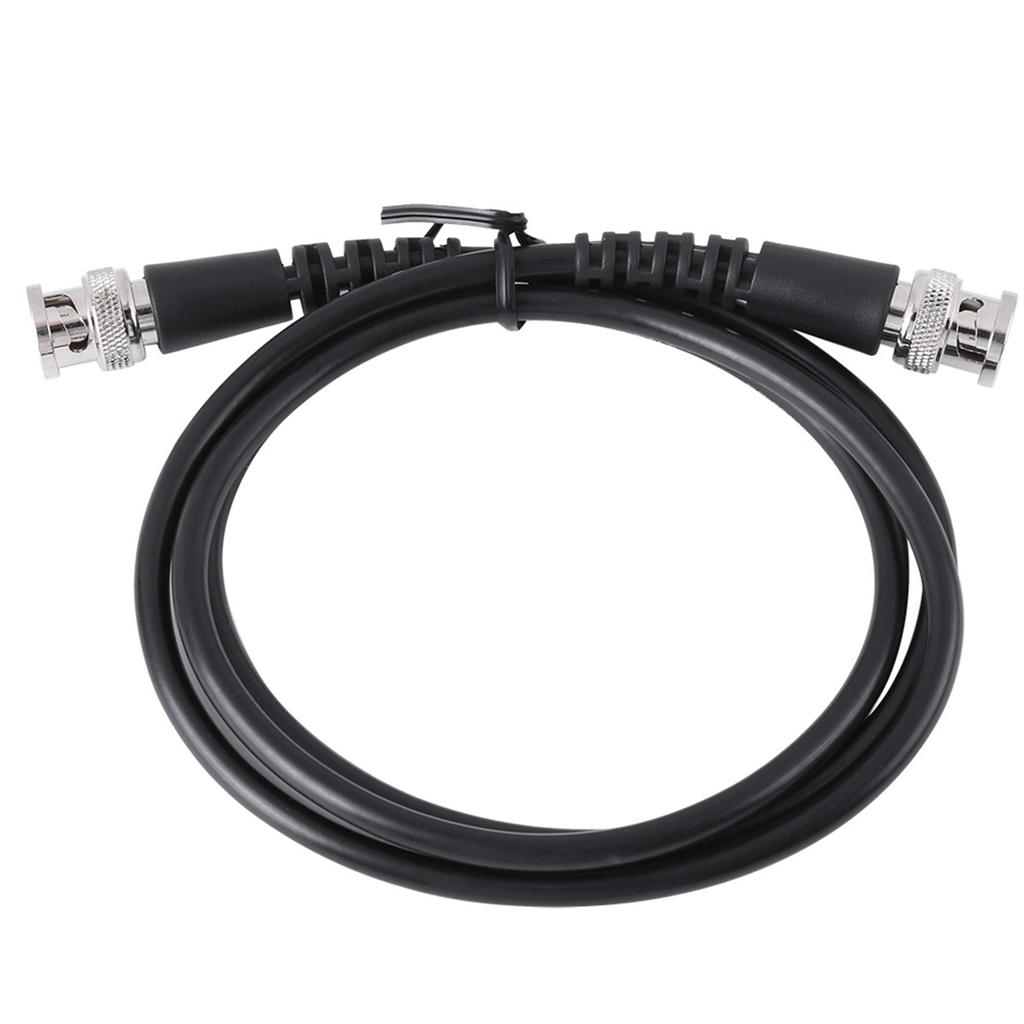

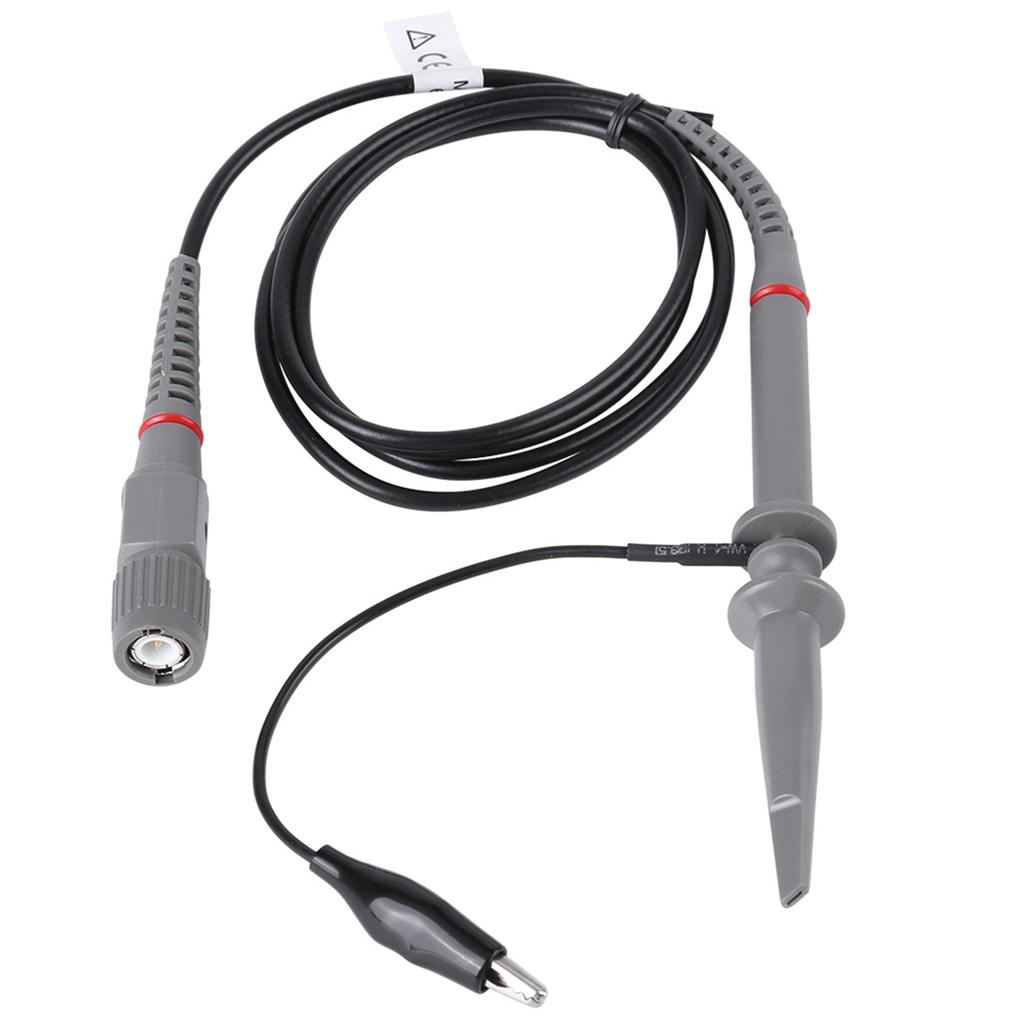

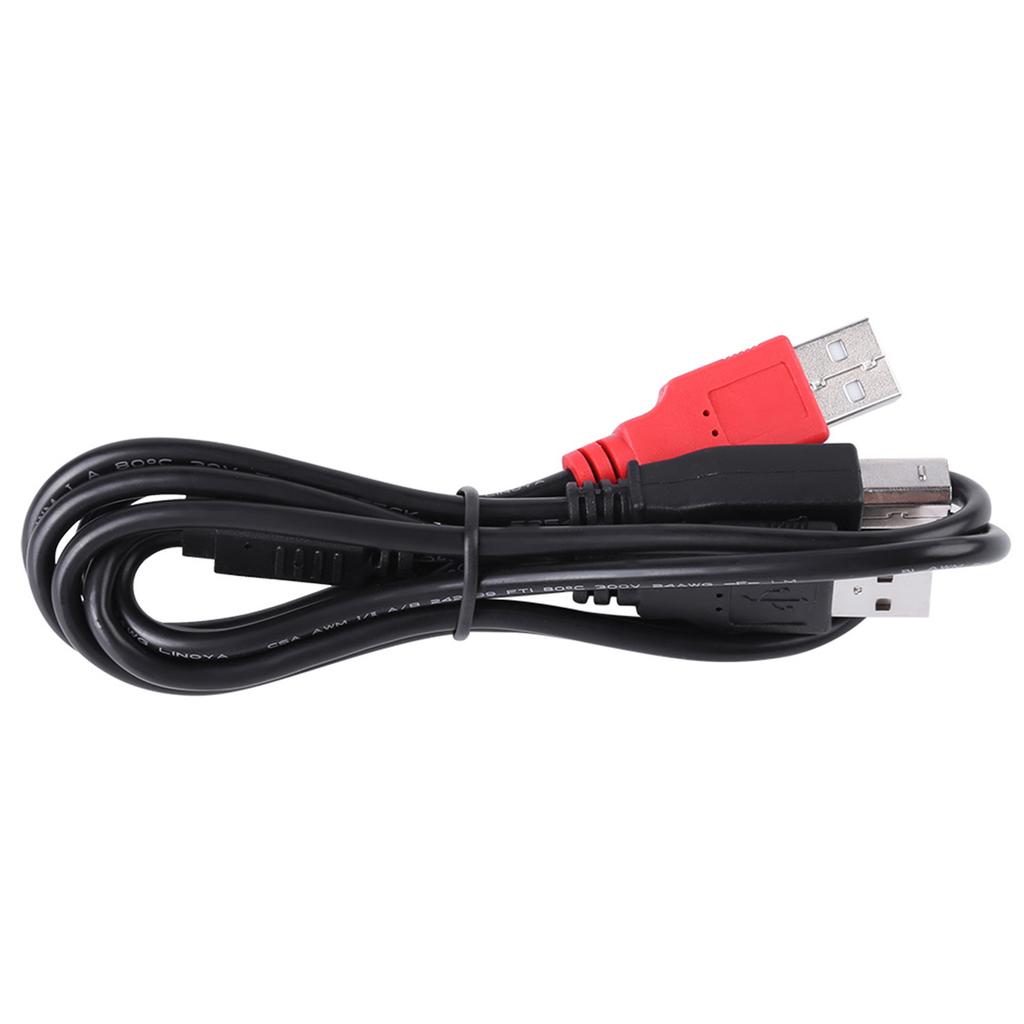

Package Included: 1 x 6074BD oscilloscope 2 x oscilloscope probes 2 x Crocodile probes cable 1x BNC to BNC 1 x USB cable 1 x CD 12 x color circles 2 x probe caps Note:

.
