Feature:

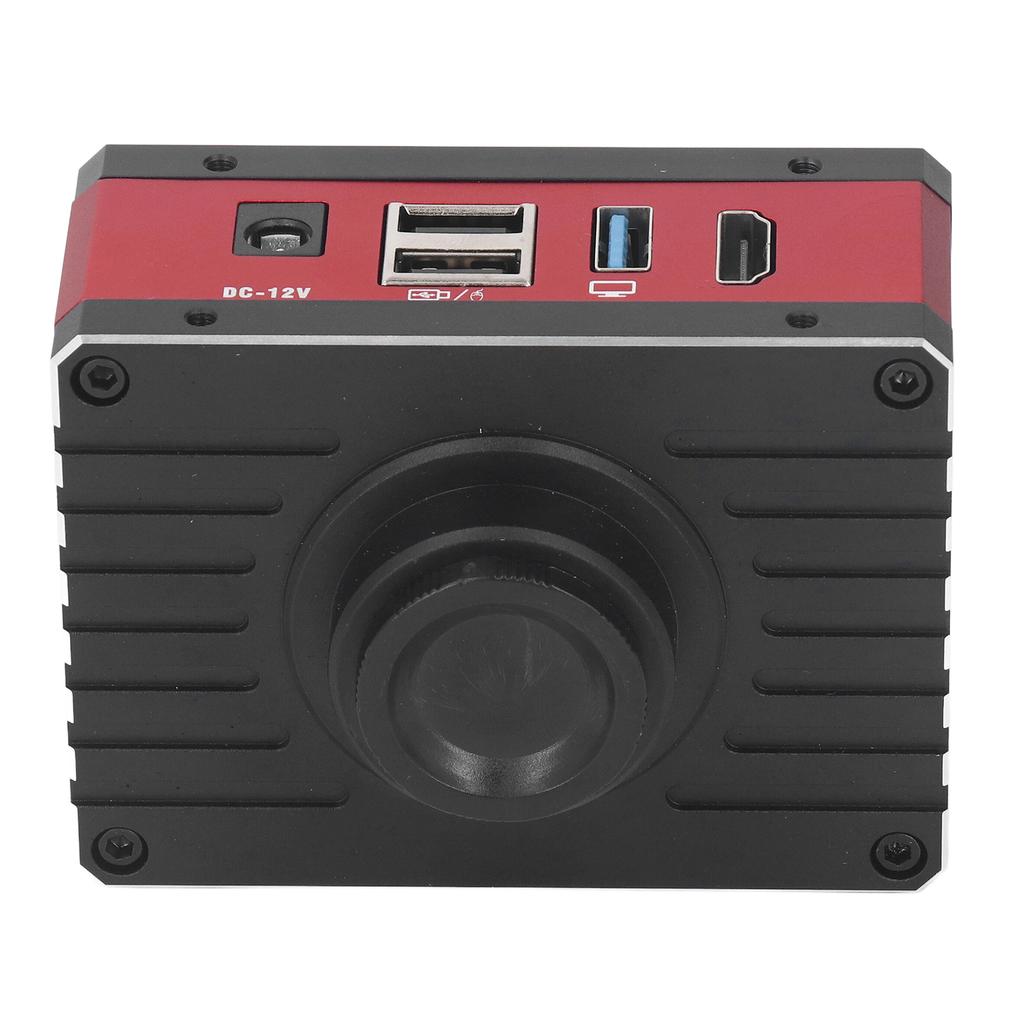

1. HD 4K: This industrial microscope camera uses the for IMX415 HD high sensitivity CMOS smart chip with high definition multimedia interface 3840 x 2160at30FPS for powerful image quality. 3.75UM x 3.75UM image size and support for real time viewing with monitor and PC connection.
2. Display Interface: The industrial microscope camera uses high definition multimedia interface for real time output connected to a high definition multimedia interface display (32 sets of grid lines built in) for real time measurement, photo and video recording, export of measurement data to a USB stick, image comparison and other functions via the embedded measurement system.
3. 3840*2160P High Resolution: This industrial microscope camera adopts high definition multimedia interface and UVC simultaneous output, high definition multimedia interface 4K model real time output, without computer host, can be connected to HD monitor, support accuracy measurement, photo and video, storage and other functions.
4. 8MP Chip Effective Pixels: This industrial microscope camera has 8 million chip effective pixels to resolve the image, using high definition multimedia interface, 4K models with 4K screen effect is better, compatible with the market with high definition multimedia interface monitor.
5. Connector Compatibility: Industrial microscope cameras support for Olympus microscopes, ortho mounted metallurgical microscopes, inverted metallurgical microscopes, biological microscopes, trinocular stereo microscopes, electron microscopes, etc.
Specification:
Item Type: Industrial Microscope Camera
Material: Aluminium alloy
Model: B334K
Sensor: 1 1.8inch IMX415 Smart Chip
Effective Pixels: 8MP
Resolution: 3840 x 2160 at30FPS
Output Interface: High definition multimedia interface and UVC simultaneous output
Storage Type: USB stick (not included)
Operating Voltage: DC12V 1A
Plug: US Plug 100240V
Mouse Battery: 1 x 1.5V AA alkaline battery 200mah (included)
Basic Functions: Photo, video recording, measurement, storage of exported measurement data tables
Picture Quality Adjustment: Brightness, contrast, saturation tone, sharpness, exposure, white balance, RGB adjustable
Special Functions: mirroring, screen freeze, horizontal flip, HDR wide dynamic, electronic zoom inout
Marking Lines: Horizontal, vertical and central lines with customizable colour, thickness and position.
Package List:
1 x
Industrial Microscope Camera1 x Power Adapter 1 x High Definition Multimedia Interface Cable 1 x Dual Head USB Cable1 x MouseHD 4K: This industrial microscope camera uses the for IMX415 HD high sensitivity CMOS smart chip with high definition multimedia interface 3840 x 2160at30FPS for powerful image quality. 3.75UM x 3.75UM image size and support for real time viewing with mo
Display Interface: The industrial microscope camera uses high definition multimedia interface for real time output connected to a high definition multimedia interface display (32 sets of grid lines built in) for real time measurement, photo and video rec
3840*2160P High Resolution: This industrial microscope camera adopts high definition multimedia interface and UVC simultaneous output, high definition multimedia interface 4K model real time output, without computer host, can be connected to HD monitor,
8MP Chip Effective Pixels: This industrial microscope camera has 8 million chip effective pixels to resolve the image, using high definition multimedia interface, 4K models with 4K screen effect is better, compatible with the market with high definition
Connector Compatibility: Industrial microscope cameras support for Olympus microscopes, ortho mounted metallurgical microscopes, inverted metallurgical microscopes, biological microscopes, trinocular stereo microscopes, electron microscopes, etc.
