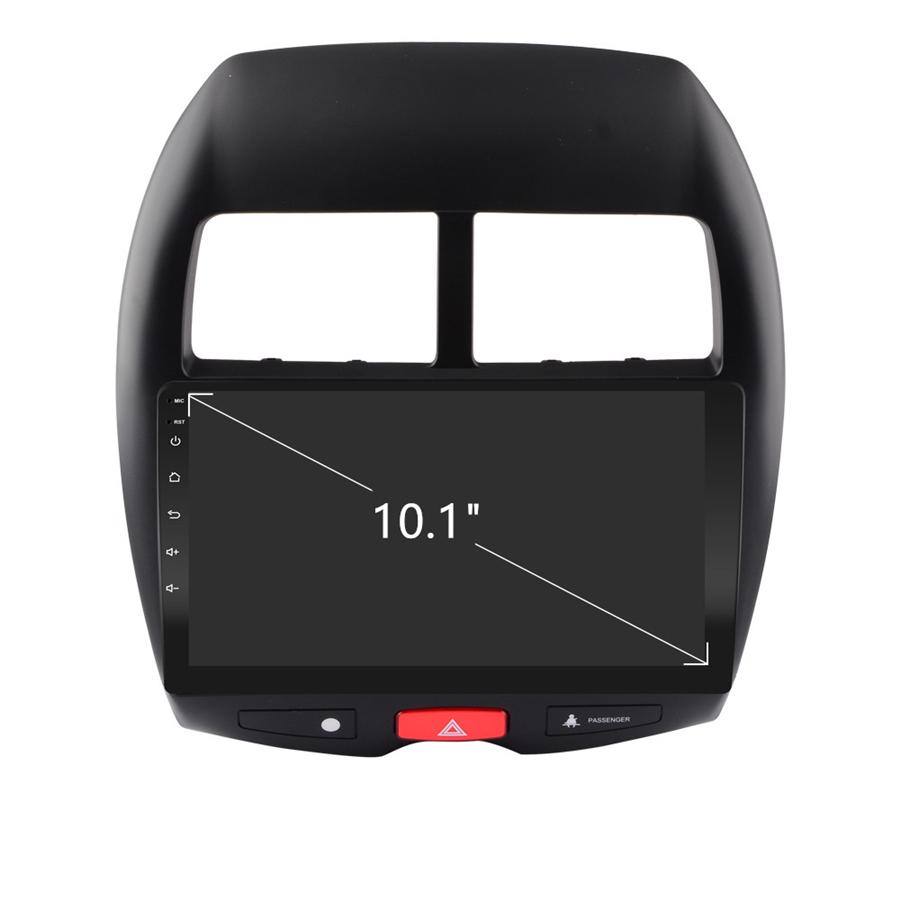

For Mitsubishi ASX 2010-2017 Android 10.1 Stereo Radio GPS DAB Mirror Link OBD

Notice：

1.Airbag Alarm Due to different line positions, very few models appears incorrect airbag warning lights on the dashboard after installation. we found a solution to the problem: when installing the gps navigation, connect a series resistance between the two wires of the original emergency light plug (see wiring diaram) need to connect to the red and blue wires.2.Rockford am- plifier If your car has original rockford am-plifier, please contact us to buy the power cable with canbus box(25$)

Specifications

General

- Power Supply: DC 12V (allowance range: 10.8-14.5V) - Max. Current: 10A - Screen Size: 10.1 inch- Front panel Size: As picture show

Fitment

-  For Mitsubishi ASX 2010-2017

System

- Operation System: Android 10.1 - CPU: Quad Core - GPU: Quad Core- ROM: 16GB- RAM: 1GB - Extended USB: Support USB Disk up to 32GB

Display

- Touch Screen: Yes - Resolution: 1024*600 - Capacitive or Resistance Screen: Capacitive - Built-in Clock and Calendar: Yes, show real time and can use network-provided time - Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week - Change Apps-Icon Position: Yes- Picture in picture split screen:Yes

WiFi/3G/4G

- Connector: On the Back - WiFi: Built-in WiFi Modem, support 802.11b/g/n - Supports 4G & 3G Internet (4G Dongle and 3G Dongle are not included)

Internet

- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection - Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat - Online Navigation: Online Google Maps Navigating - Online Games: Yes, online play or you can download it from google play store - Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc. - Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

Audio

- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list - Record: MP3, WMA - Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect - Audio IC: Top Global Cirrus IC, independent audio decoding - SNR: Noise rations:=90dB

Video

- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading) - Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot

GPS

- Operation System: Android 10.1 - Support Maps: IGO, Sygic, Google Map etc. - Voice Guidance: Yes - Support 2D/3D Map Views: Yes - Dual Zone: Yes, navigating while music playing - Online Navi: Yes, support google maps online navigating

Bluetooth

- Hands Free: Yes - A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth - Bluetooth Music Control: Yes, play/pause/previous/next - PB-Download: Yes, can download phonebook from mobile to this unit - PB-Search: Yes, can use the first letter to search contact member in PB-Listings - Calling Records: Yes, Dialed Call, Received Call, Missed Call - Setup: Auto Answer, Auto connect, Device name- Built-in Microphone: Yes, on the front panel- External Microphone Jack: Yes on the RCA cable

Radio

- FM Tuning Range: 87.5-108MHz - FM Increment: 0.05MHz(EU)/0.1MHz(US) - FM Area: Europe/USA1/USA2/Japan/Russia- RDS:Yes

USB

- Position: 2 USB Port, can be connected with Media/Camera/DAB+ Box/Smartphone - Play MP5 Videos: Yes, can play RMVB Videos up to 1080P - Touch Music Title to play directly: Yes

DVR

- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function - Support HD CCD Camera: Yes - Play recorded Video directly: Yes - Storing Position: Nand Flash/GPS Card/SD Card/USB Storage can be changed

DAB(+)-IN

- Support（DAB+ BOX NEED TO BUY SEPARATELY）

DTV-IN

- Built-in Digital TV Tuner: No - External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box - Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function - Touch Control the TV Box on unit: Yes, you can connect our TV Box to achieve this function

Additional

- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music - Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels - Wallpapers: 5 live wallpapers, 17 standard wallpapers, support DIY wallpaper from Gallery - APK Installer: Support Android Package installer - Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function - Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone - Support TPMS: YES (Not Included)

Setup

- WiFi/Hotspot/Bluetooth: Yes - Brightness level adjustable: Yes - Wallpaper: Wallpapers/Live Wallpapers/Gallery - Sound: Key Tone & Volume - Storage: Display Internal Storage/Nand Flash/Connected Device Storage - Apps: Running Apps display/force stop/uninstall - Security: Yes - Accounts: Yes - Languages and Input: more than 70 Languages and choose input method - Backup and Reset: Yes - Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time - Accessibility: Yes - GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio - Driving safety: Watching Video, Reversing X-mirror/Volume, Reversing Trajectory/radar Display, Rear view ruler - Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom - Steering Wheel Control: Yes - About Device: Display Parameter Info.

Input

- AUX Video In - Rear-View Camera Video In - DTV Box In - DAB+ Box In - Car DVR In - GPS Antenna In

Output

- Video Out - Audio Out: LF, LR, RR, RF - Surround Stereo Out: 4*45W

Accessories

-1 x Car Radio Stereo -1 x GPS Cable-2 x USB Cable -1 x Original Power Cable-1 x RCA Cable-1 x Camera Input Cable
