HR-10 2280 PRO Solid State Drive Cooler 4 Heat Pipe Vest For PCI-E5.0 with Dual 3010 4PIN PWM Fan M.2 2280 SSD Cooling Heat Sink Compact SSD Heat Sink Radiator Heatsink Vest
Feature:

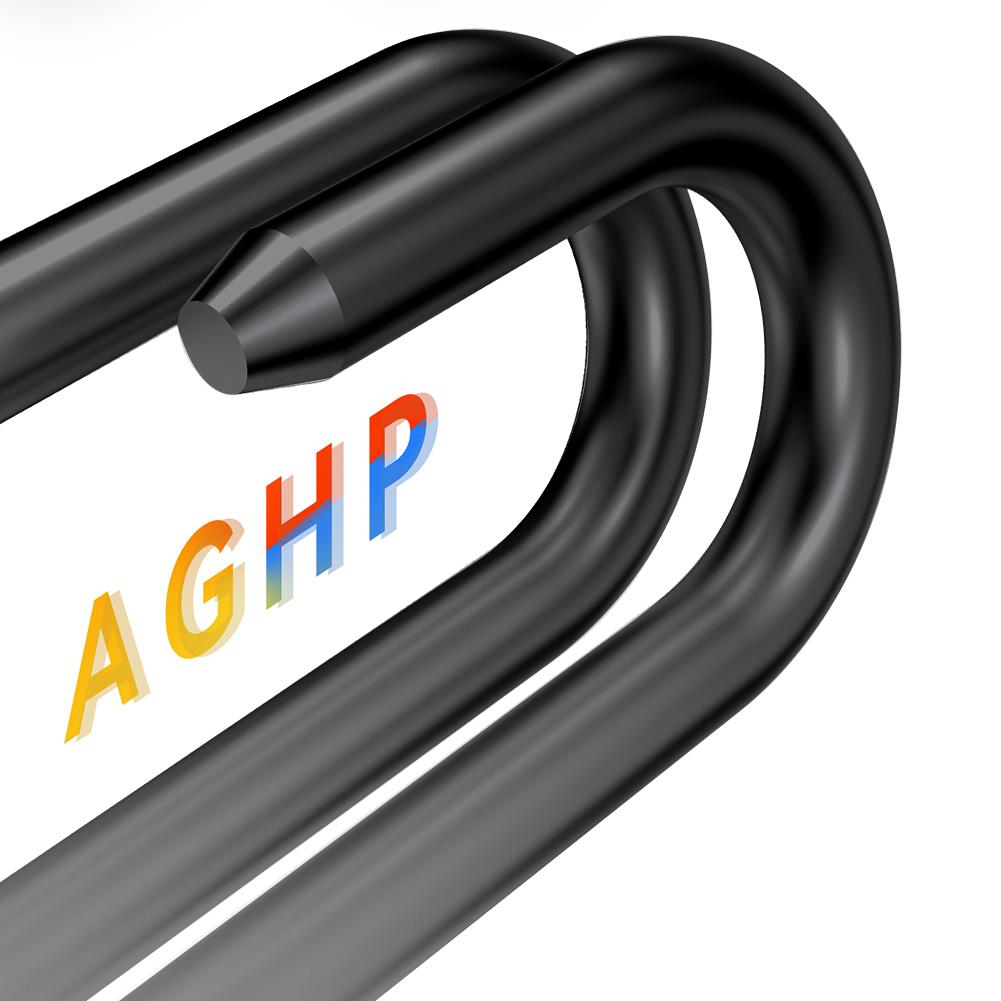

1. Efficient Heat Dissipation: The 4x5mm heat pipes combined with full electroplated reflow soldering technology enable rapid heat dissipation, ensuring effective cooling despite environmental factors.
2. Adjustable Fan Speed: Equipped with a 3010 fan operating at a speed range of 3500-6000 RPM, our m.2 ssd heat sink supports 4Pin PWM temperature control. The included 50cm long wire allows for flexible placement, while the fan speed can be automatically adjusted to maintain optimal cooling.
3. Compact Size: With dimensions of L 90.3mm x W 23.7mm x H 43.8mm, our product boasts a small form factor. It has an installation height not exceeding 43mm, making it suitable for various setups. The M.2 solid-state drive (SSD) is positioned 50mm above the motherboard and 45mm below the heat sink on the front face.
4. PCI-E 5.0 Compatibility: Designed to meet the specifications of PCI-E 5.0 SSDs, our ssd cooler ensures secure data operation even under extreme conditions. The SSD heatsink effectively dissipates heat, providing protection based on actual thermal testing rather than relying solely on TPC data or nominal TDP.
5. Dedicated Compatibility: This ssd heatsink gasket is specifically designed for M.2 interface 22x80mm SSDs. It supports both single-sided and double-sided 2280 SSDs, excluding ITX motherboards with back-mounted M.2 interfaces. Enjoy hassle-free compatibility with a wide range of SSDs for seamless integration into your system.
Specification:
Origin: Mainland China
Model Number: HR10 2280 PR
Type: M.2 SSD Cooler
Material: Aluminum
RGB Support: NO RGB
Power Interface: 4PIN
Product model: HR-102280 PRO
Product color: black
Number of heat pipes: 5mm heatpipe * 4 units
Fan size: L30mm*W30mm*H10mm
Fan speed: 3500/6500RPM +10%
Fan voltage: DC 12V
Fan current: 0.05A
Fan interface: 4PIN PWM

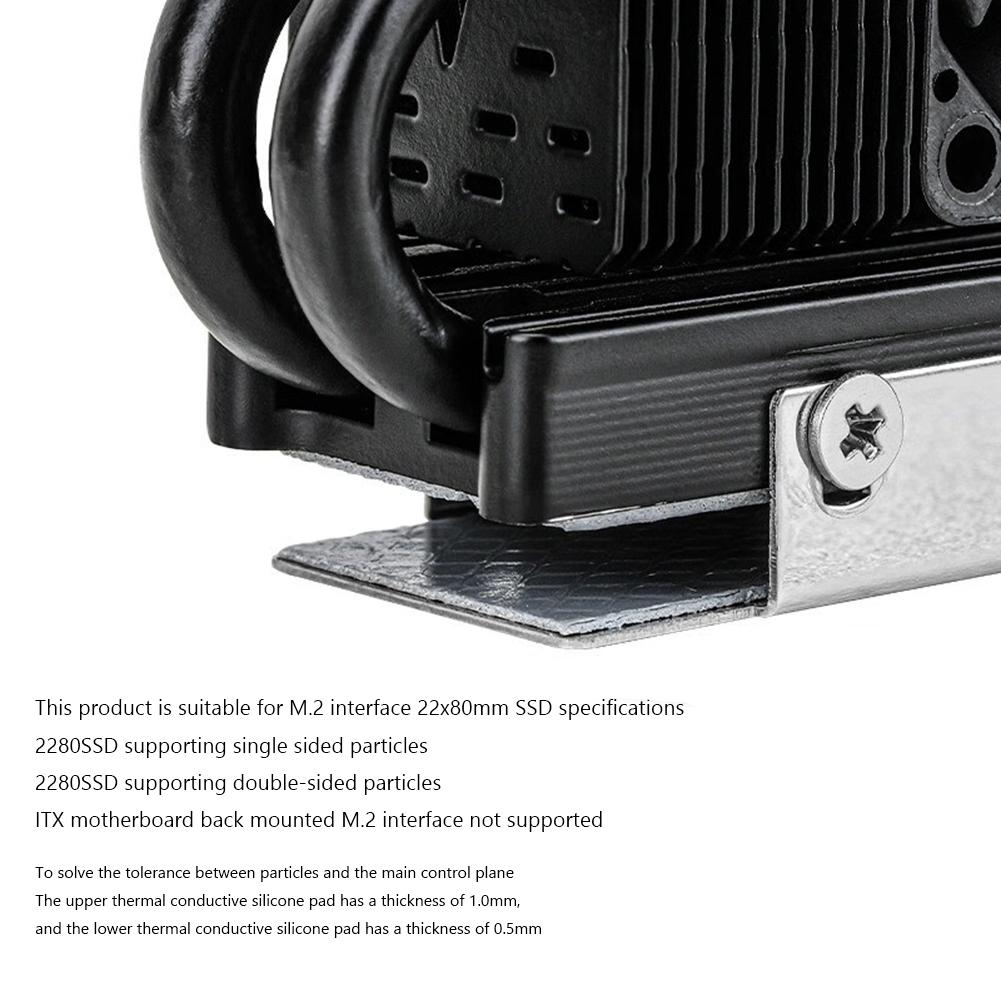

Compatibility: This product is suitable for M.2 interface 22x80mm SSD. Supports single-sided 2280 SSD, supports double-sided 2280 SSD, does not support ITX motherboard back-mounted M.2 interface

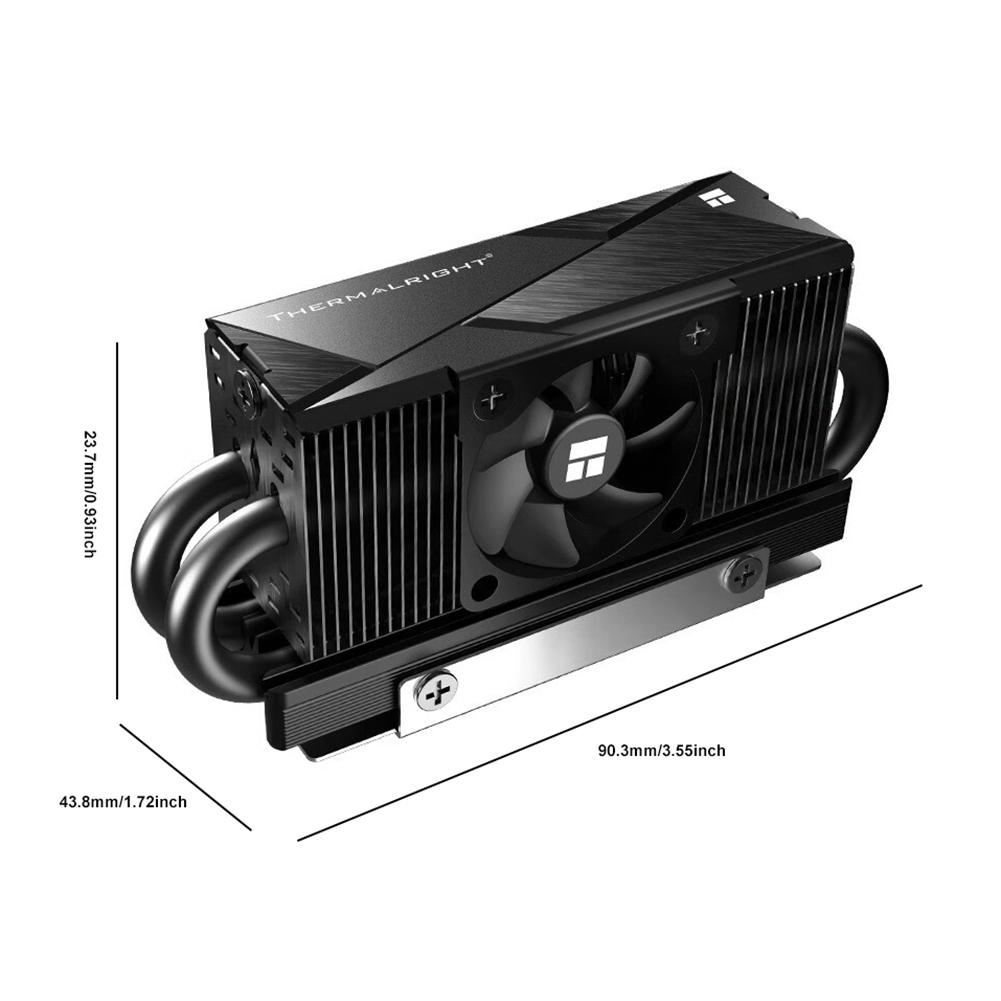

Product size: L 90.3mm * W 23.7mm * H 43.8mm/3.54x1.73x0.94inch
Product weight: 95g
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
