Feature:
1. Current Limit Protection: When a short circuit occurs in the line, current limit protection can be achieved within 1S0U5 to avoid accidents; When the current of the protected circuit exceeds the rated current and the set time (0‑60s), current limit protection shall be carried out; When the temp exceeds the set value, start the warning. When the temp exceeds the set warning value by 20℃, start the over temp current limit protection.
2. Over Under Voltage Protection: When overvoltage is detected and exceeds the set warning value, an alarm is triggered. When the set warning value is exceeded by 13V, an audible and visual alarm is issued. When undervoltage is detected, an alarm is triggered. When the set warning value is exceeded by 10V, the protector sends an audible and visual alarm signal.
3. Fault Arc Protection: When a fault arc occurs in the circuit for more than 14 half cycles within 1 second, the protector activates the circuit protection, which plays a monitoring, warning, and protection role for fire hazards such as loose connections, poor insulation, poor contact, and aging and damage of electrical wires.
4. Detection and Measuring Function: When the monitored line leakage exceeds the alarm setting value, an audible and visual alarm signal is issued, and whether to activate current limiting protection can be preset; Real time statistics of equipment installation circuit electricity consumption, and local and remote reset settings.
5. Silencing Function: When the product detects a malfunction, it emits an audible and visual alarm. The sound of the product's alarm can be eliminated through the silent button on the panel, and the alarm light status will remain unchanged after the sound is muted.
6. Testing Function: When the product is in a no alarm state, press and hold this button for 5 seconds to enter the alarm state. Press and hold the reset button for 5 seconds, and the system will reset the product to its normal working state. During the test, there will be no opening action.
7. Reset Function: If the product detects a fault in the circuit and emits an audible and visual alarm, after troubleshooting the cause of the fault in the circuit, the product can be reset by long pressing the reset button for 5 seconds to eliminate the alarm state.
8. Remote Control Function: This current limiting protector has a remote opening function, which can control the connected equipment to open through a DC24V fire signal, achieving the function of fire linkage.
Specification:

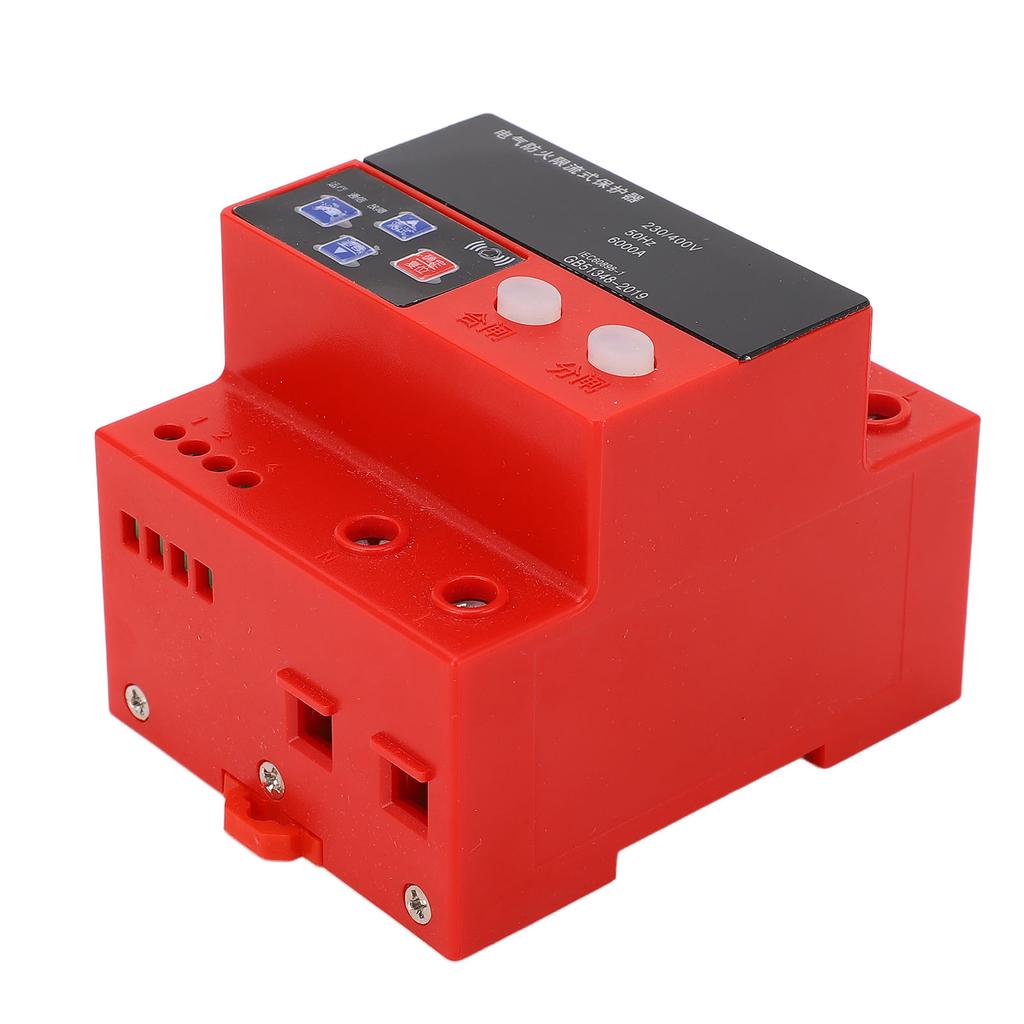

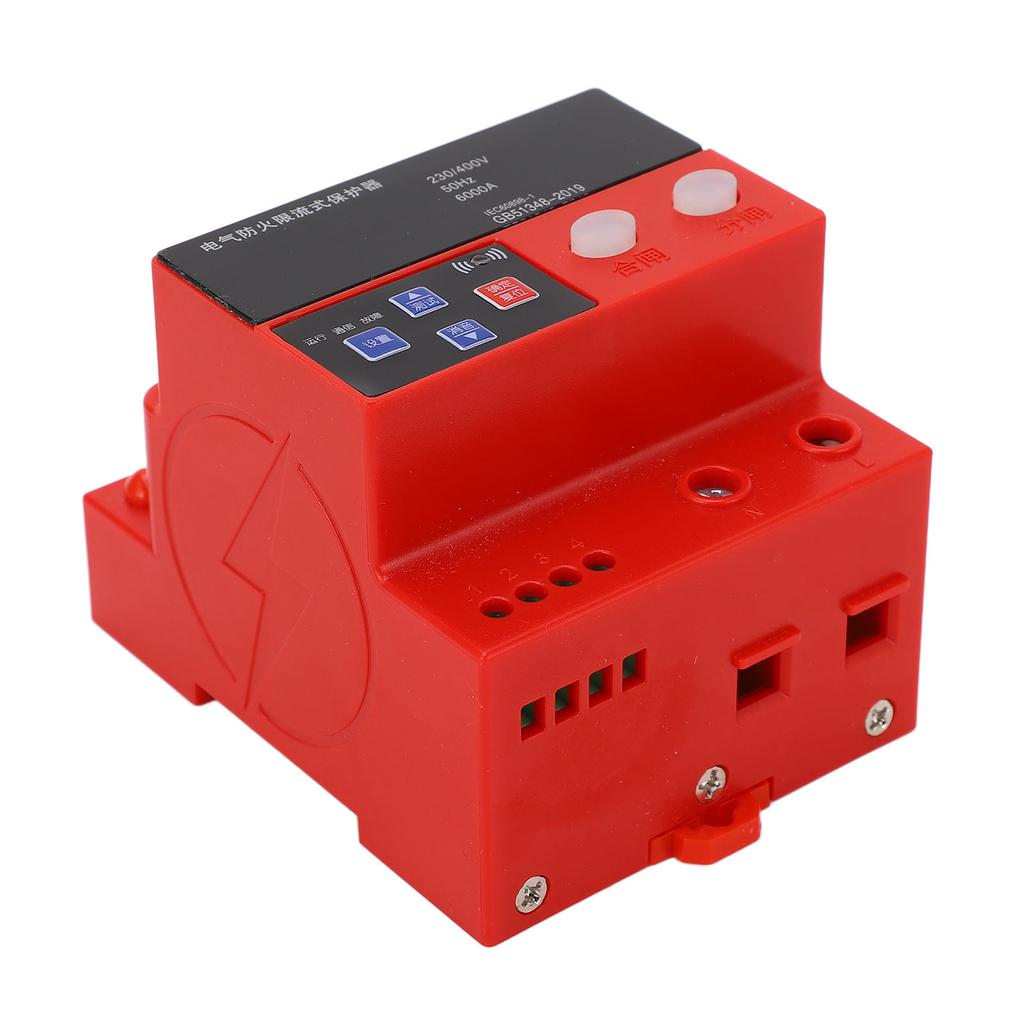

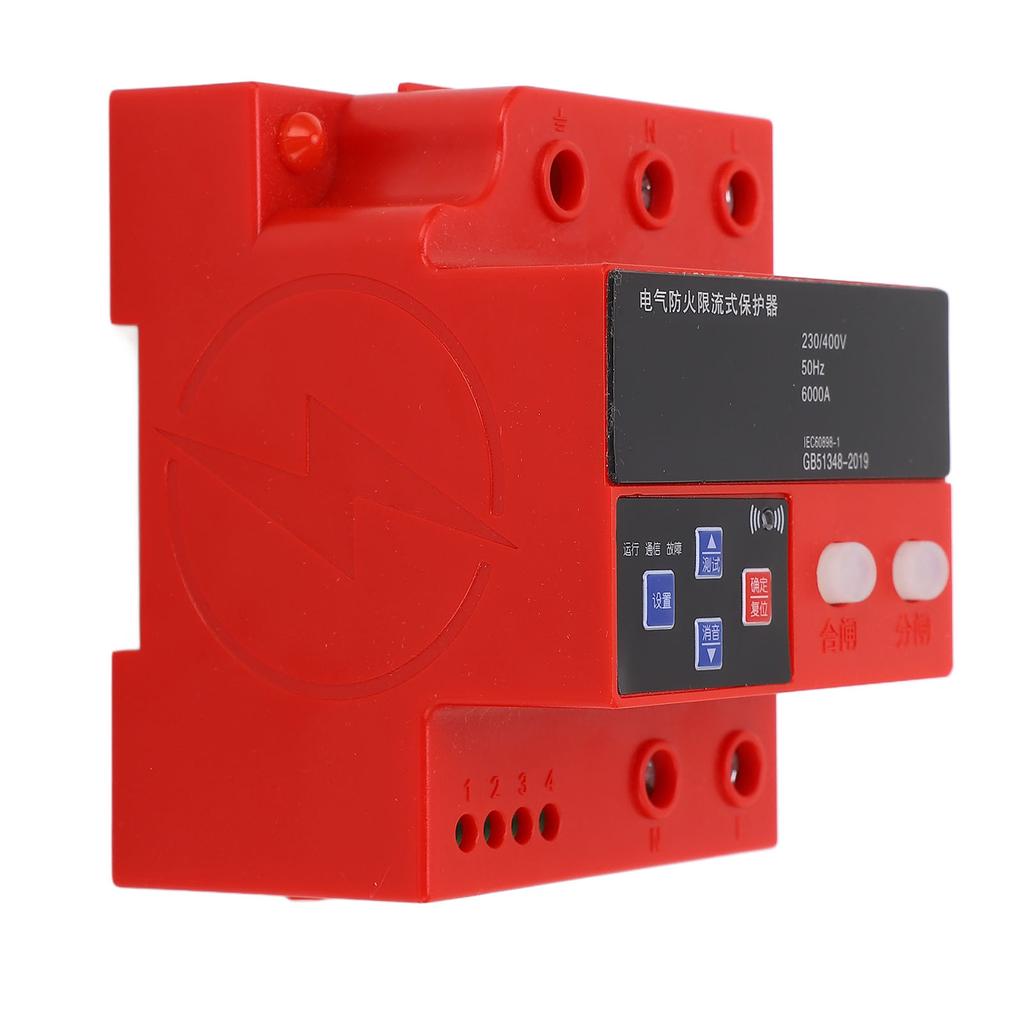

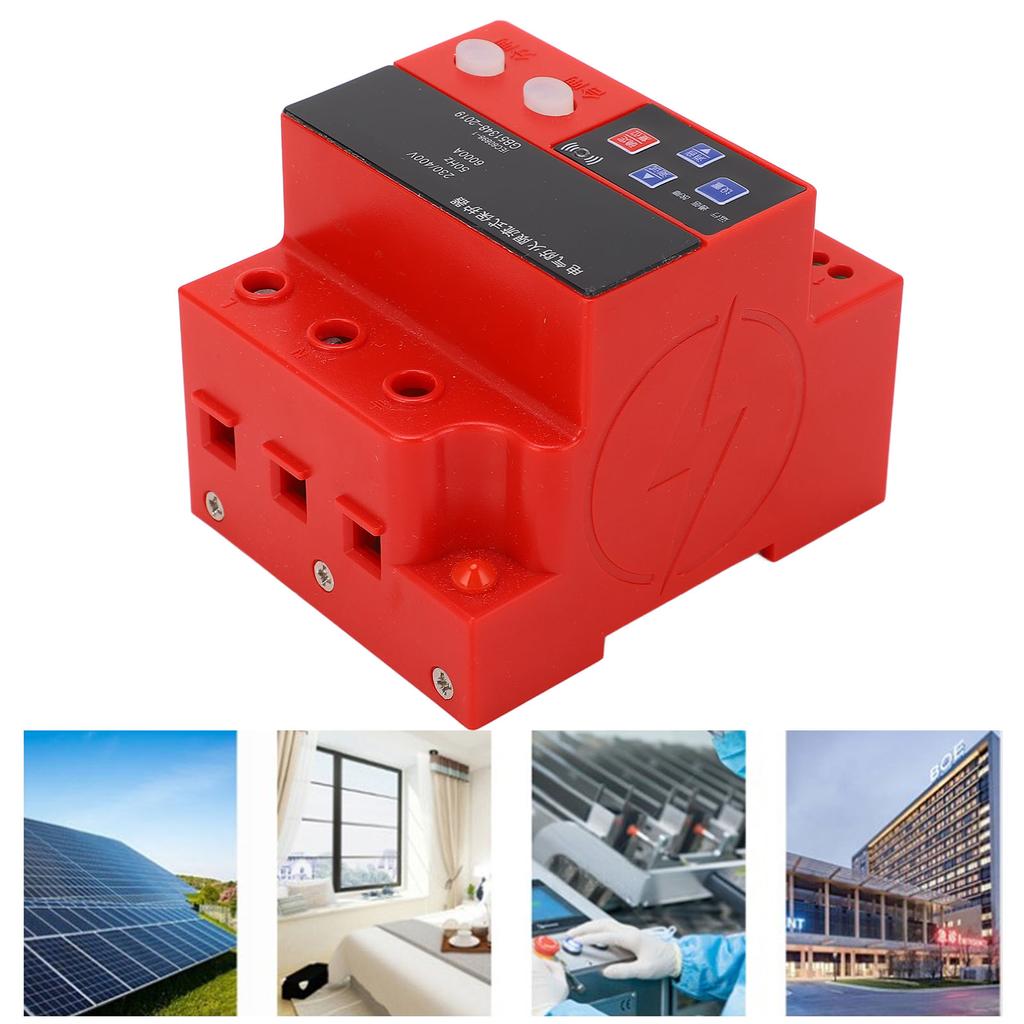

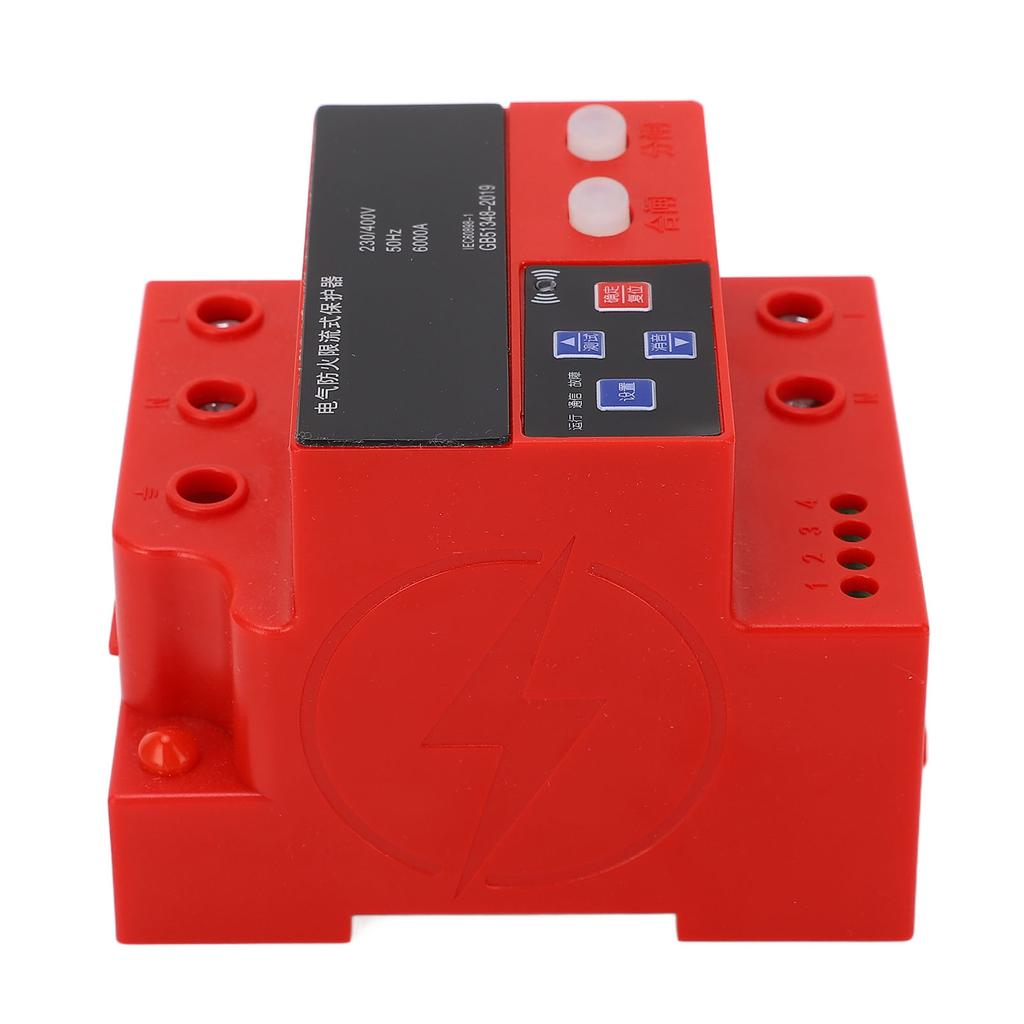

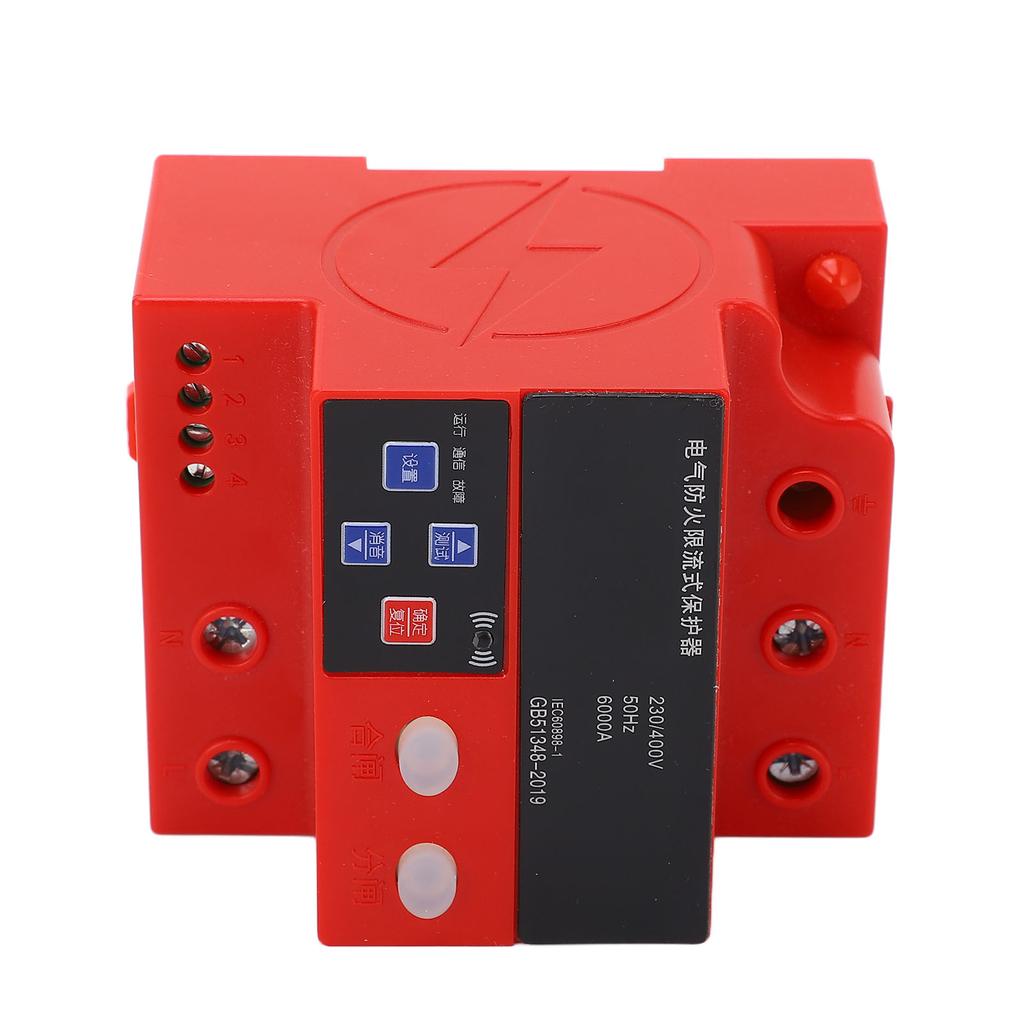

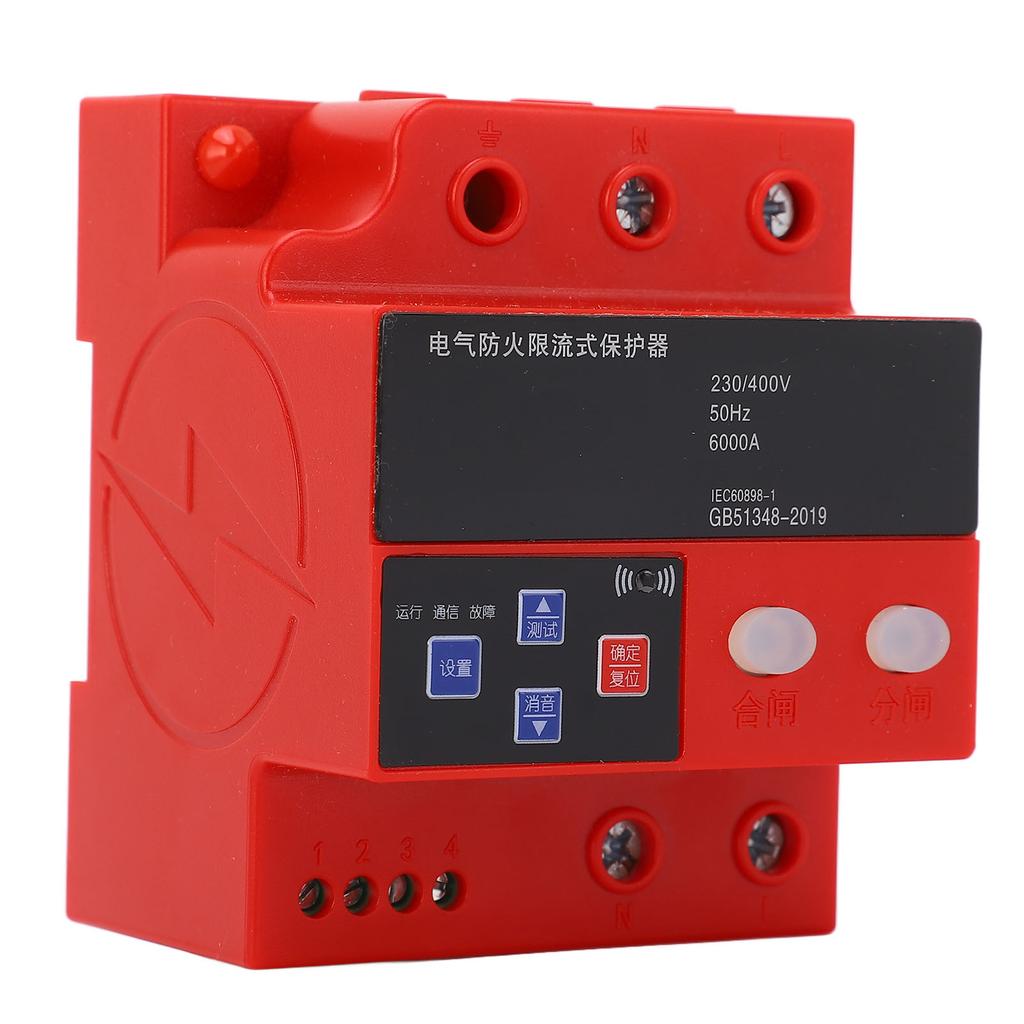

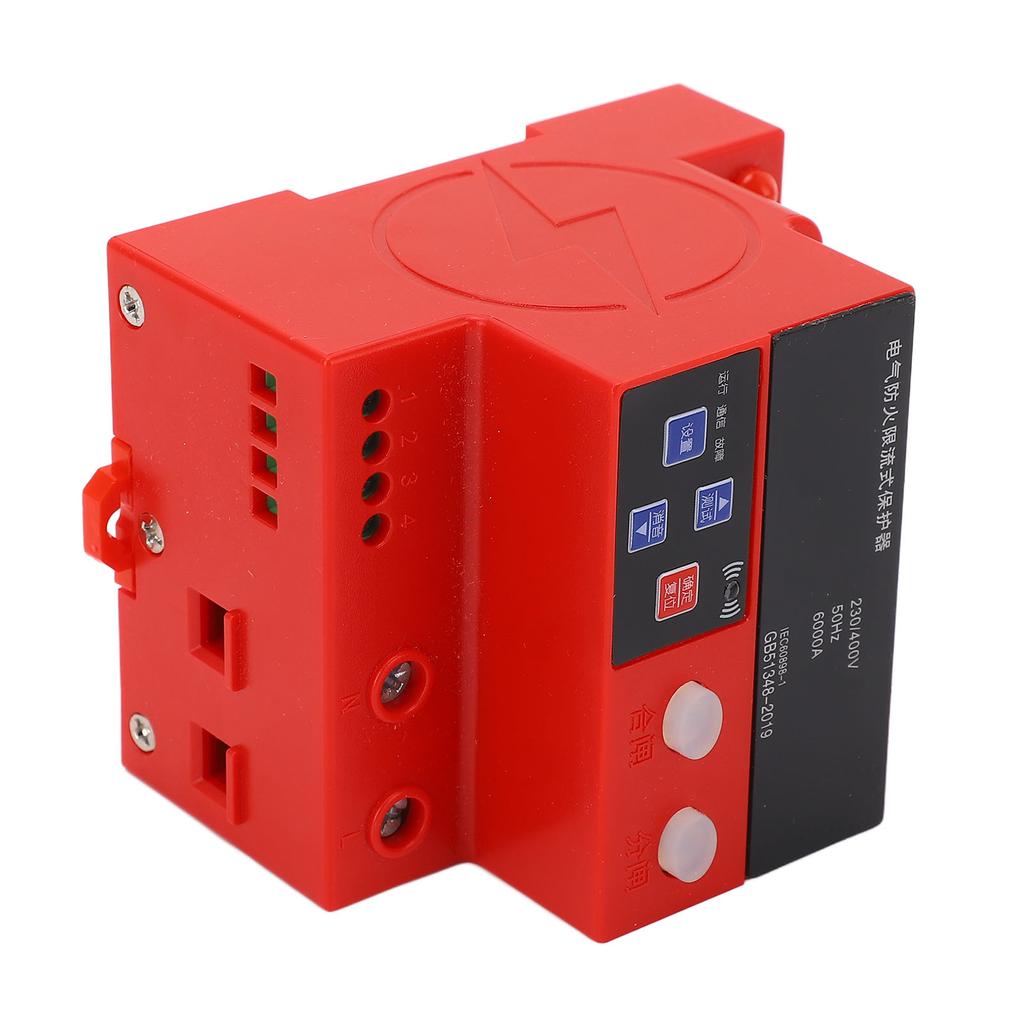

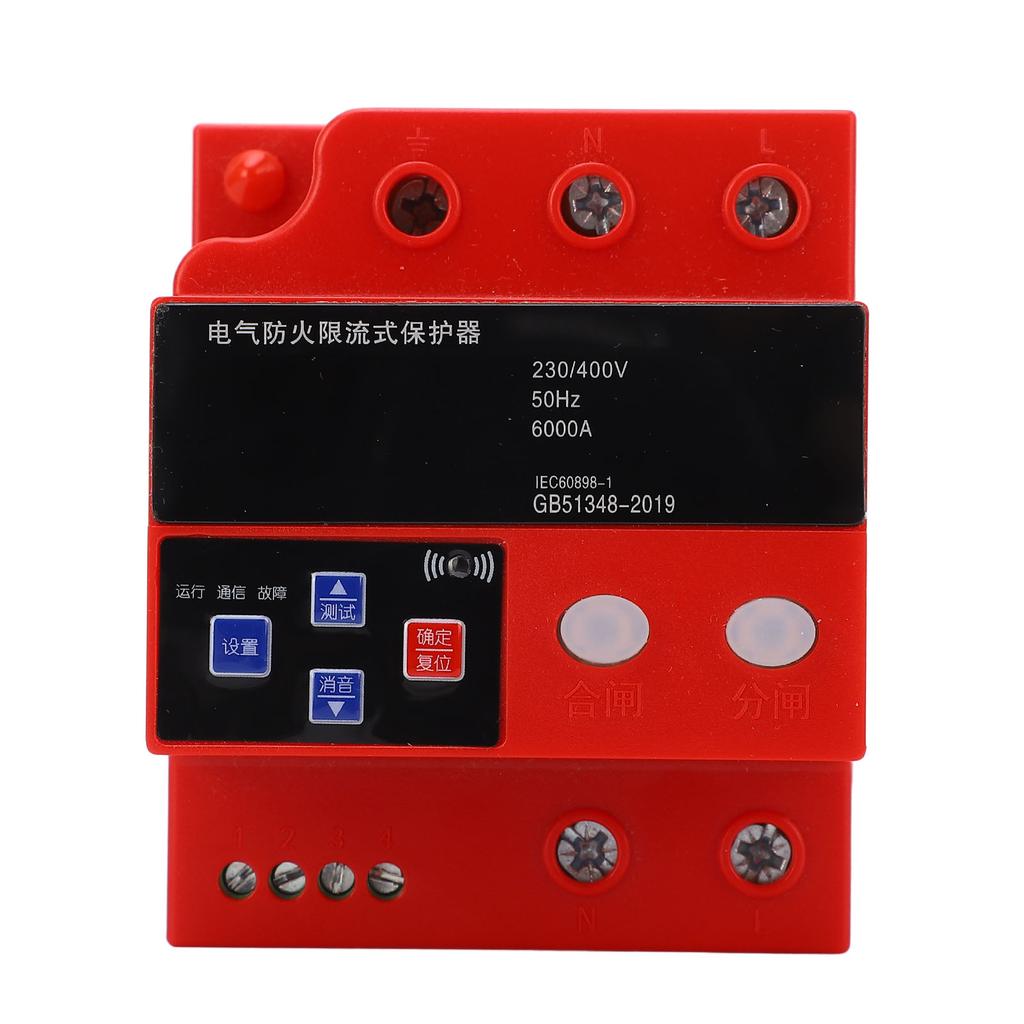

Item Type: Current Limit Protector
Voltage: AC230/400V
Power Consumption: ≤5VA
Rated Current: 0-63A
Short Circuit Protection Time: <150us
Overload Protection: Monitoring Range: 1-63A; Alarm Setting: Default 63A (adjustable) alarm and action
Overvoltage Protection: Monitoring Range: 85-465V; Alarm Setting: Default 250V warning (adjustable), +13V alarm and action
Under Voltage Protection: Monitoring Range: 80~304V; Alarm Setting: Default 185V warning (adjustable), -10V alarm and action
Contact Temperature Protection: Monitoring Range: 5-300℃; Alarm Setting: Default 70℃ warning (adjustable), +20℃ alarm and action
Leakage Current Protection: Monitoring Range: 10mA-1000mA; Alarm Setting: Action Range: 30-1000mA; Action Demonstration: 0-60s
Fault Arc Protection: Monitoring Range: 0-20; Alarm Setting: Fault arc for ≥ 14 half cycles within 1 second, default 0 (adjustable)
Fault Records: 11 records (fault time, fault type)
Alarm Method: Device end sound and light alarm (where the sound can be set to off or eliminated through the mute button)
Electricity Metering: Can be set to zero
Device Self Check: Time synchronization after networking is fixed once a month for self check
Wire Comm Mode: 1 way RS485 interface with a baud rate of 9600, and 1 way fire linkage 24V input interface
Wireless Comm Method: For NB-IoT or 4G wireless comm
Withstand Voltage: Input and power supply >AC3.75KV
Insulation: Input, output, power supply to casing >5KΩ
Workplace: No direct erosion from rain or snow, no corrosive gases, dust, and no severe vibration
Working Environment Temperature: -10-55℃
Relative Humidity: Not exceeding 95%
Altitude: <2000 meter

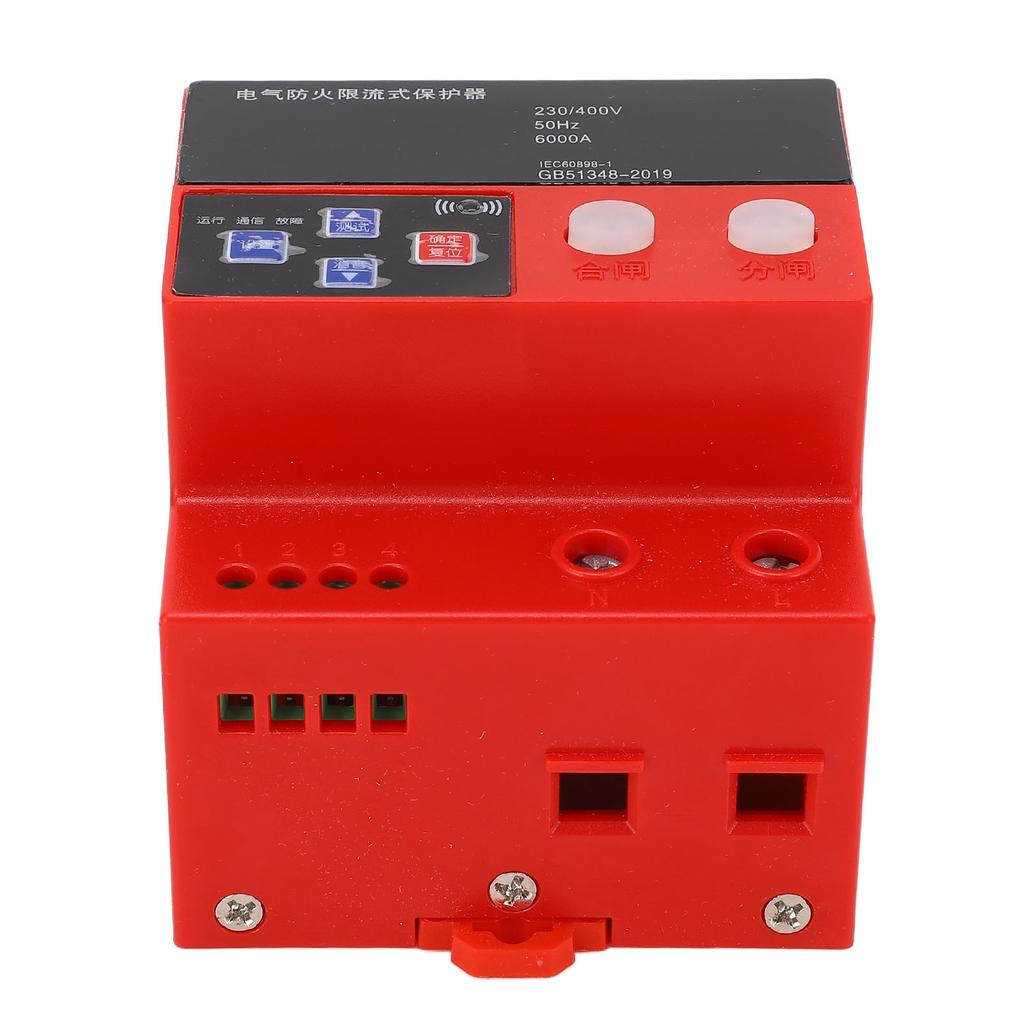

Installation Method: Standard 35 rail snap installation
Comm Function: This product is equipped with built in wireless comm module, which can directly connect to the server when turned on. It can also communicate with the upper control system through the RS485 serial port bus. It can upload the detected line status in
real
time, and can reset the alarm of the lower intelligent power protector through the upper control system, set the alarm threshold, remotely close, open, and other controls, achieving intelligent unified control and management. You can also modify the data pointing to the IP address by pressing the device button, and directly send the data to the designated third party monitoring software or platform. (Note: The 485 comm line cannot be reversed).
Package List:
1 x Current Limit Protector
