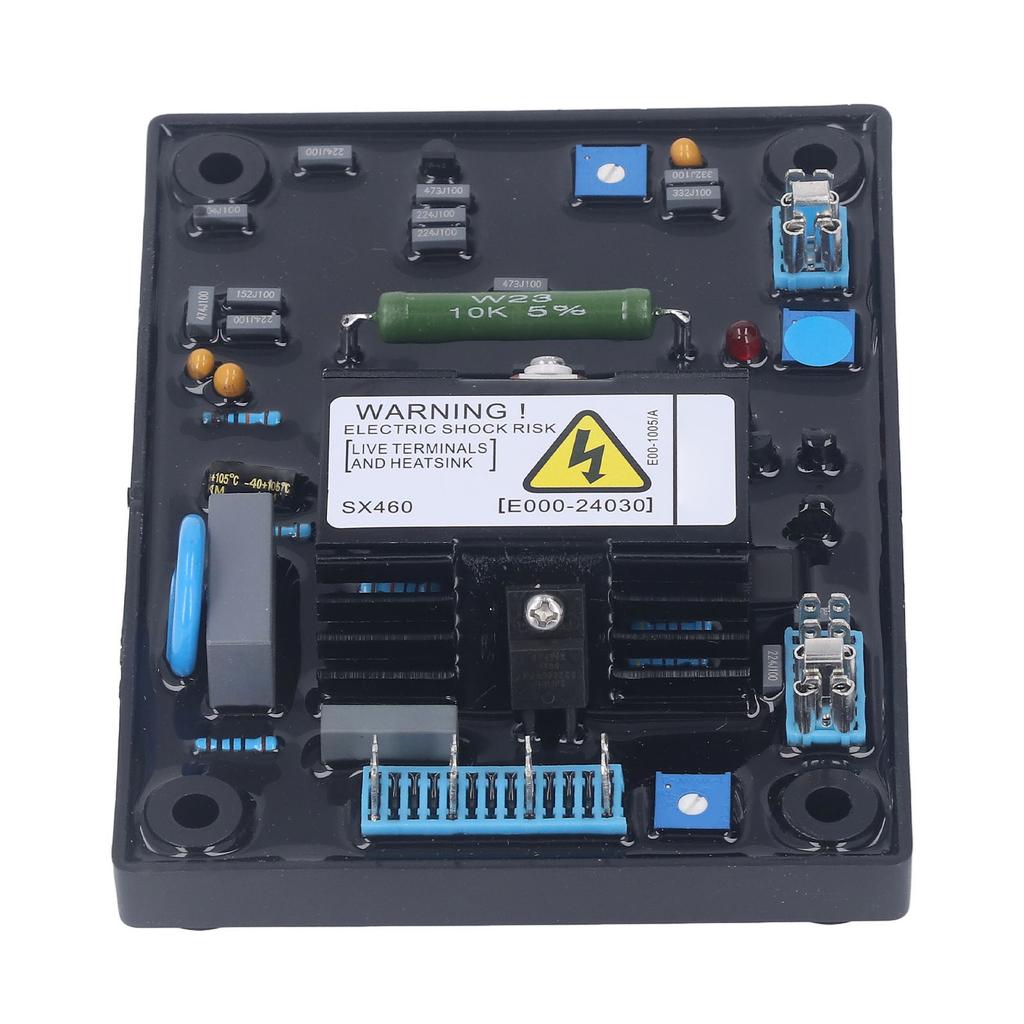

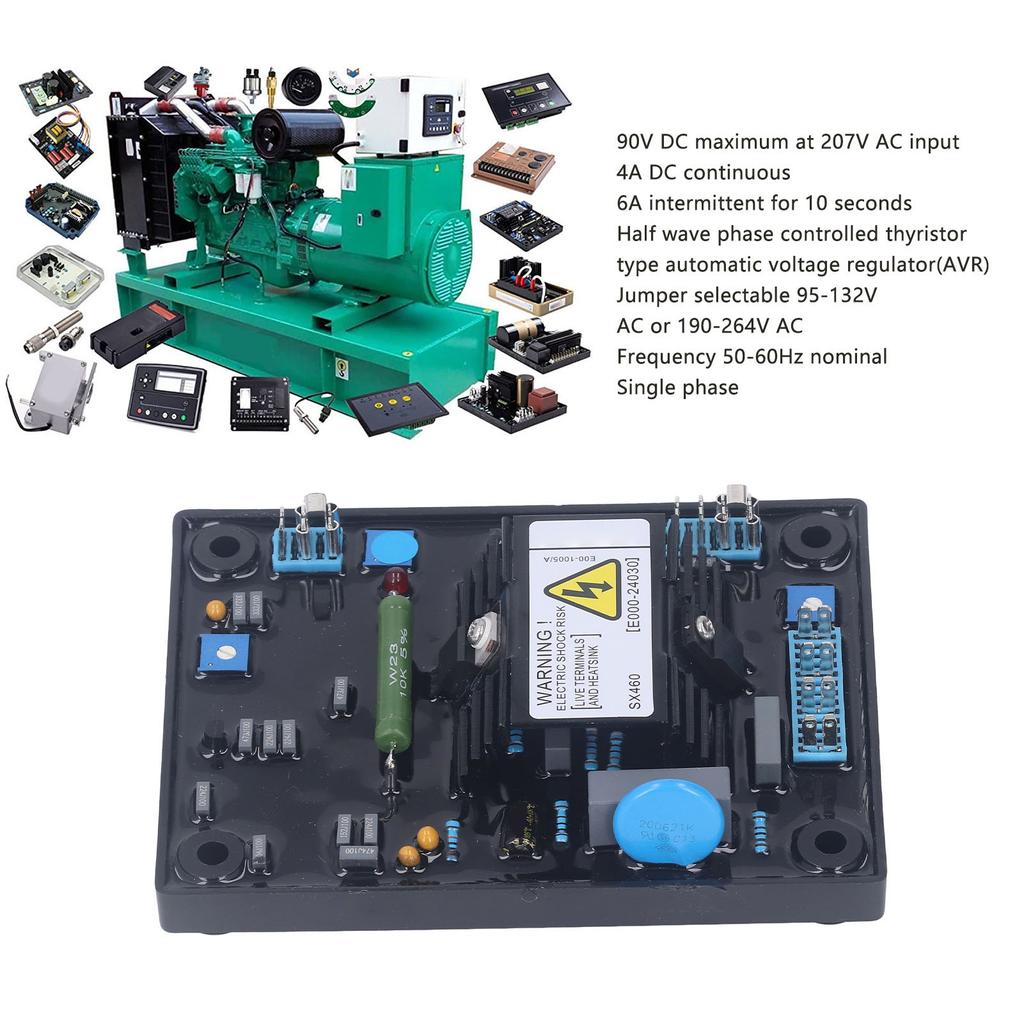

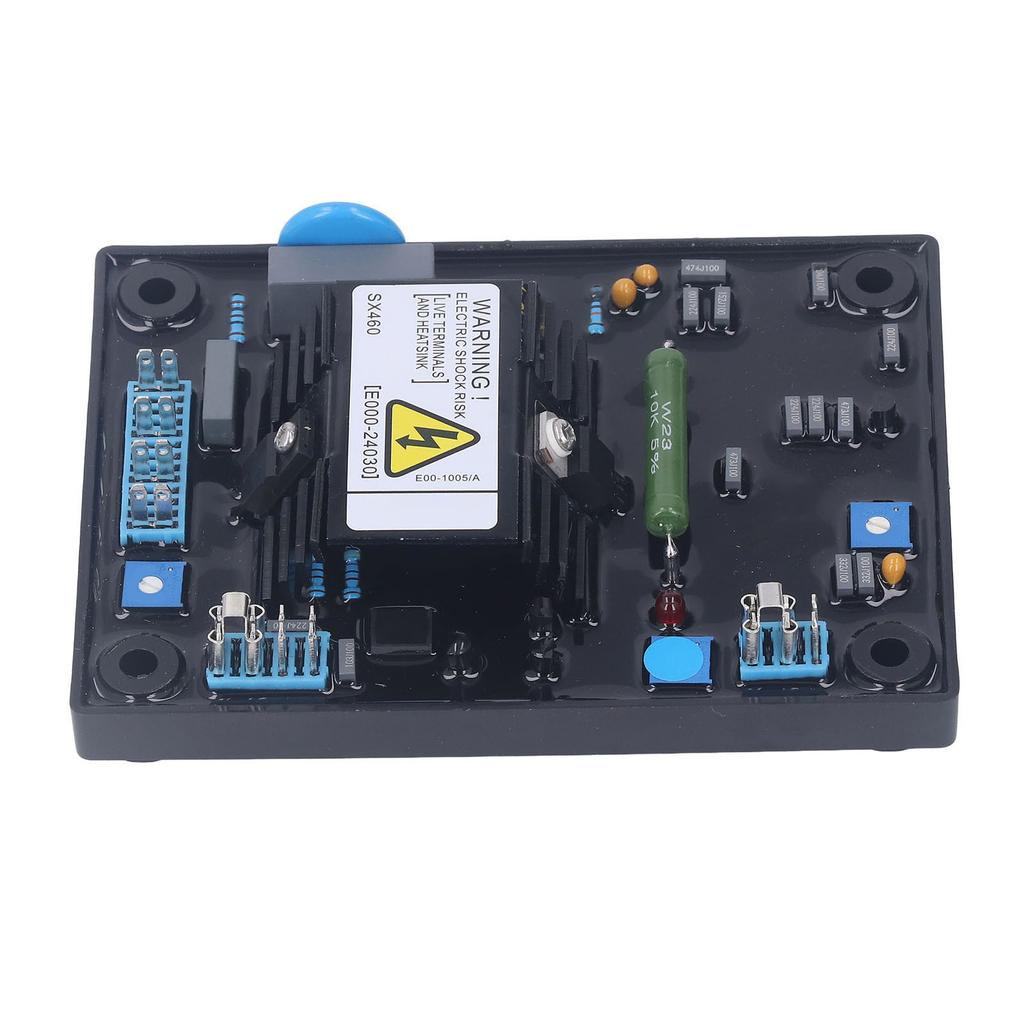

Automatic Voltage Regulator AVR 95?132V 190?264V AC Input 1 Phase for 8KW Brushless Motor

Name: Automatic Voltage Regulator AVR 95?132V 190?264V AC Input 1 Phase for 8KW Brushless Motor
SKU: 6835617df67ec701f22bfd73
Price: 14.9 EUR
Availability: InStock

Prezzo attuale

A partire da Prezzo 14,90 €

IVA inclusa

Colore

Come nell'immagine

Paese di spedizione

Cina
Italia

Neil Young Crazy Horse Ragged Glory 1991 Tour Black T-Shirt Unisex Size S-5XL
Small Weaving Loom 14 Hooks Wood Frame Darning Loom Type Weave Tool Handcrafted Convenient DIY
String lights - DIY - LED lampshade - White - 1m - For children
Smoky Eyeshadow Pencil Stick Waterproof Pearlescent 12 Colors Metallic Glitter Eye Shadow Highlighter Pen Makeup Tool
Storage Box Simple Reusable Sturdy Elegant Wall-mounted Wifi Router Storage Holder Household Supplies
Unique Proprietary Saw Chain Sharpening Tool Fast Sharpen Their Chain On The Job
Arrow Inspector Aluminum Alloy Arrow Straightness Inspector with Stainless Steel Roller Archery Inspection Accessory
Scarpe Mary Janes da Donna Retro a Punta Rotonda Décolleté Rialzate Quattro Stagioni Mocassini Tacco Alto Grosso Marrone Scavate Scarpe Singole
Circle Glass Cutting Table Professional Round Steel Cutter Tool with 2pcs Accessories
Dr.Jart The Mask Microjet Soluzione Purificante

Consegne in tutta 🇮🇹 Italia

2‑12 giorni lavorativi 一 5 €

I tuoi pagamenti e la tua privacy sono al sicuro

Rimborso per mancata consegna

Garanzia di qualità

Logistica sicura

Tutela della privacy

Sicurezza e conformità

Descrizione

Feature: 1. OUTPUT VOLTAGE: 90V DC maximum at 207V AC input, 4A DC continuous, 6A intermittent for 10 seconds, minimum 15ohms resistance. 2. AUTOMATIC REGULATOR: The SX460 is a half wave phase controlled thyristor type automatic voltage regulator AVR that is part of a brushless alternator excitation system. 3. INPUT VOLTAGE: Jumper selectable 95132V AC or 190264V AC, frequency 5060Hz nominal, phase for single phase. 4. EXCELLENT PERFORMANCE: Made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability. 5. EASY TO INSTALL: With a compact size and a light weight as well, the automatic voltage regulator for 8KW brushless generator is very easy to install. Specification: Item Type: Automatic Voltage Regulator Model: SX460 Detection and Power Input Voltage: 95132V or 190264V AC Features: Single phase two wire to choose from jumper copper. Magnetic Field Output: Maximum 90V DC at 207 VAC input. Voltage Regulation Accuracy: +1percent System Requirements: For brushless generator within 80KW. Phases: Single phase Voltage: 90V DC maximum at 207V AC. Input Current: 4A continuously, 6A maximum intermittently in 10 seconds. Working Temperature: 40 celsius ~ +70 celsius Maximum Humidity: Up to 95percent . Package List: 1 x Automatic Voltage Regulator1 x User ManualOUTPUT VOLTAGE: 90V DC maximum at 207V AC input, 4A DC continuous, 6A intermittent for 10 seconds, minimum 15ohms resistance. AUTOMATIC REGULATOR: The SX460 is a half wave phase controlled thyristor type automatic voltage regulator AVR that is part of a brushless alternator excitation system. INPUT VOLTAGE: Jumper selectable 95132V AC or 190264V AC, frequency 5060Hz nominal, phase for single phase. EXCELLENT PERFORMANCE: Made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability. EASY TO INSTALL: With a compact size and a light weight as well, the automatic voltage regulator for 8KW brushless generator is very easy to install.
