2Pcs CNC 3 in 1 Momentary Switch Handlebar Buttons Switch Motorcycle Cafe Race

Description:

The m-Switch is a high quality universal push-button control for handle bars 22-23mm/0.78"-0.90".

These finely CNC machined hand controls in combination with an electronic push-button control unit (NOT INCLUDED IN KIT) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

The casing is made from CNC machined billet aluminium reflective black/mirror polished finished surface.

The compact design casing permits mounting two or more units on one handle bar.

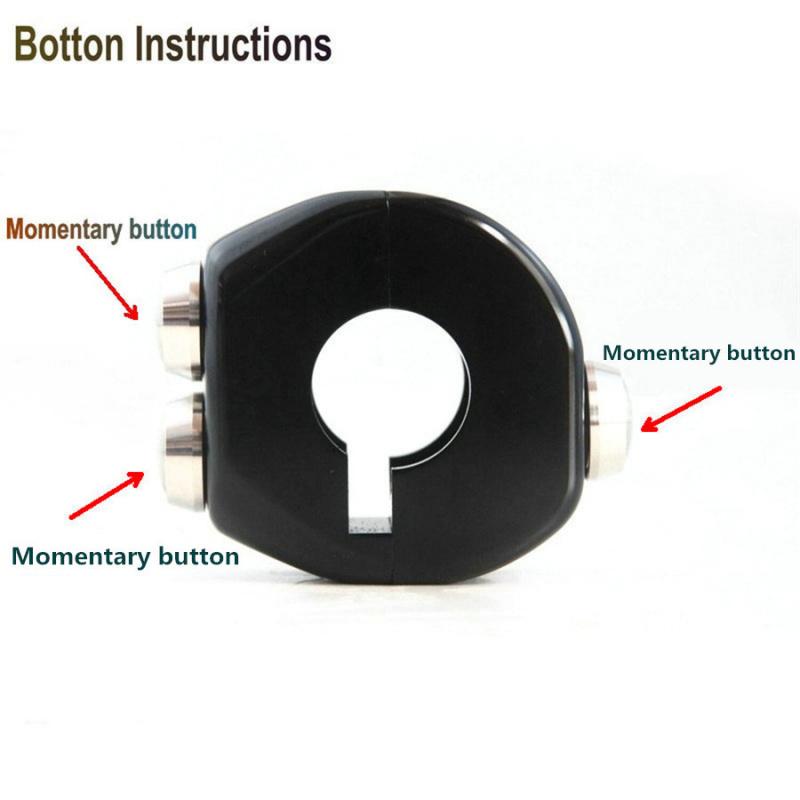

Each unit is equipped with three push-buttons in Black.

One flush built-in M5 stainless steel mounting screw ensures secure and stable clamping of the push-button control to all handle bars.

The push-buttons are of high quality, very robust design and vibration- and spraywater-proof (IP65).

The adequate size and ergonomic pressure point (easy, mechanical detent) provide for a definite actuation sensing – even when operated with gloves. This feedback allows shifting without the need to check the operation.

Each push-button is equipped with two terminals for an easy optional circuit layout with only one or two cables. The internal ground terminal is already provided for the "one cable layout". Therefore, the routing of the cable inside the handle bar can be performed easily.

The push-buttons are available separately and can be replaced if damaged. The m-Switch is of course compatible to all common push-button controls, e.g. the m-Unit.

Feature:

1.100% Brand new and high quality. 2.Suitable for all 12V battery installation motorcycles,motorbike,scooter.Mounting Holder apply for Grips Diameter:22-23mm/0.78"-0.90" 3.Output circuit protection, overload protection, reverse polarity protection, multiple protection, safety to use. 4.The shell color made from anode blasting process.

Specification:

Condition:100% brand new Case Material:CNC aluminum-alloy Color:Black Inner diameter:22mm Outer diameter:approx. 55 mm Width:25 mm Cable lenght:Approx.55mm Power:120W(max) Current:10A Voltage:12V

Working mode:

One product with 3 switches, All self-resetting switch (pressing the power to release the power, the same principle as the horn button) ,Self-return button can be used as horn, engine power, start kill switches.can adjust the installation position and function according to their own habits or preferences

Package included:2 Pcs Switch.

Installation instruction not included.
