135Mm Steel I-Beam Clip

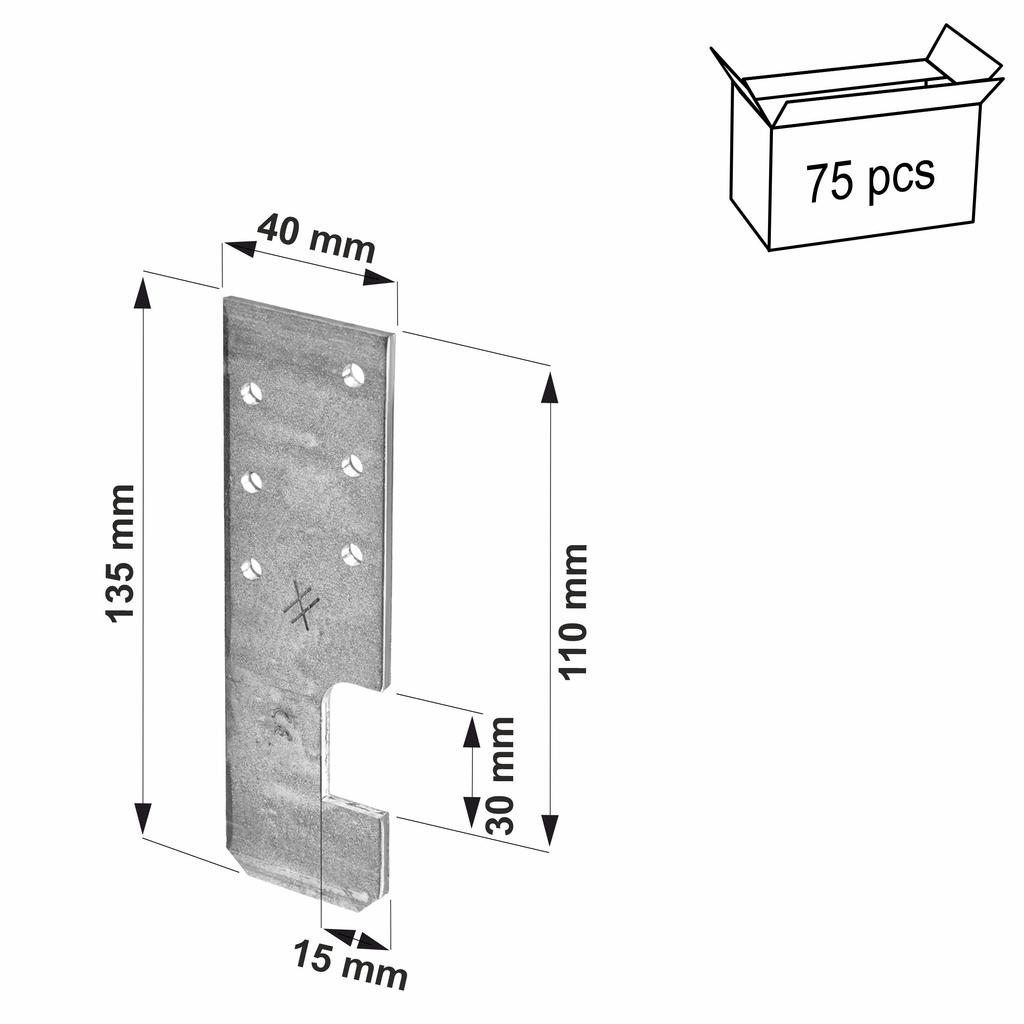

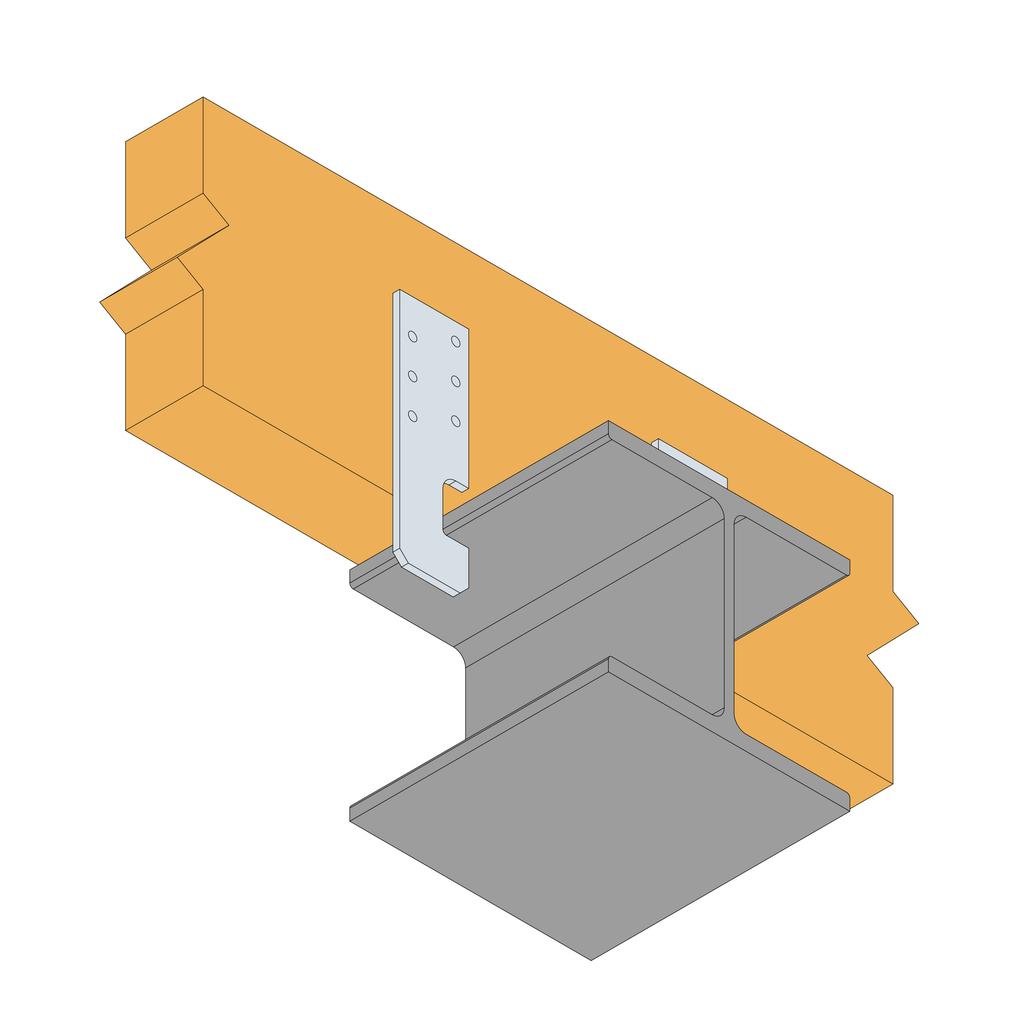

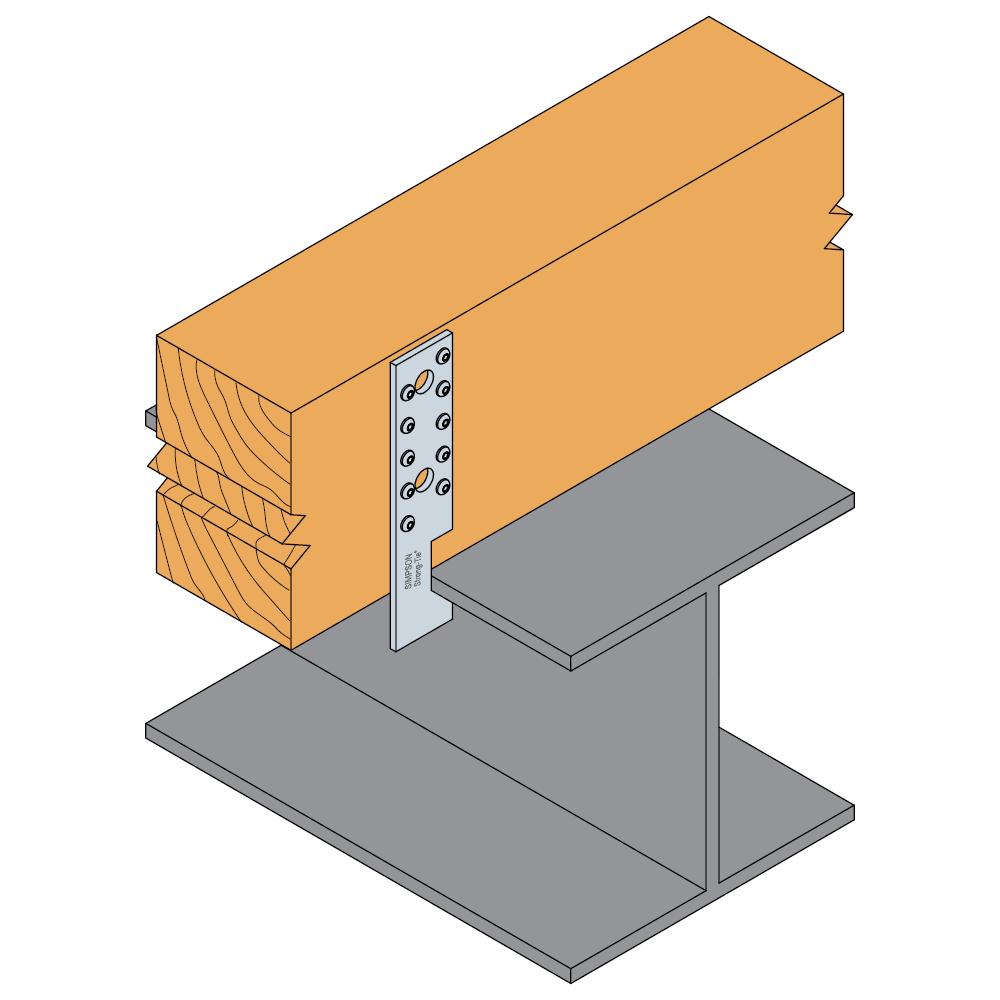

Anchor, steel I-beam connector 135 mm 1 pc. Fastening clip for I-beams Most important parameters Model: HE135 Dimensions: 135 x 40 mm Sheet thickness: 4.0 mm Packaging: 1 pc. Holes:: 6 pcs. x Ø 5 mm Material: Galvanized steel S250GD Z 275 g/m2 (20 µm) Designed for suspending steel I-beams to a wooden structure or vice versa - for fastening wooden beams on top of a steel I-beam Original product of the renowned company SIMPSON Strong-Tie ® HE anchors are a popular solution for mounting prefabricated roof trusses to steel I-beams. Benefits 1. Strong and durable connections Thanks to the use of high-quality steel (S250GD steel) and the Sendzimir hot-dip galvanizing process, the connector ensures exceptional strength and long-lasting connections. 2. Service class 2 It is characterized by material moisture corresponding to a temperature of 20°C and relative humidity of the surrounding air exceeding 85% only for a few weeks a year. (e.g. open sheds or unheated attics) Application and installation method Connection Main element: solid wood, composite wood, glued laminated timber. Secondary element: steel beam Fastening to wood: using CNA4.0 system nails or alternatively CSA5.0 system screws. Application For the installation of prefabricated roof trusses to steel I-beams, 2 or 4 HE connectors are used, depending on the required load-bearing capacity. When installing 2 HE anchors, they should be placed diagonally. Certificate ETA-07/0285 Highest quality guarantee. This standard specifies requirements and test methods for materials, geometry, strength, stiffness and durability (i.e. corrosion protection) of connectors used in load-bearing timber structures. The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and suitable for specific tasks.
