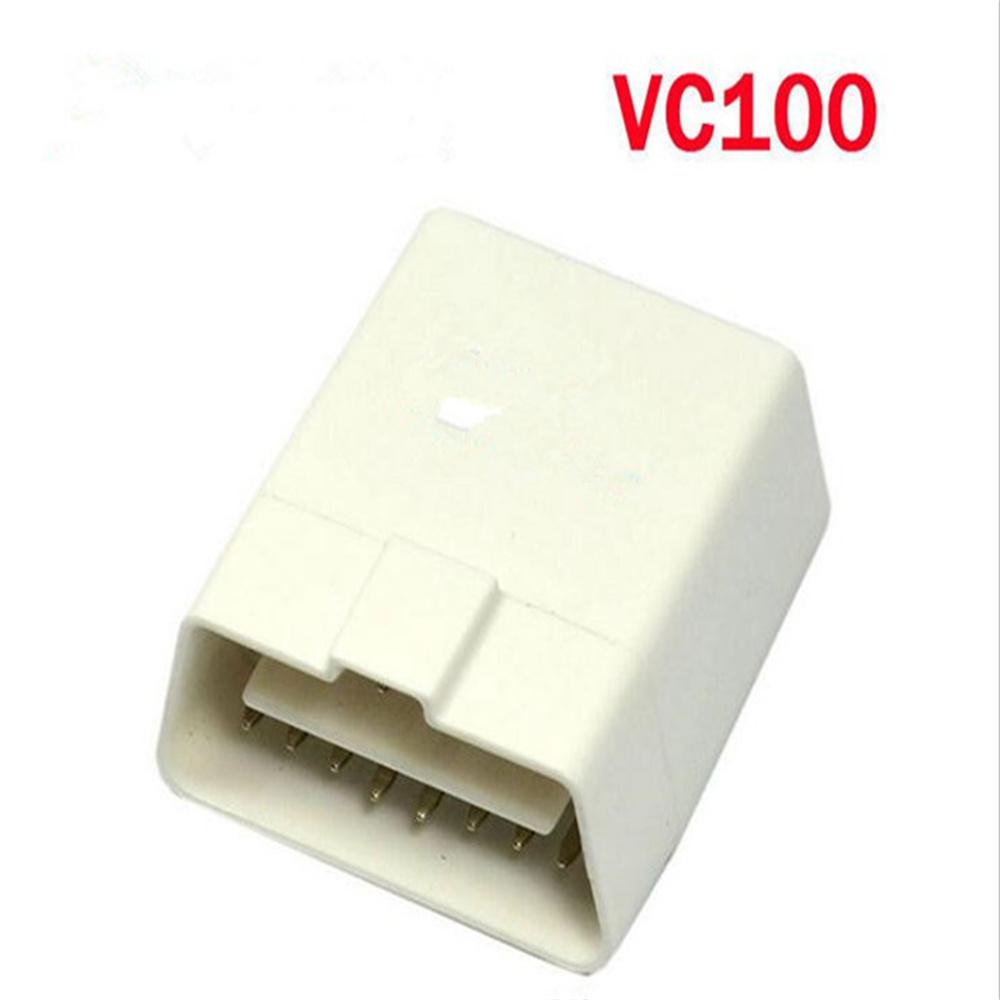

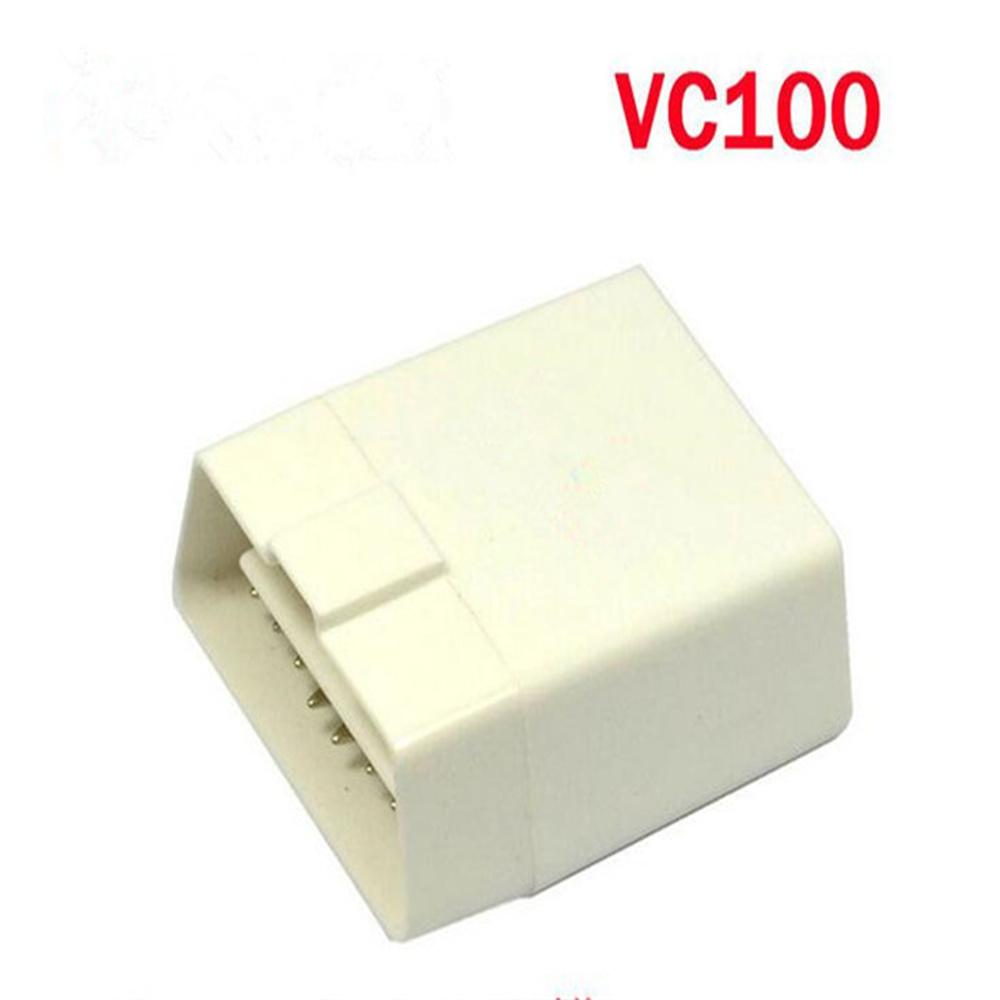

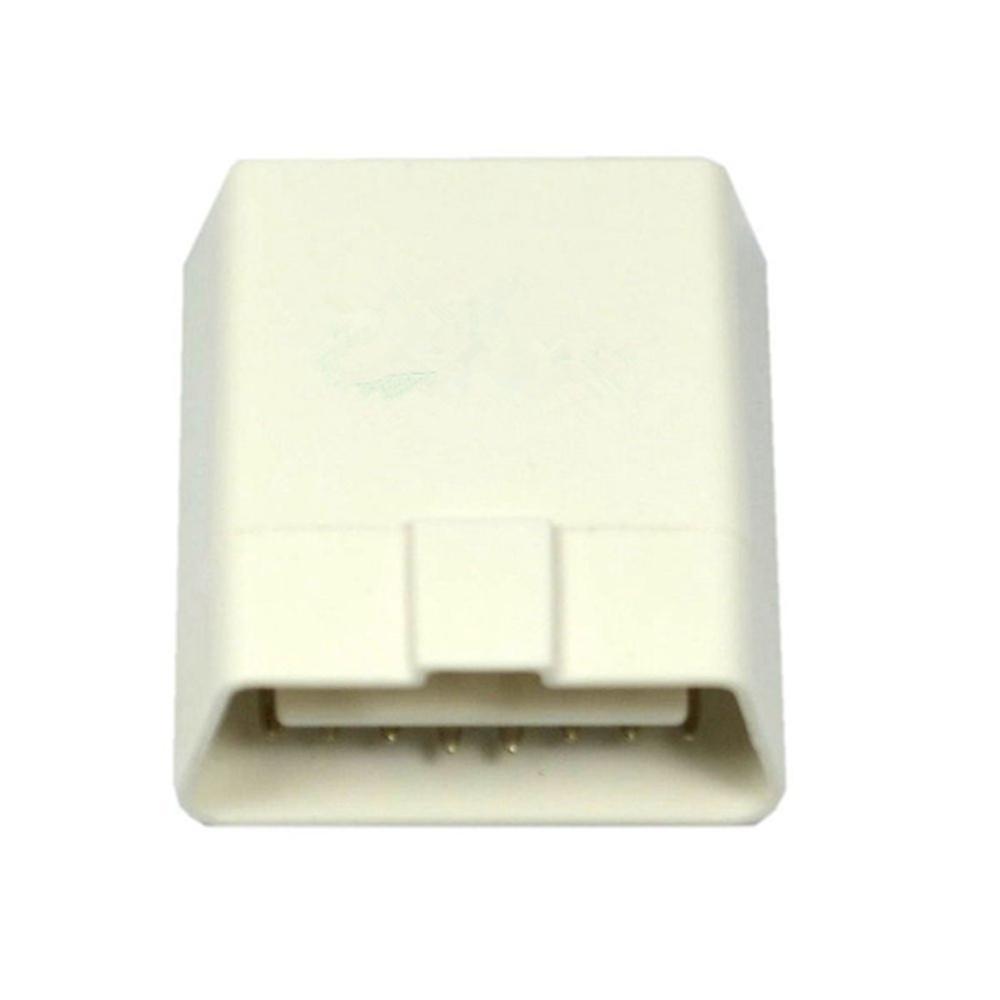

Elm327 VC100 Bluetooth 4.0 Car Scanner Diagnostic Tool For IOS Android Scanner

Elm327 VC100 Bluetooth 4.0 Interface OBD2 OBD with Head Up HUD Display Auto Car Scanner Diagnostic Tool for IOS Android Scanner

VC100 is a Bluetooth "software + hardware" multi-functional, comprehensive in-vehicle high-tech automotive electronics products, using Bluetooth 4.0 dual-mode design, perfectly support IOS and Android devices and high-speed data transmission, along with low power consumption, really save power. Via connecting with in-vehicle ECU computer to achieve interface 360 degree experience of whole car, early find vehicle Sub-health, also ensures vehicle in warranty early find fault so that promptly take appropriate measures, protect the interests of the owners ; by analyzing and assessing for this time and historical and other multi-dimensional fuel consumption, help car owners saving fuel even money; also recording driving behavior, analyzing condition data, recommending for improvement, and promptly correcting bad driving habits, in order to drivers can be more humane to use their own car.

VC100 is no longer simply a screen information display system, but through stunning head-up display (HUD), let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter. Cool real-time dashboard design, extended original car without display data; very largely enhance the visual experience.

Product Parameters

1. Communication method: Bluetooth dual-mode (2.0/4.0)

2. Software platform: Support Android / IOS / Windows

3. Operating voltage: 9V~16V

4. Operating current: 45mA

5. Operating temperature: -40℃~85℃

6. Operating humidity: <60%

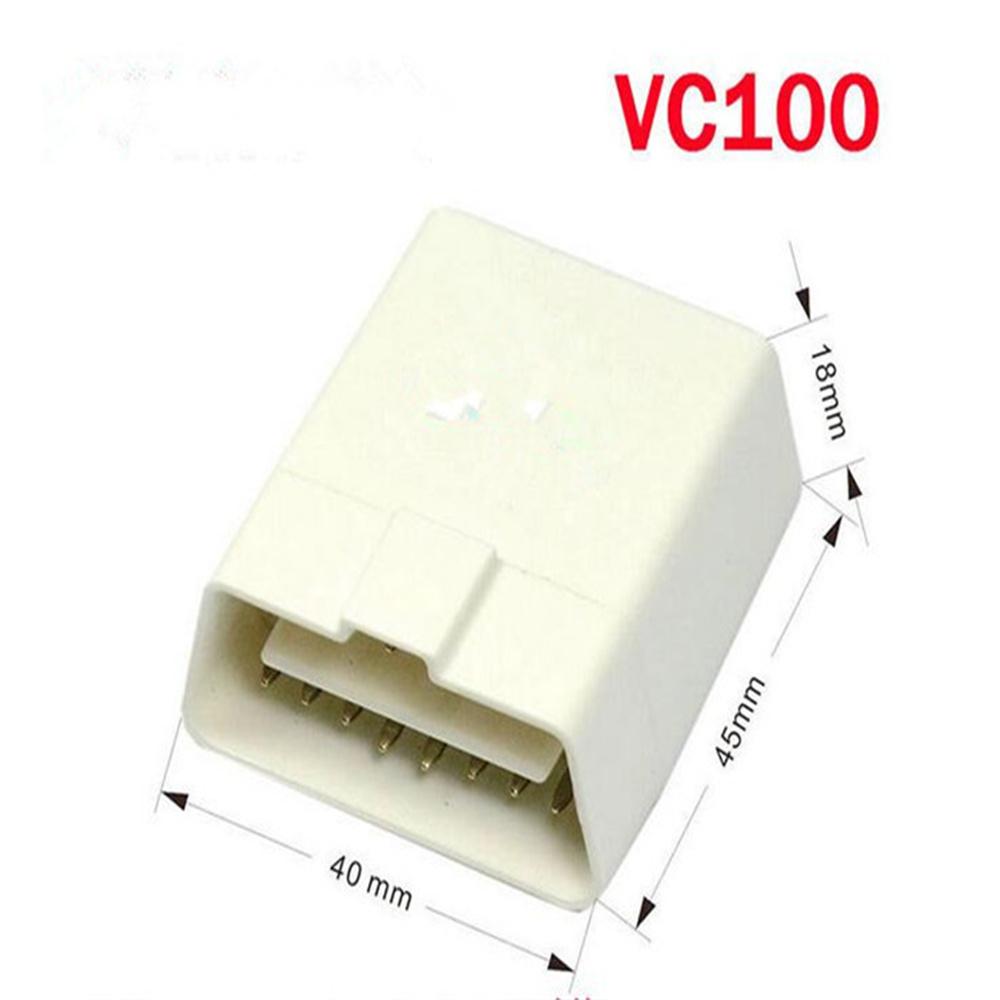

7. Dimensions: 45mm*40mm*18mm

8. Supported vehicle: OBDII protocol vehicle

Supports OBD-II protocols:

SAE J1850 PWM

SAE J1850 VPW

ISO 9141-2

ISO14230-4 KWP (5 baud init)

ISO14230-4 KWP (fast init)

ISO15765-4 CAN (11bit, 500 Kbaud)

ISO15765-4 CAN (29bit, 500 Kbaud)

ISO15765-4 CAN (11bit, 250 Kbaud)

ISO15765-4 CAN (29bit, 250 Kbaud)

SAE J1939 CAN (29 bit, 250 Kbaud)

Software features:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data, including:

4. Engine RPM

5. Calculated Load Value

6. Coolant Temperature

7. Fuel System Status

8. Vehicle Speed

9. Short Term Fuel Trim

10. Long Term Fuel Trim

11. Intake Manifold Pressure

12. Timing Advance

13. Intake Air Temperature

14. Air Flow Rate

15. Absolute Throttle Position

16. Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18. Fuel Pressure

AND Many others...

Compatible software:

Android version: OBD Auto Doctor, Torque, OBD Car Doctor, E OBD2, DashCommand

iOS version: OBD Auto Doctor, GeekOBD_Viecar, Mini OBDII, OBD Fusion

Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN

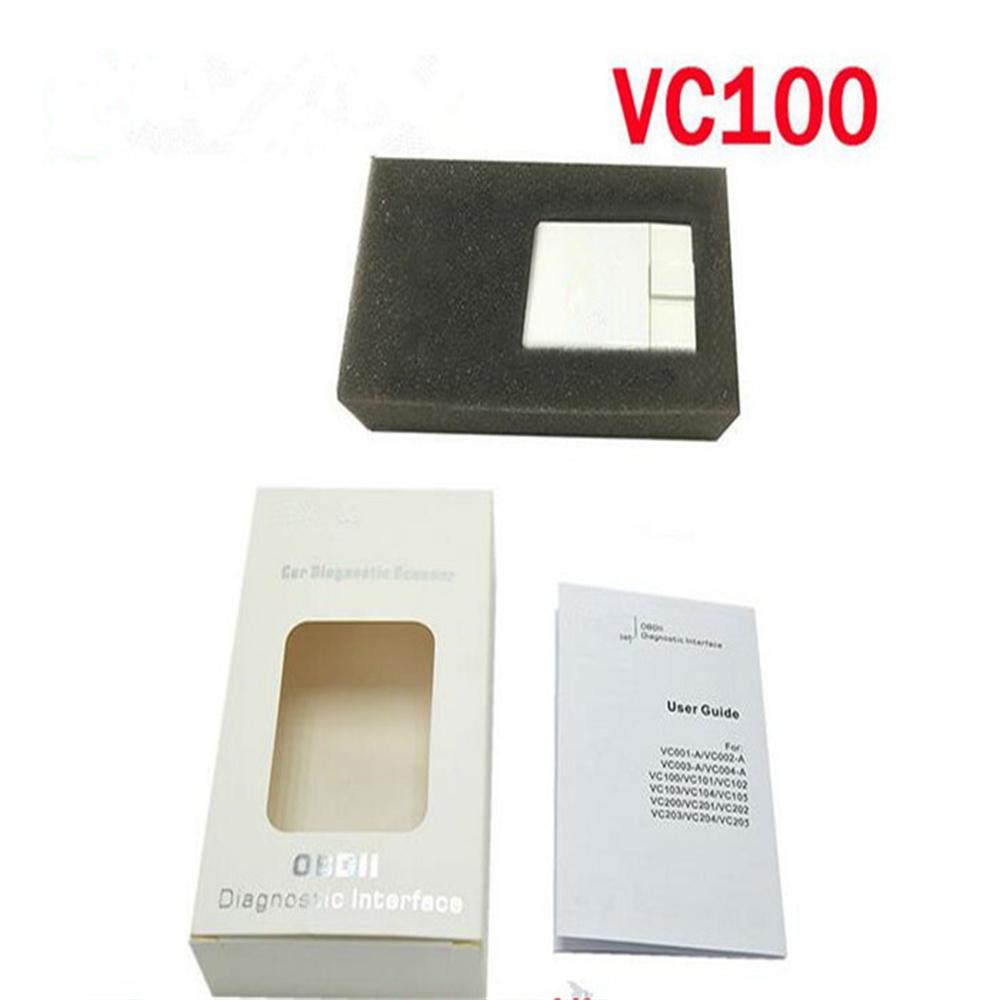

Package list:

1pc x VC100 Bluetooth 4.0

1pc x User Manual
