Descrizione

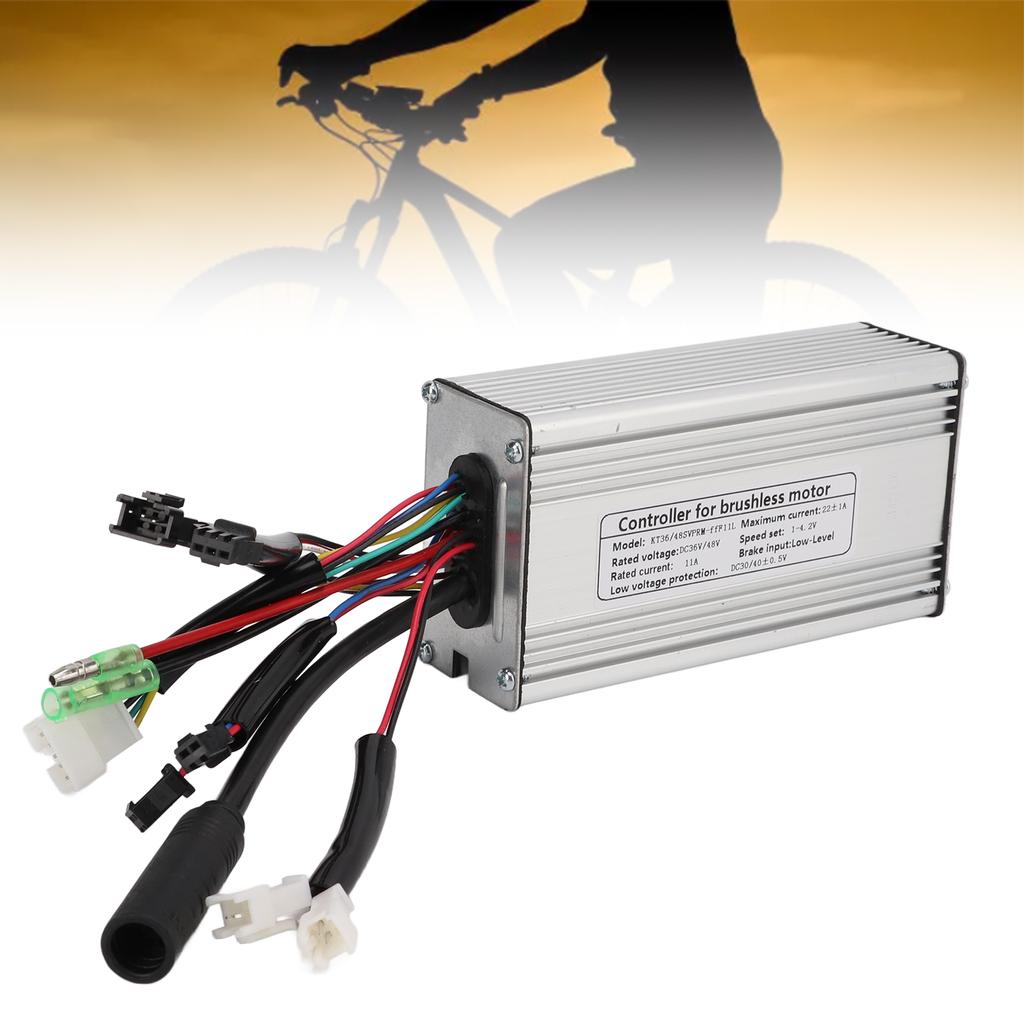

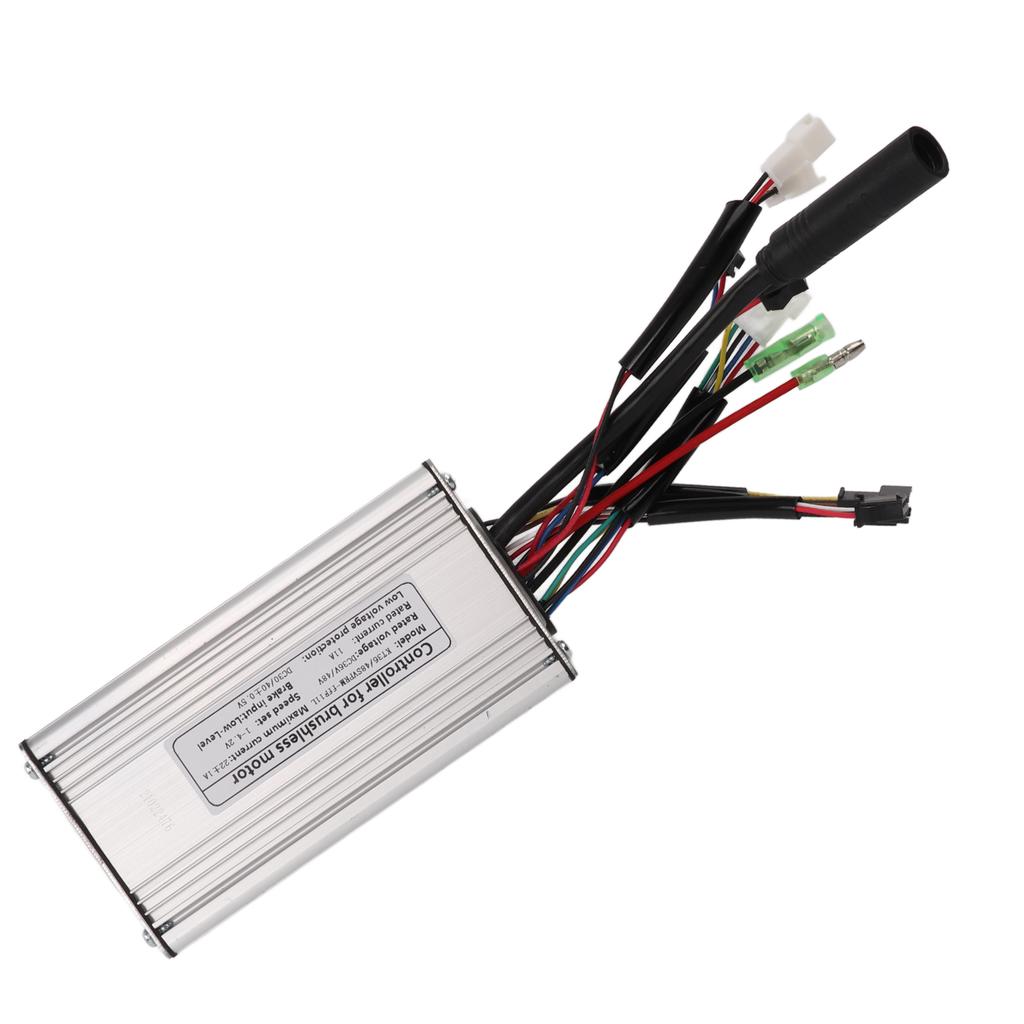

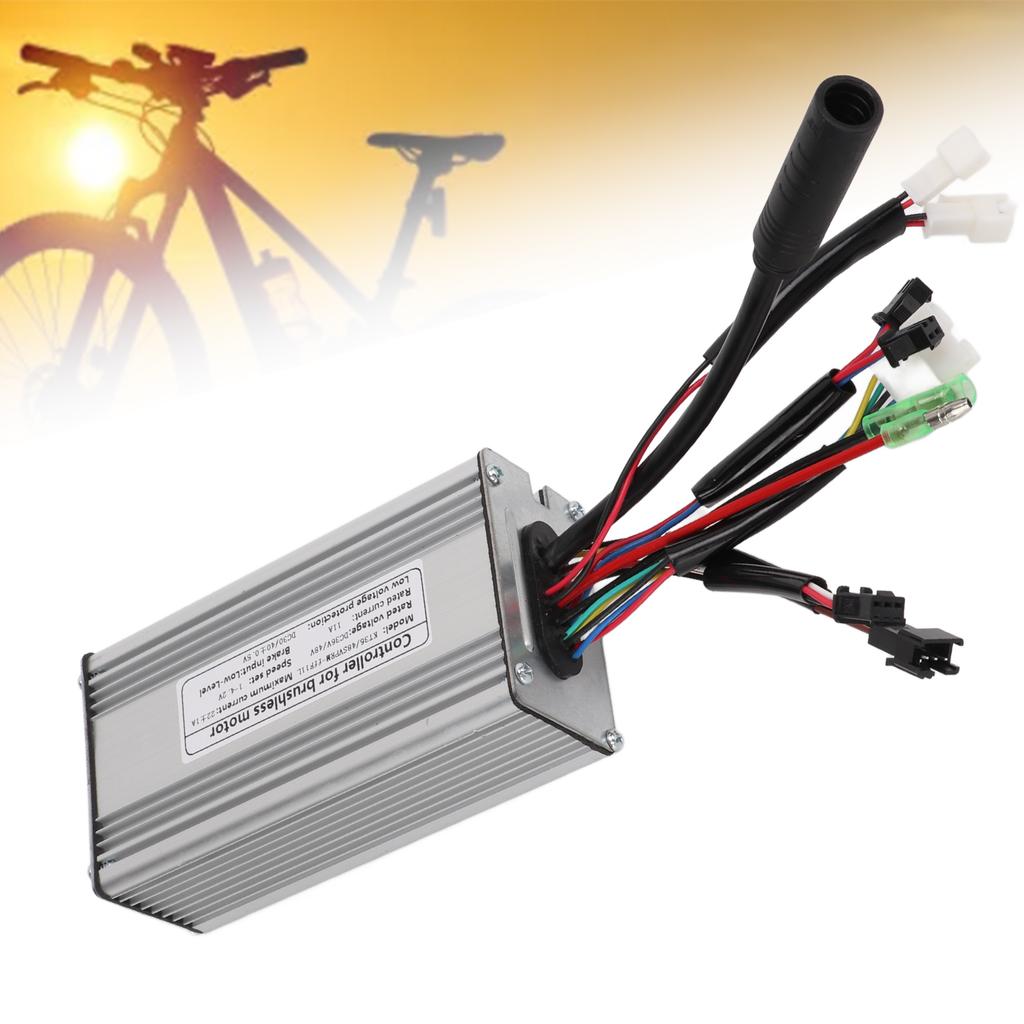

Feature: 1. Good Heat Dissipation: The controller shell is made of high quality metal with groove design, good heat dissipation function, can protect the internal circuit and avoid thermal overload. 2. Brushless Motor Controller: The brushless motor controller can provide stable speed and sensitive braking and direction change control, make your ride smoother and safer. 3. Good Performance: The electric bicycle brushless motor controller has high performance wires and interfaces, reliable performance, durable, ensuring low failure rate in long term use. 4. Current and Voltage: Maximum current is 22±1A, rated voltage is DC 36V/48V, speed setting is 1‑4.2V, rated current is11A, low voltage protection is DC 30/40±0.5V. 5. Applicable Motor: The brushless motor controller is easy to install and use, equipped with wiring identification instructions, and is usually suitable for 500W brushless motors.

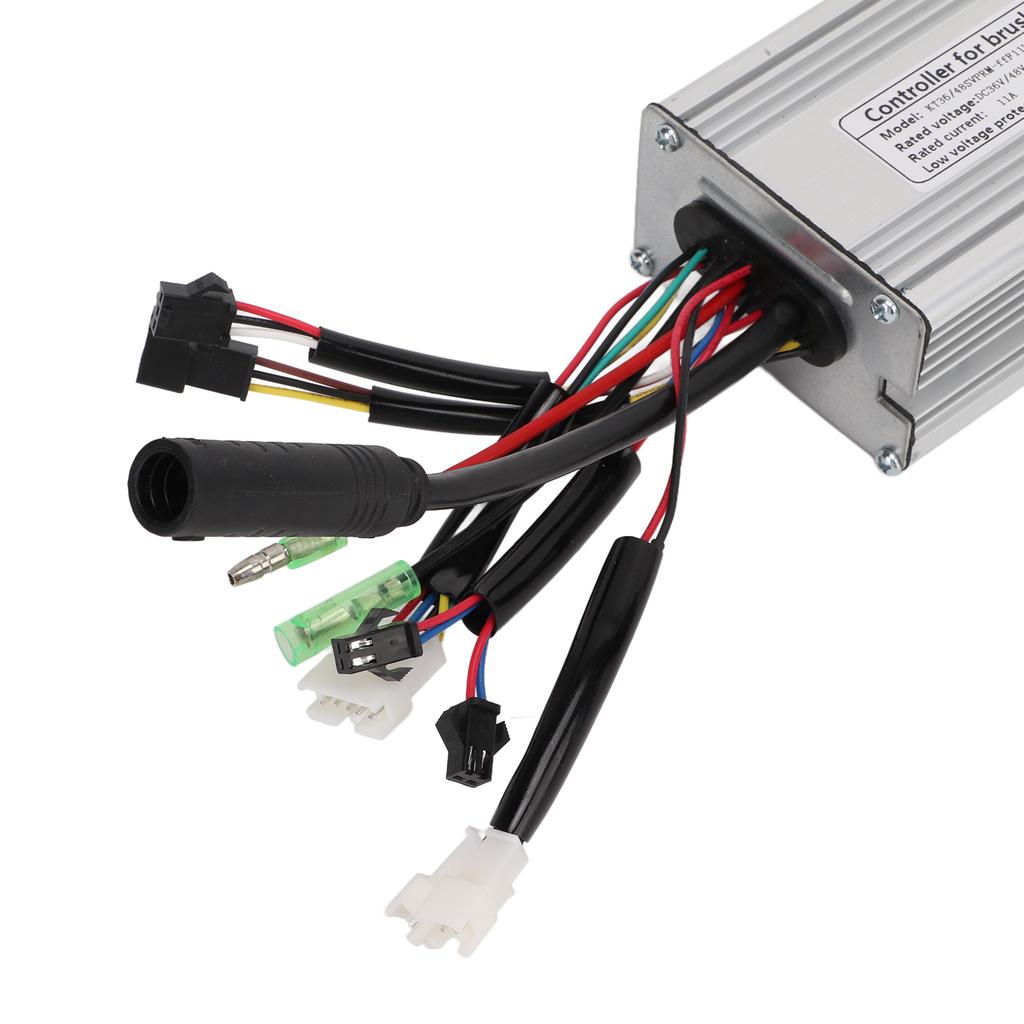

Specification: Item Type: Controller Material: Aluminum Alloy Controller Box Size: Approx. 125x66x39mm/4.9x2.6x1.5in Controller Type: Sine Wave Controller Connector Type: Ordinary Connector Maximum Current: 22±1A Rated Voltage: DC 36V/48V Speed Setting: 1-4.2V Rated Current: 11A Brake Input: Low Level Low Voltage Protection: DC 30/40±0.5V Controller Wire Color Definition: 1. Black Long Wire: motor wire 2. Red and Black Single Big Wire: power line 3. Red, Blue, Black, Green and Yellow Five Wire Ports: display wire 4. Red and Black Wires (Two): light wires 5. Red abd Blue Wires (Two): power off brake handle wire 6. Red Black White Wire: thumb throttle wire 7. Brown Black Yellow Wire: PAS power pedal assist sensor wire

How to Use: Controller wiring instructions: Connect the corresponding line interface to realize the function.

Package List: 1 x Controller 1 x Manual

Note: It should be compatible with products with the same communication protocol, only suitable for Kunteng series products. The motor does not need a brand, and the joint matching can be used.
