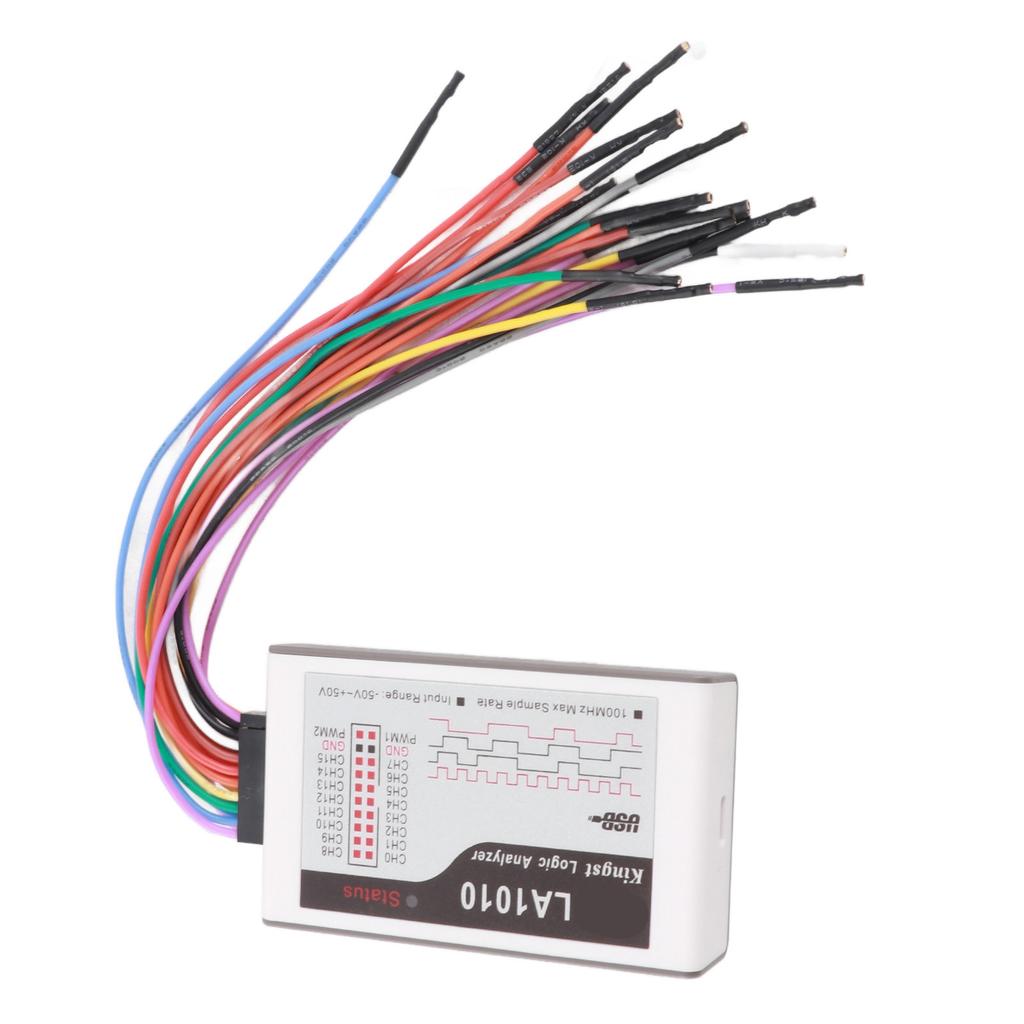

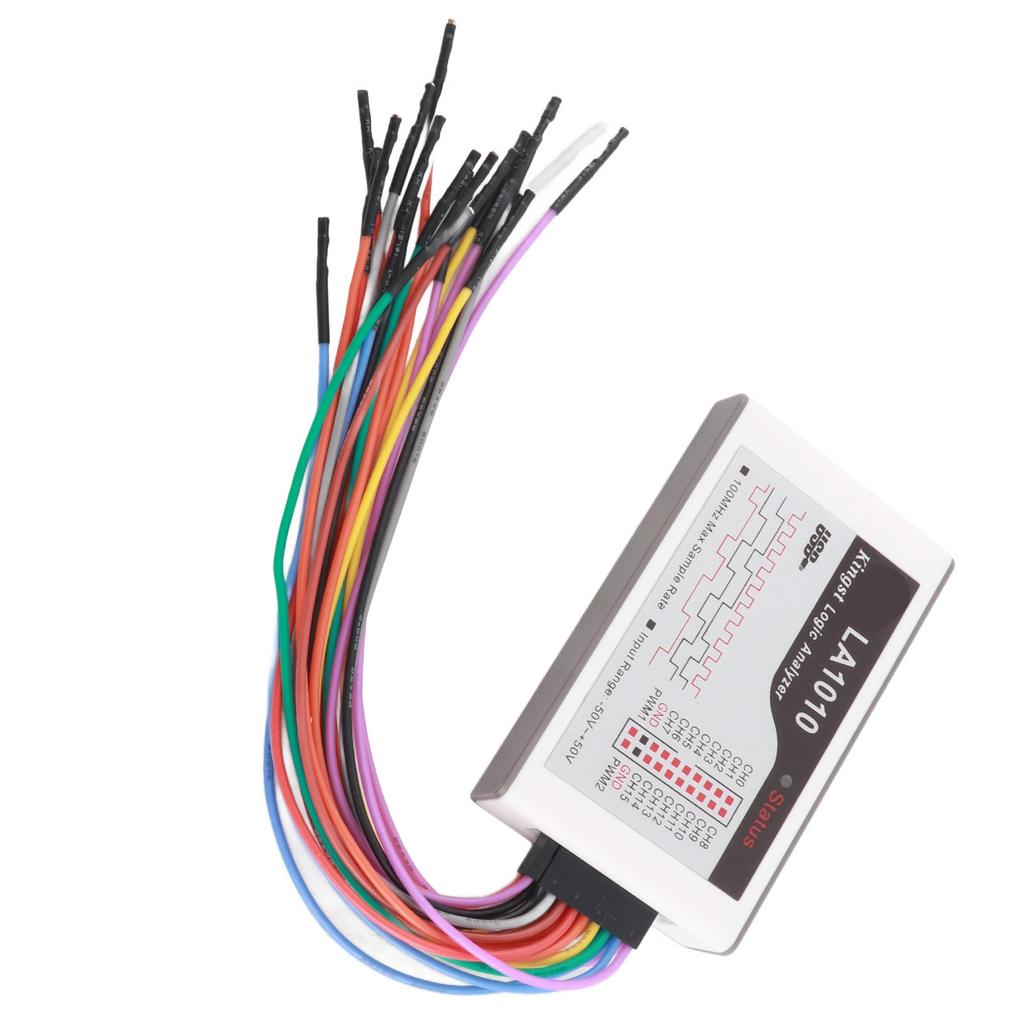

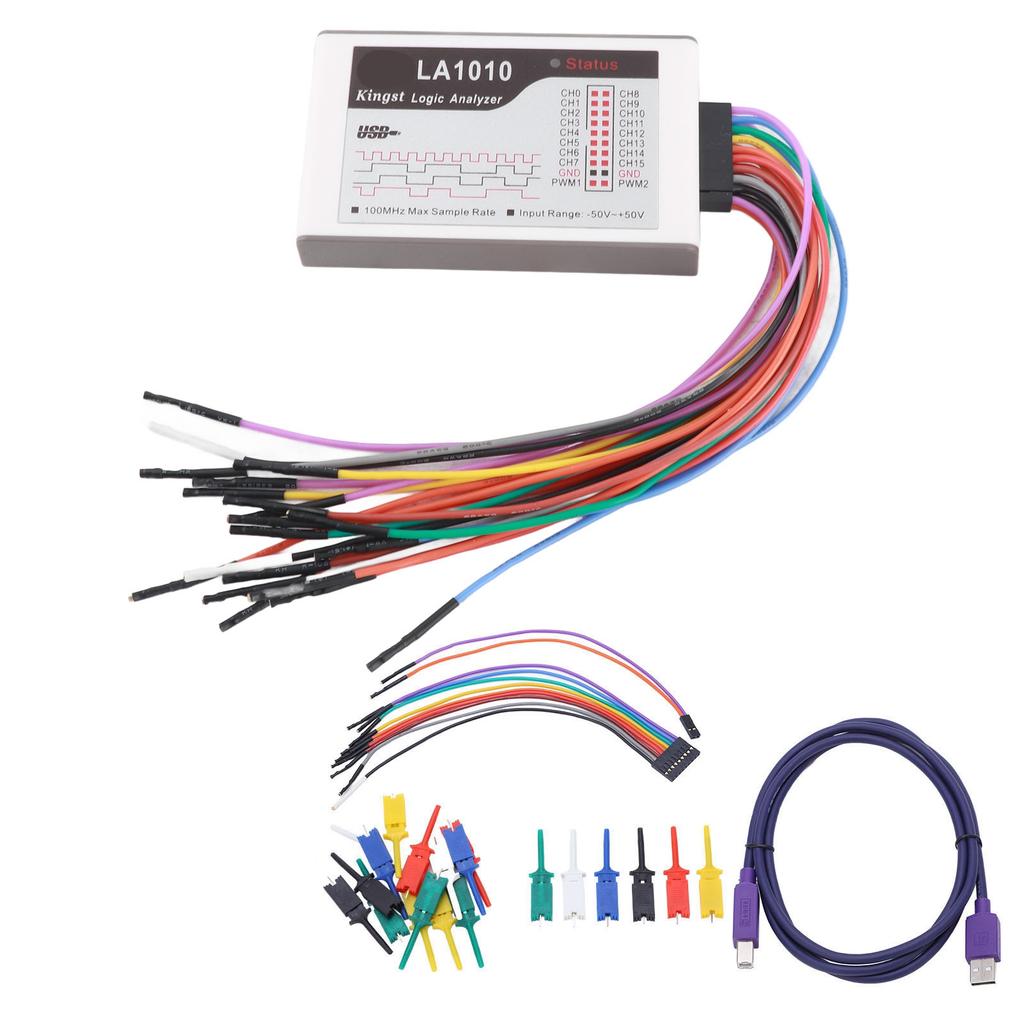

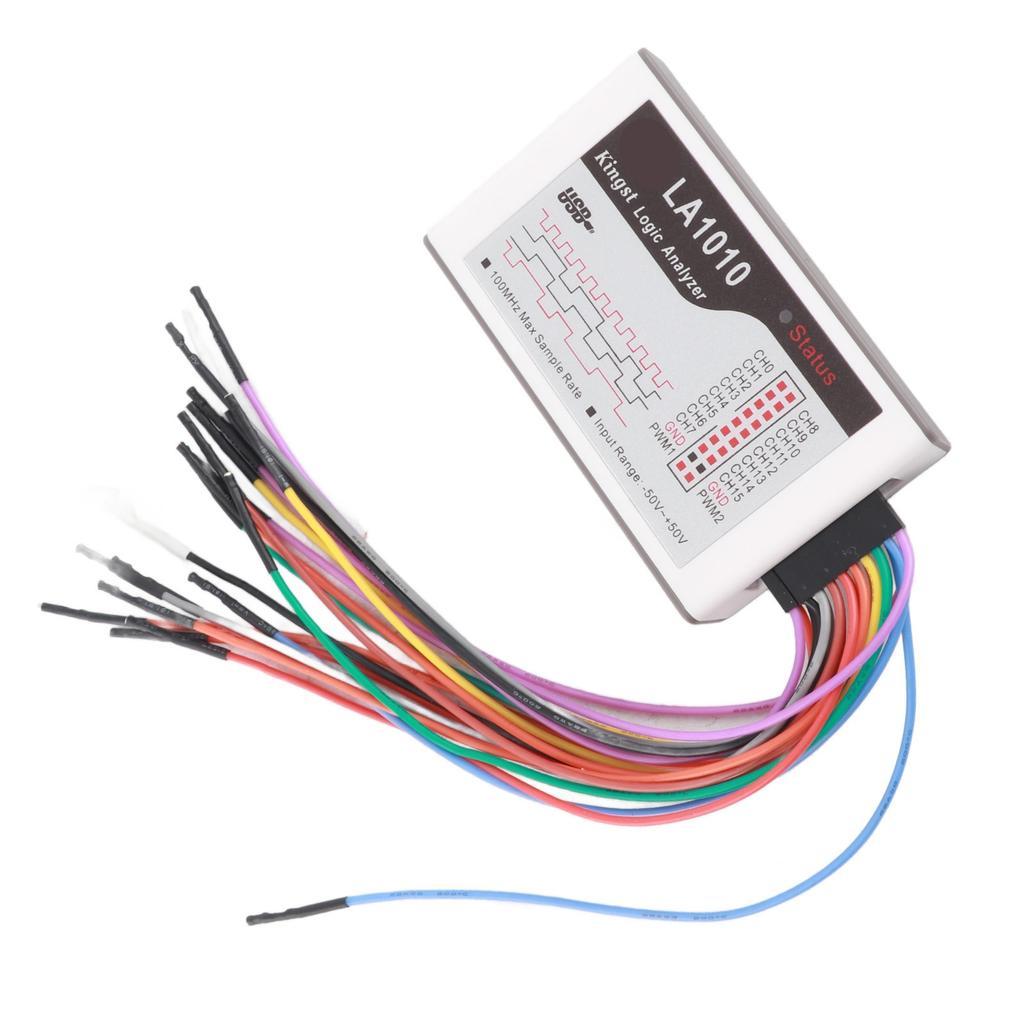

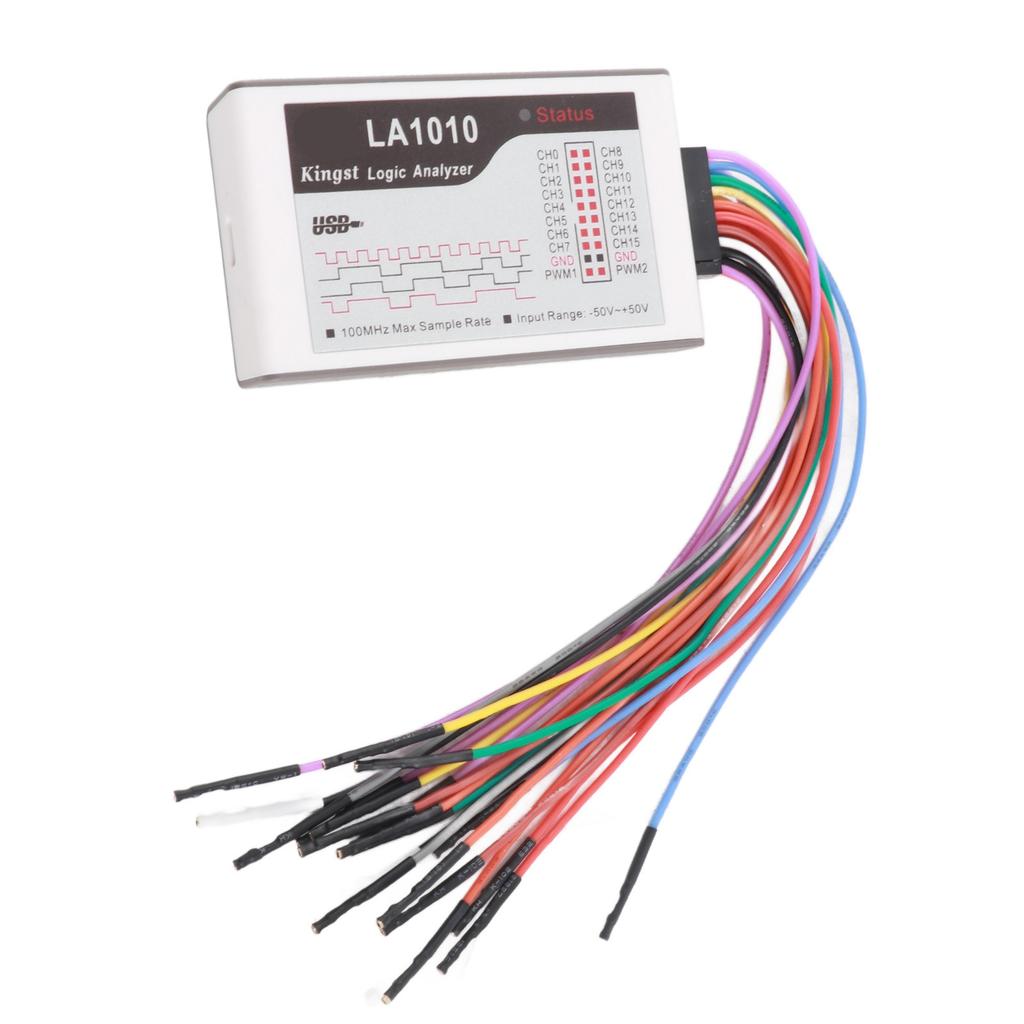

16 Channel Logic Analyzer with Cable Portable Analyzer Device 100M Sampling Rate ?50?50V Input

Feature: 1. Linkable Window: The waveform window and the analysis result window can be linked, which is convenient for finding waveforms and data in various ways. 2. Export Formats: Sampling data can be exported to .txt, .cSV, .bin and other formats, and can also be opened for viewing or editing with other software. 3. Display Formats: The display format of decoded data supports binary, decimal and hexadecimal data, which is convenient for observation and analysis. 4. Intuitive Interface: With intuitive trigger setting interface, trigger conditions include signal transition edges, high and low levels, or a combination of the two, etc. 5. Good Compatibility: Adjustable threshold, compatible with various level standards, such as 5VTTL, 5 CMOS, 3.3V CMOS, 3.0V CMOS, 2.5V CMOS, 1.8V CMOS, 1.5V CMOS, 1.2V CMOS, 0.9V CMOS. Specification: Item Type: Logic Analyzer Product Model: LA1010 Number of Channels: 16 Channels Supported Modes: Streaming Mode Maximum Sampling Rate: 100M (3 channels), 50M (6 channels), 32M (9 channels), 25M (12 channels), 16M (16 channels) Highest Collectable Signal Frequency: 20MHz Minimum Collectable Pulse Width: 20ns Maximum Streaming Mode Sampling Depth: 100G (the actual depth may be limited by the memory capacity of the computer, and each level transition of each channel requires 5Bytes of memory) Input Voltage Range: 5050V Equivalent Input Impedance: 200K Ohm , 15pf Threshold Voltage: Adjustable Range: 44V, Adjustment Step: 0.01V Interface Type: USB2.0 Standby Current: 100mA Maximum Operating Current: 200mA. Package List: 1 x Analyzer1 x 9P Line1 x 2P Line20 x Test Hooks1 x USB Cable1 x User Manual Note: Match the appropriate model threshold range before use.Linkable Window: The waveform window and the analysis result window can be linked, which is convenient for finding waveforms and data in various ways. Export Formats: Sampling data can be exported to .txt, .cSV, .bin and other formats, and can also be opened for viewing or editing with other software. Display Formats: The display format of decoded data supports binary, decimal and hexadecimal data, which is convenient for observation and analysis. Intuitive Interface: With intuitive trigger setting interface, trigger conditions include signal transition edges, high and low levels, or a combination of the two, etc. Good Compatibility: Adjustable threshold, compatible with various level standards, such as 5VTTL, 5 CMOS, 3.3V CMOS, 3.0V CMOS, 2.5V CMOS, 1.8V CMOS, 1.5V CMOS, 1.2V CMOS, 0.9V CMOS.
