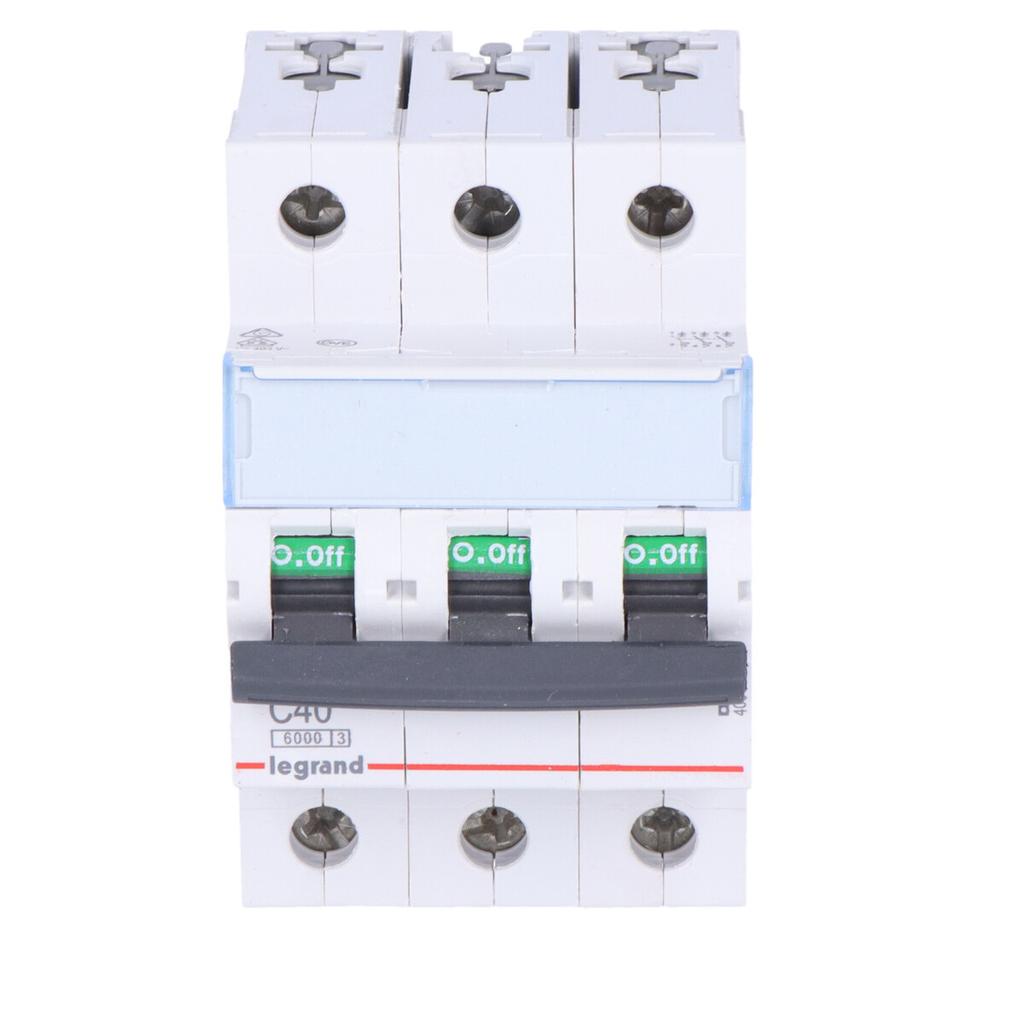

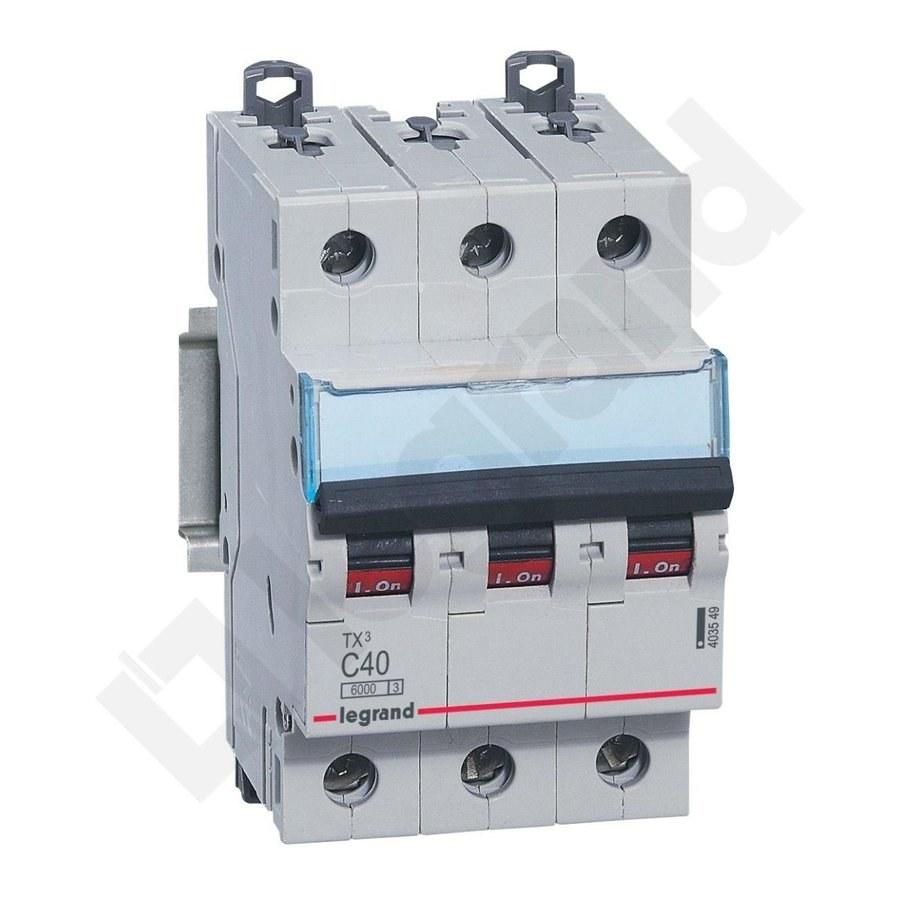

Circuit breaker 303 3P C 40A 6000A TX3

• The S 300 and S 310 TX3 series circuit breakers protect electrical installations against short circuits and overloads.

• The lower latch and terminal shutter design make installation and wiring simple and convenient.

• A major advantage of the TX3 series circuit breakers is their compatibility with auxiliary devices such as auxiliary and signaling contacts, undervoltage and shunt releases, remote drives, and more.

• Miniature circuit breakers S 300 TX3

• Short-circuit breaking capacity: 6000 A (IEC/EN 60898-1) / 10 kA (IEC/EN 60947-2).

• Available time-current characteristics: B, C and D.

• Made for rated currents from 0.5 to 63 A.

• Versions:

• •single-pole (S 301 TX3),

• •bipolar (S 302 TX3),

• •three-pole (S 303 TX3),

• •four-pole (S 304 TX3).

• Miniature circuit breakers S 310 TX3

• Short-circuit breaking capacity: 10000 A (IEC/EN 60898-1) / 16 kA (IEC/EN 60947-2).

• Available time-current characteristics: B and C.

• Made for rated currents from 0.5 to 63 A.

• Versions:

• •single-pole (S 311 TX3),

• •bipolar (S 312 TX3),

• •three-pole (S 313 TX3),

• •four-pole (S 314 TX3).

• Miniature circuit breakers series S 300, three-pole S 303

• Rated voltage: 400 V AC

• Protection degree:

• Mounting: TH35 rail

• Color: gray RAL 7035

• Rated current: 40 A

• Characteristic: C

• Short-circuit breaking capacity: 6 kA

• Maximum voltage: 440 V AC

• Mechanical life: 20000 operations

• Rated frequency: 50 to 60 Hz

• Number of poles: 3

• Insulation voltage: 500 V

• Electrical life: 4000 operations

• Minimum voltage: 12 V AC

Size: S
