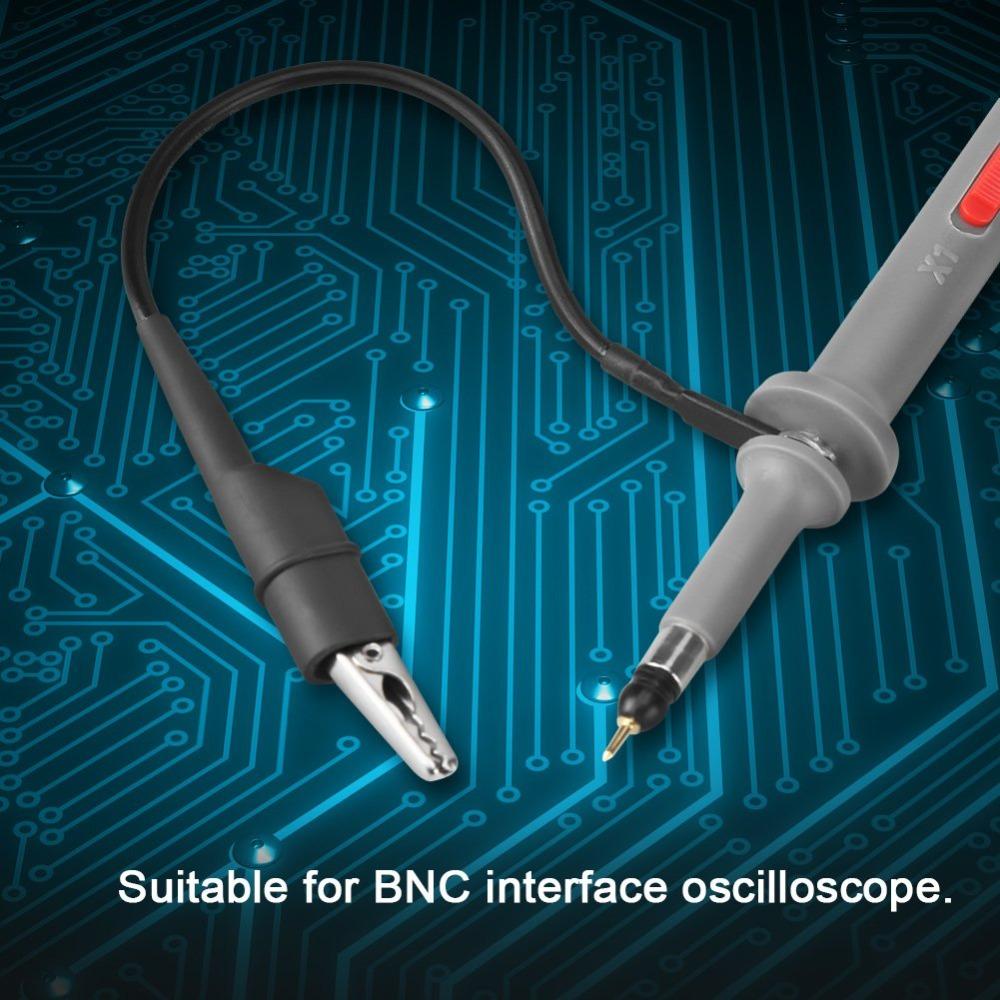

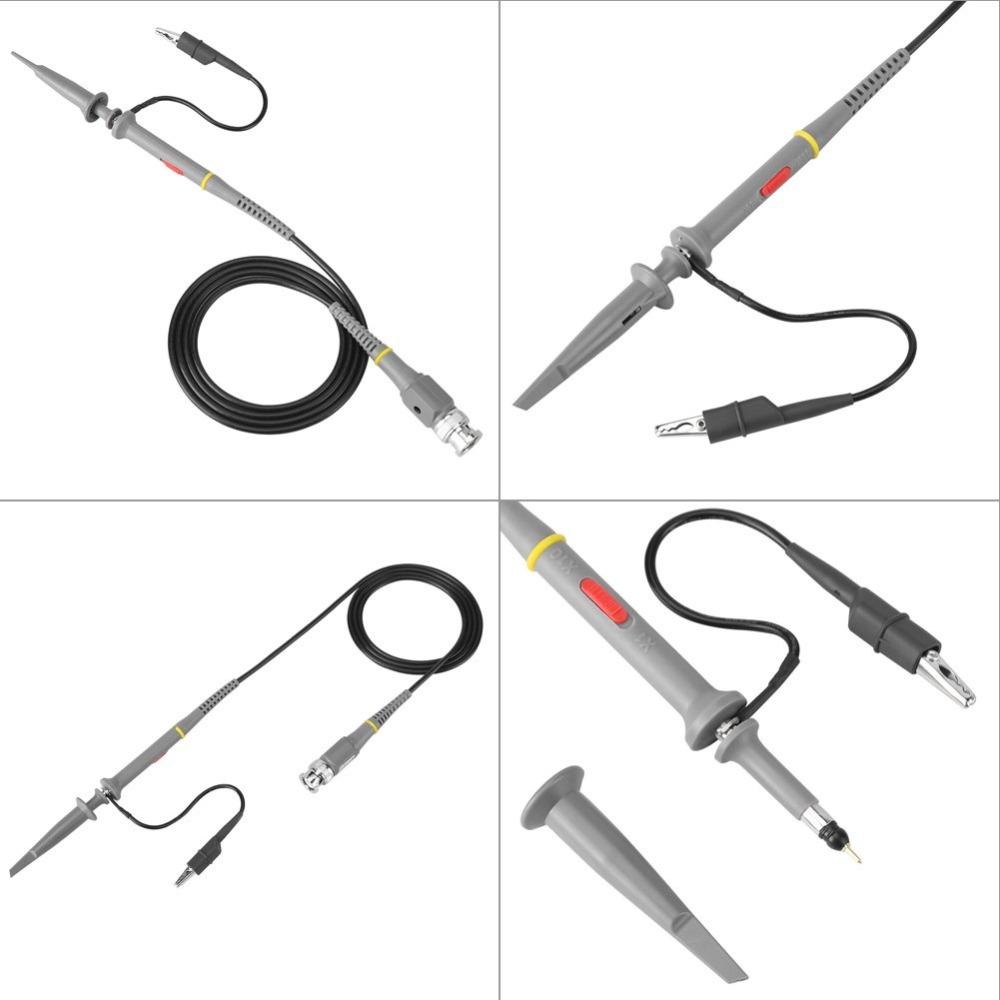

2PCS 600V Maximum Input Voltage Oscilloscope Test Probe BNC Probe Electronic Measurement

Label:Yes - Flexible Probe Tips: Needle and hook-style probing accessories support different contact methods, making it easier to test component leads, circuit points, and difficult-to-reach locations while helping maintain stable contact during measurement. - Reliable Connection: The BNC male connector provides a secure connection to compatible oscilloscope inputs, and the included grounding lead helps establish a stable reference point for clearer and more dependable waveform measurements. - Wide Bandwidth: The P6100 oscilloscope probe supports bandwidth up to 100MHz, providing practical signal measurement performance for waveform observation, electronic testing, circuit debugging, and general laboratory or workshop oscilloscope applications. - Confirmed Parameters: The probe is specified with a 600V maximum input voltage, 10Mohm input resistance, and adjustable compensation, allowing users to optimize probe response according to the connected oscilloscope and measured signal. - Switchable Attenuation: A convenient x1/x10 attenuation selector allows the probe to adapt to different measurement requirements, while the x10 setting helps reduce circuit loading during higher voltage or higher frequency signal testing.

Specifications: Product Name: P6100 Oscilloscope Probe -Attenuation ratio: 1X/10X conversion -Input resistance: 1M ohm/10M ohm -Input capacitance: 1X: 85pF~120pF; 10X:18.5pF~22.5pF -Compensation range: 10pF~30pF -System bandwidth: 1X: DC-6MHz; 10X:DC-100MHz -Input voltage: 1X: <300VDC+AC Vpp; 10X:<600VDC+ AC Vpp -Working temperature range: -15 ℃~+75 ℃ -Unworking temperature range: -20 ℃~+60 ℃ -Color: Grey -Net weight: 55g -Cable length: 120cm(47.24in) -Humidity: ≤ 85% (relative humidity)

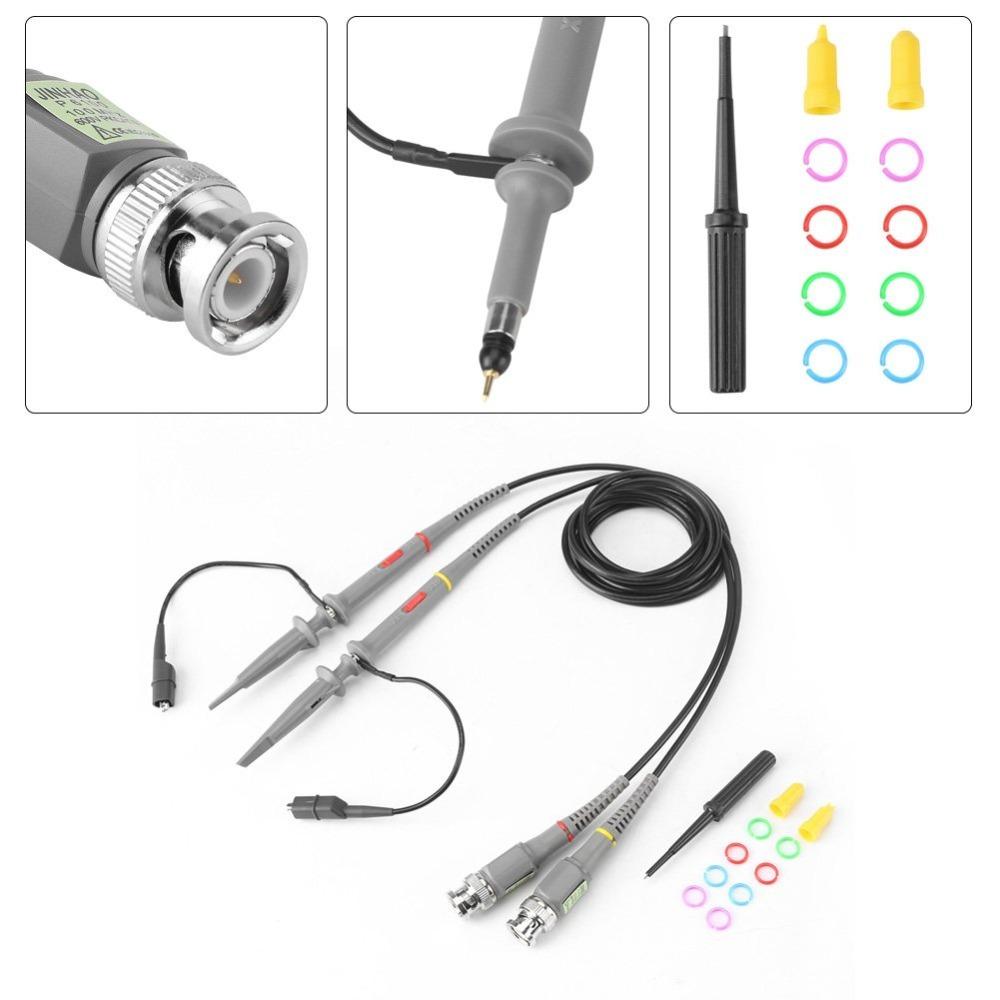

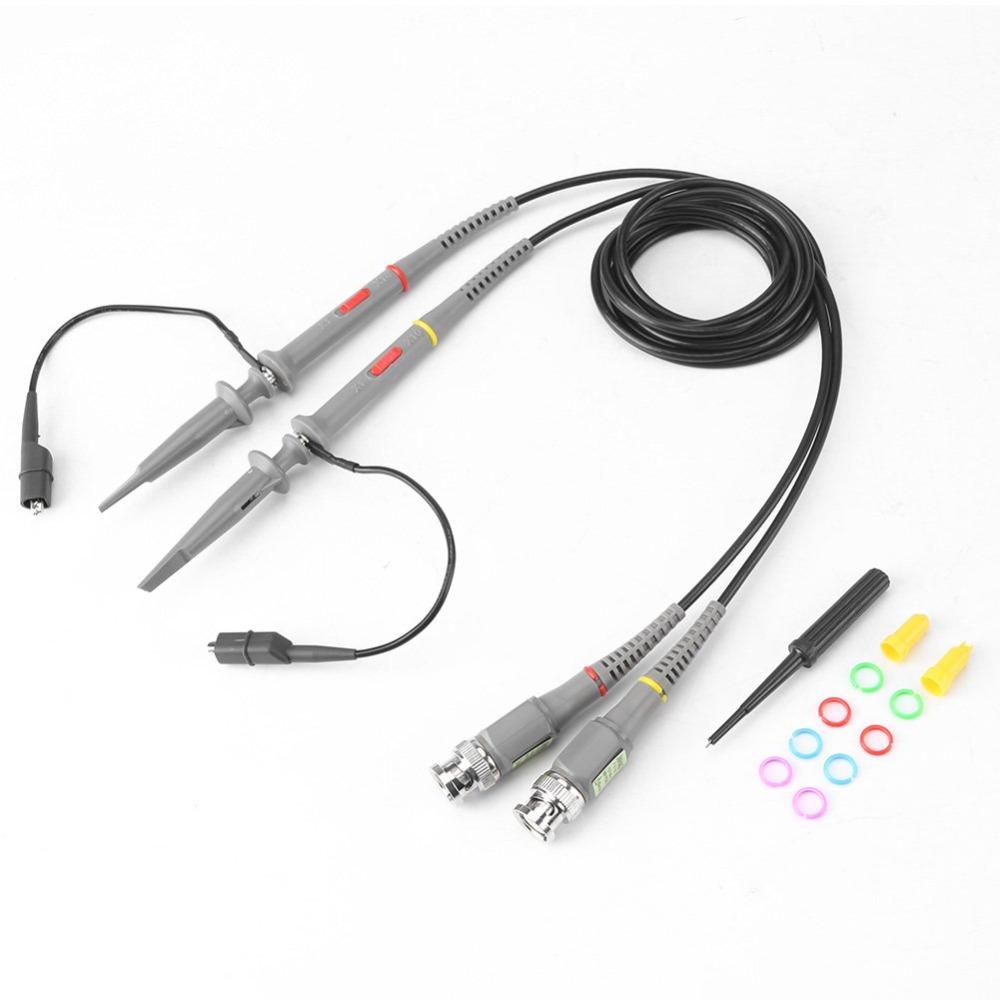

Package Including: 2 x Oscilloscope Probe

Tips: 1.Due to the light and monitors effect, colors may have lightly difference. 2.Please allow slightly size errors due to manual measurement. Thank you for your understanding!
