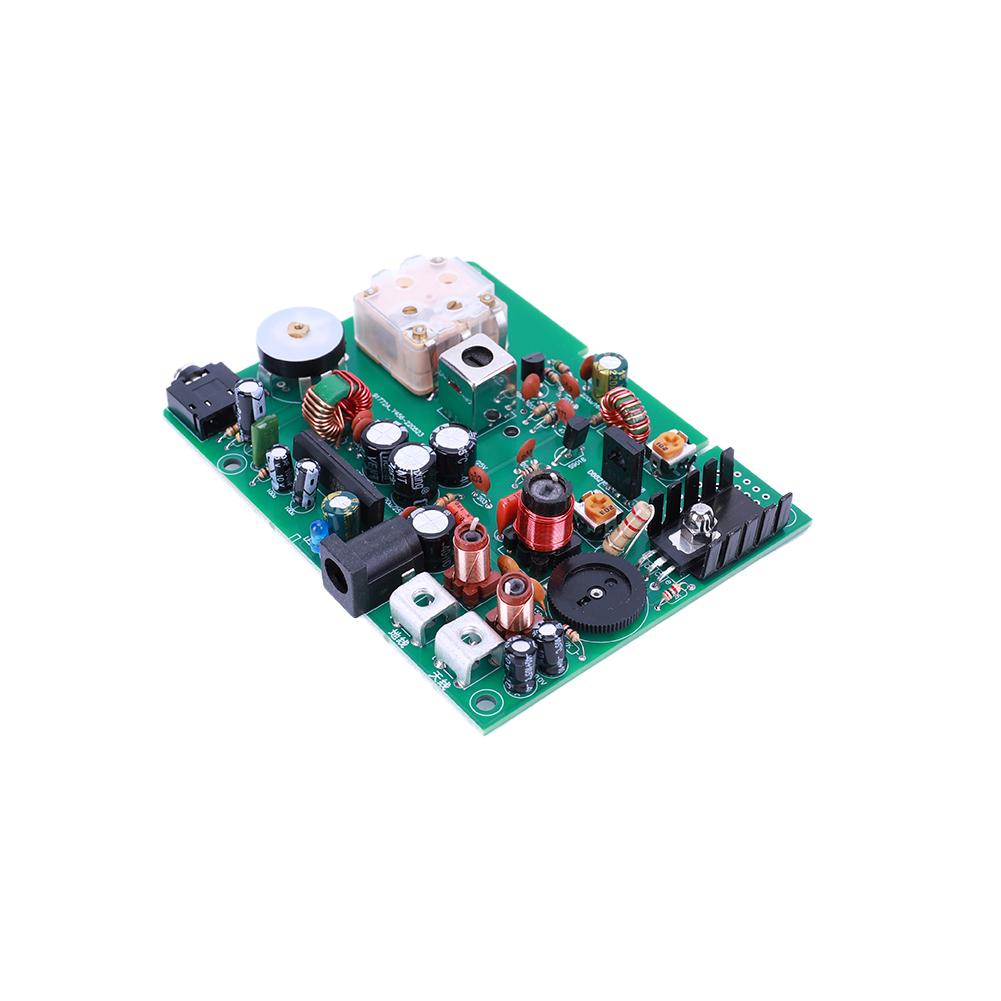

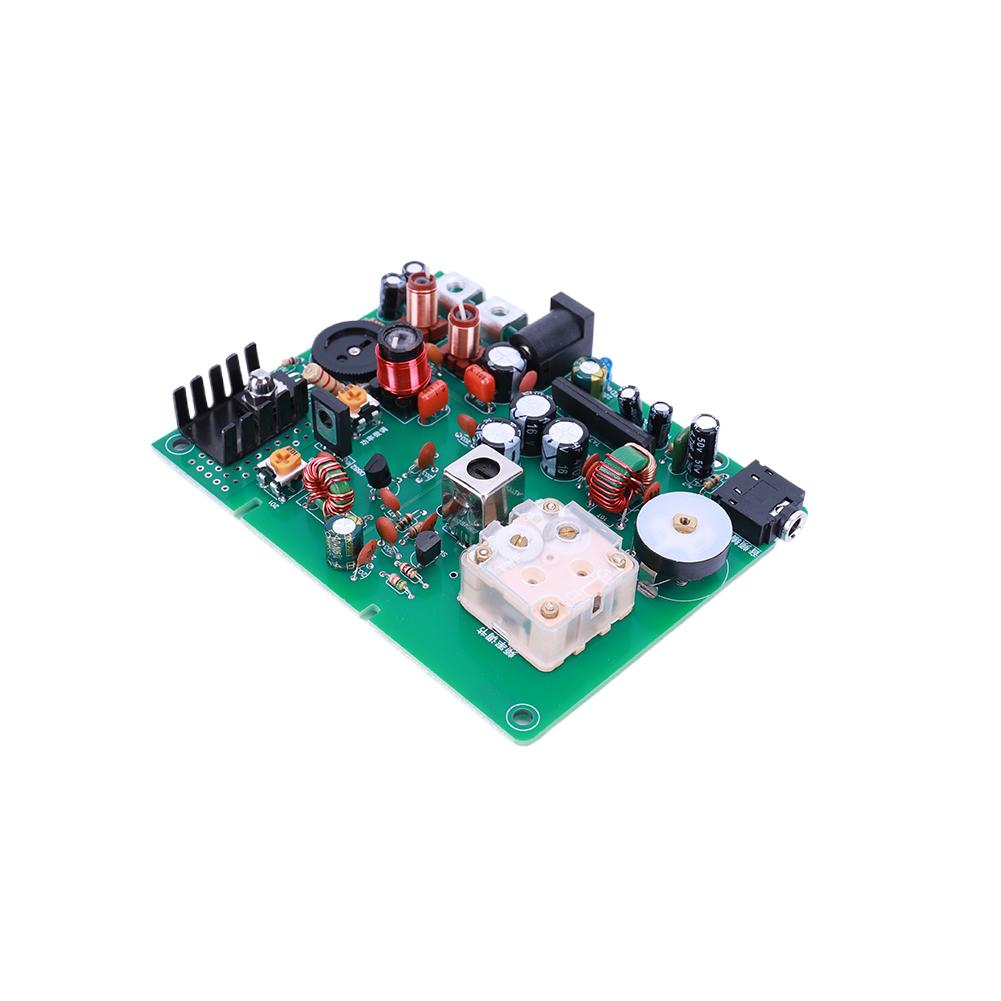

530-1600khz Medium Wave Transmitter AM MW Transmitter Experimental Micropower Medium Wave Transmitter Test Crystal Radio

530-1600khz AM Radio Transmitter Experimental Micropower Medium Wave Transmitter School Training Kit Used to Test Crystal Radio Receiver

Feature:

1. Wide Frequency Range: The am radio transmitter covers a frequency range of 530kHz to 1600kHz, making it adaptable to various AM broadcast bands.

2. High-Quality Signal Transmission: This experimental micropower medium wave transmitter utilizes high-quality signal processing technology, ensuring clear and stable audio transmission.

3. Stable and Reliable Performance: The medium wave transmitter is designed for stable and reliable performance, capable of running for extended periods without faults or signal interruptions.

4. Consistent Operation: The am mw transmitter offers consistent and dependable operation, providing peace of mind for continuous broadcasting.

5. Superior Modulation: The amplitude modulation transmitter delivers superior modulation capabilities, ensuring your broadcasts are transmitted with high fidelity and minimal interference.

Specification:

Origin: Mainland China

DIY Supplies: ELECTRICAL

Hign-concerned Chemical: None

Power supply: 9V2A DC, 5.5 interface, positive inside and negative outside (self-provided power supply required)

Transmission frequency: 530~1600KHZ (radio medium wave band)

High frequency transmission power: adjustable from 20mW to 500mW, adjustable power for use within 5~10 meters.

Antenna: 5m home 1.5~2.5 copper wire

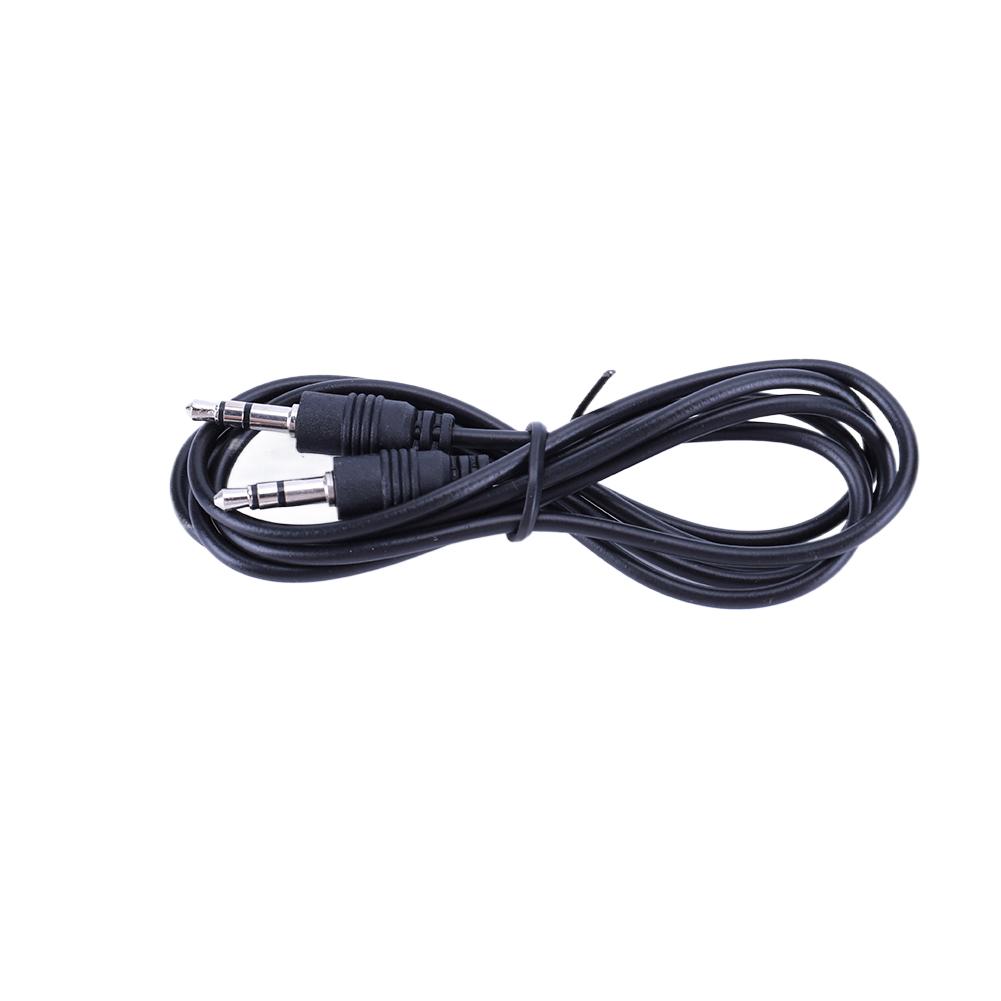

Audio input: 3.5mm at both ends, included with board accessories

Sound source: CD, desktop computer, mobile phone, etc.

Applicable: Medium wave radio enthusiasts, for students to study wireless signal generation, AM transmitter audio modulation principle.

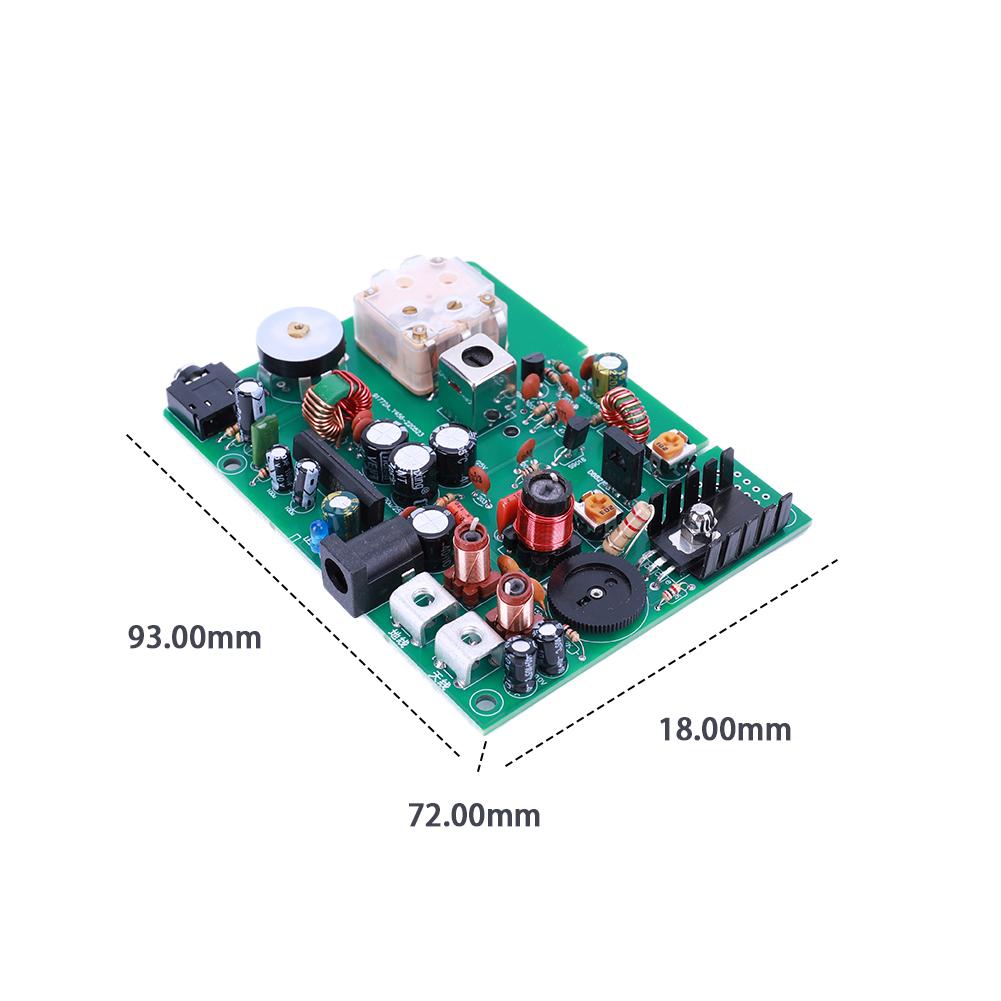

Product size: 93.00x72.00x18.00mm

Product size: 3.66x2.83x0.71inch

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
