Based on the ESP32-S3 microcontroller, it has a built-in Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz
Integrated 2.4GHz Wi-Fi and Bluetooth 5 Low Energy (LE) dual-mode wireless communication for excellent performance
Onboard isolated RS485 interface, convenient for external access to RS485 Modbus industrial expansion modules or sensors
Onboard isolated CAN interface for easy access to CAN devices
Onboard USB Type-C interface, which can be used for power supply and download debugging, making it convenient for development and use
Onboard pin header allows connection to other devices
Onboard terminal block power supply interface supports a wide voltage range of 7V - 36V, convenient for industrial power supply use
Onboard RTC clock chip, supports scheduled tasks
Onboard digital isolation to prevent external signals from interfering with the control chip
Onboard integrated power isolation can provide stable isolation voltage, and no additional power supply is required for the isolation end
Onboard RS485 transmit and receive indicator and CAN working indicator, convenient for sensing the operating status of the device

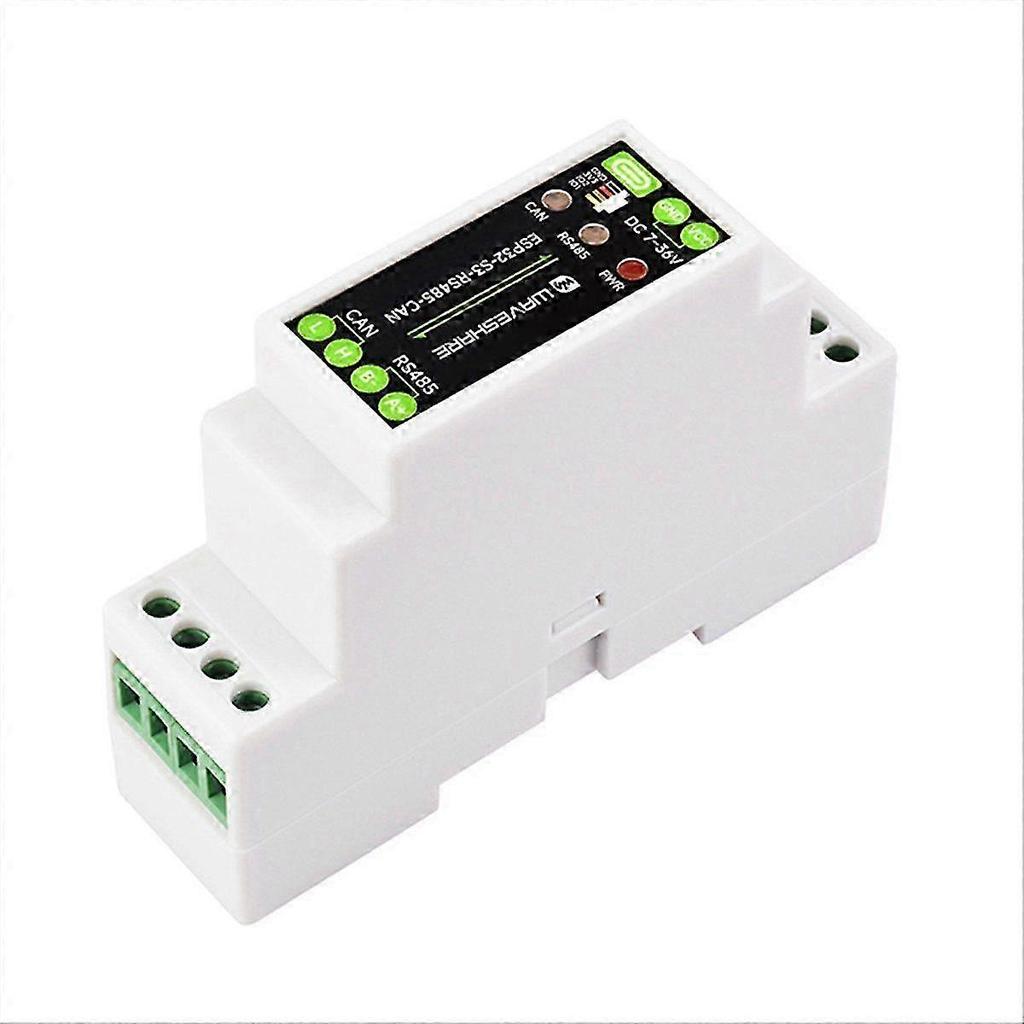

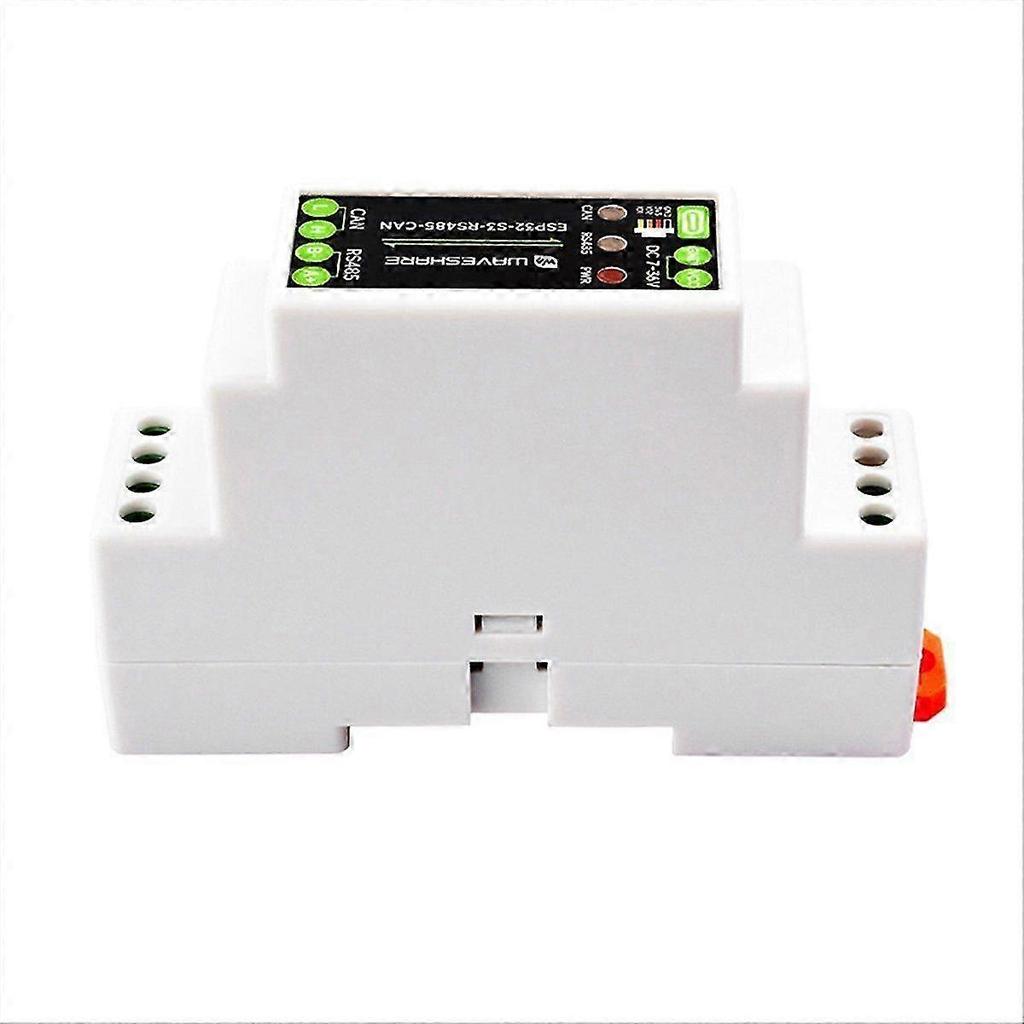

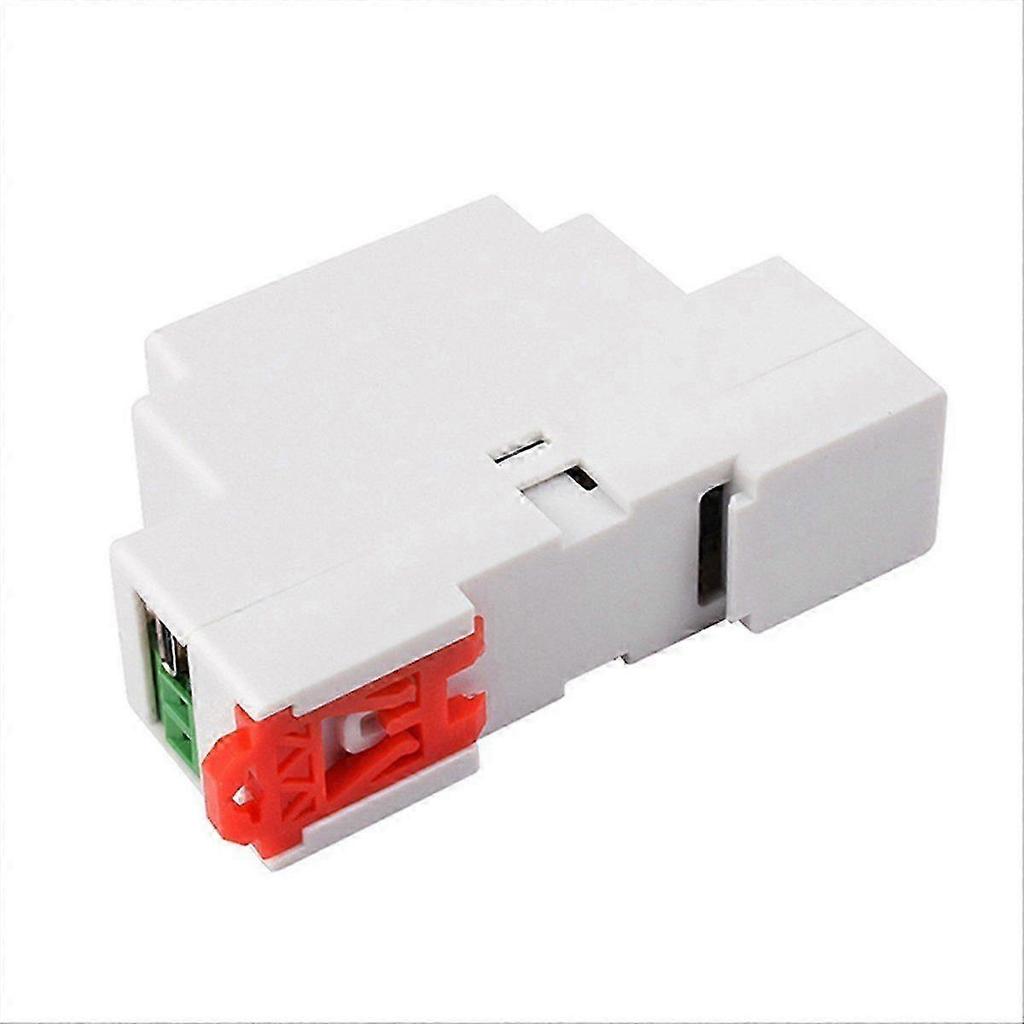

Guide rail type protective shell, easy to install and use, with shell

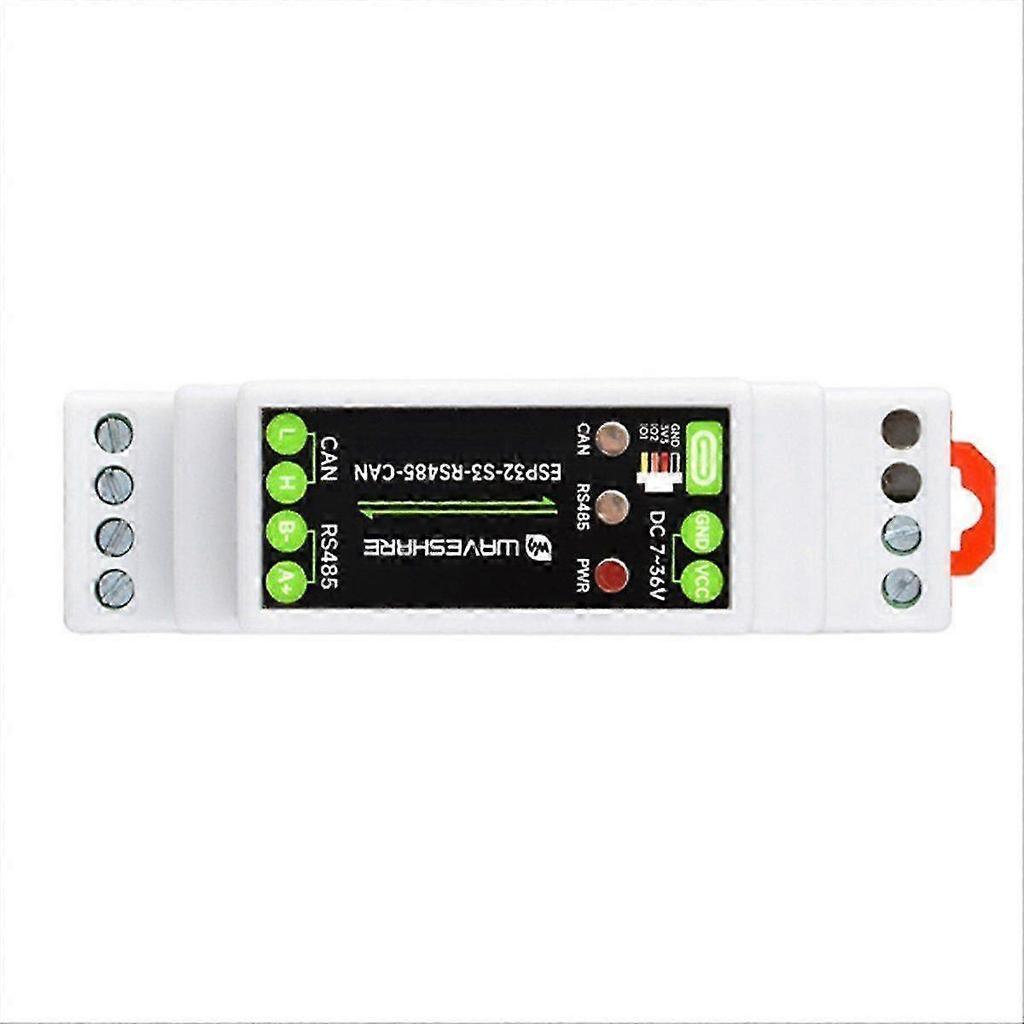

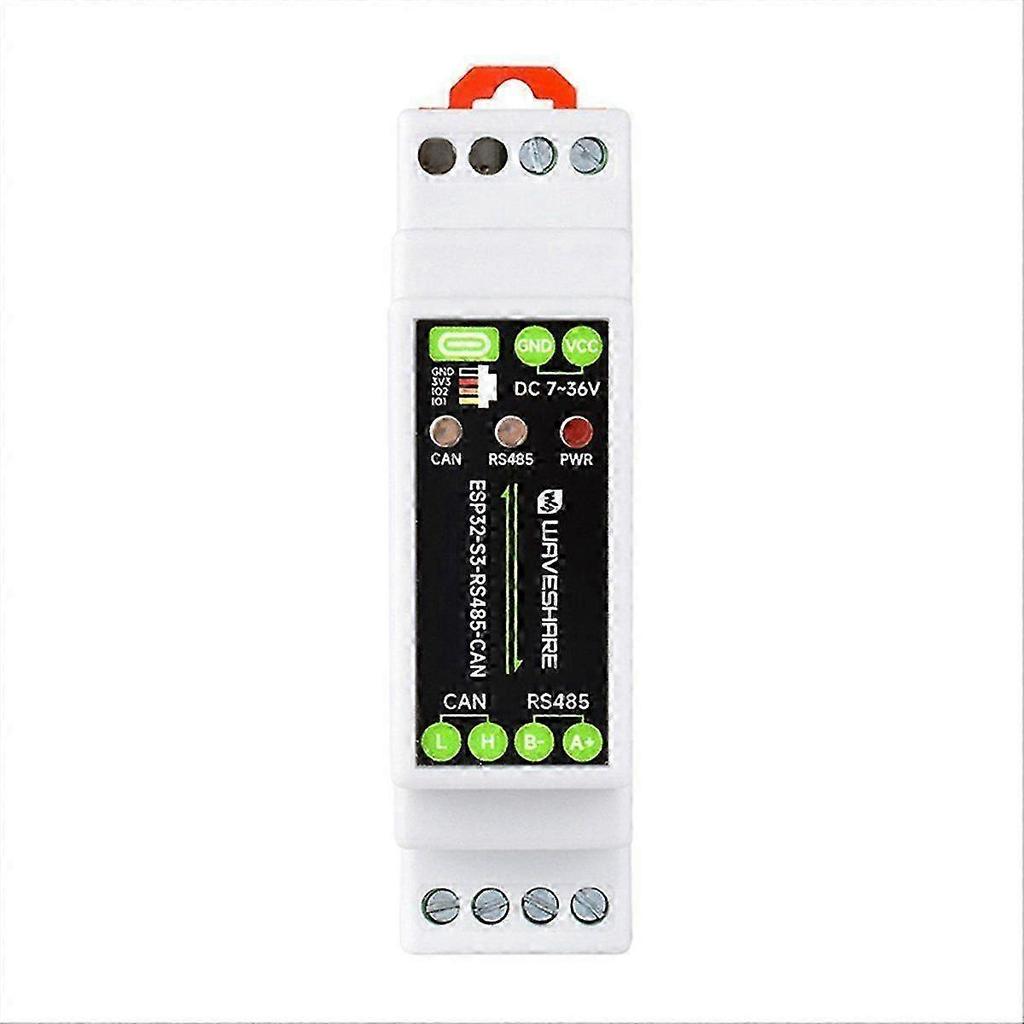

model:ESP32-S3-RS485-CAN
microcontroller:ESP32-S3 (ESP32-S3R8 chip by default, )
wireless communication:2.4GHz Wi-Fi (802.11 b/g),Bluetooth 5 (LE)
Power supply range:7V-36V
Color: As Shown
Material: plastic
Package Contents:
1 x RS485 CAN Communicator
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
