【Advanced Design】with 35mm Din Standard Rail Mounting, The three-phase electronic energy meter adopts microelectronic technology and large-scale integrated circuit, and applies advanced technologies such as digital sampling processing and SMT technology.
【3 Phase 4 Wire Electric Meter, not just Energy Meter 】Measure AC energy with a rated frequency of 50/60HZ, and display of various parameters. Press the button M, Three-phase meter can show the A, B, C Phase voltage, current, positive/negative active power , power factor, frequency, and other information
【High Accuracy, with LCD Backlight】This power consumption for this meter is < 2W/10VA per phase, Class 1 accuracy. 15 seconds for the LCD backlight designed to save energy and can be seen clearly.
【Auto Save】 The meter reading will be retained even in the event of a power failure. The values cannot be reset.

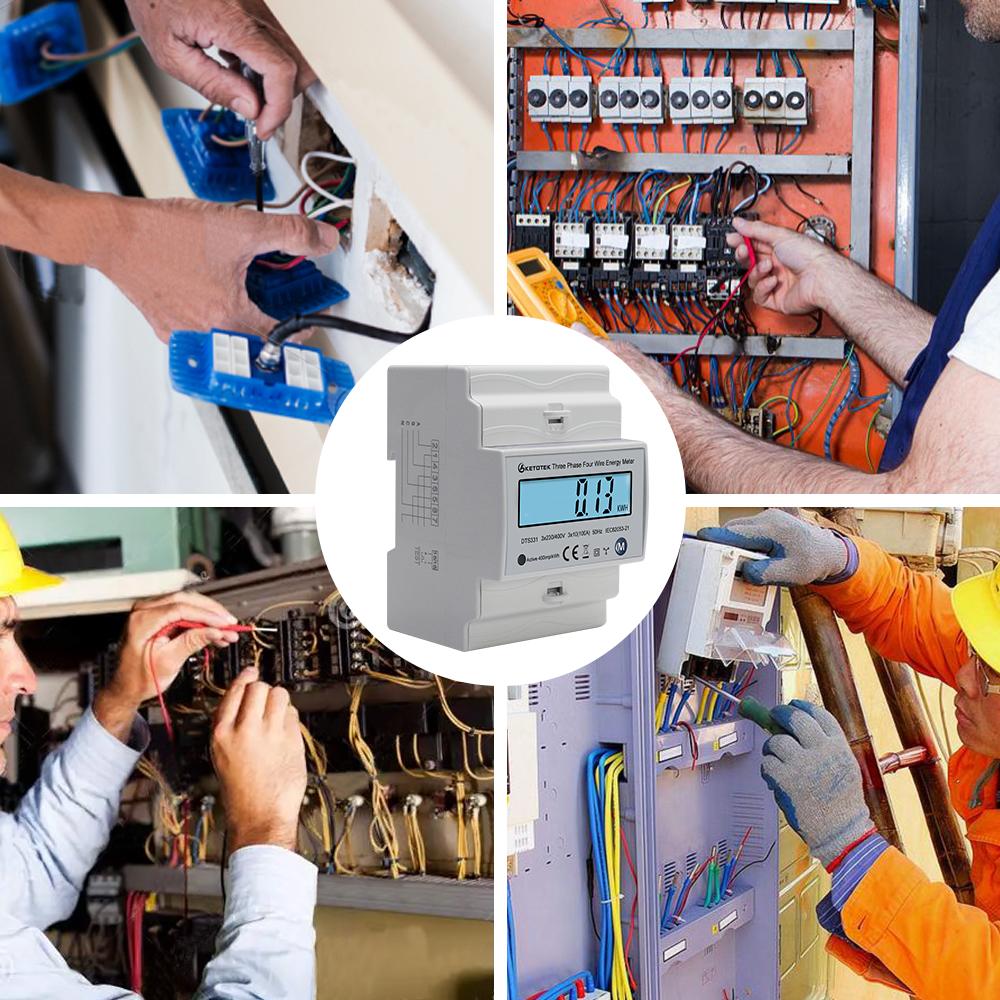

【Easy to Install & Widely Use】Can be easily and securely snapped onto a DIN rail. AC wattmeter DIN rail can be used for energy saving testing in offices, industrial electricity, hospitals, schools, homes and shopping malls, etc
3 phase 4 wire DIN Rail AC Amp Volt Power Energy Meter
Technical parameters
Rated voltage: 3x230/400V
Rated current: 10(100)A
Input frequency: 50/60Hz
Starting current: 0.4%1b
Working power: 3x230VAC+20%
Power consumption: <2W/ 10VA per phase
Accuracy: Class 1
LCD backlight: 15 seconds
Dimensions: 96 x 72 x 68 mm (L x W x H)
Installation method: 35mm standard DIN rail
Working Temperature: -10℃~+55℃
Storage temperature: -40 C~+70 ℃
Relative humidity: 5% ~ 95%
Pulse output indicator: the indicator flashes once, showing the pulse output synchronously.
Functions and Features
1.35mm DIN standard rail mounting.
2. High-precision measurement of active energy level 1 and reactive energy level 2.
3.LCD backlight.
4.LED indicates pulse output, passive pulse output.
5. Various parameters can be queried quickly using the buttons.
6. With active bidirectional energy, reactive energy measurement, display current, voltage, power factor and other functions
Button M
Press the M button. The three-phase meter can display the A, B, C phase voltage, current, positive/negative active power, power factor, frequency and other information
Easy installation
The ac energy meter is under the protective by insulated white shell, and it can be easily connected to the electricity and securely attached to a DIN Rail by snapping on.
3 Phase 4 Wire connection
3 wires in, 3 wires out, and 1 N wire, then it can detect A, B, C phase voltage, current, energy, active power, power factor, frequency and other information
