170-degree Wide-angle Car Reversing Camera Drill-type High-definition Rear View Camera LED Night Visiom Webcam Car DVR

Hign-concerned Chemical : None

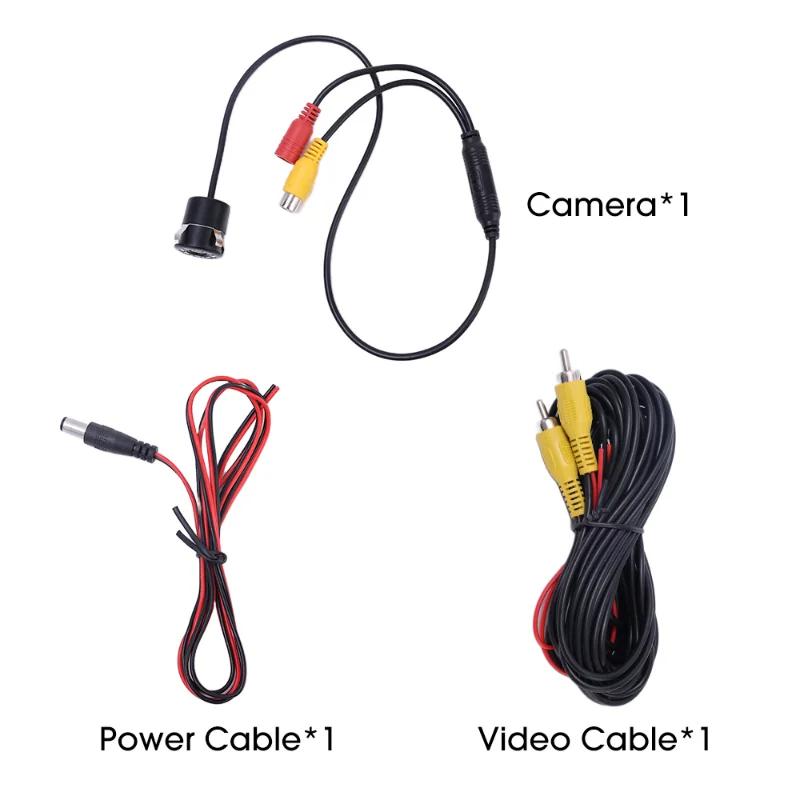

Origin : Mainland China Material : ABS Camera size : 25 * 21 * 18.5mm Length of power cable : 1.2m Video cable length : about 6m/236.2 inches Working current : 0.1A~0.3A Working voltage : DC12V or 24V

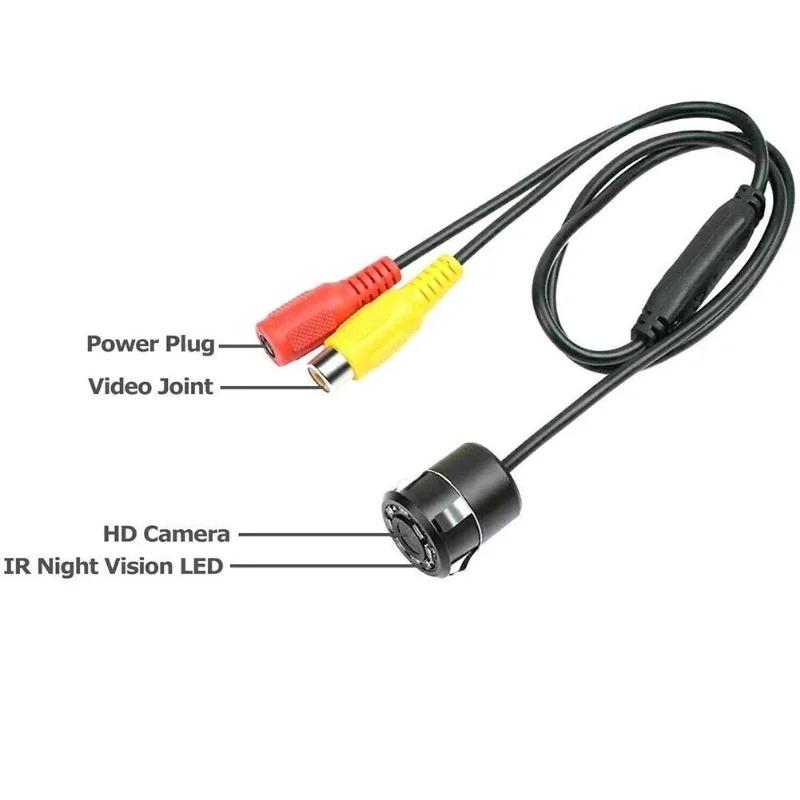

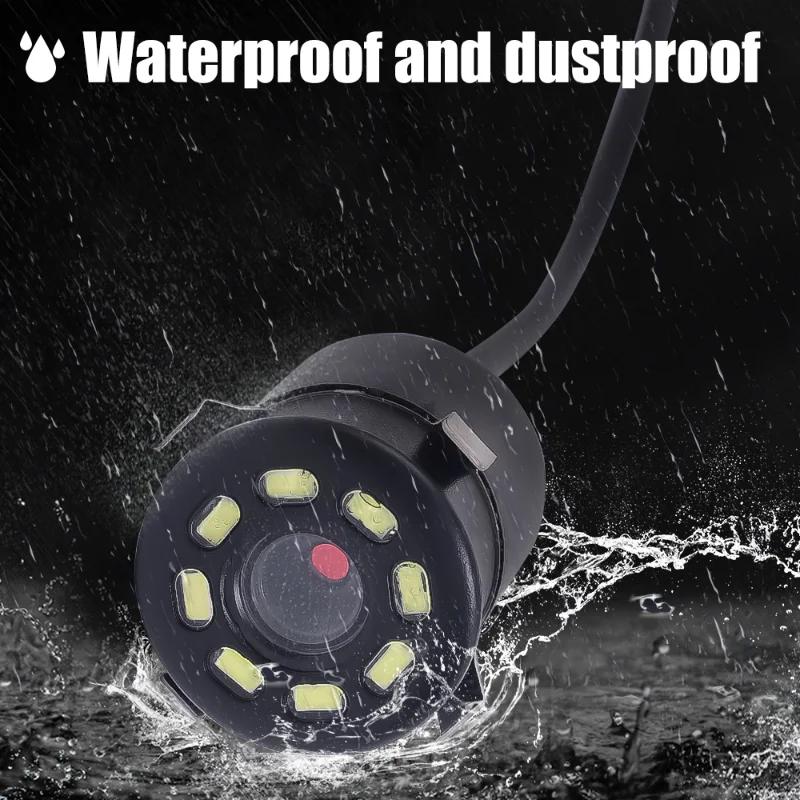

describe features: 1. High definition night vision 2. Anti fog glass, CMOS imaging sensor 3. Compatible with DVD car navigation 4. In a 70 degree wide angle, find the potential reversing in reality. For example, the children turn a blind eye, and the novice driver turns the corner and transfers from the parking lot. 5. With CCD core, video and pictures will be clearer 6. Waterproof, shockproof and dustproof 7. The drill type high-definition rear view camera allows you to fully see the rear of the car when driving 8. Support NTSC/PAL video system 9. Applicable to all kinds of vehicles: cars, trucks, RV, etc. 10. It can be connected to any type of display through the composite yellow RCA jack Specifications: Image sensor: PC1030 1/4-inch color CMOS Sensor area: 4.08 x 3.12mm Sensor: CVBS/AHD Working voltage: DC12V or 24V Working current: 0.1A~0.3A Video cable length: about 6m/236.2 inches Length of power cable: about 1.2m Material: ABS Camera size: about 25 * 21 * 18.5mm How do I install it? 1. Use the drill to install the camera at the rear of the car (license plate rear window or other appropriate positions). 2. Connect the camera power supply to the reversing lamp - the red wire is connected to the positive pole, and the black wire is connected to the negative pole. 3. Connect the camera's video cable to the extension cable. 4. Connect the extension cable to the car monitor. 5. When your car is in reverse gear, you will see the image. Package includes: 1 set * car camera
