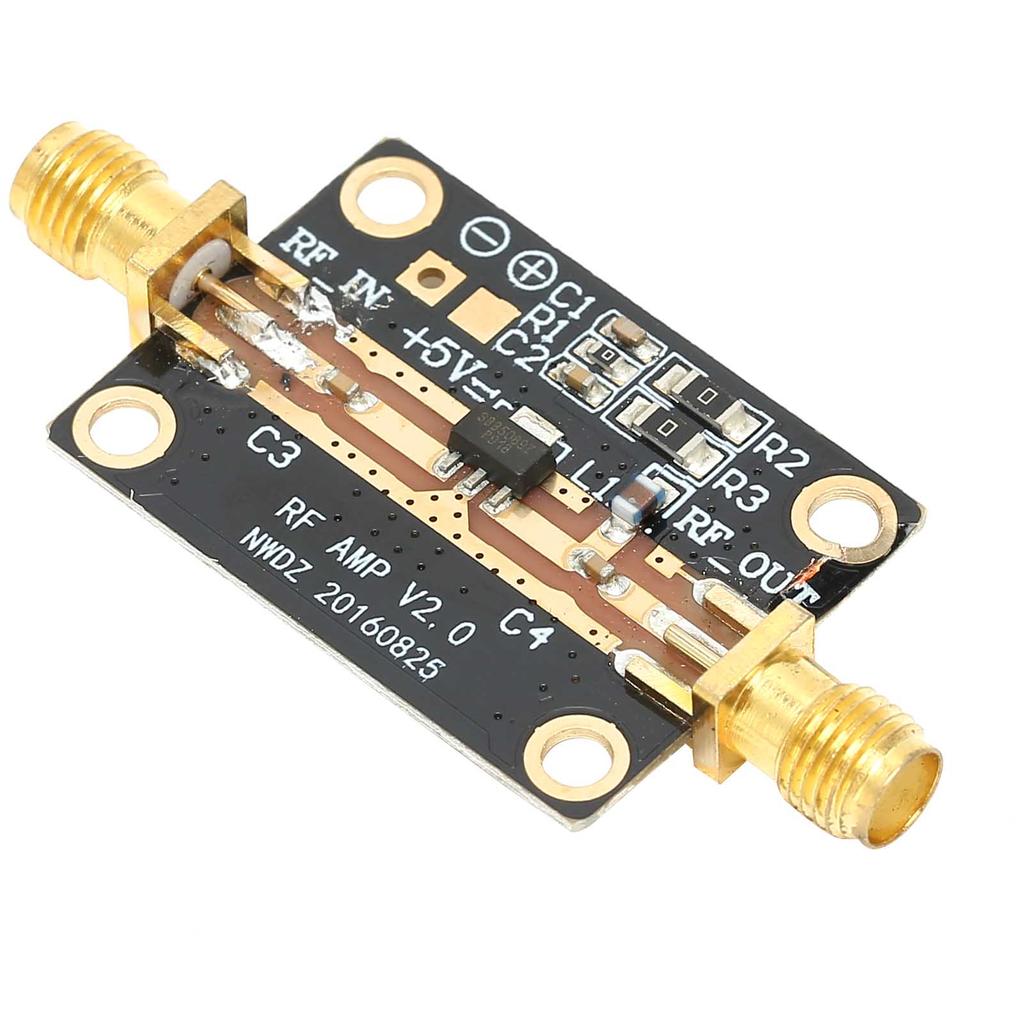

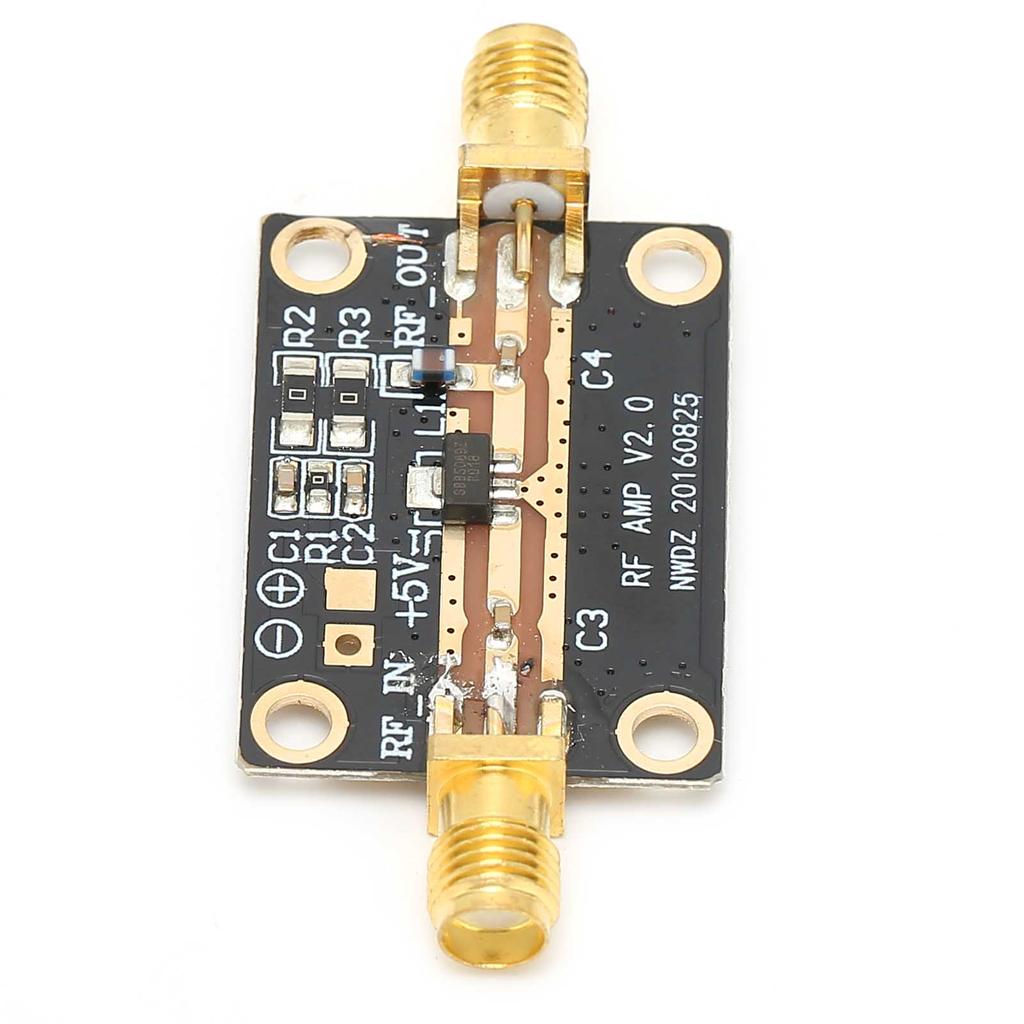

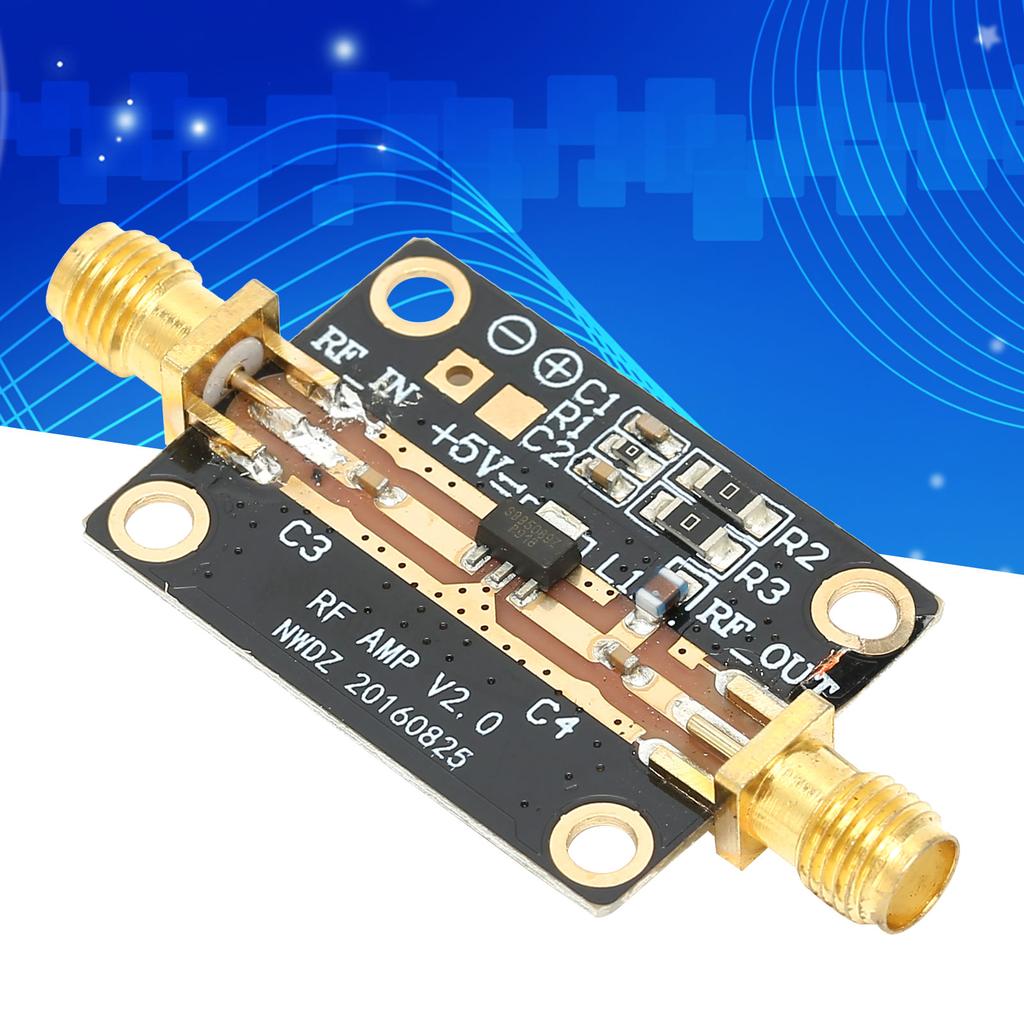

RF Amplifier Module Broadband 0.05‑6G High Linearity Medium Power Electronic Component

Feature: 1. RF amplifier module adopts 1.6mm thick double‑sided board, 2.0 oz copper thickness, full tin spraying process 2. The module adopts a complex process to stable passing performance of large and small currents 3. The reason why the installation of the RF amplifier module is very glossy is that the integrated molding has no burrs and a glossy exterior 4. Large heat dissipation area can better improve the service life of the RF amplifier module 5. The voltage of the RF broadband amplifier module is stable and can be used with peace of mind Specification: Item Type: RF Amplifier Module Supply Voltage: Typical +5V (Typical Current Value 90mA) Gain: Typical Value 20dBat2G Input and Output Impedance: 50 Ohms Maximum Output Power: P1dB +20dBm(at2GHz) Input : <+10dBm (The Output Has Been Distorted When the Input is Greater Than +10dBm) Bandwidth: 0.05-6GHz (Gain is Different Under Different Frequencies, Please Refer to S21 Curve Index for Details) Noise Figure: 4.1dBat1GHz Package List: 1 x RF Switch Module Note: Do not use over frequency
