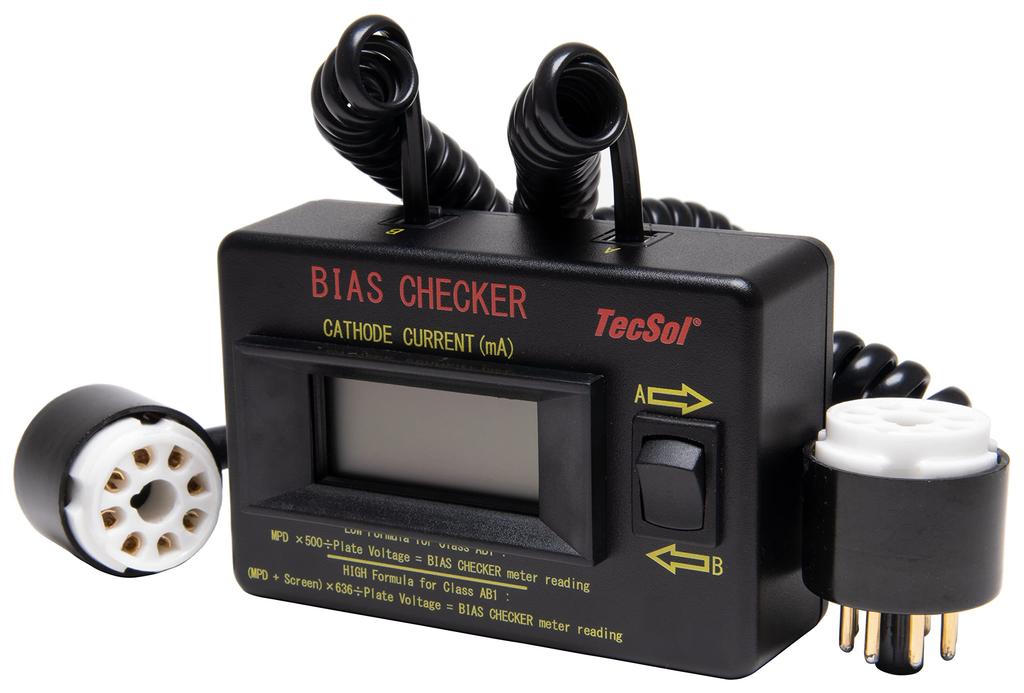

Texol BIAS CHECKER Digital bias current measuring instrument for vacuum tube guitar amplifier and audio amplifier BC-1

---------------------------------------------------------------------- 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction. 【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary. 【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product. 【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ----------------------------------------------------------------------

The bias checker can easily measure the current flowing through the tubes installed in the amplifier, making bias adjustment easier. Vacuum tube amplifiers produce completely different sounds depending on the bias current settings. In addition, the bias point changes with use, so by regularly adjusting it with this device, you can maintain stable sound quality. With this device, if the heater is an indirectly heated vacuum tube, the bias current can be adjusted for both AC and DC ignition amplifiers. The amplifier that can be used must have heater voltage (AC or DC 6.3V) between pins 2 and 7. Two socket adapters are included, allowing you to adjust two bias currents almost simultaneously. However, if you are using one, please use the A connector. ● Compatible with most vacuum tube amplifiers using 8-pin GT tube sockets ● Power is supplied from the amplifier's heater (both AC/DC), so no batteries are required ● Matched pair tubes can be easily selected ● Digital meter allows accurate bias current measurement ● Gold-plated socket provides low contact resistance ● Calculation formula printed on the main unit makes it easy Find out the appropriate bias current ● Compact size that is convenient to carry in a guitar case [Compatible vacuum tubes] EL34, 6CA7, 5881, 6L6GC, 6V6GT, 6550C, KT66, KT77, KT88, KT90, KT120, KT150, KT170 (Caution: Failure may occur with vacuum tubes other than those compatible.) [Specifications] Display method: 1999 count LCD display, Maximum display: 199.9mA, Resolution: 100μA, Operation method: High-speed double integral A/D conversion, Over range display: Displays “1”, Sampling rate: 2-3 times/second, Power supply: DC/DC conversion from heater power supply, Power input: DC: 4V ~ 9V, AC: 4V ~ 9V, Input current: 40mA Max, measurement base socket: 2 pieces, operating temperature/humidity: 5℃~40℃, humidity 80%RH or less (no condensation), power consumption: about 40mW, size: 105 (W) x 70 (D) x 35 (H) mm (main unit), weight: 125 g (main unit), 65 g (socket adapter/piece) [Accessories] Socket adapter: 2 pieces, instruction manual made in Japan
