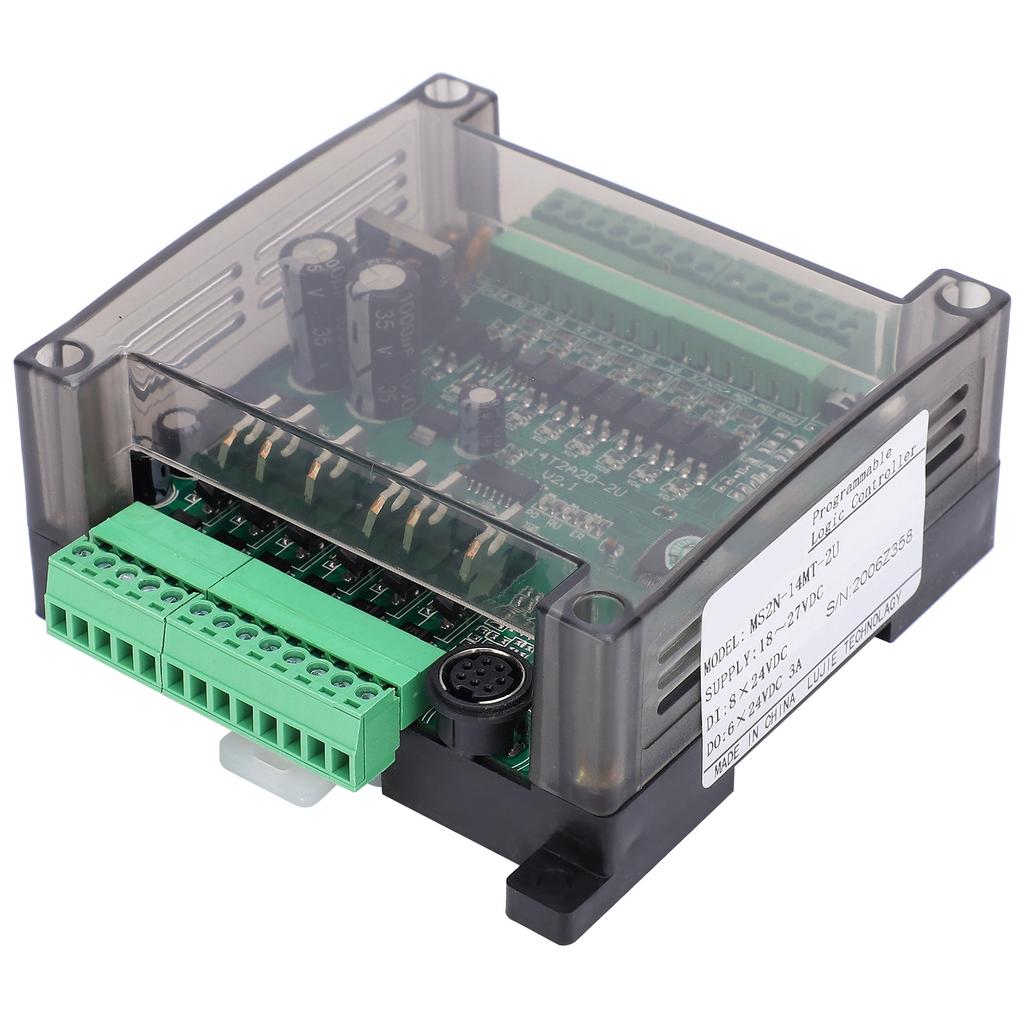

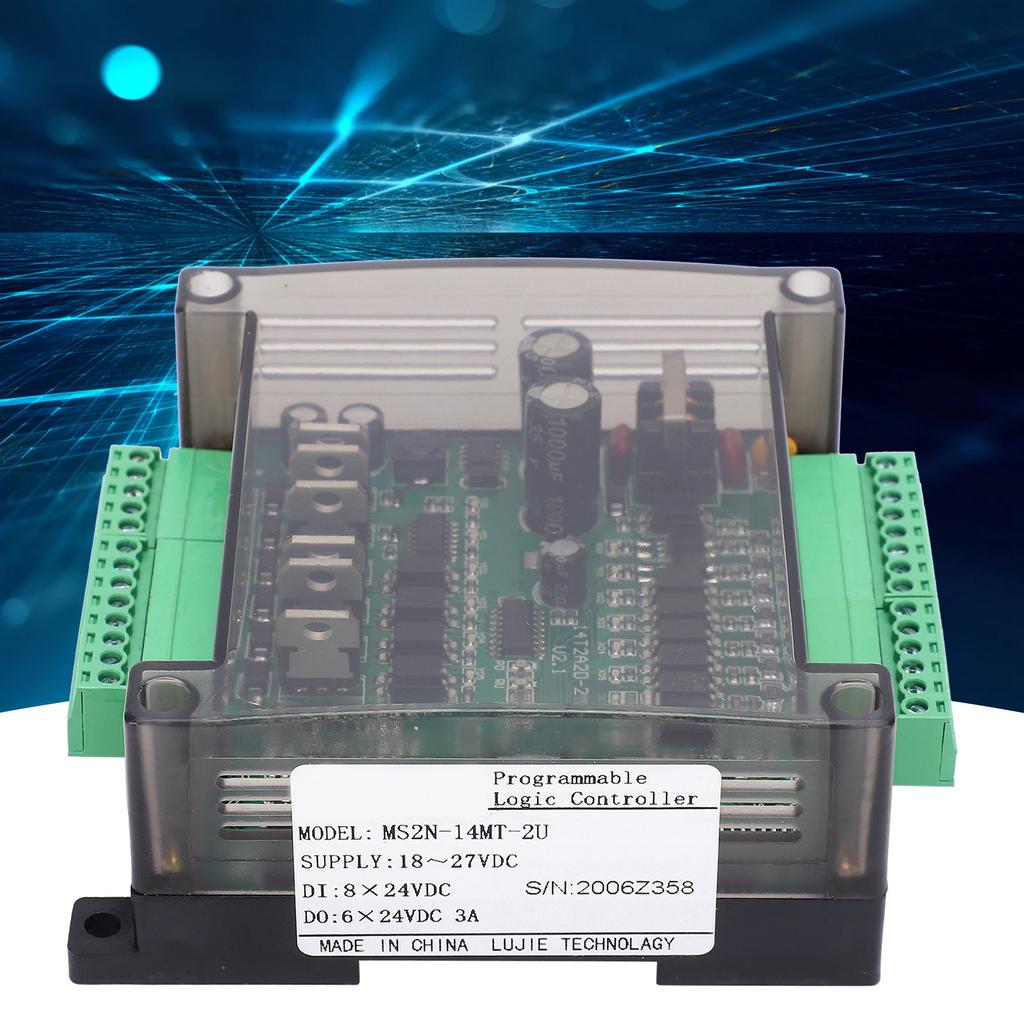

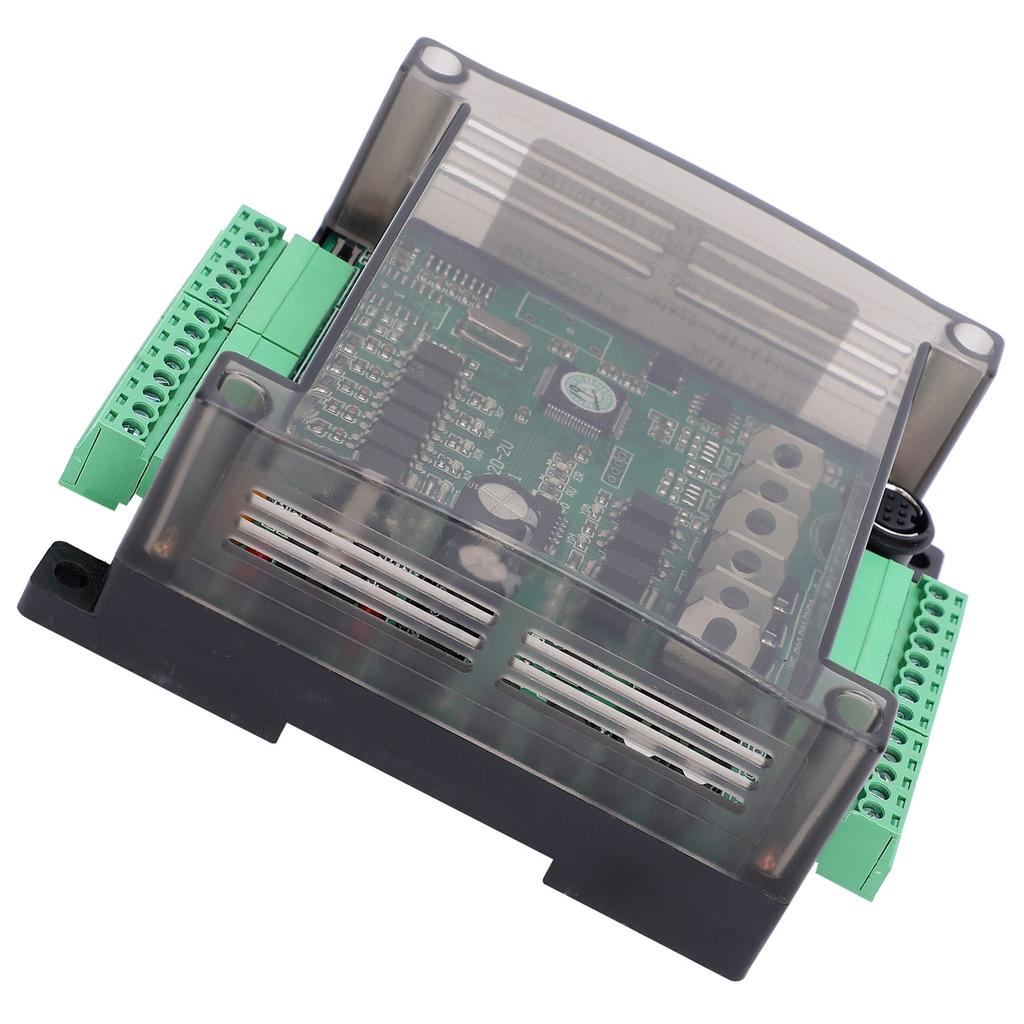

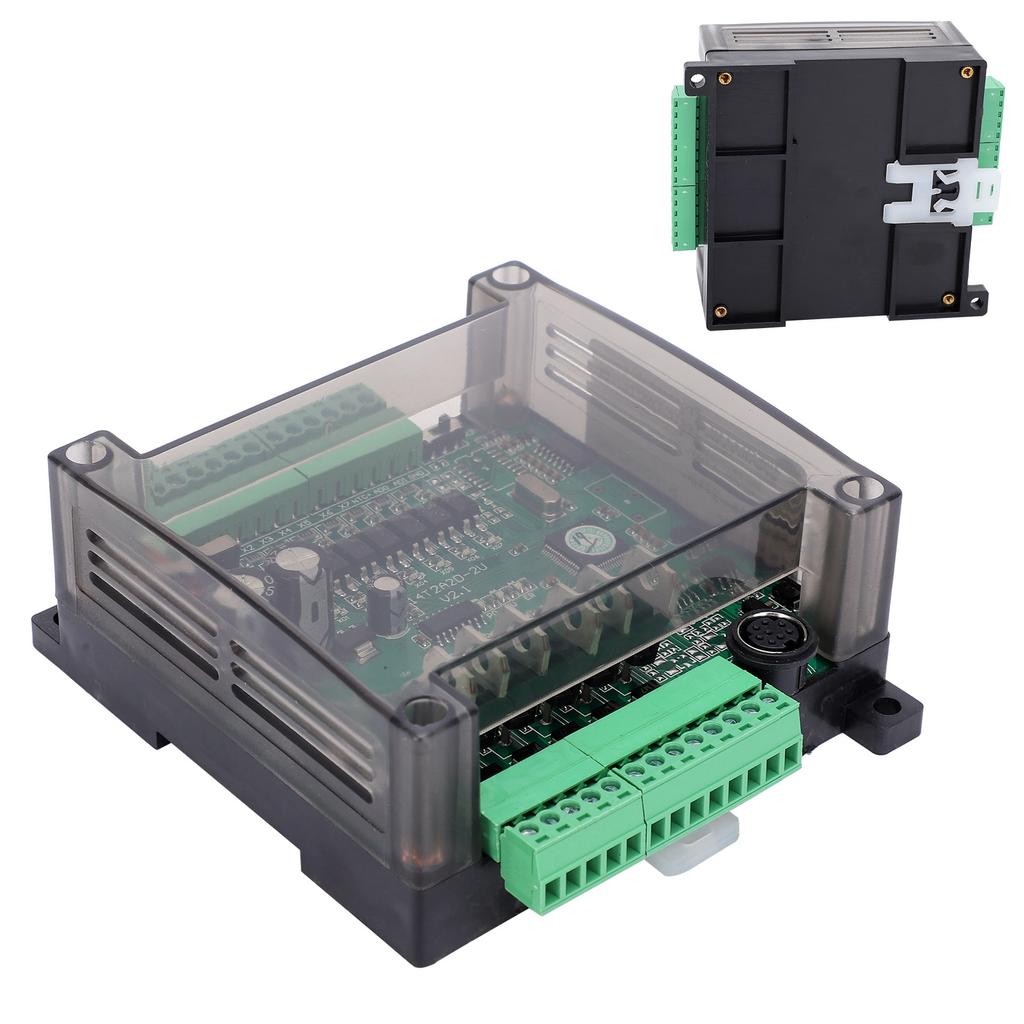

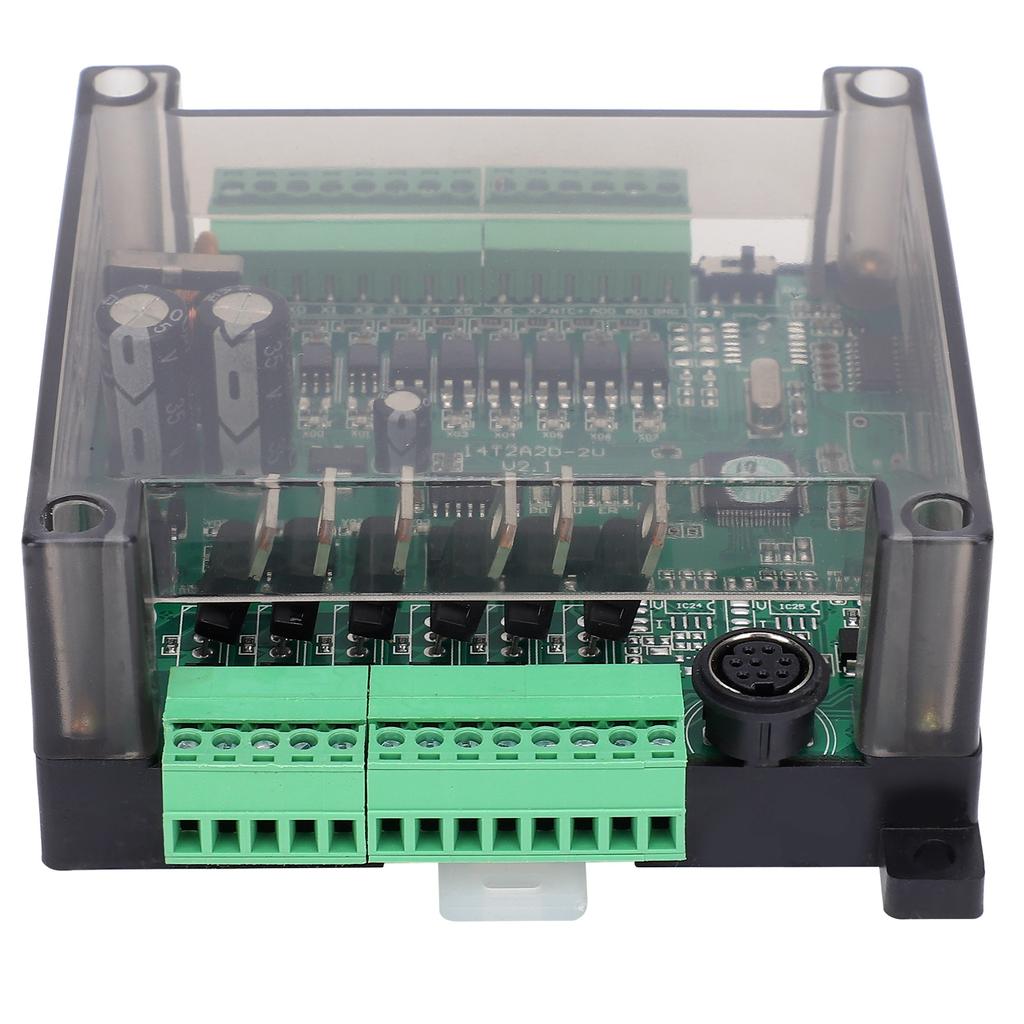

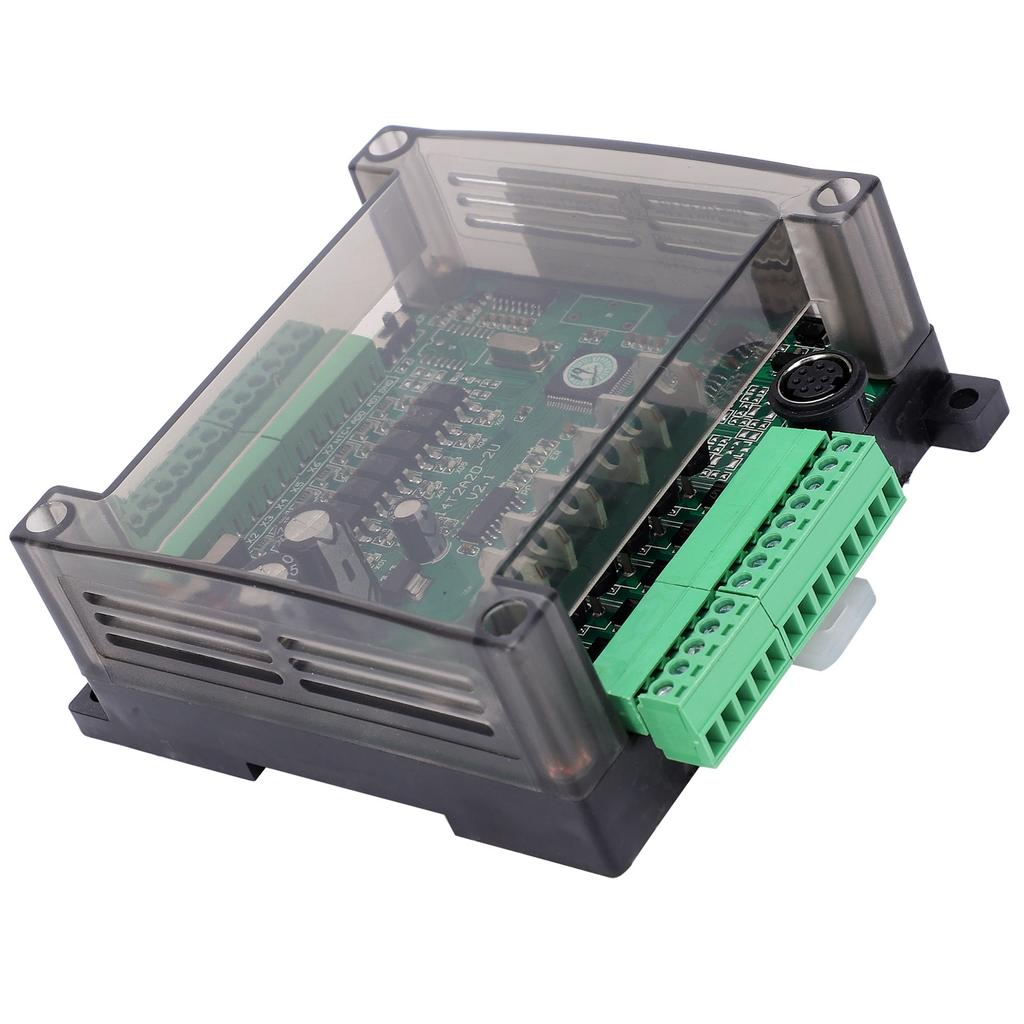

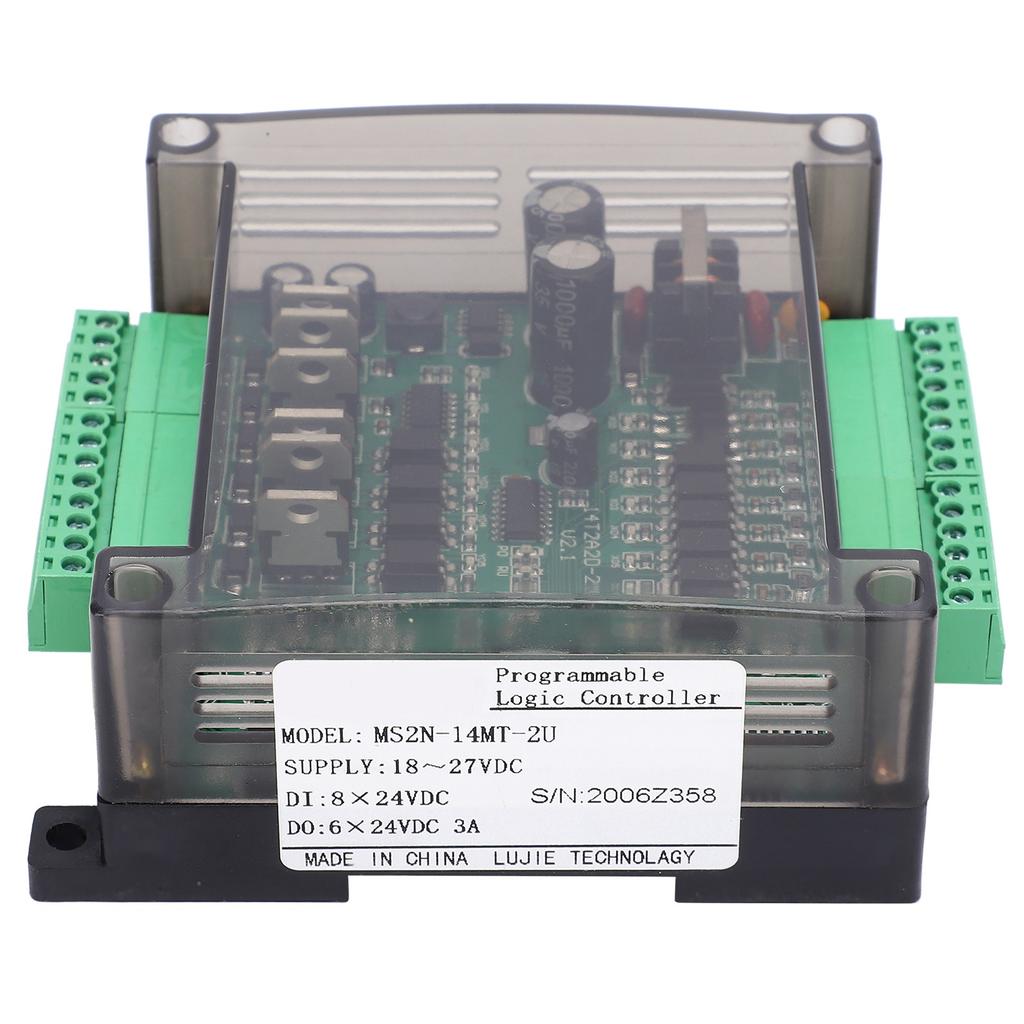

PLC Industrial Control Board Transistor Shell Type Electronic Component

Feature: 1. Widely used in the field of electronic control, compatible for GX Work2 GX Developer. 2. Support super encryption function, unable to read the program to protect the results of labor. 3. Flash memory does not lose data when power off, high?accuracy clock chip, an annual error of 30 seconds, can be maintained for six months after power off. 4. With excellent insulation, moisture?proof, anti?leakage, anti?vibration, dust?proof and anti?corrosion. 5. Manual preliminary verification and verification, computer inspection and internal verification, all products undergo 72?hour aging test before leaving the factory. Specification: Item Type: PLC Industrial Control BoardInput: 8 channels NPN type, including 2 channels 60K highspeed input Output: 6 channels transistor type 3A load including 2 channels 200K pulse output Core: FX2N 8000 steps compatible with 1N positioning instructions Pulse Input: 2 60Khz X0X1 Pulse Output: 2 channels single channel 100Khz Power Supply: DC1827V Analog Input: 2AD 010V020MA optional 12bit accuracy 04095 can be changed to NTC 200 degrees temperature measurement Analog Output: 2DA 010V020MA, optional 12bit accuracy 04095 Analog Usage: ADOAD1 corresponds to D8030D8031 DA0DA1 corresponds to D8096~D8097 Direct operation of registers without commands, special registers can not directly participate in operations Communication Port: RS232 MD8 round port DVP RS485 terminal interface A+ B Software: For GX Work2GX Developer Clock Type: High accuracy clock within 10 seconds of annual error Clock Description: The plc with clock is with year, month, day, hour, minute and second. It has nothing to do with the counter. Chip Model: STM32F103RCT6 PWM Description: PWM supports 1Khz by default Precautions for PLC Use: About Programming Port Protocol: The programming port supports FX protocol by default HMI Parameters: Baud Rate: 9600 data bits 7 stop bits 1 even parity PLC without any settings 2N Support: 200040008000 steps Regarding PowerOff Retention: Flash memory without power loss for 8 years Keep Range: D200D7999 It is recommended to keep the data more stable after D500 About Encryption Function: Support super password function (SCM encryption level) Login Keywords: 12345678 activate the super password function After activating the super password, only the new program can be overwritten, the original program cannot be read About Usage of 1 N Positioning Instruction: Our 2N series products all support 1N instruction Usage: Convert the program into 1N and write positioning instructions Then turn to 2n and continue to write The original 422 communication line cannot be used (see the download line label for 422 or SC09FX if there is one, please change to the download line) Use 232 communication download line to download the program. Program Download Instructions: New projectFX2N.Choose the corresponding COM portPLC writeclick parameter+programconfirm within 8000 stepsexecuteyesdownload completeSize: Approx. 44mm 1.7in96mm 3.8in 107mm 4.2in . Package List: 1 x PLC Industrial Control BoardWidely used in the field of electronic control, compatible for GX Work2 GX Developer. Support super encryption function, unable to read the program to protect the results of labor. Flash memory does not lose data when power off, high?accuracy clock chip, an annual error of 30 seconds, can be maintained for six months after power off. With excellent insulation, moisture?proof, anti?leakage, anti?vibration, dust?proof and anti?corrosion. Manual preliminary verification and verification, computer inspection and internal verification, all products undergo 72?hour aging test before leaving the factory.
