Feature:
1. Fast Heating: Electric water heaters provide continuous hot water at 30 degrees C or higher in an instant, without waiting for preheating or dreadful temperature rises and falls, fast heating, perfect for sinks.
2. Remote and Panel Controls: The temperature range is between 30?55 degrees C , which can be turned on or off by remote control, and the temperature can also be adjusted by the touch screen button of the machine.
3. Water and Electricity Separation: The internal water and electrical circuits are designed to operate in separate circuits to avoid water leakage or scale accumulation hazards.
4. Safe and Durable: With multiple protection devices, each product has undergone strict testing and is 100percent safe, durable for long term use.

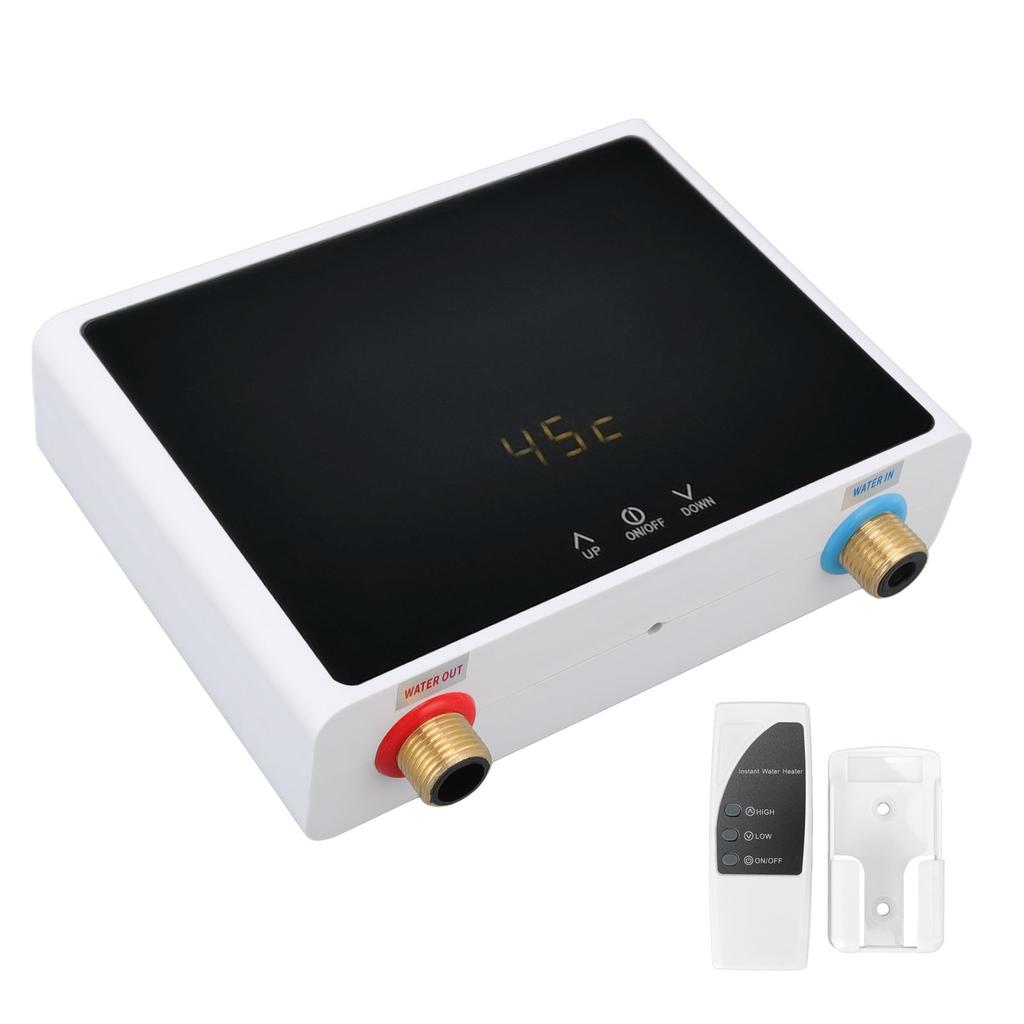

5. Convenient Use: Tankless water heaters come with a digital display and touch control panel, so temperature settings are easy, just turn on the tap and the smart water heater will provide the temperature you want.
6. Simple Installation: Small size, simple and convenient installation, suitable for installation in kitchens, toilets, showers, public toilets, etc., suitable for daily washing hands, dishes, vegetables, face and bathing.
Specification:
Item Type: Instant Water Heater
Material: ABS, Copper, Aluminum, Tempered Glass
Gross Weight: 1913g / 67.5oz
Heating Body: Aluminum Die Casting
Power: 3000W
Frequency: 50-60HZ
Electric Wire: 1.5square meters
Waterproof Grade: IPX4
Product Size: Approx.21 x 15 x 5.5cm / 8.3 x 5.9 x 2.2in
Remote Power Supply: two AAA batteries (not included)
Temperature Range: 30-55 degrees C
Common faults and handling methods:
1. Check whether the power supply is normally energized. The display will light up to show the temperature.
2. Under normal power condition, water flow is turned on, press the middle switch, the machine will start heating, and the water heater will display: Set temperature, water flow, outlet temperature.
3. If the temperature does not rise, there are two possibilities: one is that the temperature control switch (overheat protection switch) inside the water heater jumps, which can be recovered by pressing the temperature control switch; the other is that the heating tube is faulty, which can be replaced by the heat pipe.
4. If you have showed no heating, temperature display shows, did not show water flow and the set temperature, water without water heater, or water pressure is too low, or install the wrong direction, pay attention to water and water to be installed correctly, but if the water pressure, water will also not heating, then check the water heater inlet turbine, it is possible that there is dirt stuck turbine, the water heater will not start.
5. It is recommended that the length of water outlet pipe of water heater should not exceed 3 meters. If the length of water outlet pipe exceeds 3 meters, there may be water pressure difference due to the length of water pipe, and the water pressure is not enough to start the water heater(If the water tower is used in rural areas, the height of the water tower is required to be higher than 10 meters, so that the water pressure reaches the starting value).
Package List:
1 x Water Heater4 x Screw4 x Expansion Tube1 x Manual1 x Remote Control1 x Remote Control Bracket1 x Measuring Ruler
Note:
Matters needing attention: 1. Small namely hot water heater first water and then electricity, applicable water pressure 0.04?0.6MPa. 2. The power switch should be installed in the water, not touch the cabinet. 3. It should be installed in the place where the indoor ambient temperature is above 0 celsius , the pipeline should be centrally arranged, the hot water outlet should not be too far away from the hot water using electricity
