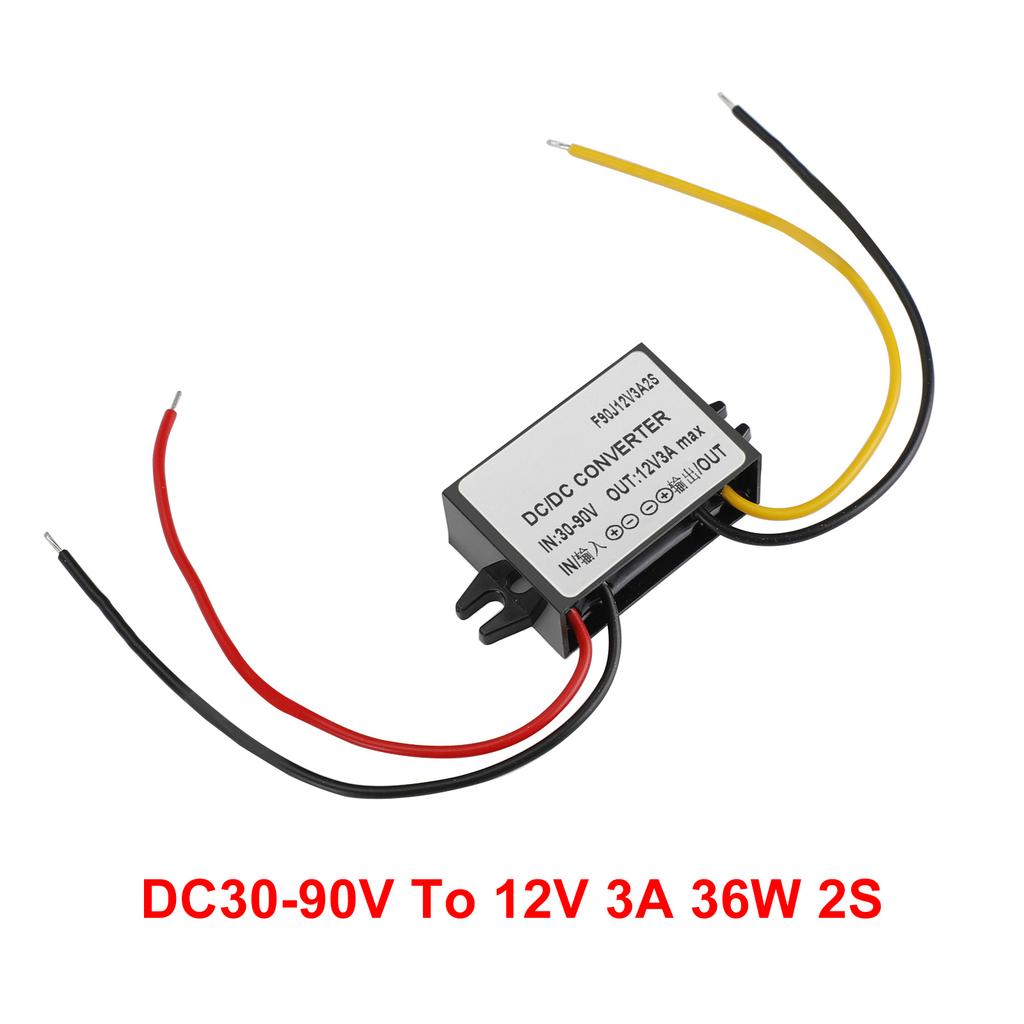

Waterproof Buck Step Down Converter DC30-90V to DC12V 3A Car Power Module

WaterProof 30-90V to 12V 3A 36W Step Down DC/DC Power Converter Regulator

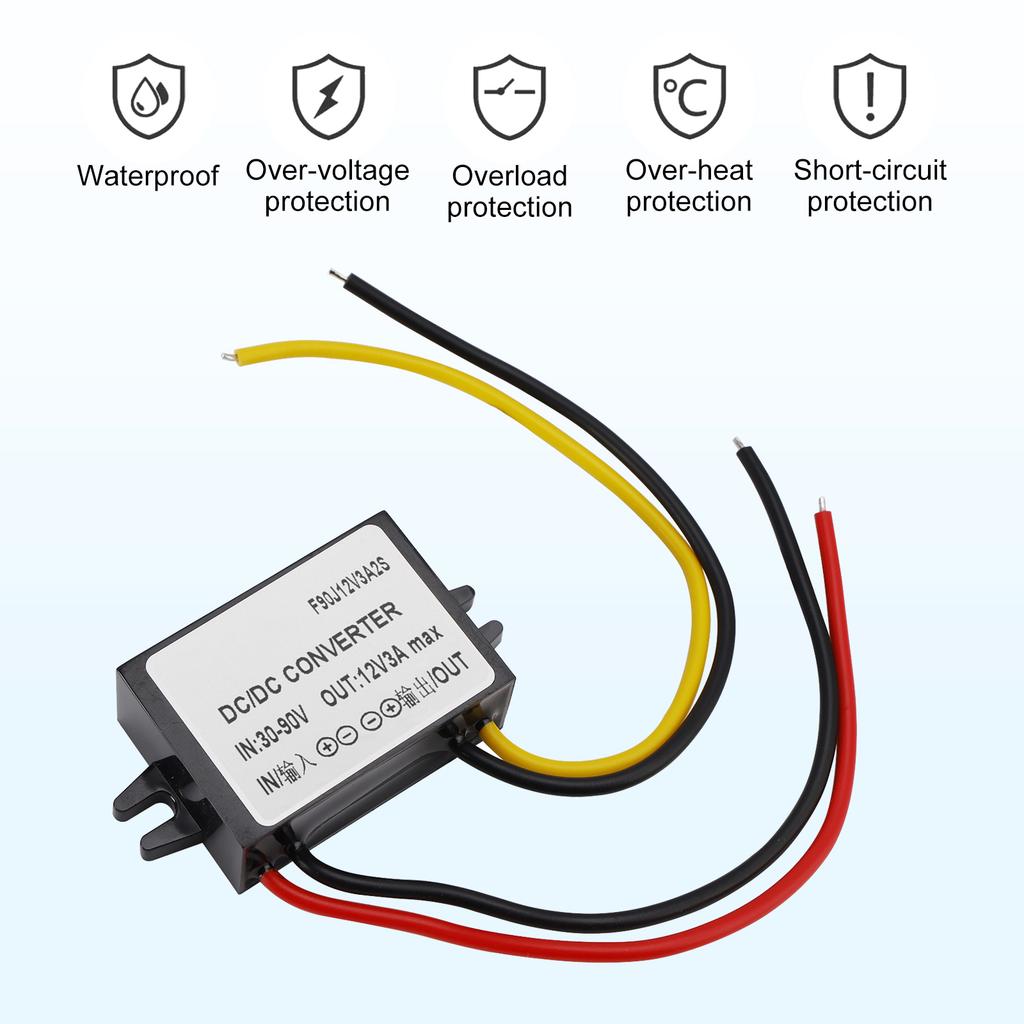

Feature: 1:Made of high-quality materials, long service life, long term stable and reliable. 2:With overcurrent, overvoltage, overtemperature and short circuit protection, reliable multi-protection design to enhance your using safety. 3:Waterproof, shockproof Design,good heat dissipation, easy to install 4:This product does not have the function of charging the battery, it is only used for voltage conversion. 5:Widely used in LED photo lighting, LED display screens, monitoring systems, power automation, communication systems and other fields.

Specifics: Condition: 100% Brand New Shell Material: Plastic Input rated voltage: 36V/48V/60V/72V DC Input voltage range: 30 ~ 90V DC Output voltage: 12V DC Output current: 3A (max), 36W Conversion efficiency: Over 90% Static consumption: Less than 20MA No-load adjustment rate: 2% Load regulation: 3% Operating temperature: -25°C ~ +65°C Wire lengths: About 12~13cm Waterproof Rating: Ip67 Size: 46 x 32 x 18mm/1.81 x 1.25 x 0.7inch Weight:approx.65g Input wire color : (+)Red, (-)Black.Output wire color : (+)Yellow, (-)Black.

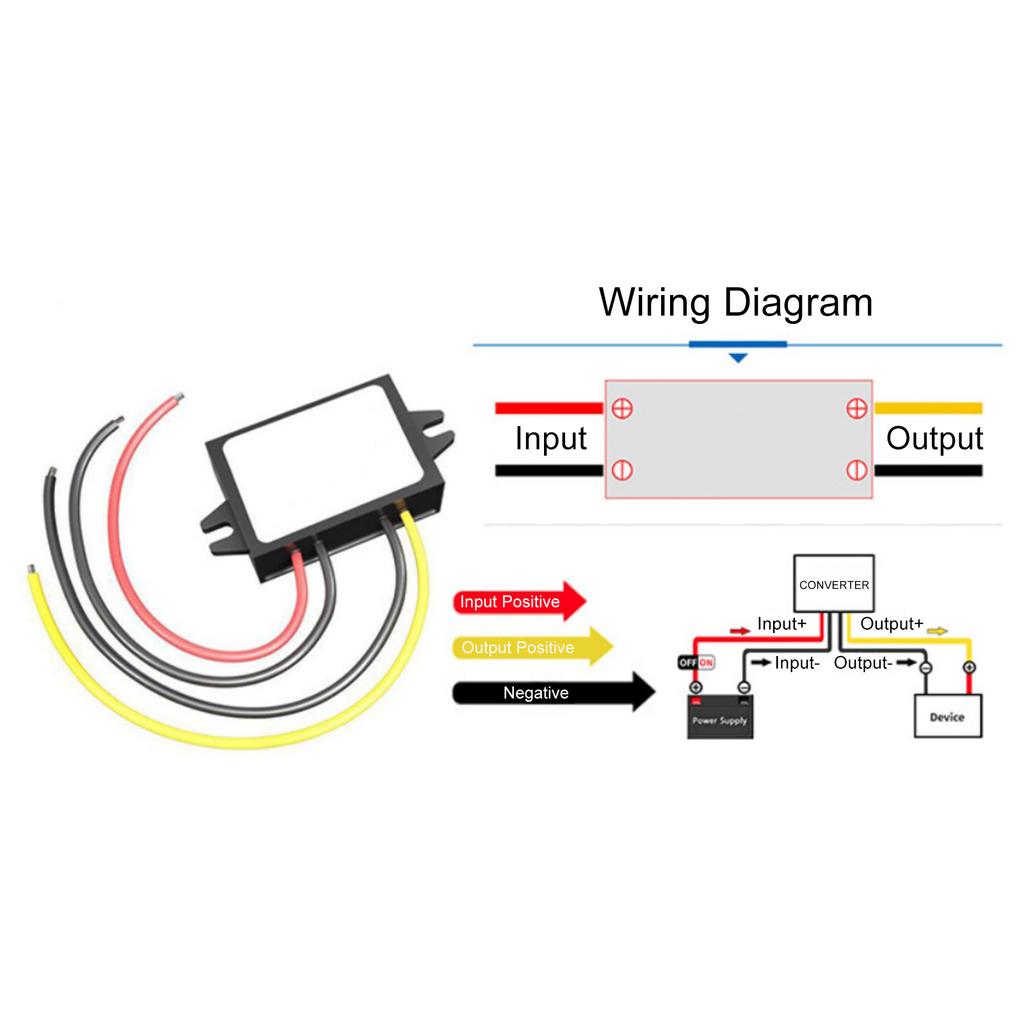

Note: 1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power. 2.Please take with an average load, do not merge,if there are multiple output cables in the output port. 3.You need to pay attention to make the power module cool,if output is up to the maximum current value. 4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment

Package Included: 1x DC/DC Converter Regulator
