DigiPas DWL1500XY 2-Axis Precision Smart Digital Level Inclinometer Bluetooth 0.02mm/m

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

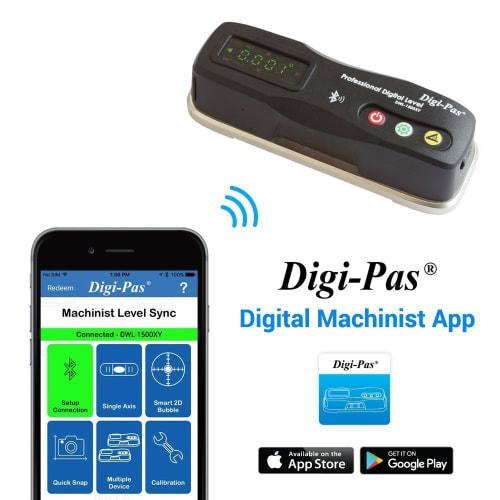

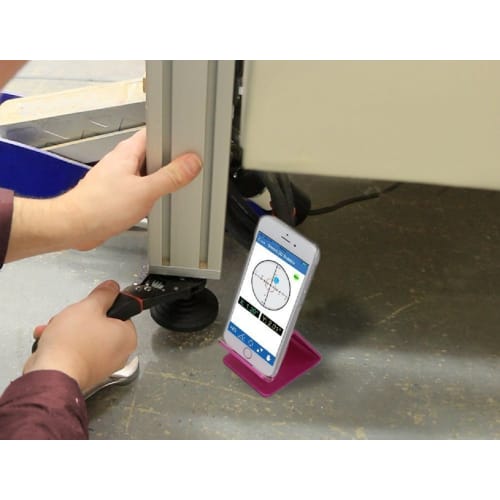

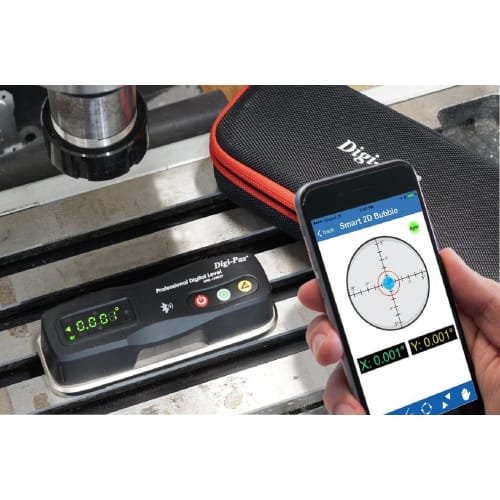

1. KEY FEATURES: - The Digi-Pas High Performance 2-Axis Precision Level can measure angles in two axes: the X and Y axes. By replacing the conventional blister-type angle meter, not only can the work be concentrated on one person, but also accurate measurements can be obtained efficiently. 2-axis digital level measurement with measuring range 0.000° ~ ±2.000° Minimum reading 0.001° (0.02mm/M); Repeatability: ±0.001° Reading accuracy ± 0.002° from 0° to ±0.500°; Other angles ± 0.004°. Operating temperature range -10°C to +50°C Connect to smartphone/tablet app via Bluetooth (iPhone/Android) and instantly display measured values. Significantly reduce equipment alignment time (up to 70%), resulting in significant resource and cost savings. With this high-performance spirit level, you can set up equipment with high precision, perform maintenance, check the straightness of X-Y tables, and improve equipment quality. Rugged design with high impact resistance. With self-calibration function - Simply connect your smartphone/tablet app to the level via Bluetooth (including one free app for Apple/Android), bring your device within range of the Bluetooth connection from your device's setting position, and instantly display both X & Y axis level status (digital and graphic) on your smartphone screen while you adjust settings. When multiple users share one or more spirit levels, additional paid apps can be downloaded separately from the Apple/Google App store. The manual (Japanese and English) can be accessed here. https://www.digipas.co.jp/download/JQC-2-01X01-99-002.pdf - Since the alignment time of the equipment can be significantly reduced (up to 70%), when combined with one-man operation, not only can you save a lot of costs, but you can also set up the equipment with high precision, and use this high-performance spirit level to improve the quality of the equipment, such as maintenance, checking the straightness of the X-Y table, etc. Rugged design with high impact resistance to withstand any environment. Today, this product is loved by users all over the world. - The accuracy of Digi-Pas digital levels has been tested and certified by NIST, JIS, and DIN testing organizations, and this sample meets JIS standards. For the accuracy of this product, please refer to the calibration certificate (copy version) issued by the Japan Quality Assurance Organization (JQA). The relevant calibration certificate can be viewed on our website. Please see https://www.digipas.co.jp/support/calibration.php. If you require a calibration certificate for the product you have purchased, please contact a calibration certification body such as JQA directly.

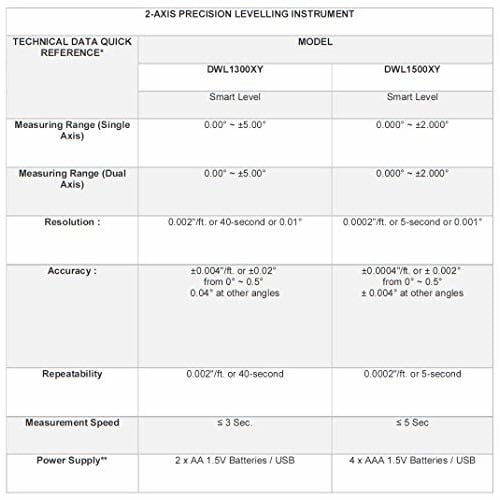

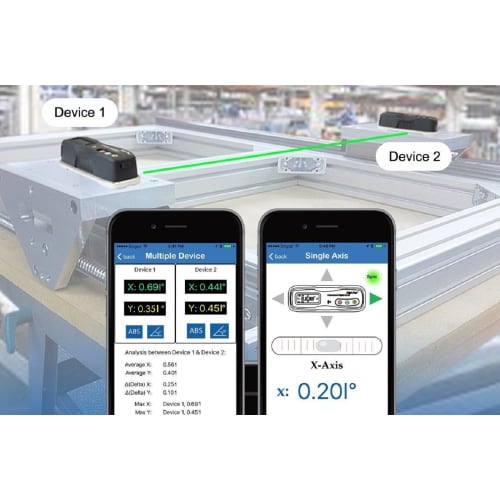

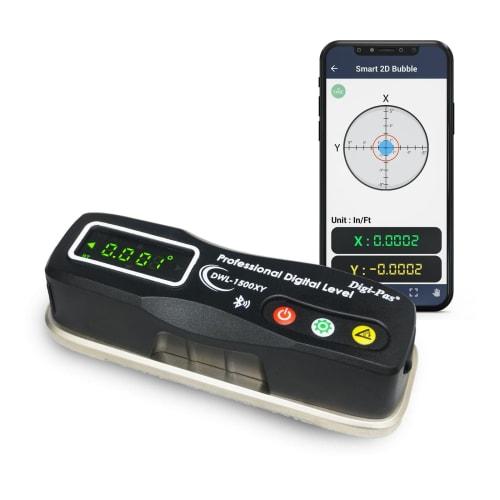

2. PRODUCT DESCRIPTION: DigiPas DWL1500XY is a Bluetooth-enabled 2-axis precision digital level. 0.02mm/M (0.001°) resolution. Reading accuracy: 0° to ±0.500° at ±0.002°; ±0.004° at other angles. Accuracy is guaranteed over the entire temperature range. Operating temperature range: -10℃ ~ +50℃. Width; Thickness; Length: 50x38x150 (mm), Mass: 0.5kg It is possible to measure angles on two axes (X and Y axes) simultaneously, and the angle with respect to the horizontal plane can be displayed with a high resolution of 0.001°. Equipped with an "ALTERNATE ZERO SETTING" function, you can set any reference line (any initial angle) as zero and measure the relative angle from there. The X- and Y-axis level measurement results can be read wirelessly at short distances via Bluetooth with one-man operation, effectively reducing installation and setup time for precision machinery and equipment. Smartphone users are especially effective when used in conjunction with the DigiPas Mechanical Level mobile app (optional app purchase required on Apple and Android App Stores).

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 0.68 kg - Dimensions: 22.0 x 11.0 x 6.4 cm

4. SPECIFICATIONS: - Brand: Digi-Pas - Model Number: DWL1500XY - Manufacturer: JSB Tech Pte Ltd
