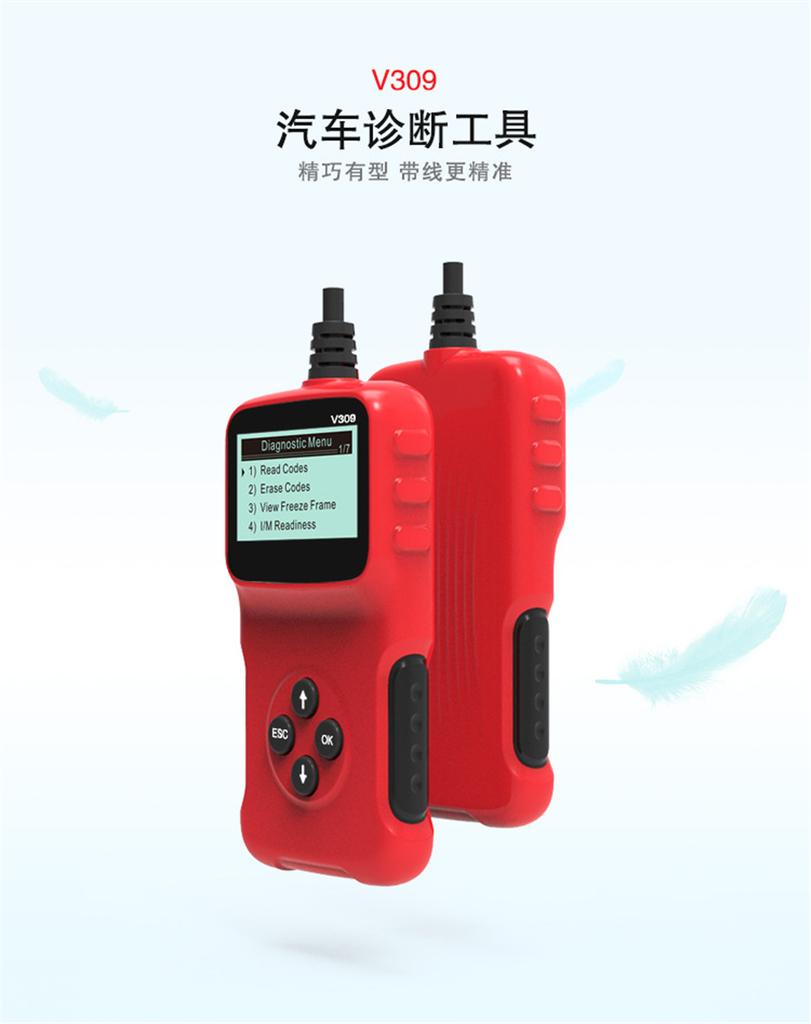

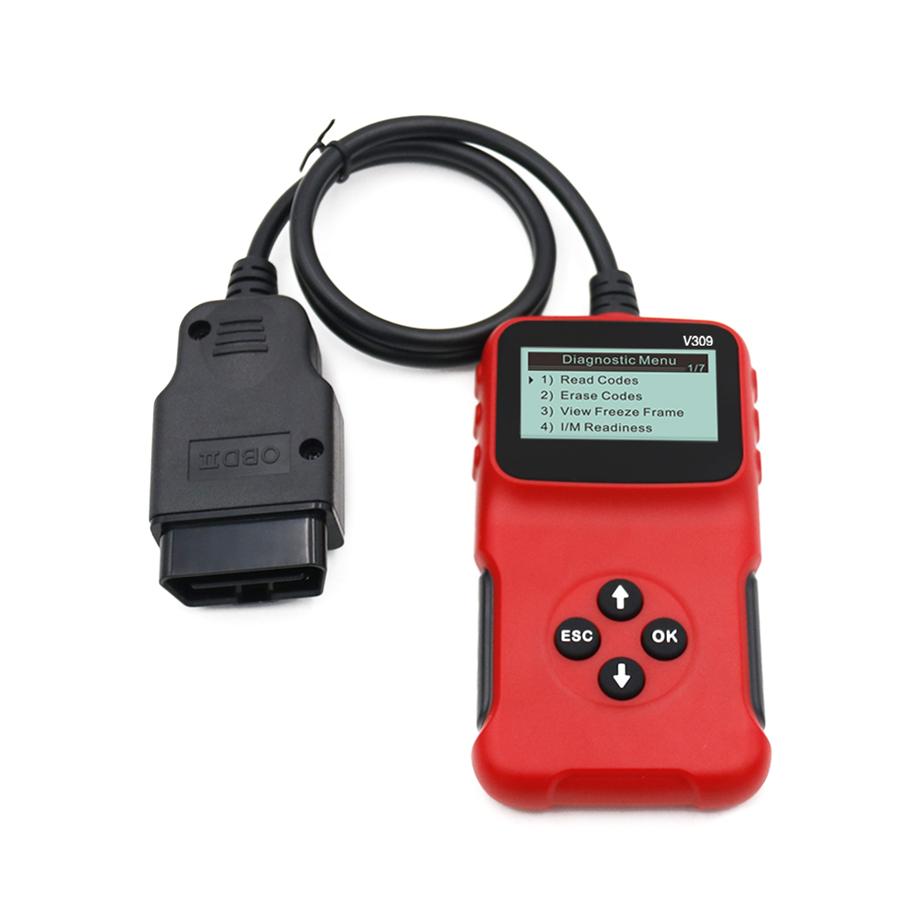

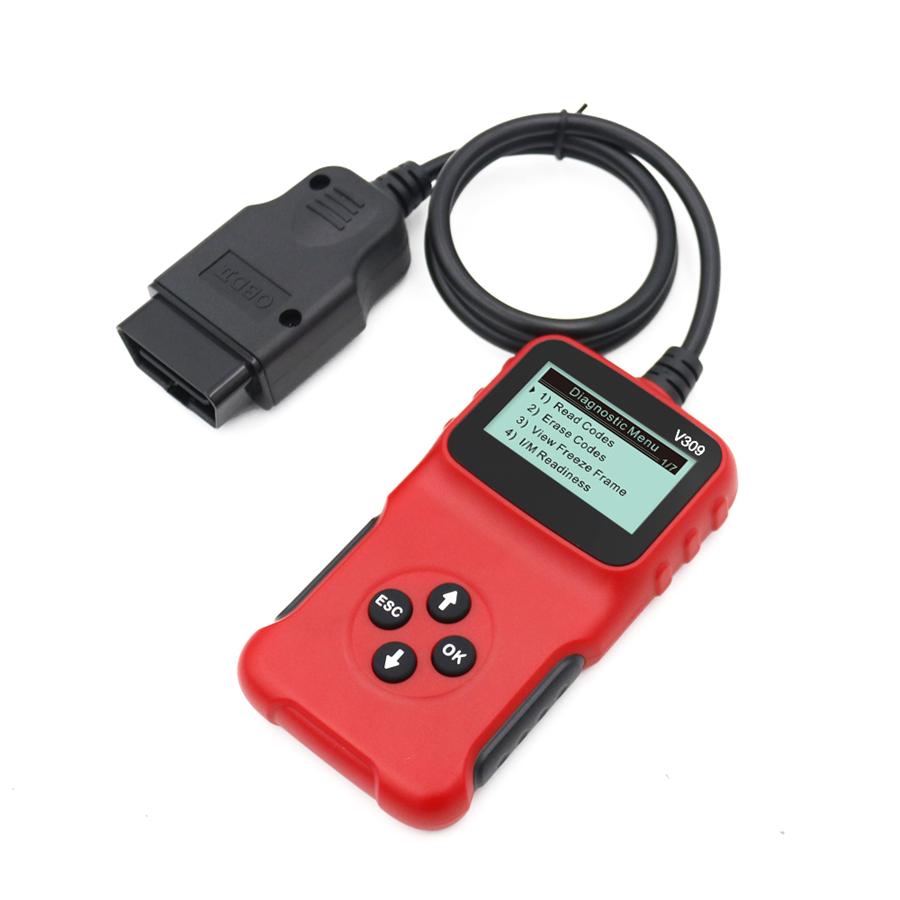

OBD2/EOBD Car Code Reader V309 Reads Car Fault Code Erases Fault Code Diagnostic

【ACCURATE OBD DIAGNOSIS】: You can find out emission problems by viewing fault codes with explanations, read I/M readiness, and clear codes to turn off MIL with super ease from the car diagnostic scan tool, saving your time and money. 【USER-FRIENDLY DESIGNS】: The code reader features small size for convenient carrying, ABS material keys for easy operations and easy-to-read backlight LCD screen to protect eyes, and supports English, French, German, Spanish, and Dutch. 【REAL-TIME DATA RETRIEVAL】: This car diagnostic tool supports quick viewings and retrievals of freeze frame, VIN and other information anytime and anywhere.

【LOWEST DIAGNOSTIC COST】: You would be the master of your vehicle's health. Save maintenance costs and tackle every automotive problem that might arise with this handy little scanner. Start quick check of the car system ,fix and over.

Technical parameters

model

V309

Protocol

1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2(5 baud init, 10.4Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Operating Voltage

9-16V

Working current

80mA

Operating environment

-30-70℃

storage temperature

-30-80℃

Product Size

95.5*72.1*22.2mm

product quality

147g

Package dimensions

200*130*31mm

Product features: 1. Small size, the highest integration of the chip, own independent appearance patent, utility model patent; 2. The following operations can be performed: Read the error diagnosis code-universal and manufacturer-specific, and display their meaning ( The database has more than 3000 universal code definitions.) Clear the error code and turn off the MIL ("Check engine" indicator). Display the current sensor data, including: Engine RPM calculated load value, coolant temperature, fuel system status Oxygen detection voltage with absolute position of the throttle valve and short-term fuel condition. Oxygen detection voltage. Fuel system status. Fuel pressure. Fuel consumption monitoring. There are many other data ... Data graph display and log. Frozen frame data. Continuous and discontinuous oxygen detection results. Protocol support: OBDII supported protocols: 1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2(5 baud init, 10.4Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
