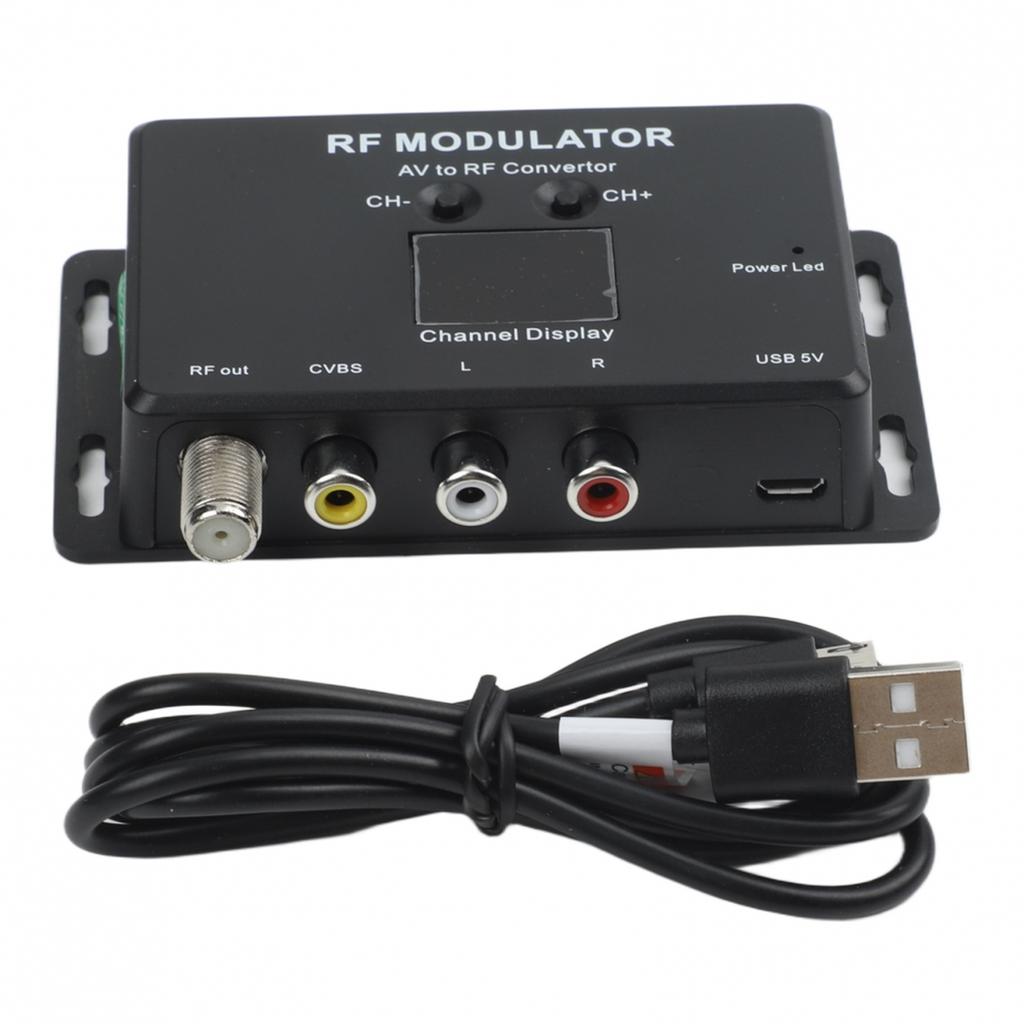

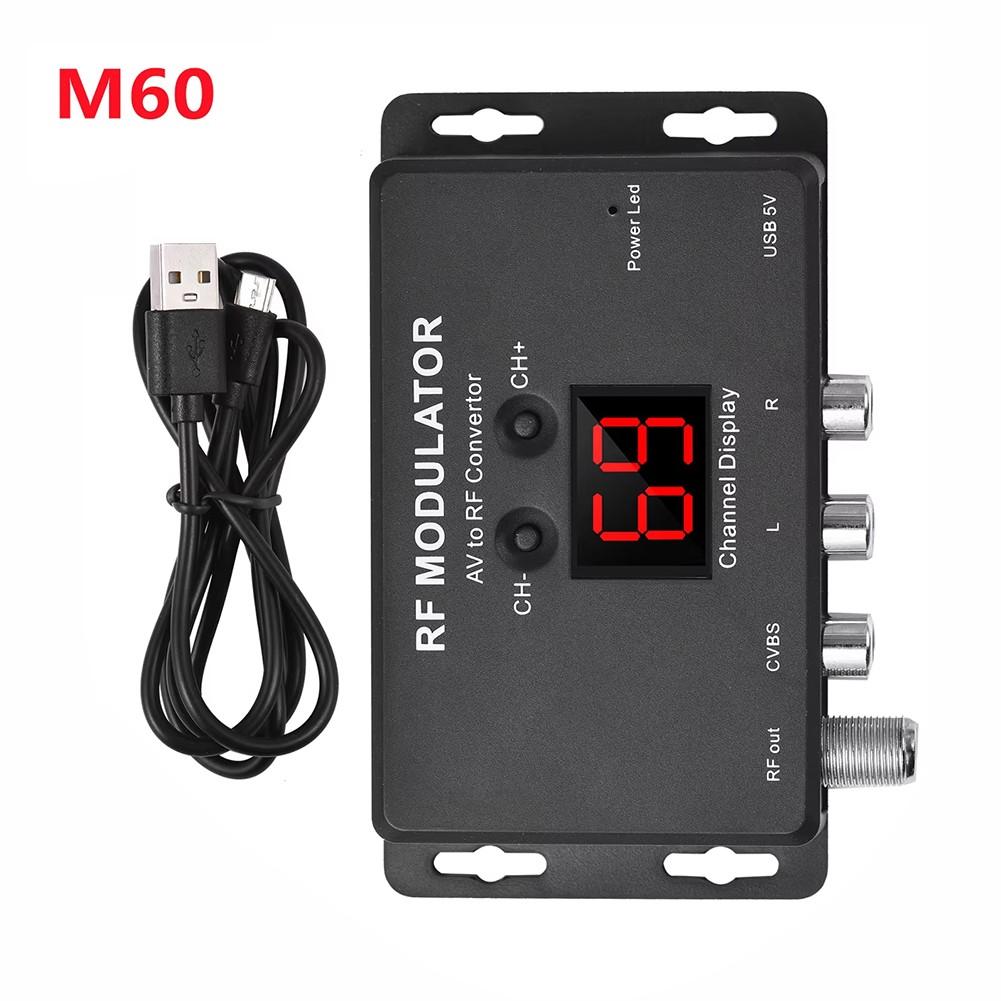

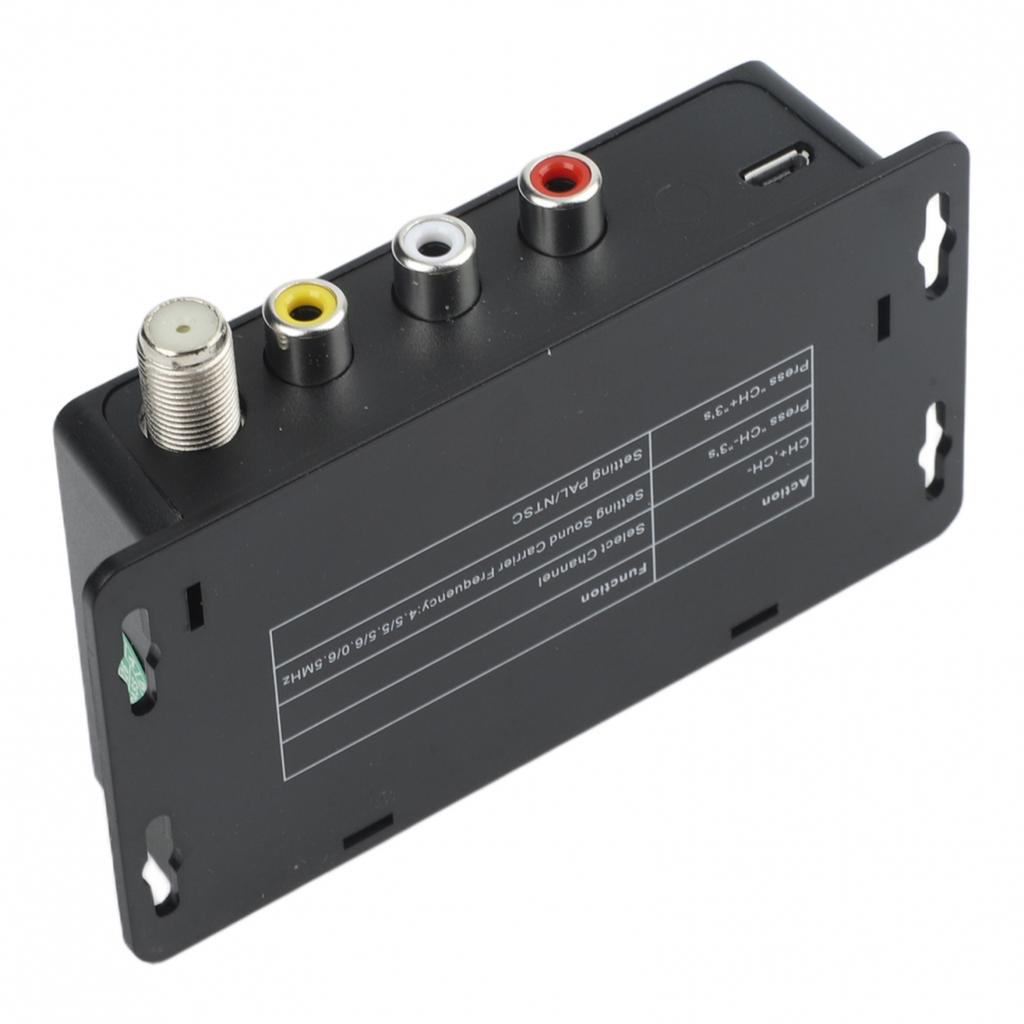

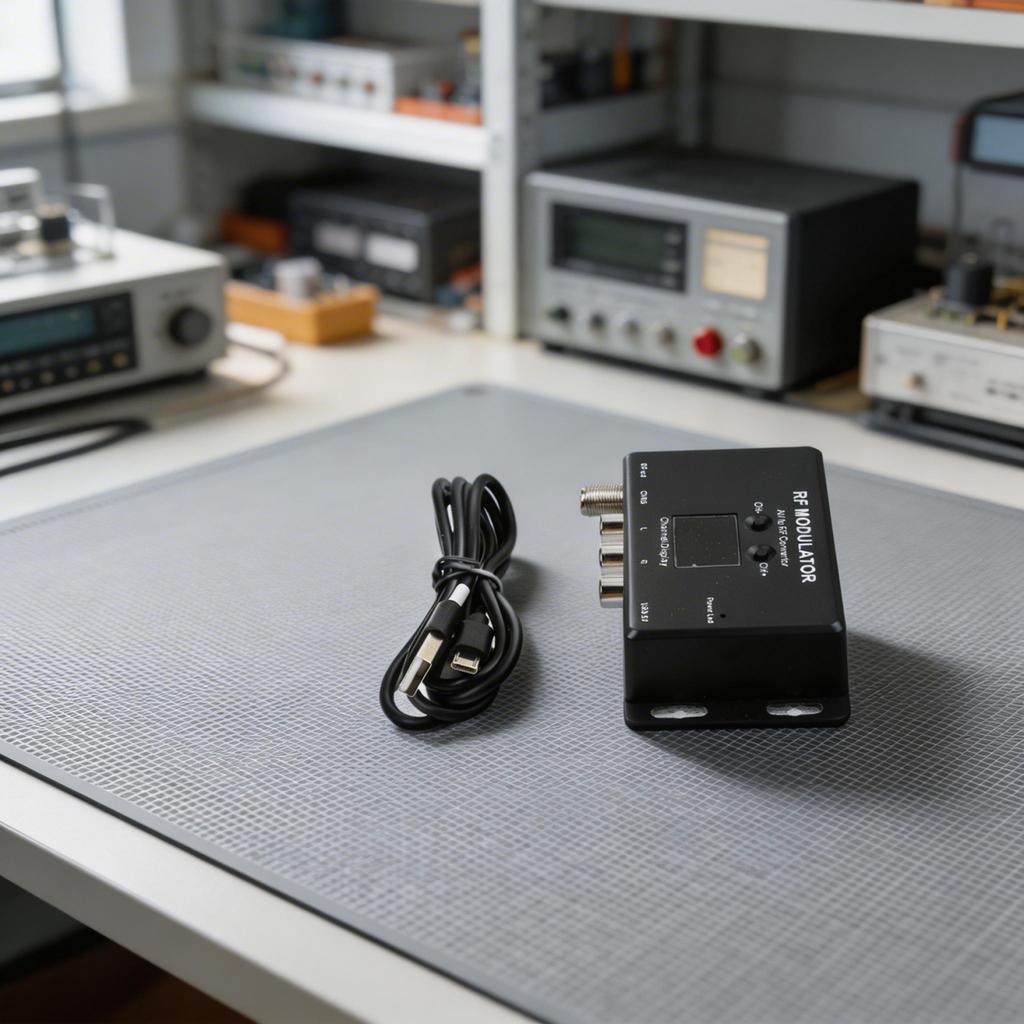

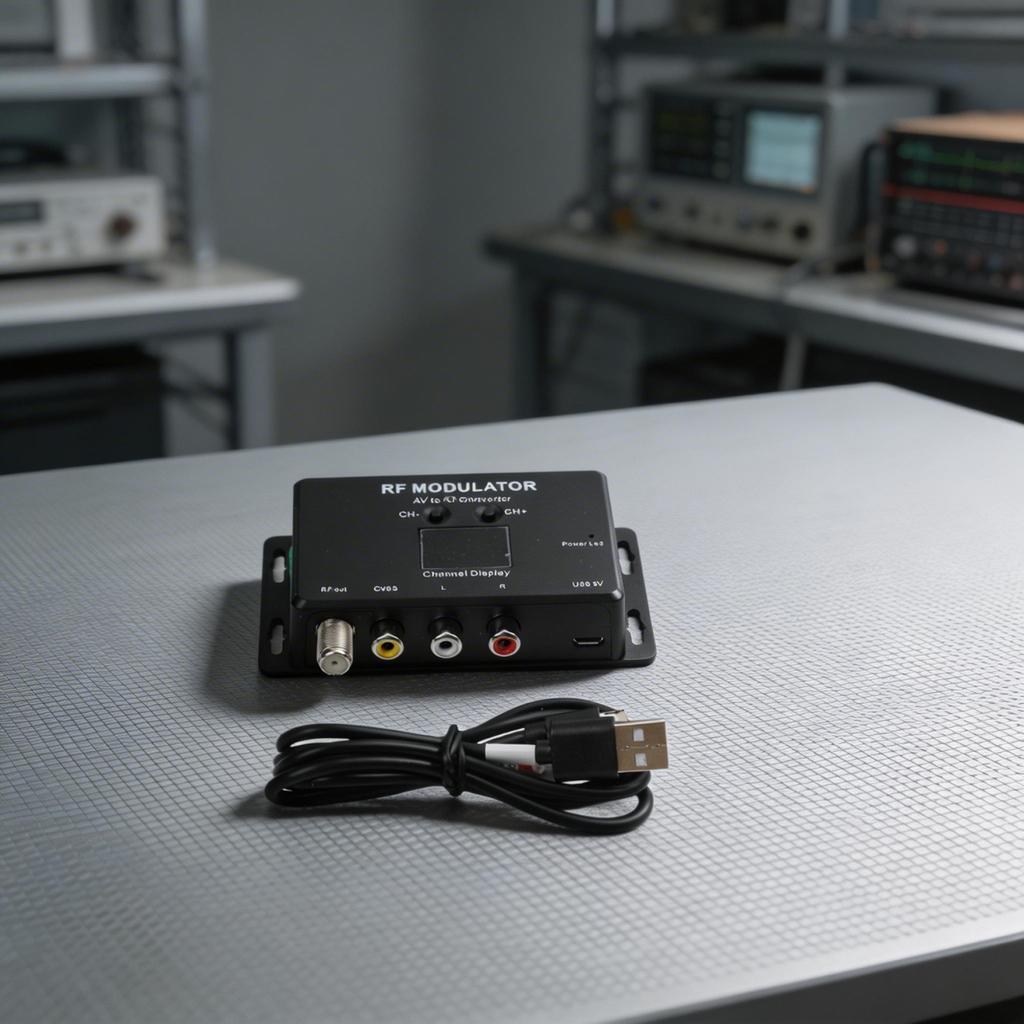

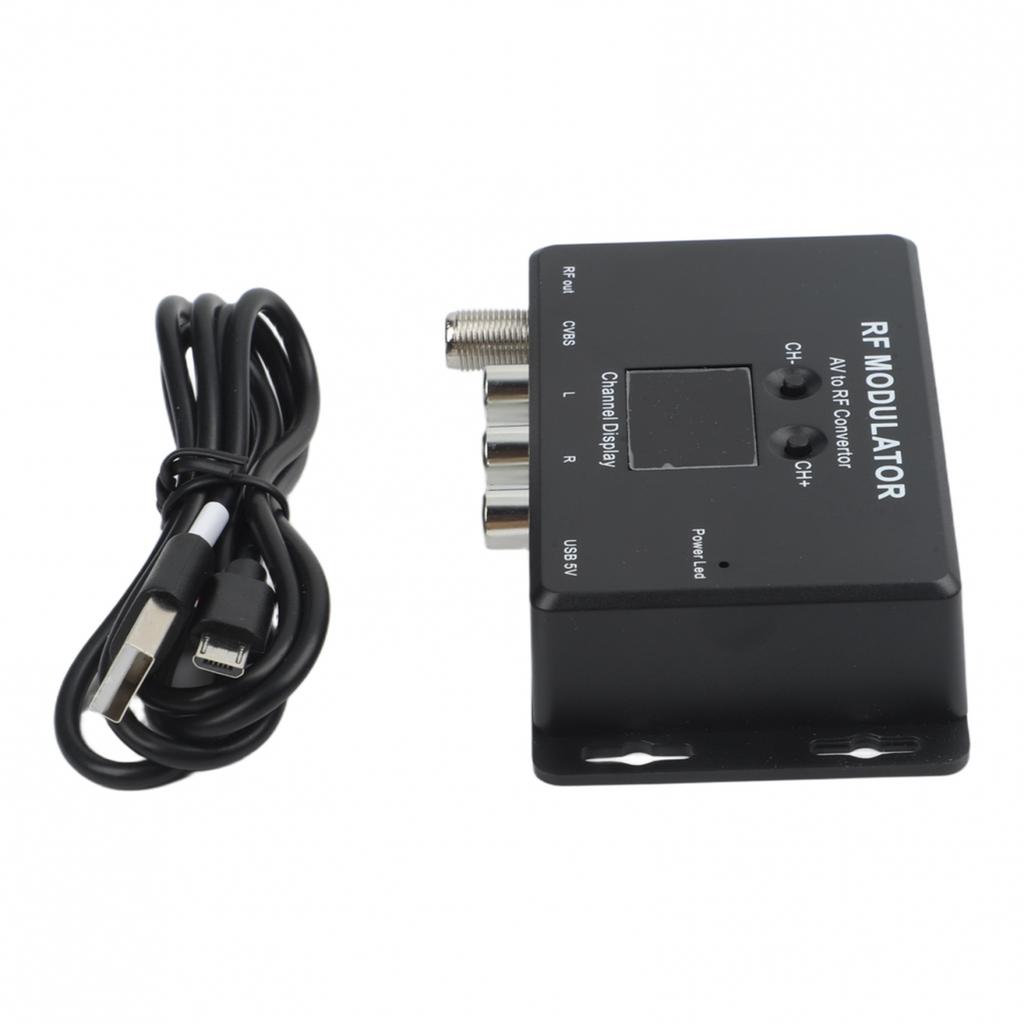

AV To RF Converter RF Modulator Frequency Range 471.25MHz-885.25MHz

Features: Use existing RF circuits in for general households. Share set-top boxes and for DVDs with some rooms. Flexible configuration for PAL/for NTSC, for Sound IF and other TV formats to meet the needs of global users. The frequency range is as wide as 471.25MHz-885.25MHz, and the optional transmission frequency and matching frequency display and built-in memory will minimize and avoid . Adopt standard transmission PCB circuit design, higher stability and better picture quality. Applicable to external configuration for NTSC/ for PAL B/G, I, D/K, LM/N TV formats used worldwide. Compatible with set-top boxes and other A/V sources. Optional for UHF-for PAL/for NTSC modulator. Optional output channel, USB power supply.

Specifications: Part Name: RF Modulator Color: Black RF Frequency Range: 471.25MHz-885.25MHz Channel Range: for PAL: 21-69; NTSC: 14-83 Factory Default Setting: Channel 21 (471.25MHz).for PAL RF Output Impedance: 75Ω Unbalanced Video Input Impedance: 75Ω TV Format: for PAL/NTSC Audio Carrier Frequency: 4.5/5.5/6.0/6.5MHz Power Supply: USB 5VDC Power Consumption: ≤1W Material: ABS size: 104 * 68 * 24mm / 4.09 * 2.68 * 0.94in

Package Contents： 1 * RF Modulator 1 * USB Cable 1 * Manual (English)

Note: 1: Please allow 1-2 cm error due to manual measurement, please make sure you do not mind before ordering. 2: Due to the difference between different monitors, the image may not reflect the actual color of the item
