SMC05 Stepper Servo Motor Pulse Controller 1HZ-200KHZ Signal Generator PWM Board Forward and Reverse Speed Control Regulation

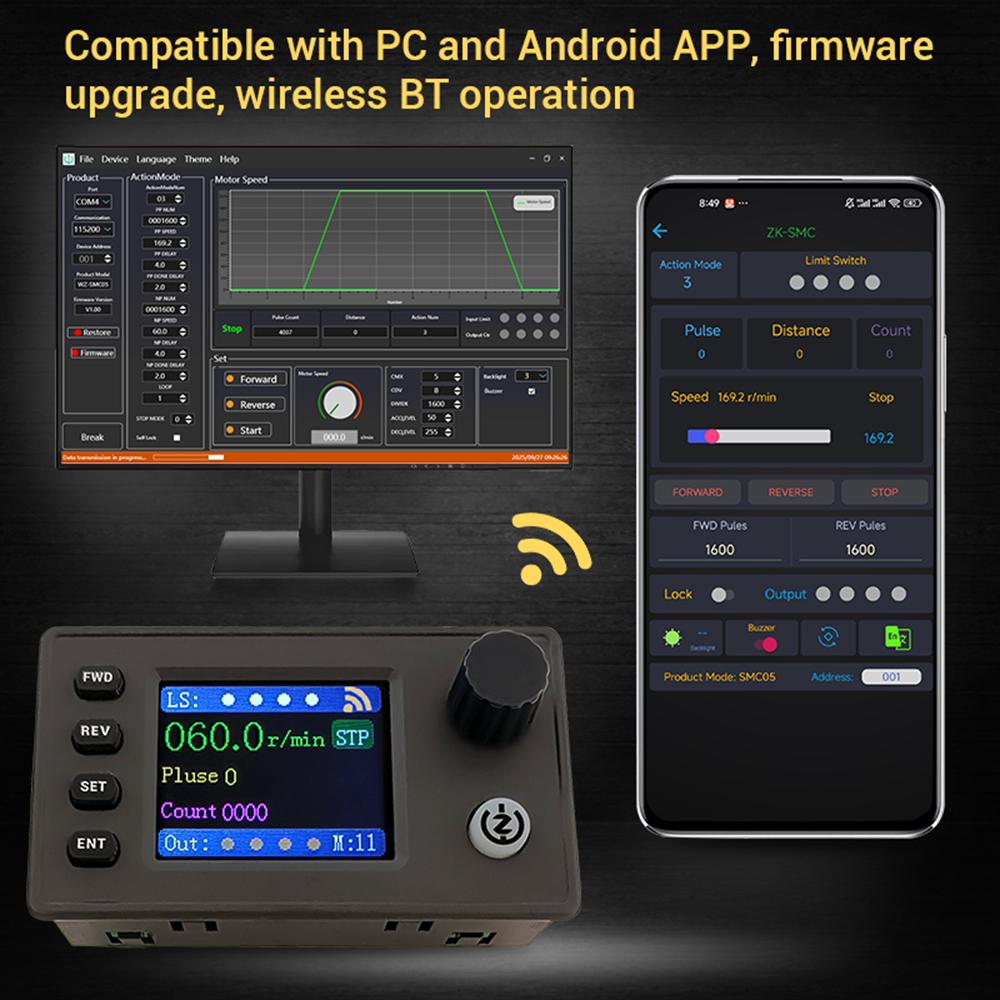

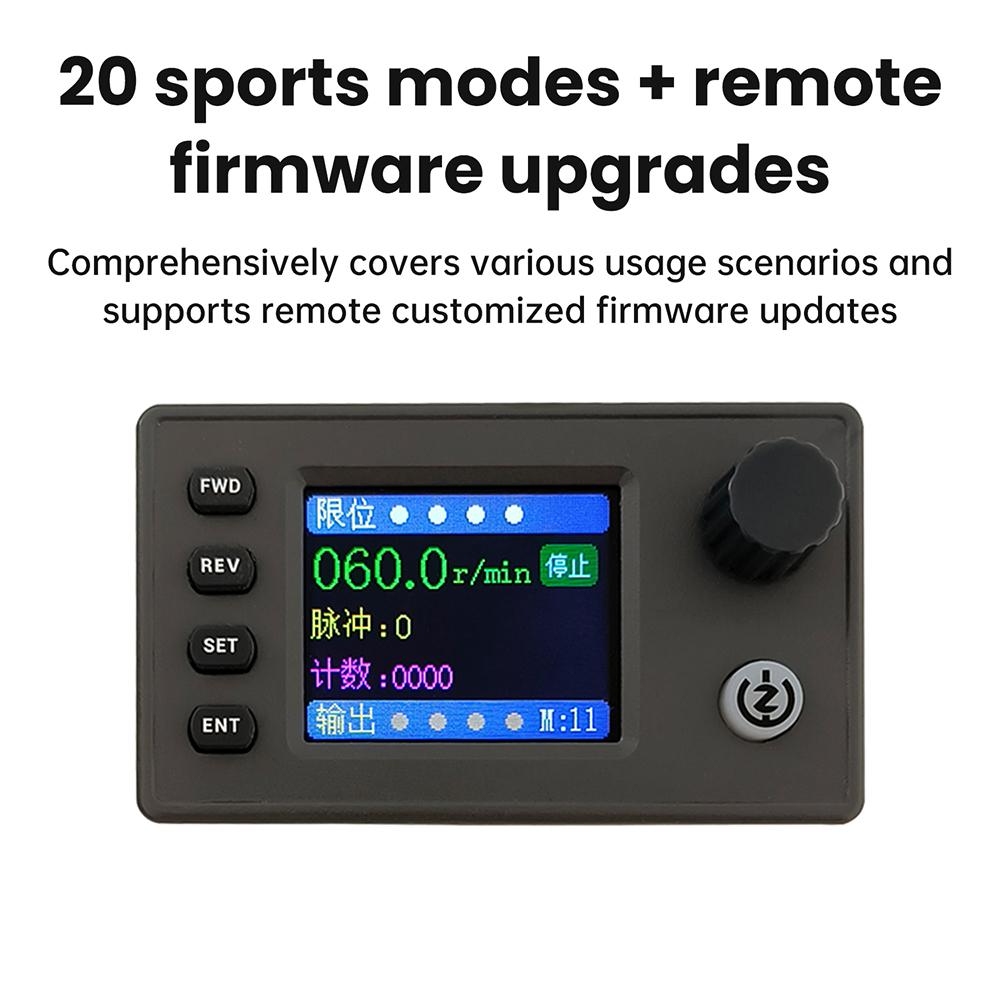

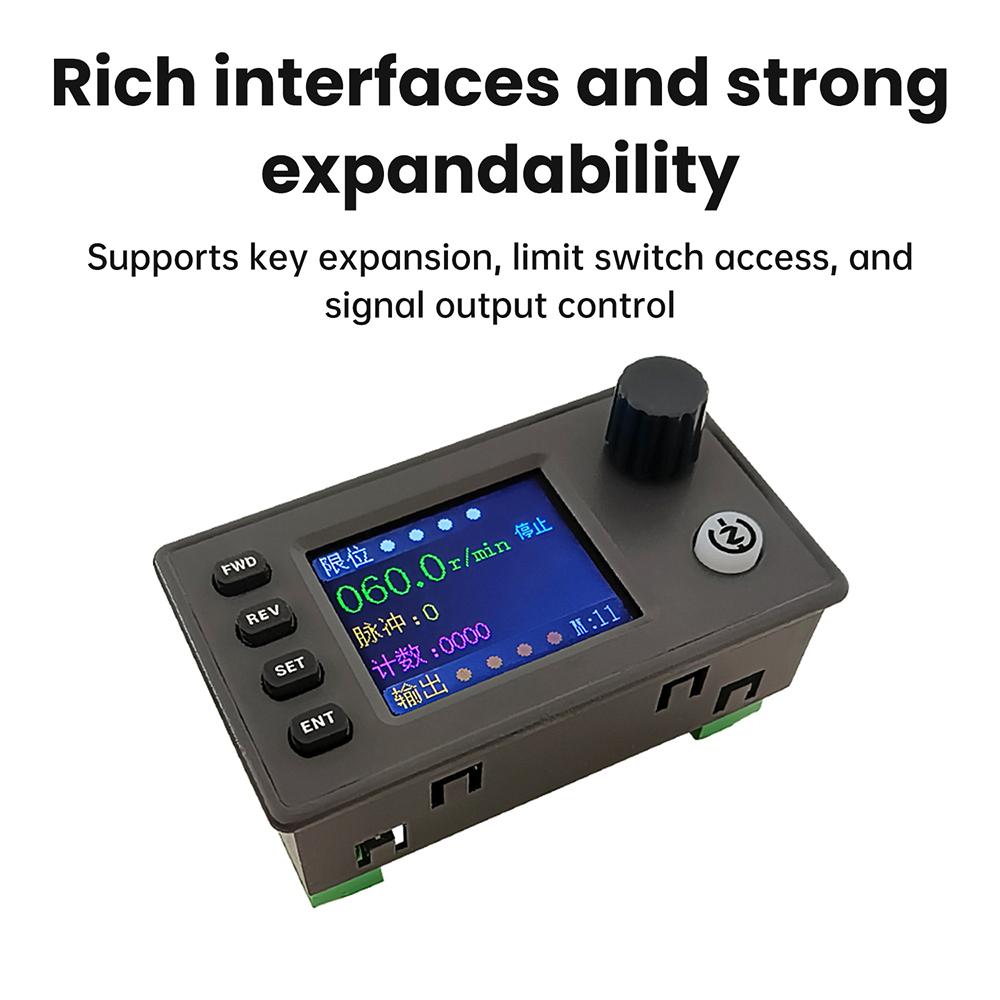

SMC05 Stepper Servo Motor Pulse Controller 1HZ-200KHZ Signal Generator PWM Board Forward and Reverse Speed Control Regulation Features 1. 20 Motion Modes + Remote Firmware Upgrade: Comprehensive coverage for diverse applications, supporting remote d firmware updates 2. 1.8-inch HD Color Screen + Silicone Key Design: Clear and intuitive interface, simple and durable operation, silicone keys provide waterproof and dustproof protection 3. Rich Interfaces, Strong Expandability: Supports key expansion, limit switch connection, and signal output control 4. Multi-Device Collaborative Control, Convenient and Efficient: Supports dual-end control via host computer and APP, enabling real-time monitoring and operation via mobile phone or computer 5. Dual-language interface (Chinese/English): Freely switch between Chinese and English for enhanced usability

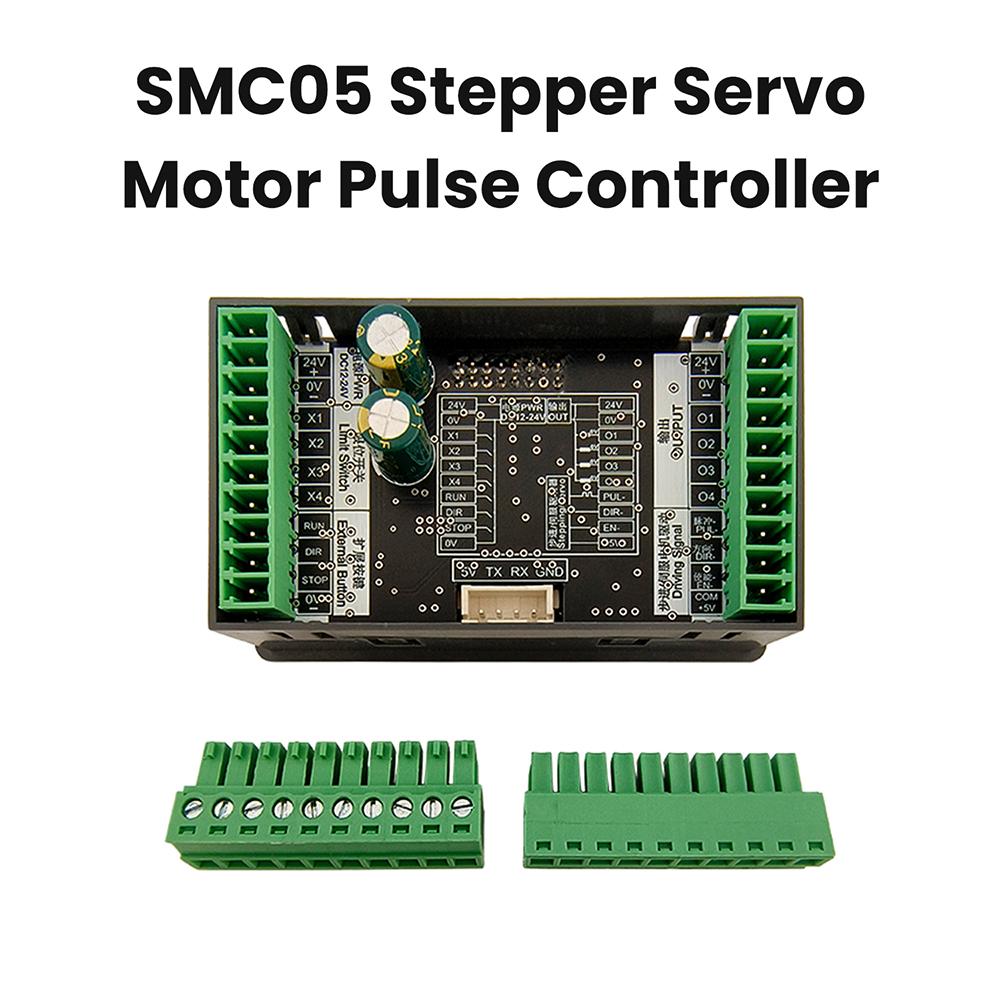

Parameter Model: ZK-SMC05 Operating Voltage: 12-24V Output Signals: 4 outputs, 0V output voltage Input Signals: 4 limit switch inputs, 3 expansion button interfaces Operating Environment: -5ﾰC to 60ﾰC (non-condensing) Motor Pulse Frequency: 1Hz-200,000Hz Display: 1.8-inch color screen Motor Pulse Voltage: 0V output, collector output configuration Communication: Modbus protocol, supports serial port/Bluetooth/485 This product controls the operation of stepper/servo motors, utilizing a common anode (5V) connection for 0V pulse drive output. Hardware includes 4 outputs capable of driving devices under 500mA (e.g., indicator lights, solenoid valves), 4 limit switch inputs, and 3 expansion button inputs. Application areas: Mechanical equipment, automation control, motor tooling, etc.

Package include Controller*1
