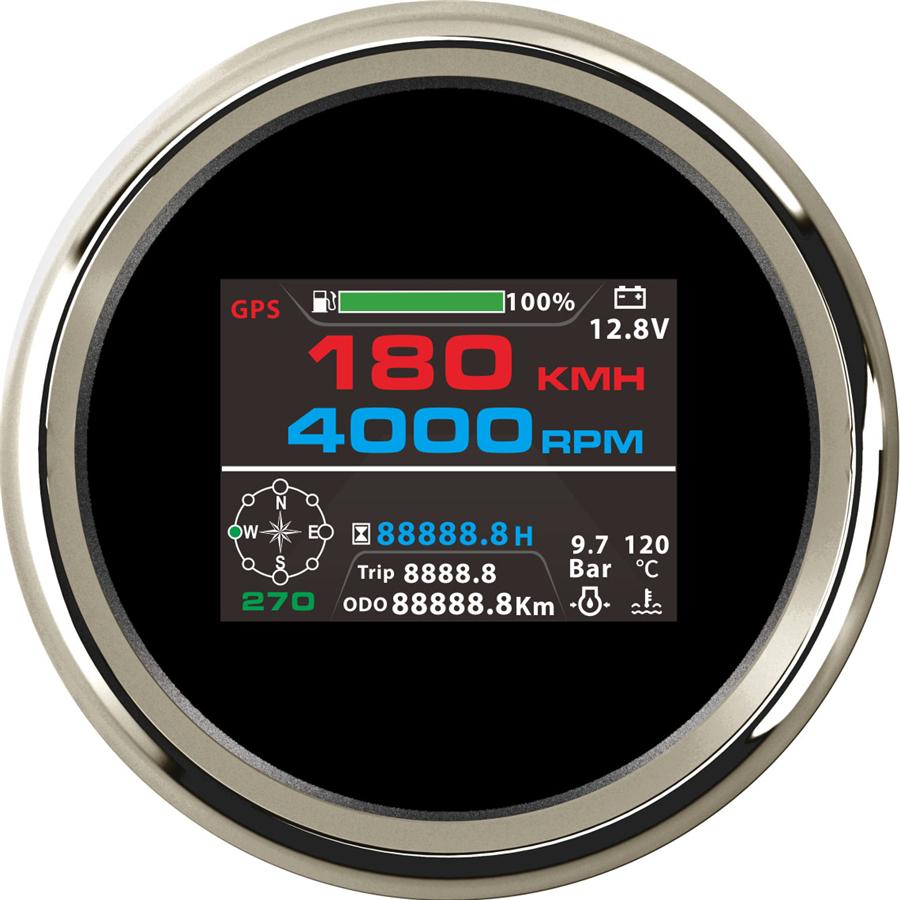

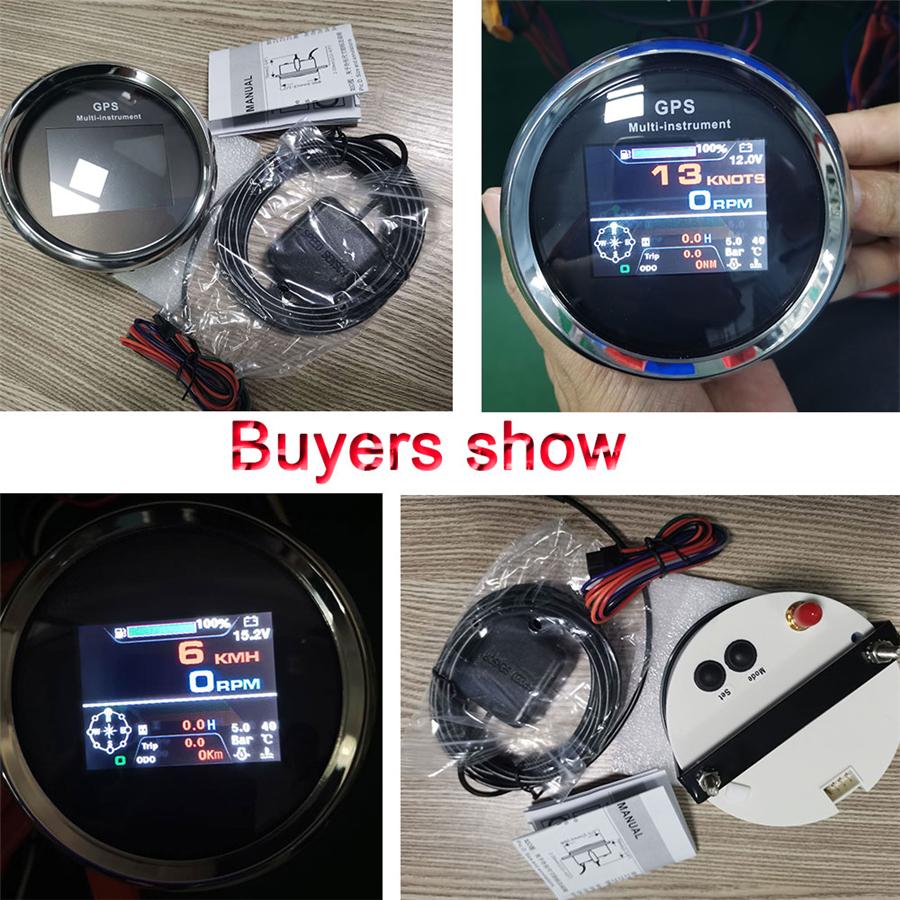

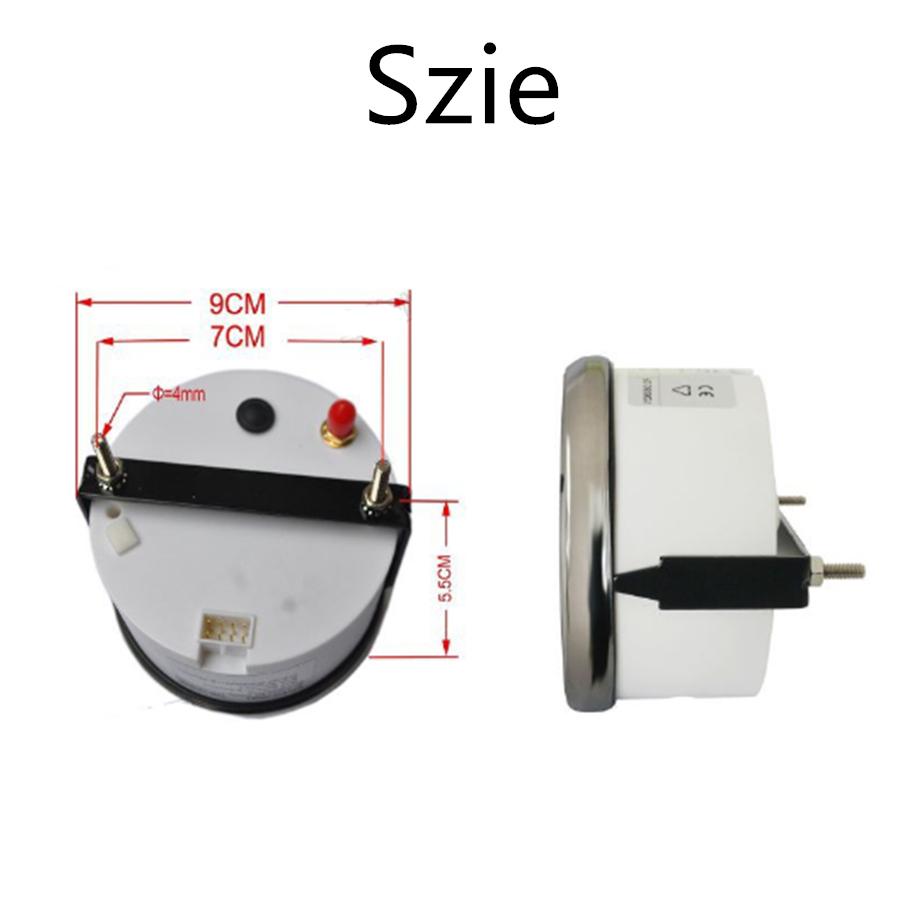

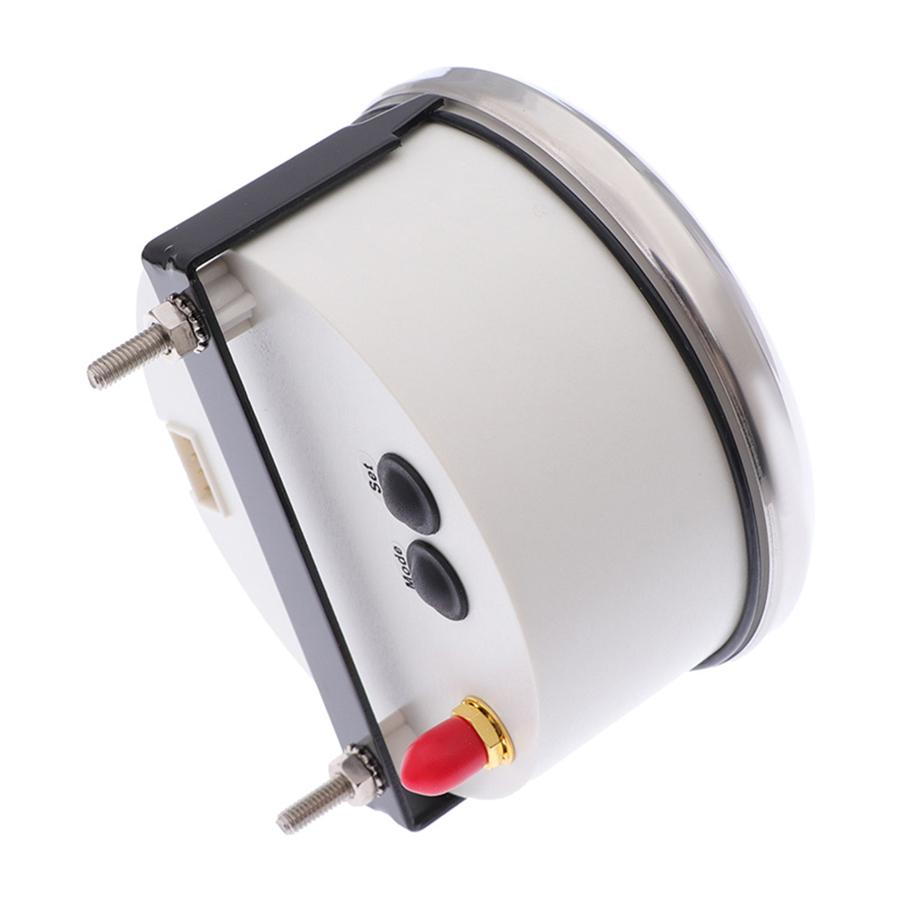

10 in 1 Boat Tacho Speed Water Temp Fuel Pressure Odometer Hours Trip Volt Gauge

Silver Bezel + Black Background

Features:

- IP67 waterproof and dustproof grade -With curved glass (with anti-fogging function) - Suitable for all vessels, boats, yachts, etc.. - The signal comes directly from the satellite signal receiver(GPS Speed Sensor) - The gauge has the advantages of high precision, quick location confirmation and short start up time. - With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)). - Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

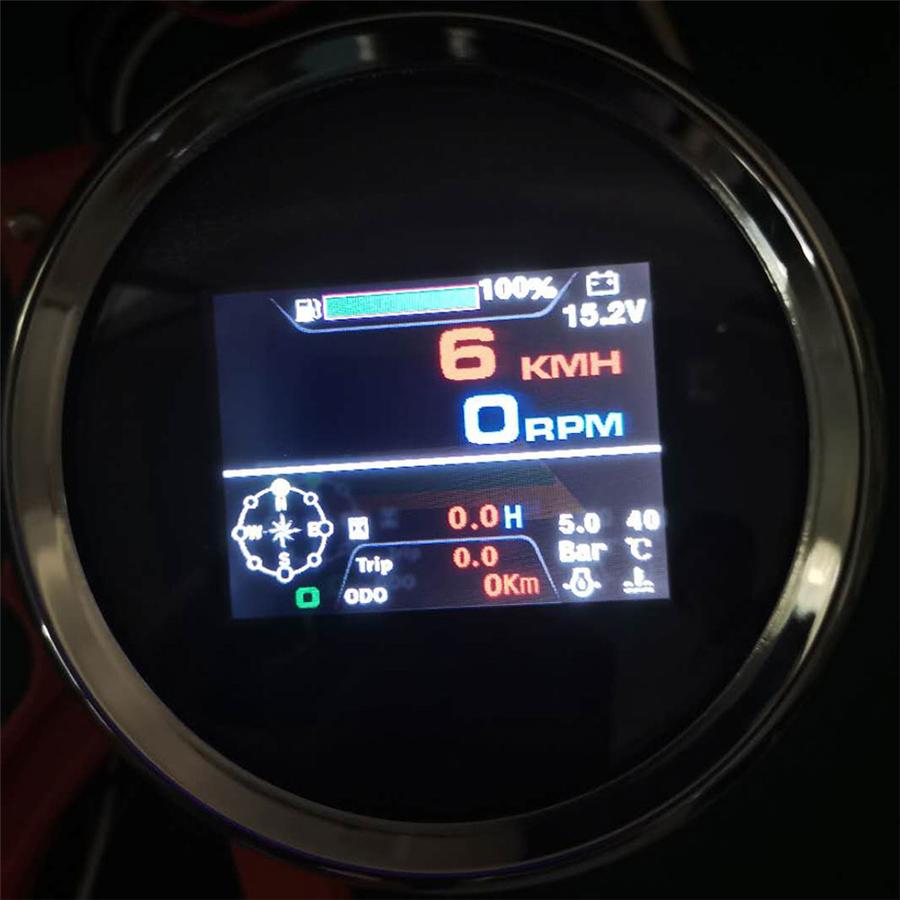

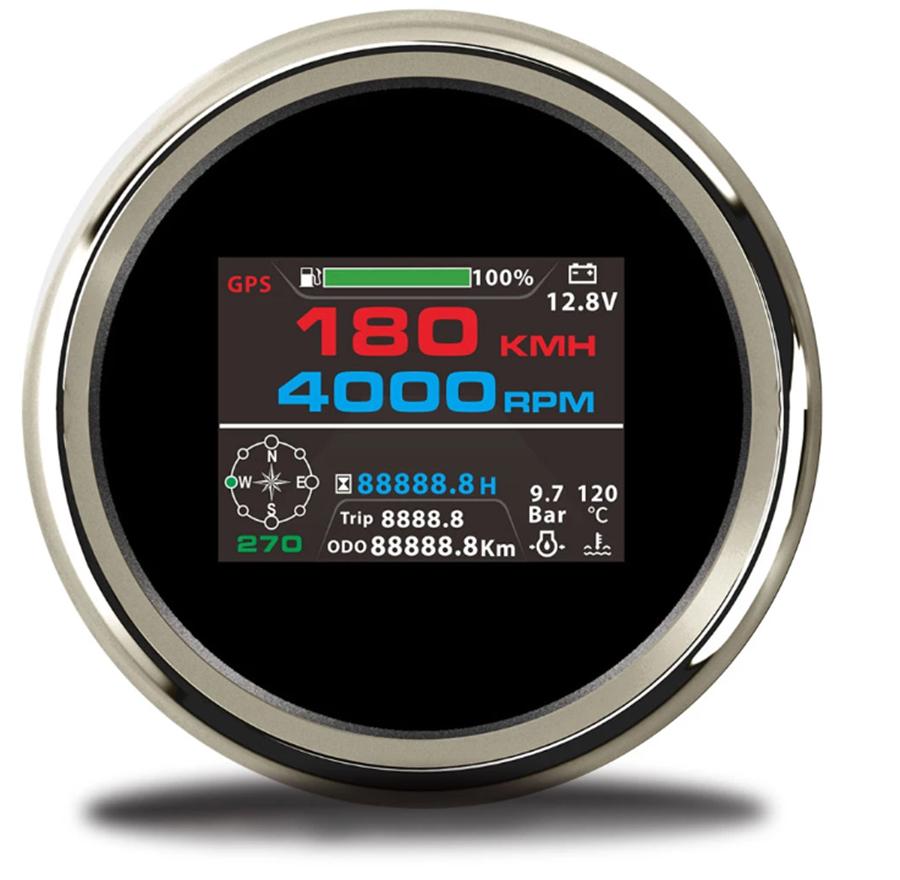

Multifunction Instruction:

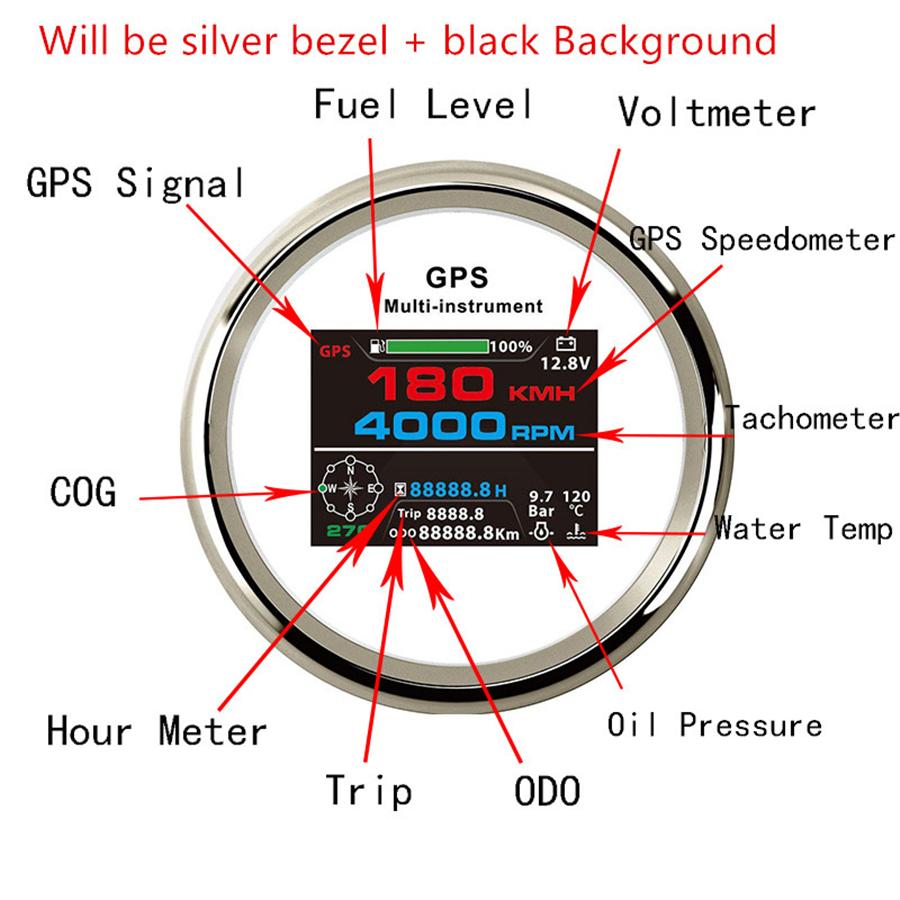

1. Range of tacho:0~9999 RPM 2. Range of speed:0~999 km/h, MPH, Knots 3. Range of water temp :40~ 120°C(104~ 248F) 4.Range of fuel: 0-100% 5. Range of pressure :0~ 5bar/0~ 10bar 0-100Psi/0-150Psi 6. Range of ODO:0~99999.9 km, miles, knots . 7. Range of hours:0~ 99999.9 hours 8.Range of trip:0~ 999.9 km/h, MPH,Knots 9.Range of Volt: 8-32V

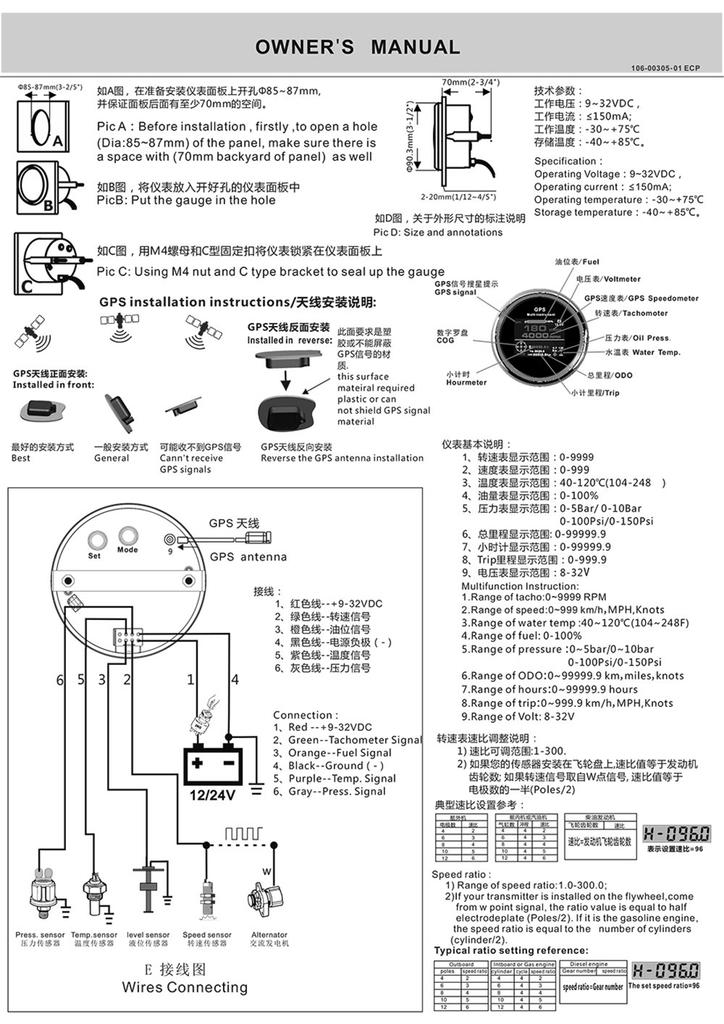

Connection :

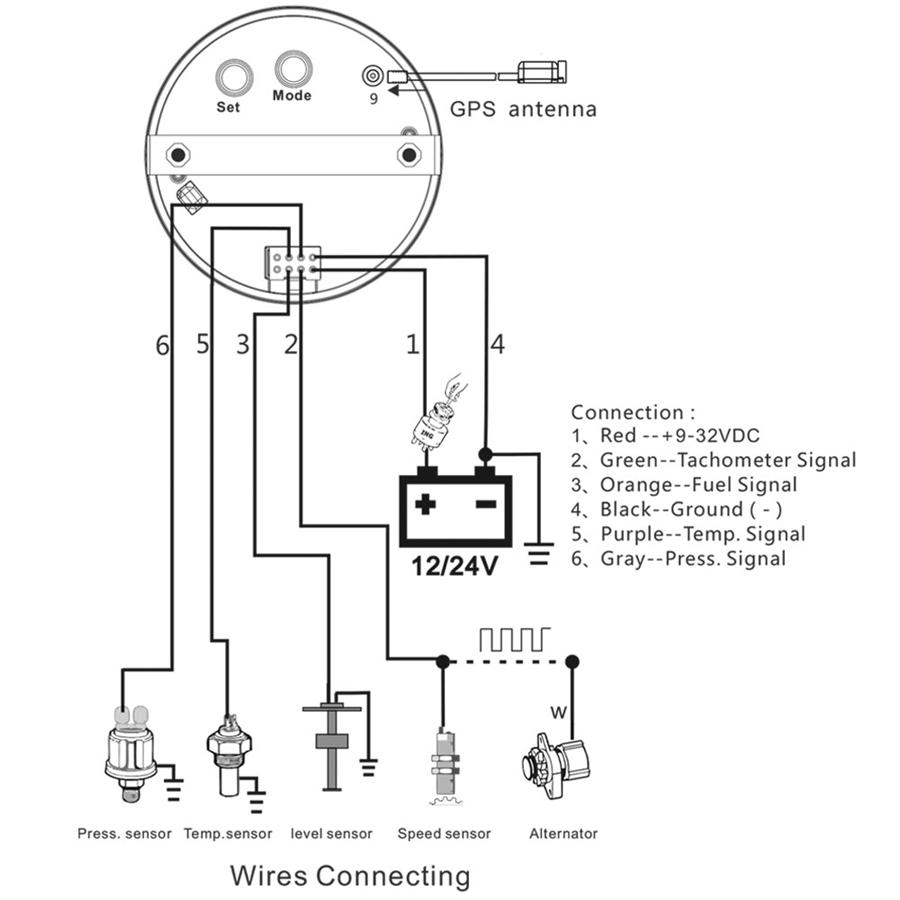

1、Red --+9-32VDC 2、Green--Tachometer Signal 3、Orange--Fuel Signal 4、Black--Ground (- ) 5、Purple--Temp. Signal 6、Gray--Press. Signal

Speed ratio:

1) Range of speed ratio:1 .0-300.0; 2)|f your transmitter is installed on the flywheel, come from w point signal, the ratio value is equal to half electrode plate (Poles/2). If it is the gasoline engine, the speed ratio is equal to the number of cylinders (cylinder/2).

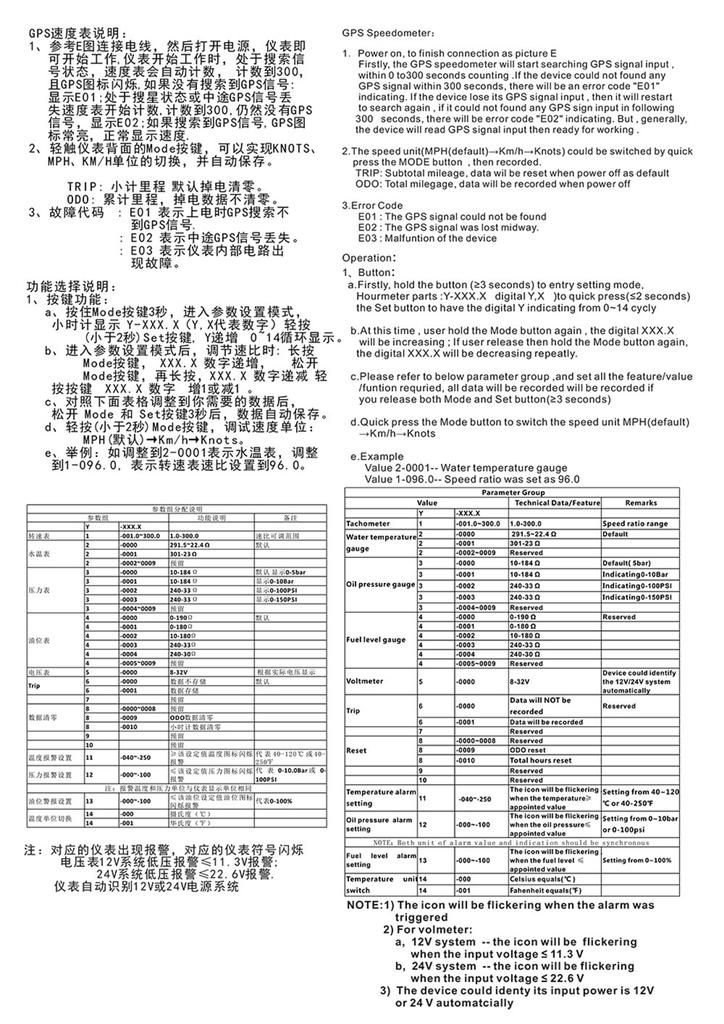

GPS Speedometer:

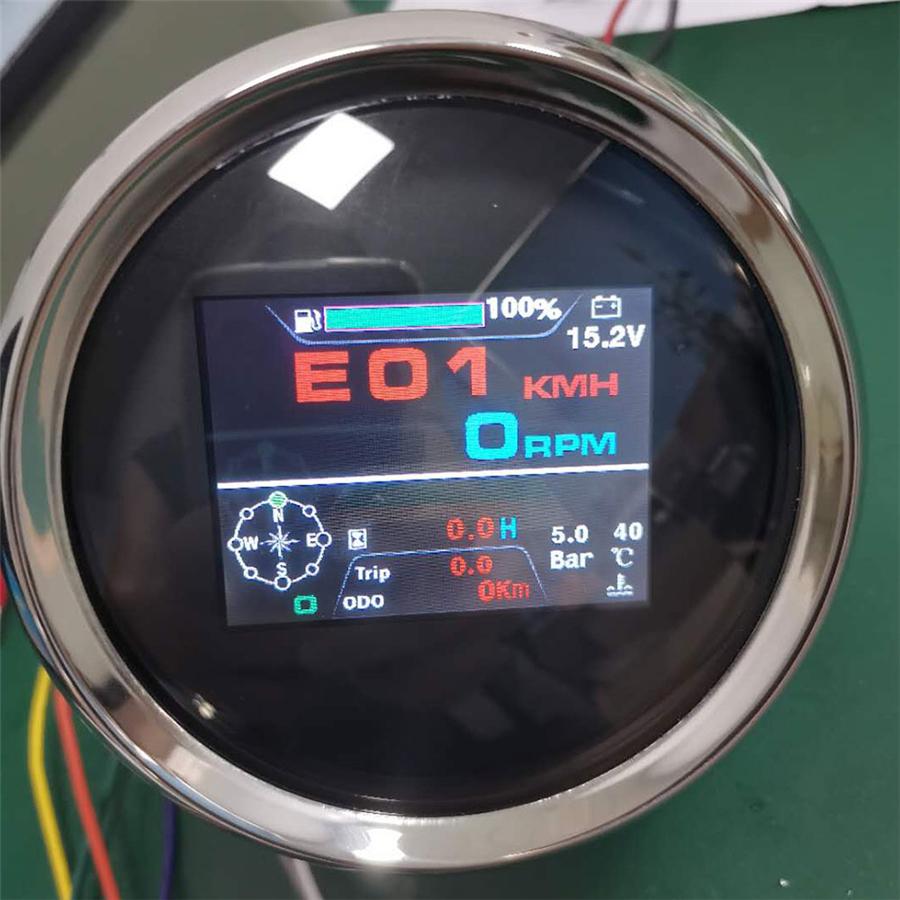

1. Power on, to finish connection as picture E Firstly, the GPS speedometer will start searching GPS signal input , within 0 to300 seconds counting .If the device could not found any GPS signal within 300 seconds, there will be an error code "E01" indicating. If the device lose its GPS signal input, then it will restart to search again , if it could not found any GPS sign input in following 300 seconds, there will be error code "E02" indicating. But , generally, the device will read GPS signal input then ready for working . 2.The speed unit(MPH(default)- +Km/h- + Knots) could be switched by quick press the MODE button , then recorded. TRIP: Subtotal mileage, data wil be reset when power off as default ODO: Total milegage, data will be recorded when power off 3. Error Code E01 : The GPS signal could not be found E02 : The GPS signal was lost midway. E03 : Malfuntion of the device

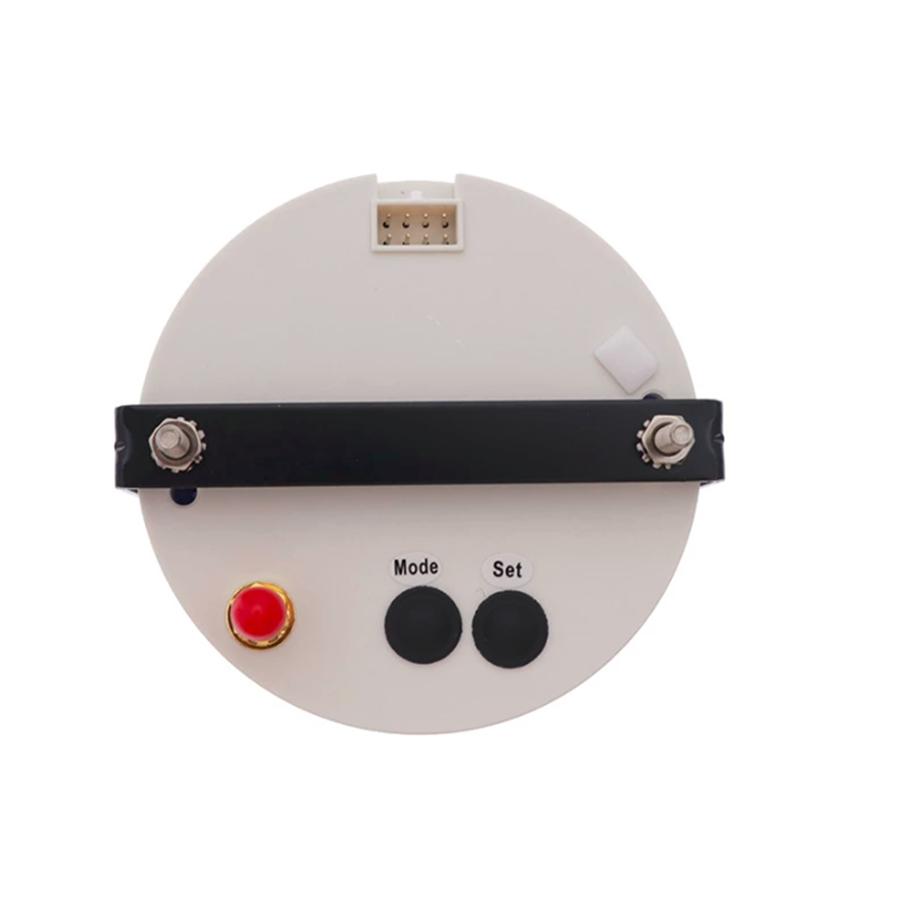

Operation:

1、Button: a.Firstly, hold the button (23 seconds) to entry setting mode, Hourmeter parts :Y-XXX.X digital Y,X )to quick press(≤2 seconds) the Set button to have the digital Y indicating from 0~14 cycly b.At this time , user hold the Mode button again，the digital XXX.X will be increasing ; If user release then hold the Mode button again, the digital XXX.X will be decreasing repeatly. c. Please refer to below parameter group ,and set all the feature/value /funtion requried, all data will be recorded will be recorded if you release both Mode and Set button(23 seconds) d.Quick press the Mode button to switch the speed unit MPH(default) - +Km/h- + Knots e. Example . Value 2-000 1-- Water temperature gauge Value 1-096.0-- Speed ratio was setas 96.0

Package Includes:

1 x GPS speedometer

Note:

1.Professional Installation Is Highly Recommended!

2. High speed stepper motor with a quick response !

3.The light of the actual gauge may be slightly different from that shown on the photo,Hope you could understand!
