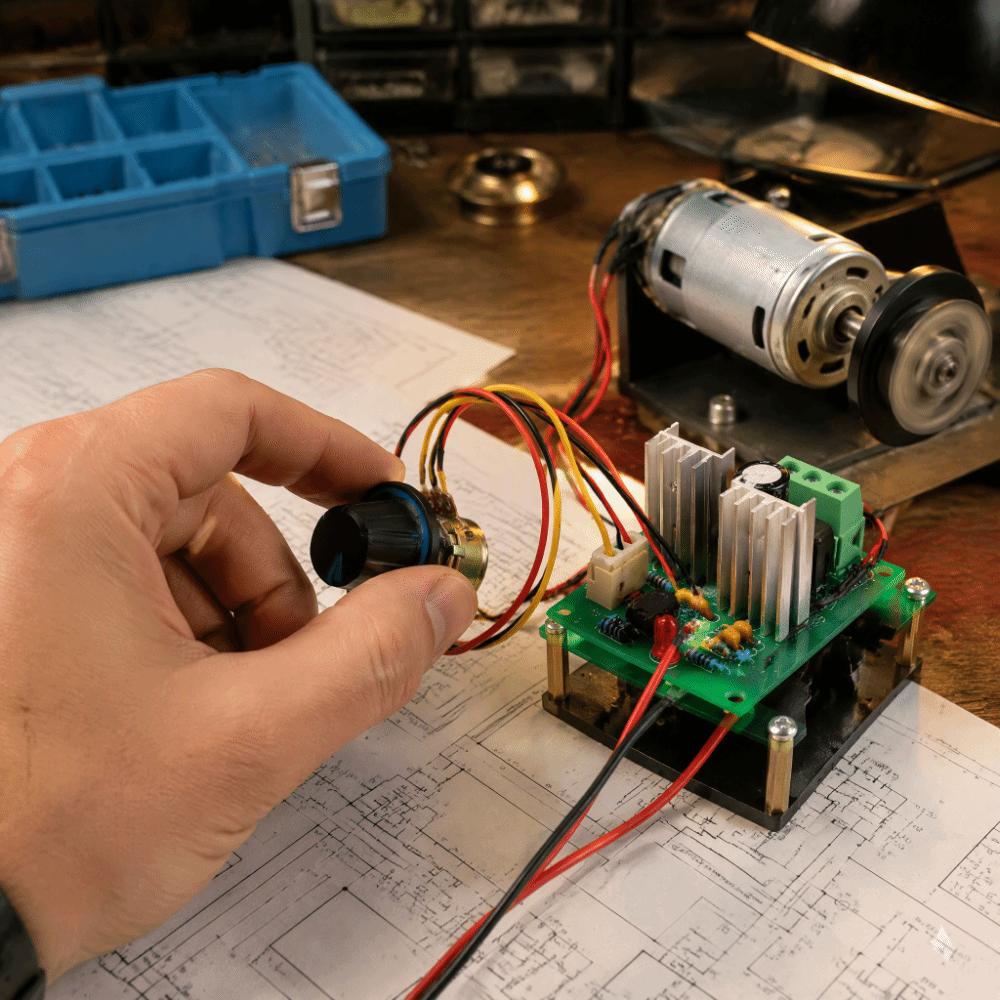

10A DC Motor Speed Controller 12V 24V 36V Motor Speed Regulator Industrial Equipment

Label:Yes [DC Motor Speed Control] Use this controller to control the speed of a DC motor, providing smooth and reliable speed regulation.

[Light Control] Use this controller to control the light of lamps, making it a versatile option for dimming and brightness adjustment.

[Strong Performance] High efficiency, high torsion, strong output, and effective heat dissipation for stable long term use. [PWM Speed Regulation] PWM speed regulation offers precise control and high efficiency for a wide range of DC motor applications. [Safe and Durable] With an overcurrent safeguard function, it is safer to use. Well made with a reliable circuit board, easy wiring and installation, and a long service life.

Item Type: DC Motor Speed Controller Working Voltage: DC12V-36V(The 12V 24V 36V DC power supply, including the battery as a power supply, can work normally.) Output Current: rated current 5A, maximum instantaneous output current 10A. It can work in 5A for a long time. If it exceeds 5A, it needs to be forced to dissipate heat by adding a fan. Control Power: Up To 200W Power Calculation: Voltage x Current = Power Frequency: 25KHZ Control the number of power tubes per unit time. Speed Range: 0-100% The motor can be adjusted linearly from the stop state to the fastest motor. Material: PCB Color: Multicolor Size: Approx. 56 x 36 x 26mm(2.20 x 1.42 x 1.02in) Mounting hole center distance: 30 x 51 mm(1.18 x 2.01 in) Package List: 1 x Motor Governor 1 x Nut 1 x Gasket 1 x Knob Cover
