Feature:

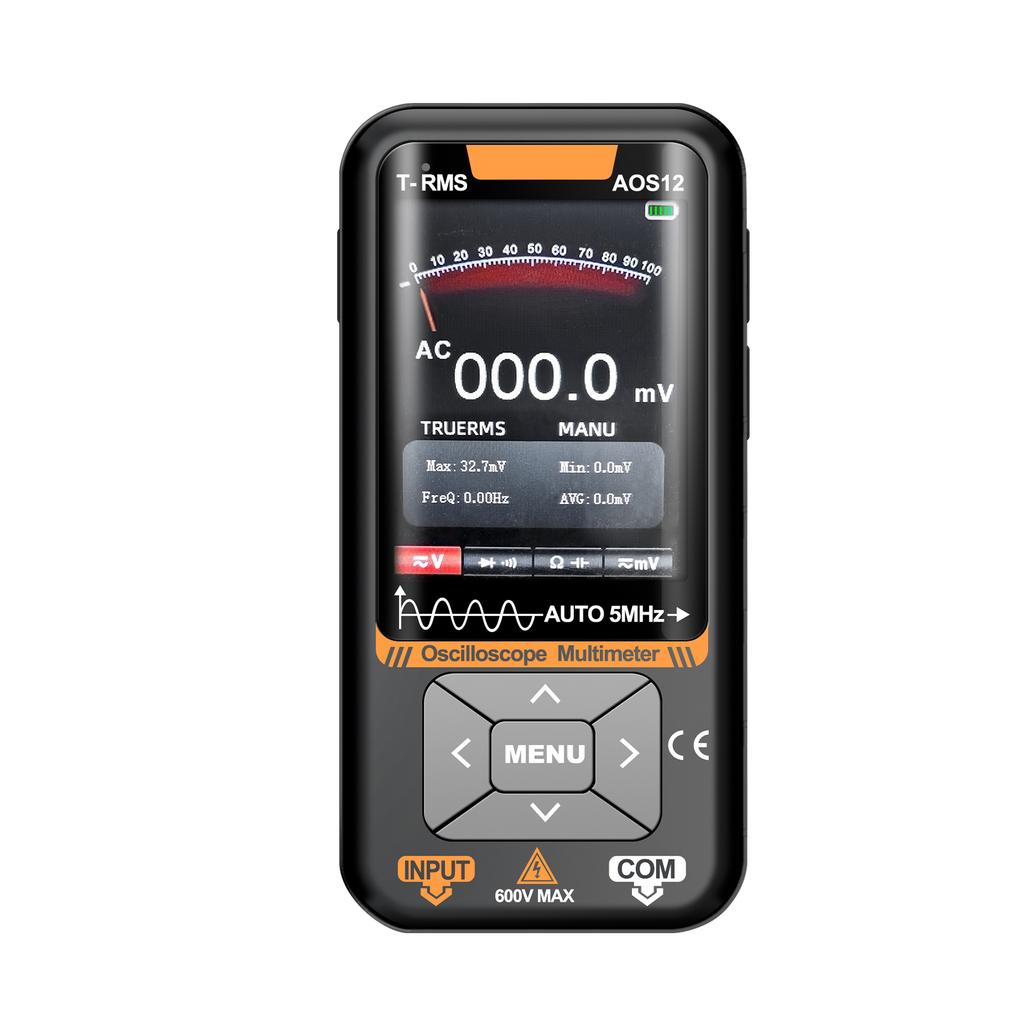

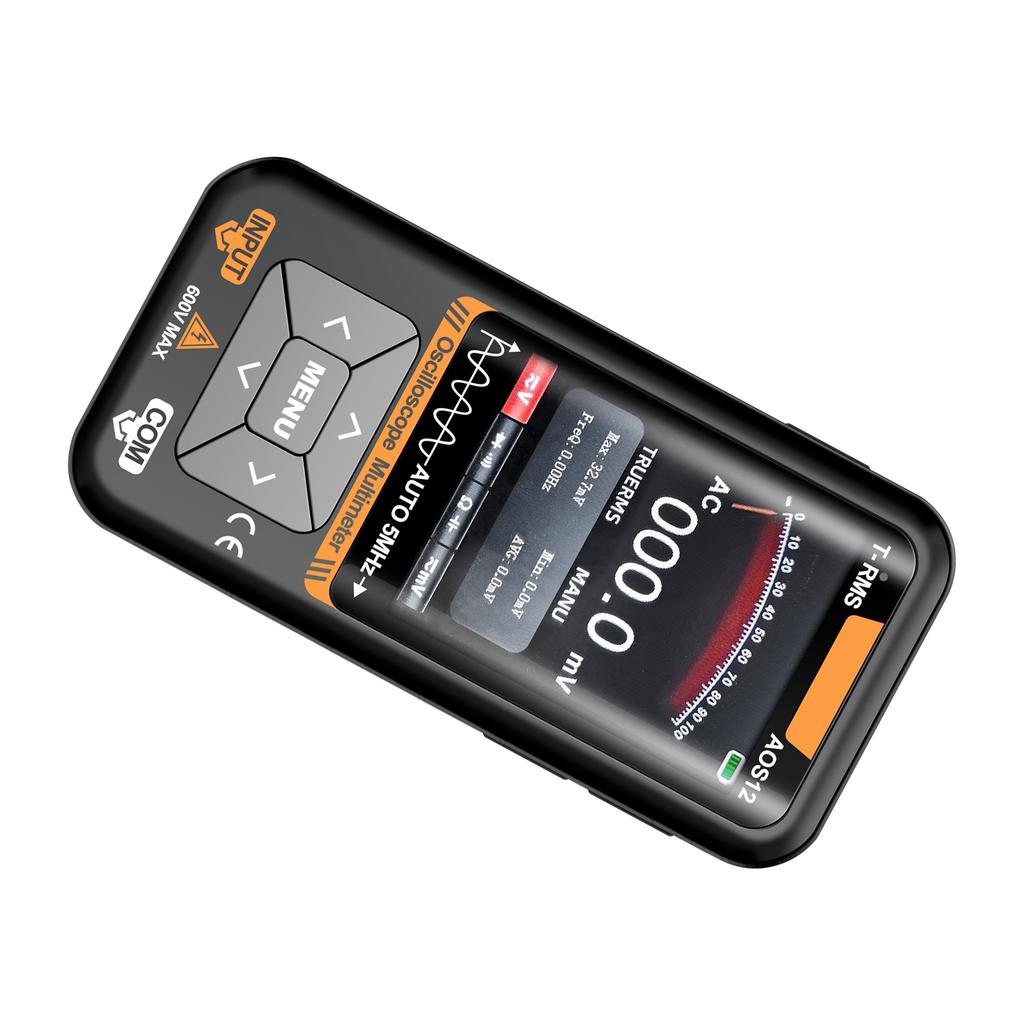

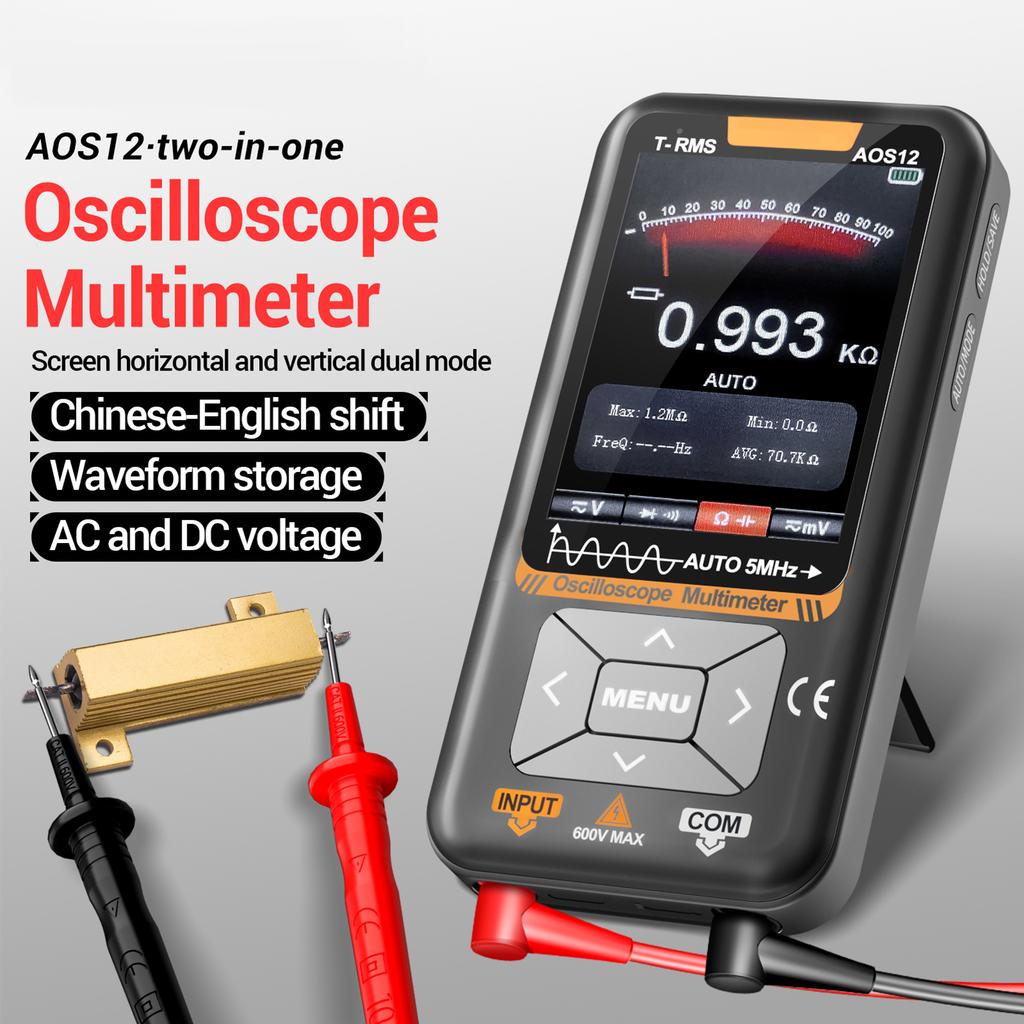

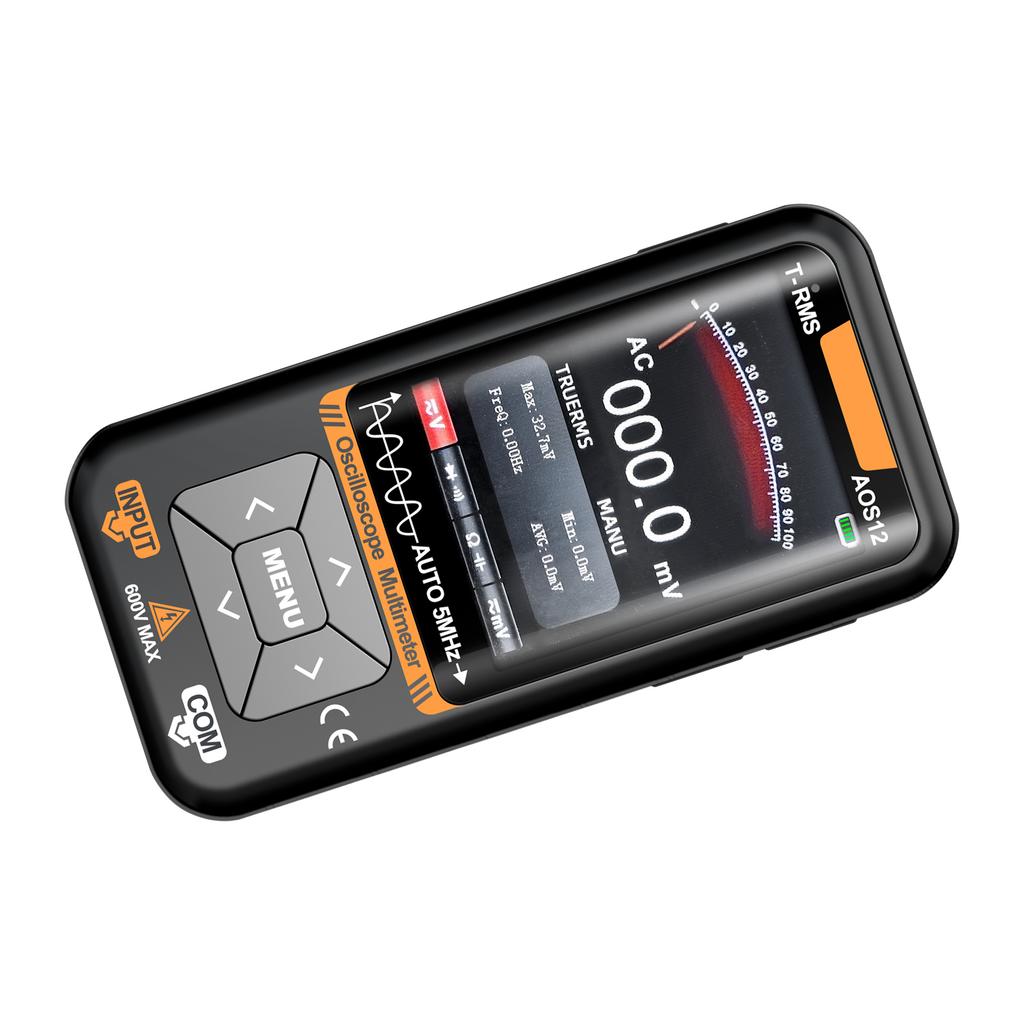

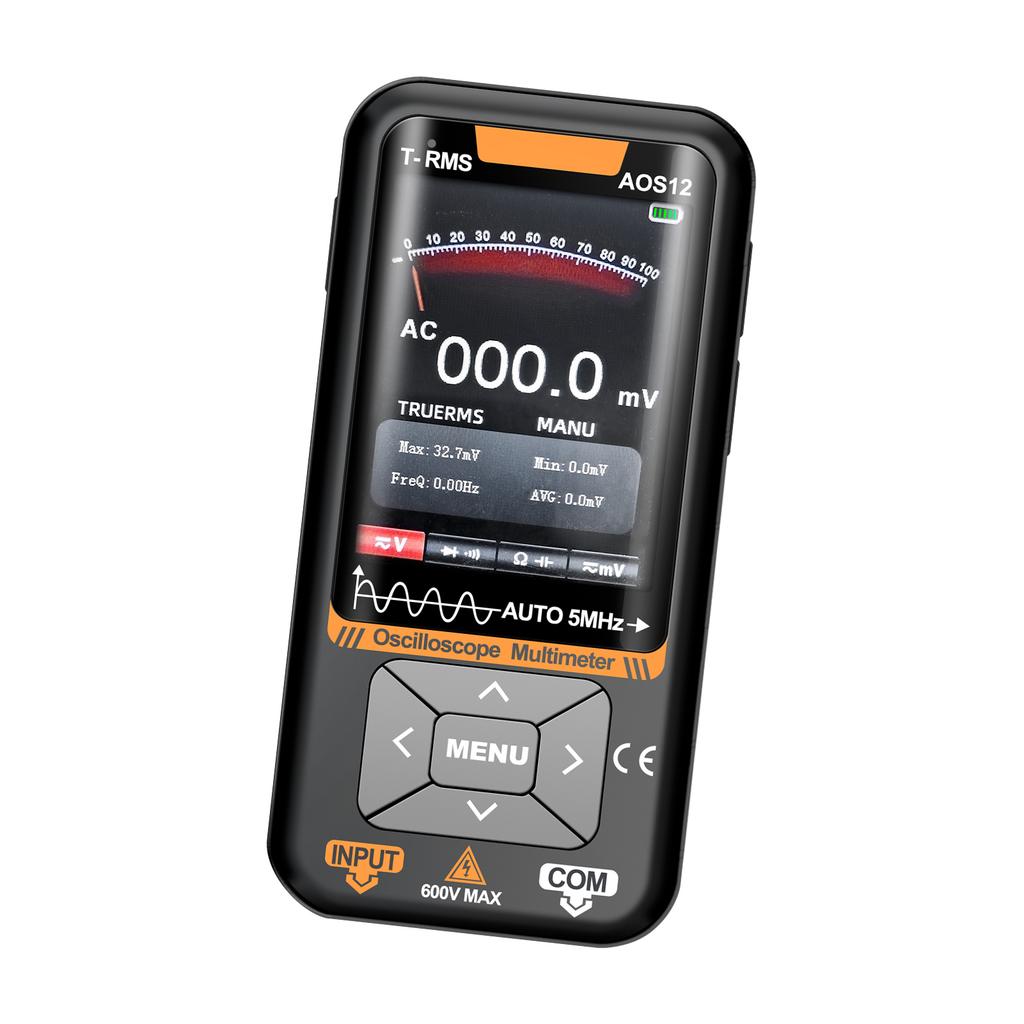

1. 2 in 1 Oscilloscope and Multimeter: This versatile tool combines the capabilities of both an oscilloscope and a 9999 count True RMS multimeter, allowing you to perform a wide range of measurements, suitable for electronics repair, circuit debugging, hobbyist projects, etc.
2. Adjustable Waveforms and Waveform Storage: Equipped with a 5MHz bandwidth and a high sampling rate of 48MSa s, the oscilloscope can generate and adjust a variety of waveforms, including sine, square, sawtooth, exponential rise, exponential fall, half, full, and more. It also enables waveform storage and computer connectivity for further analysis.
3. Comprehensive Multimeter Functions: The multimeter offers a range of measurement capabilities, including DC and AC voltage, resistance, capacitance, frequency, diode testing, and continuity beeper, suitable for electronic circuit testing, debugging, and troubleshooting in electronics, communications, and computing sectors.

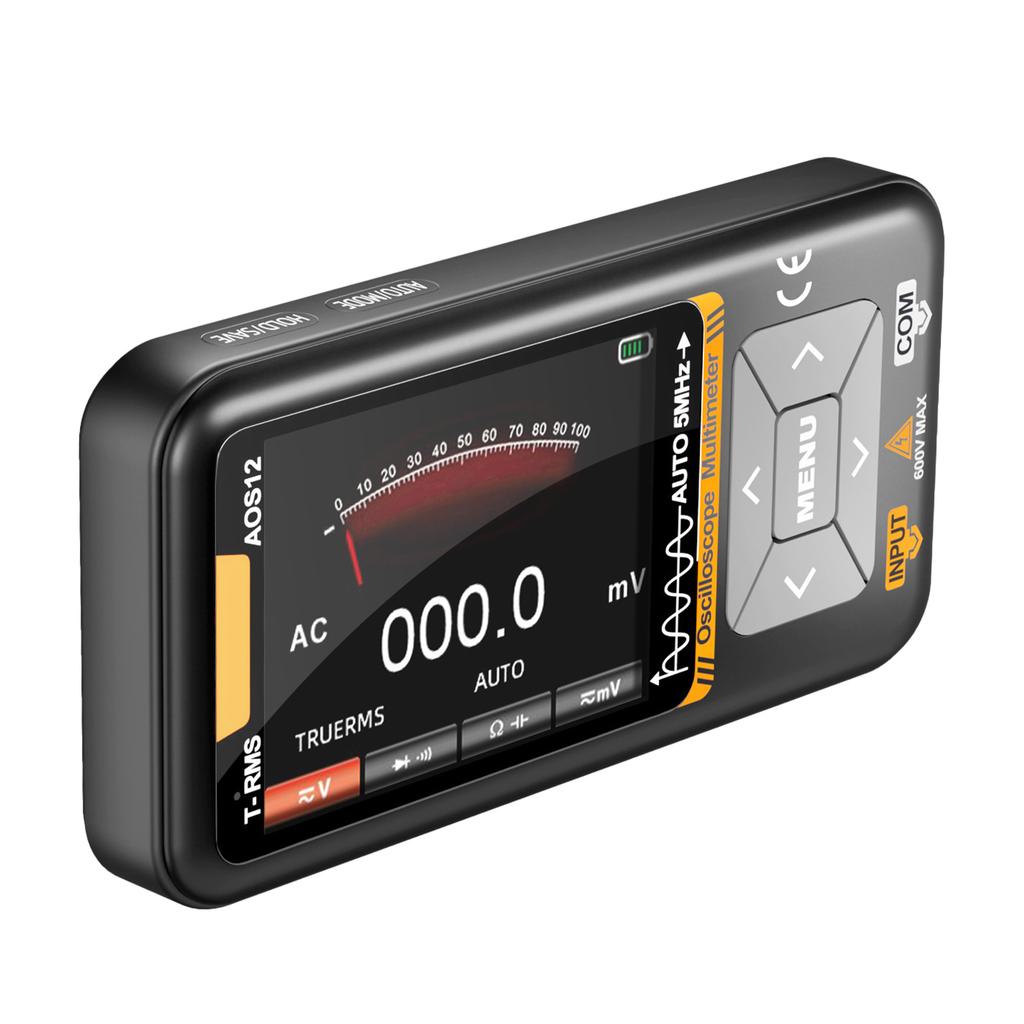

4. User Friendly Interface with Color Display: Featuring a 3.2 inch color display with adjustable brightness levels (30percent 50percent 80percent 100percent ), the oscilloscope provides clear and easy to read measurements. The dual mode (horizontal and vertical) screen allows for flexible viewing and analysis of waveforms.
5. Convenient Power Options and Data Management: Powered by a 3.7V 1500mAh lithium battery with a type C charging cable, the device offers long lasting use and easy recharging. It also has a low battery prompt, ensuring uninterrupted operation.
Specification:
Oscilloscope Specifications:
Bandwidth: 5MHz
Sampling Method: Real time sampling
Real time Sample Rate: 48MSa s
Number of Channels: Single channel
Input Coupling: DC, AC
Input Impedance: 10M Ohm , @16pf
Maximum Input Voltage: <300V (DC + AC peak)
Sample Rate Range: 1.5Sa s 48MSa s
Waveform Interpolation: (Sinx) x
Sweep Speed Range: 100Ns div 20s div
Time Base Accuracy: 20ppm
Record Length: Up to 64Kbyte
Sensitivity: 100mV div 100V div
Displacement Range: 4 squares (plus or minus)
Analog Bandwidth: 5MHz
Low Frequency Response: >10Hz
Rise Time: <100ns
DC Gain Accuracy: + 3percent
Measurement Information: Frequency, peak to peak, maximum, minimum, root mean square, duty cycle
Trigger Method: Automatic, normal, single shot
Trigger Edge: Rising edge, falling edge
Screen Display: VA color reverse display screen
Waveform Storage: Can store about 104 waveforms
General Technical Specifications of Multimeter:
Display: 9999 counts
Range: automatic manual
Material: ABS+TPE
Sampling Rate: 3 times second
Battery Type: 3.7V 1500mAh lithium battery*1 (delivered with built in battery)
Adjustable Screen Brightness: 30percent 50percent 80percent 100percent
Screen Backlight Time: off 30s 60s 120s
Diode: Yes
On off Buzzer: Yes
True RMS: Yes
Data Hold: Yes
Screen Backlight: Yes
Back Support: Yes
Low Battery Reminder: Yes
Automatic Shutdown: Yes
Technical Specifications of Multimeter:
DC Voltage Range Resolution
9.999mV 0.001mV
99.99mV 0.01mV
999.9mV 0.1mV
9.999V 0.001V
99.99V 0.01V
600.0V 0.1V
AC Voltage Range Resolution
9.999mV 0.001mV
99.99mV 0.01mV
999.9mV 0.1mV
9.999V 0.001V
99.99V 0.01V
600.0V 0.1V
AC Voltage Frequency Response: 40Hz 1kHz
Resistance Range Resolution
99.99 Ohm 0.01 Ohm
999.9 Ohm 0.1 Ohm
9.999k Ohm 0.001k Ohm
99.99k Ohm 0.01k Ohm
999.9k Ohm 0.1k Ohm
9.999M Ohm 0.001M Ohm
99.99M Ohm 0.01M Ohm
Capacitor Range Resolution
9.999nF 0.001nF
99.99nF 0.01nF
999.9nF 0.1nF
9.999microfarad 0.001microfarad
99.99microfarad 0.01microfarad
999.9microfarad 0.1microfarad
9.999mF 0.001mF
99.99mF 0.01mF
Frequency Range Resolution (It can only be measured up to 100kHz in the AC voltage range)
99.99Hz 0.01Hz
999.9Hz 0.1Hz
9.999kHz 0.001kHz
99.99kHz 0.01kHz
999.9kHz 0.1kHz
Size: 14.3*7.05*2.16cm 5.63*2.77*0.85in
Weight: 157g 5.53oz.
Package List:

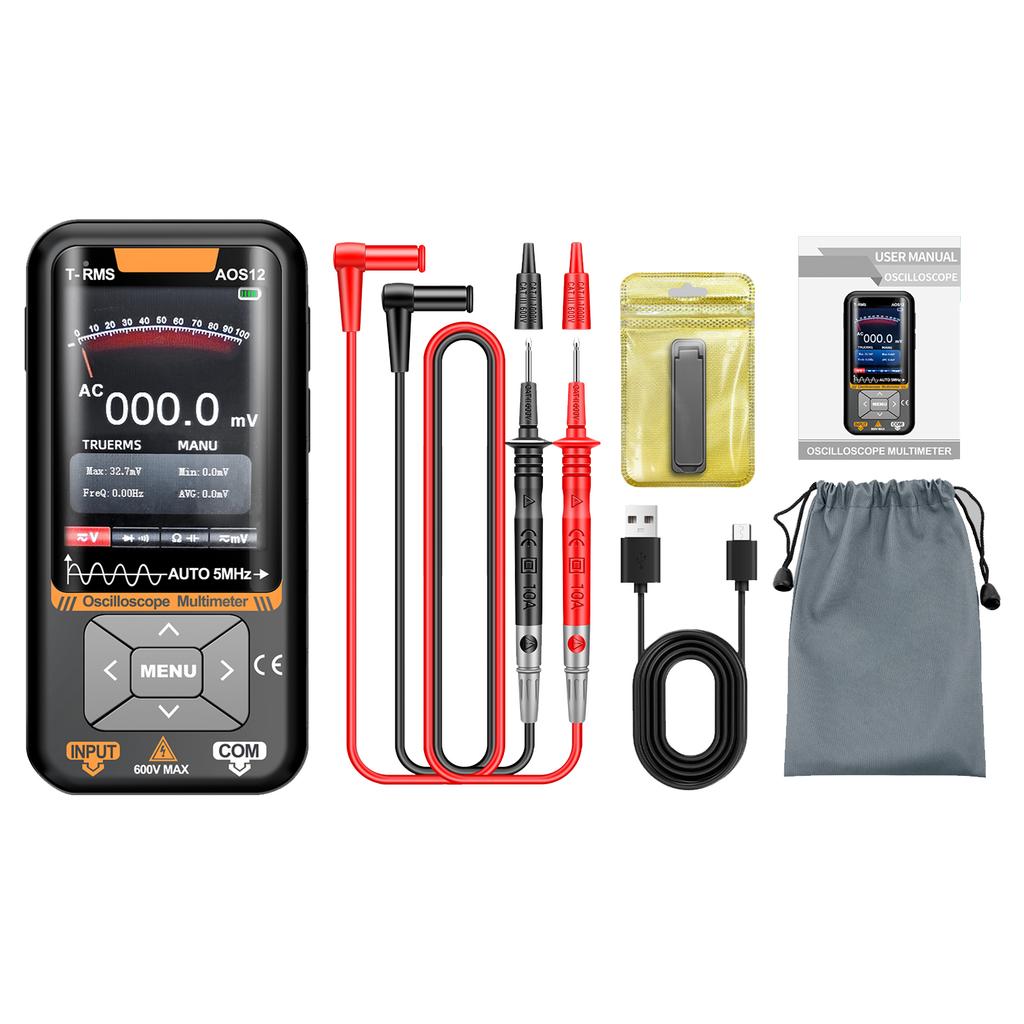

1 * Oscilloscope Multimeter1 * Support Frame1 * Storage Bag2 * Test Pen1 * Charging Cable1 * User Manual
