• Ikke la batteriet være uten tilsyn når du er borte fra hjemmet eller sover.
• Ikke dekk til ladere eller batterier under lading.
• Ikke overbelast uttak eller bruk uegnede skjøteledninger.
• Ikke lad eller oppbevar batterier i direkte sollys eller i områder med temperaturer over 45⁰C.
• Ikke lad batterier i nærheten av brennbare materialer eller farlige stoffer.
• Når ladingen er fullført, koble alltid fra laderen.
• Bruk alltid kun den originale laderen som er egnet for batteriet.
• Kontakt alltid en profesjonell når du bygger om din e-sykkel eller e-sparkesykkel.
• Sjekk alltid batteriet (og laderen) for synlige skader.
-----

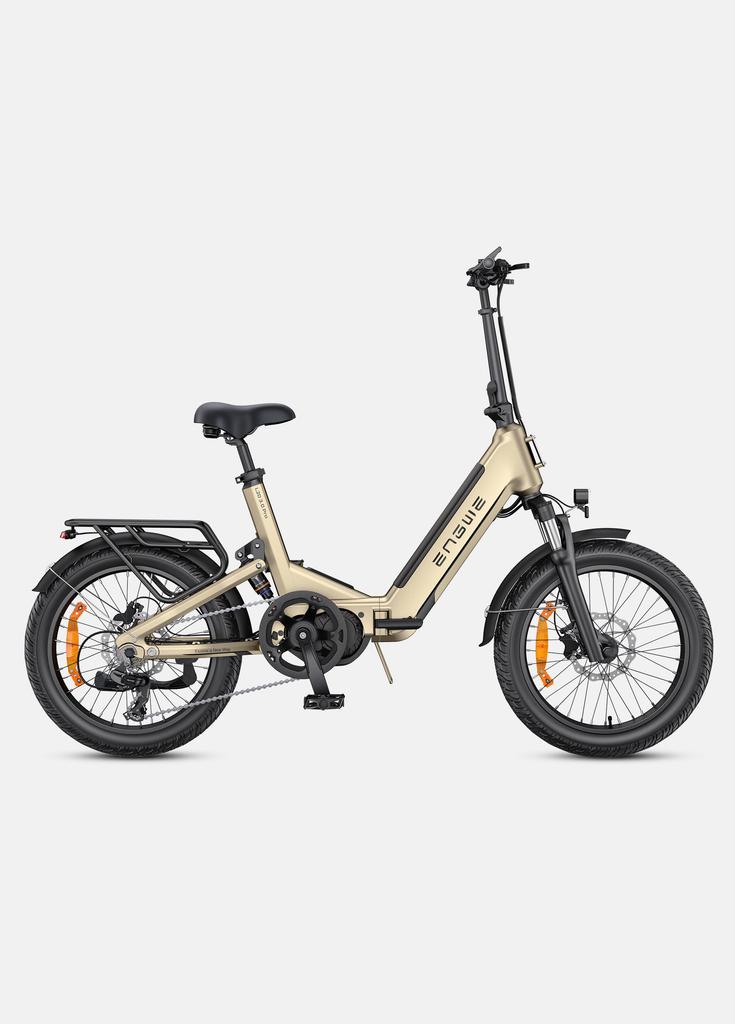

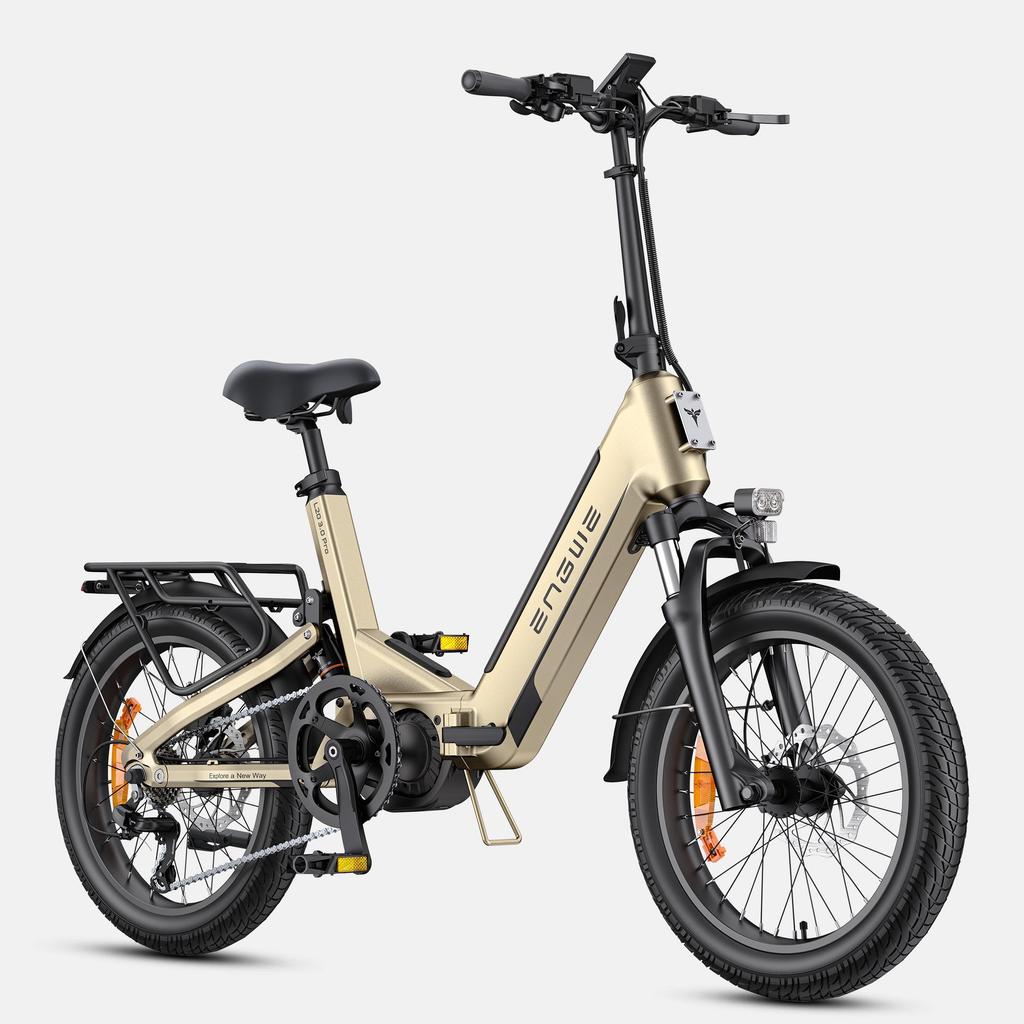

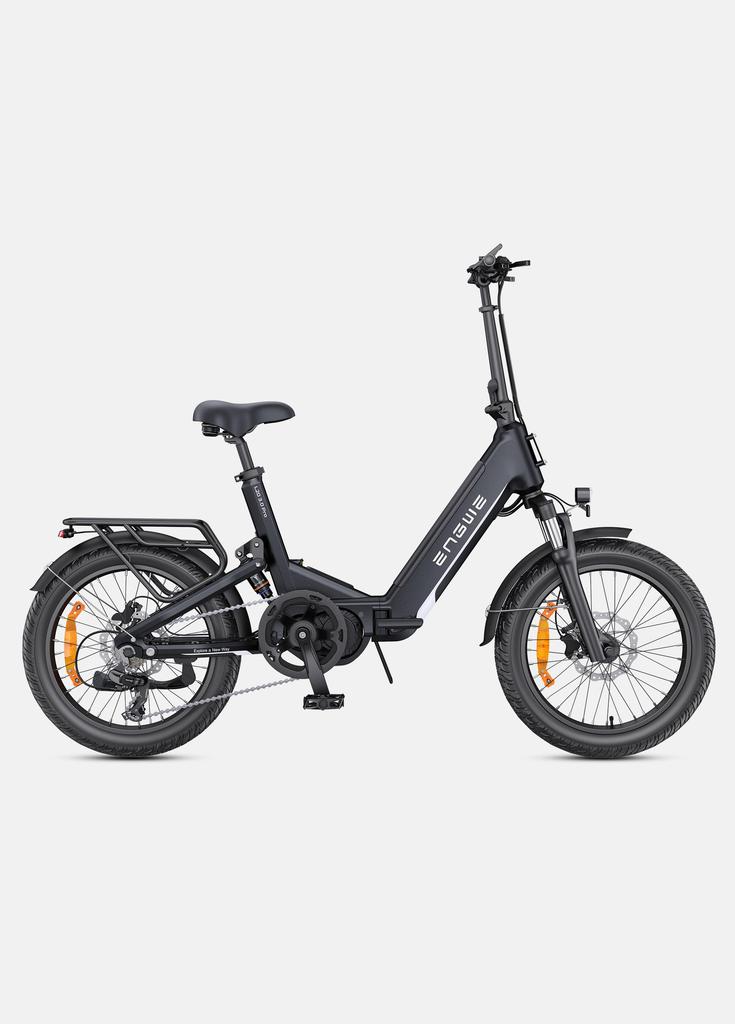

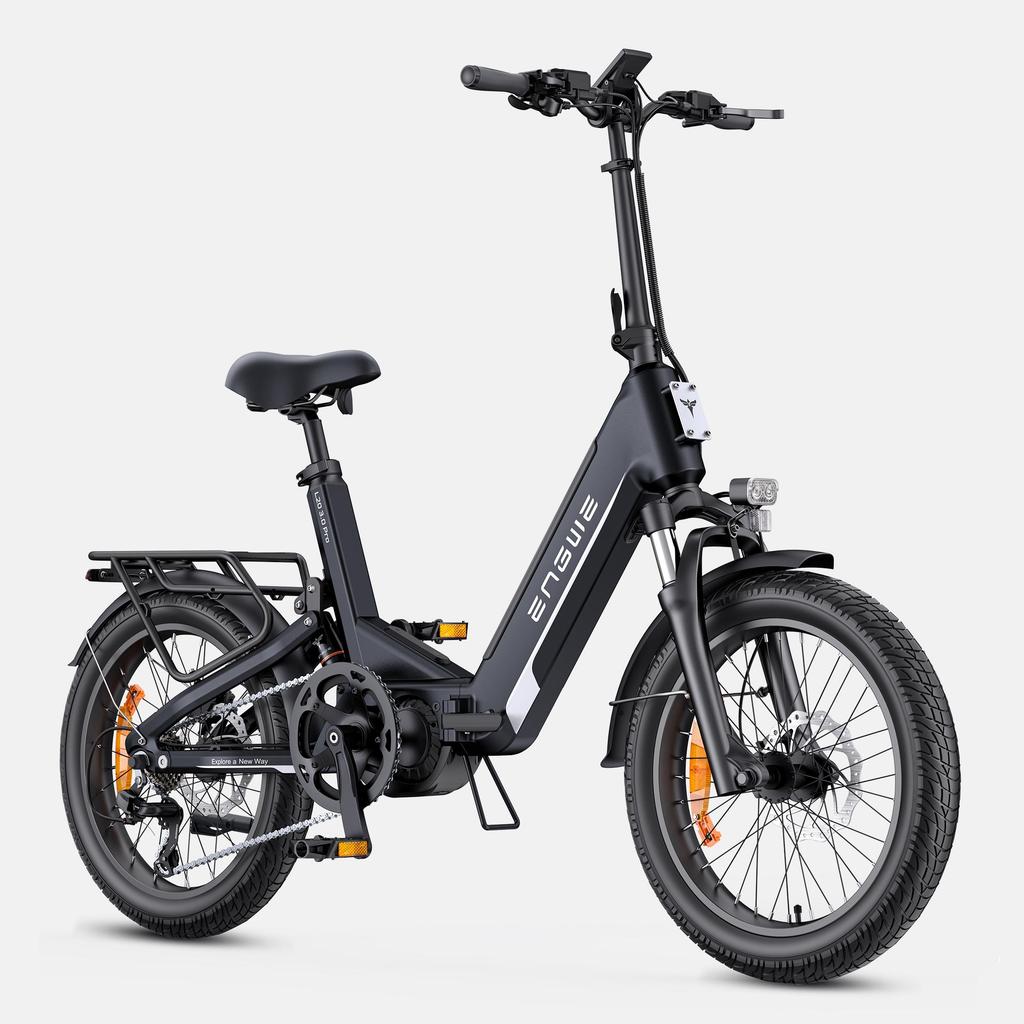

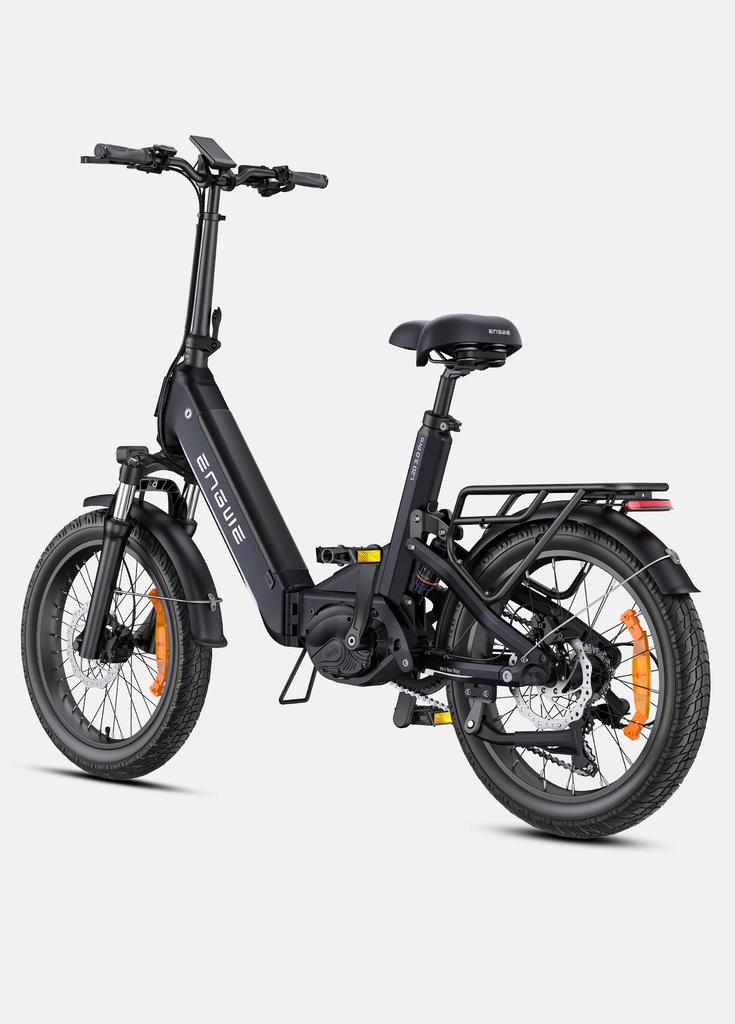

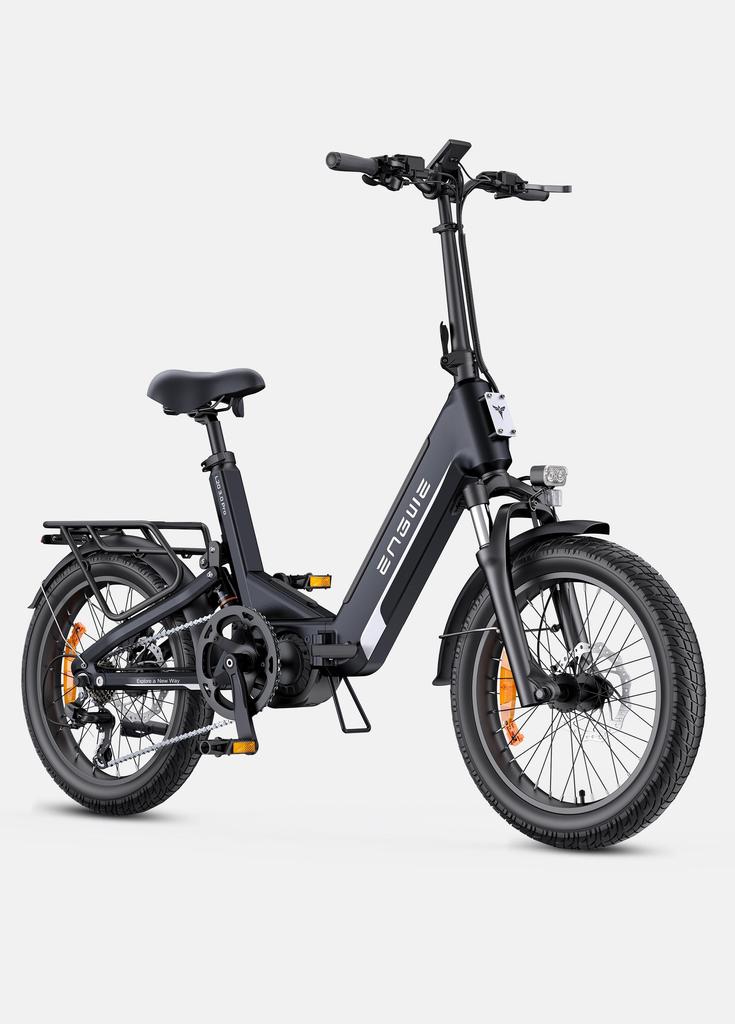

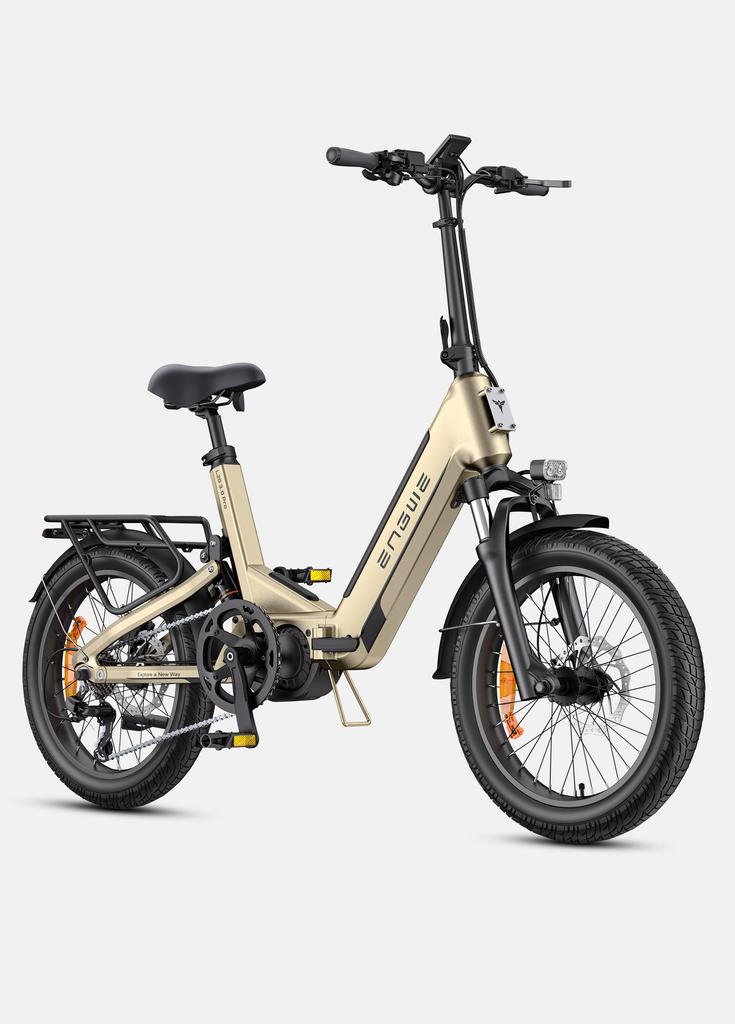

ENGWE L20 3.0 Pro Specifications
General
Model: L20 3.0 Pro
Max Load Capacity: 150 kg (330 lbs)
Recommended Rider Height: 5'1" – 6'3" (155 – 190 cm)
Certification: CE (EN15194)
Pedal Assist Levels: 5

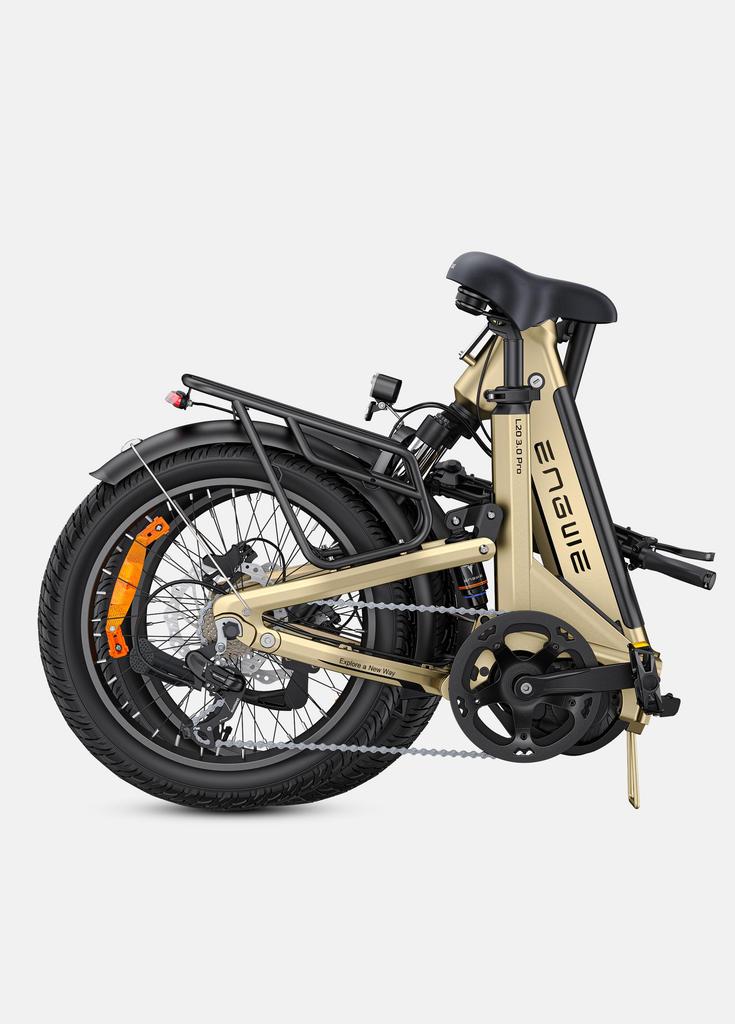

Foldable: Yes
Waterproof Ratings:
IPX7 – Waterproof Wiring
IPX6 – Display & Lights
IPX5 – Motor & Controller
IPX4 – Battery Box
Terrain Suitability:
Tarmac Roads & Bicycle Routes
Gravel-Paved Paths
Sandy Beaches & Grass
Country Roads & Paved Trails
Range
Lab-Tested Range (Fully Charged): 160 km
Real-World Range:
PAS 1: 140 km
PAS 3: 110 km
PAS 5: 96 km
Frameset
Frame Material: 6061 Aluminum Alloy, Internal Battery, Step-Through Design
Frame Style: Compact, Full Suspension
Fork: Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum
Rear Suspension: 30 mm Travel
Wheels & Tires

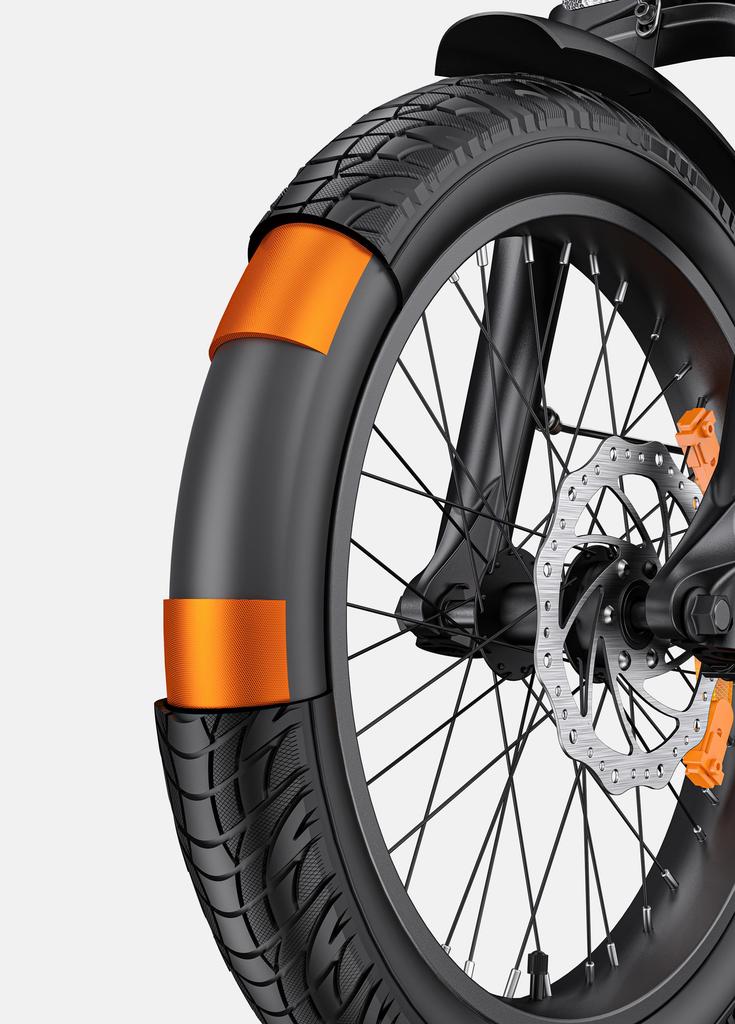

Tires: 20 × 3.0 Urban Hybrid Tires with 3 mm Anti-Puncture Layer
Wheels: 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black
E-Bike System
Motor: Mivice X700 Mid-Drive, 48V
Max Torque: 100 Nm
Assist System: Torque Sensor
Battery: 48V 15Ah (720Wh), Samsung 21700 Cells with BMS

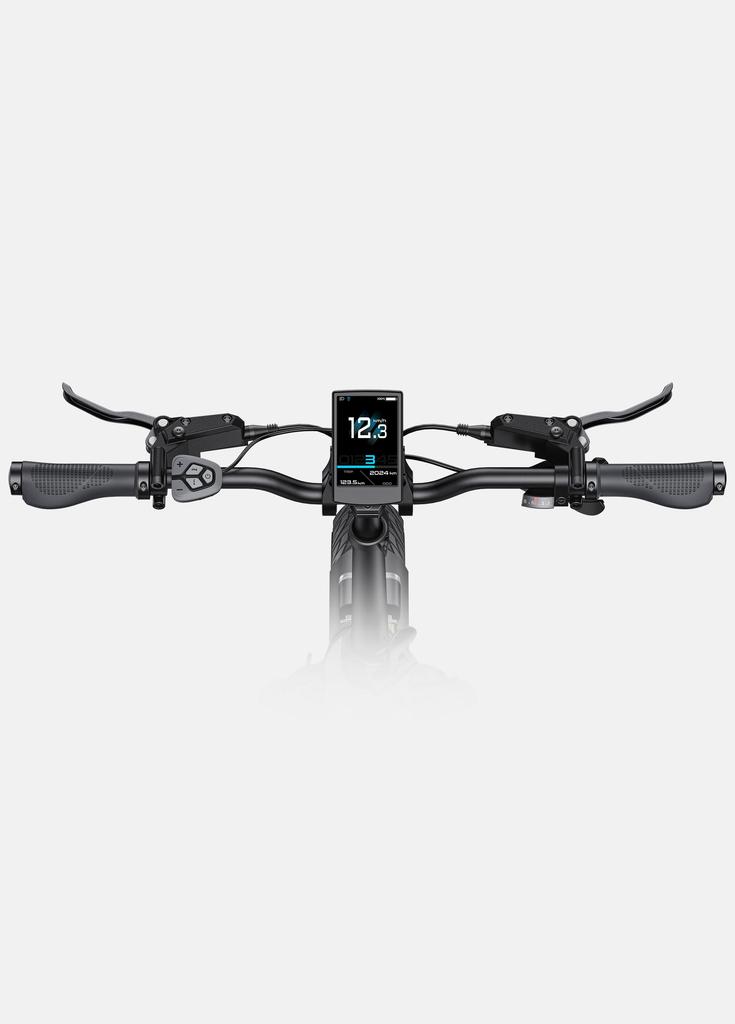

Display: 3.5" LCD Color Display, ENGWE Mid-Position Design
IOT Module: ENGWE IOT with GPS, 4G & Bluetooth
ENGWE App: Available (App Control)
Charger: 54.6V 8A Output
Lights
Front Light: 30 Lux with Integrated E-Horn

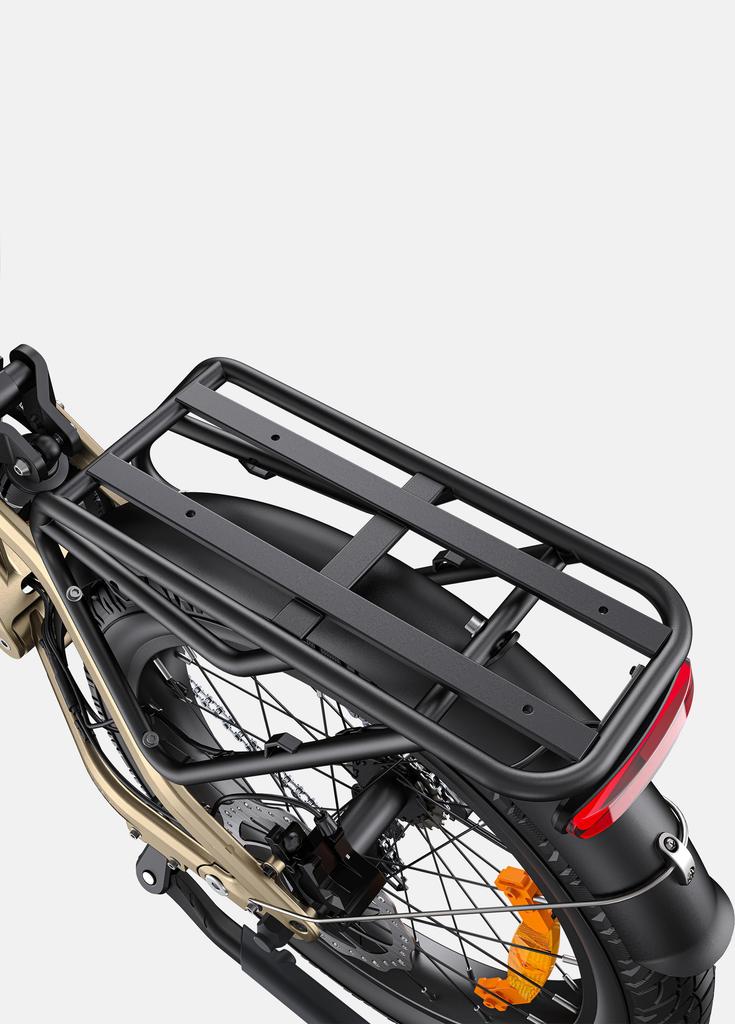

Rear Light: Auto Brightens When Braking or Shaking
Brakes
Type: Hydraulic Dual-Piston

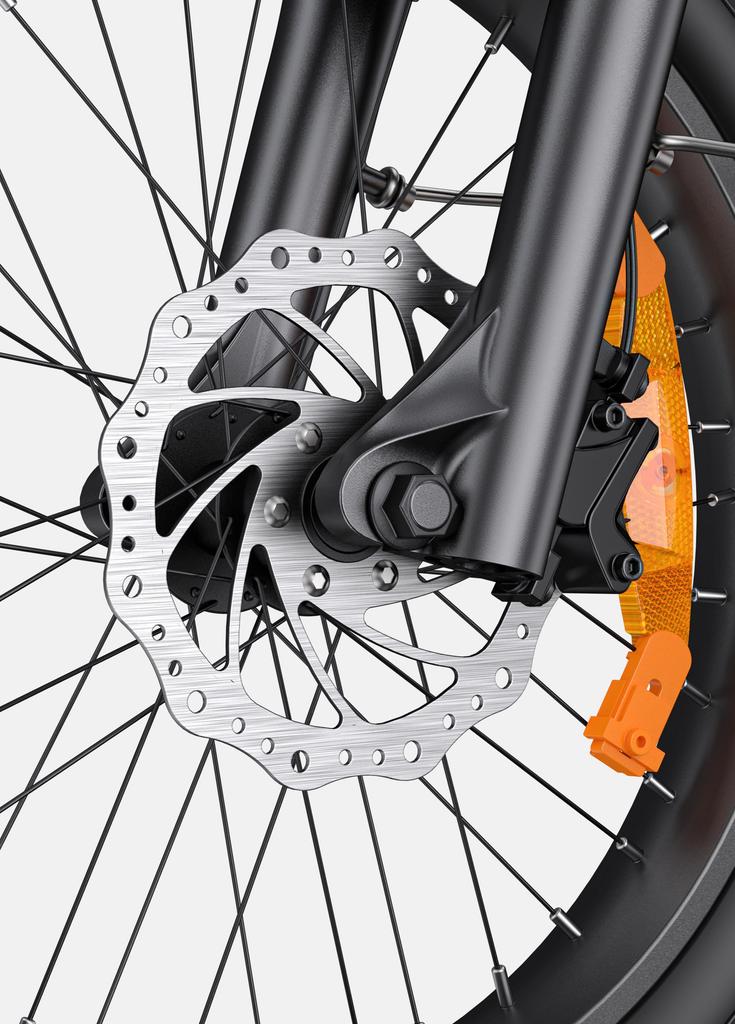

Disc Rotors: 180 mm Front & Rear
Drivetrain
Chain: KMC E8S Anti-Rust, 112 Links
Chainring: 48T
Crank: 170 mm

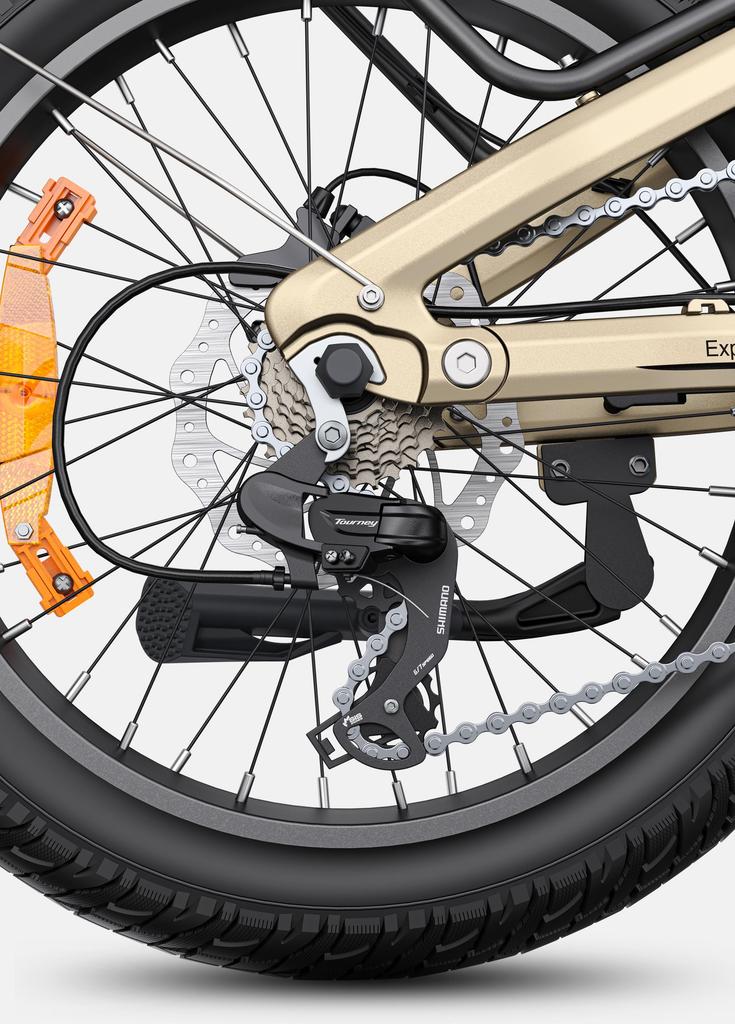

Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed
Shifter: Shimano SL-M315-7R
Cassette: 7-Speed, 14T–28T
Pedals: Boron Steel, Non-Foldable
Cockpit

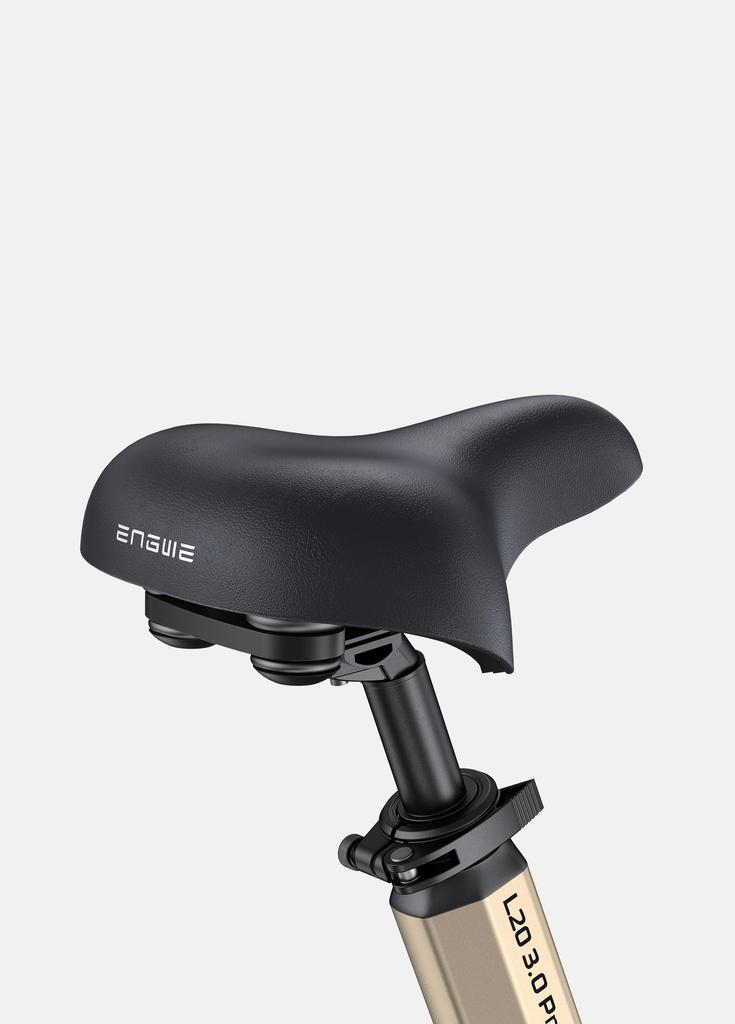

Saddle: ENGWE Soft Saddle
Seat Post: 10-Level Adjustable
Handlebars: 680 mm Width
Stem: Foldable
Seat Clamp: Quick-Release
Weight
Bike Weight: 32.8 kg (72.3 lbs)
Gross Weight: ~42 kg (92.6 lbs)
