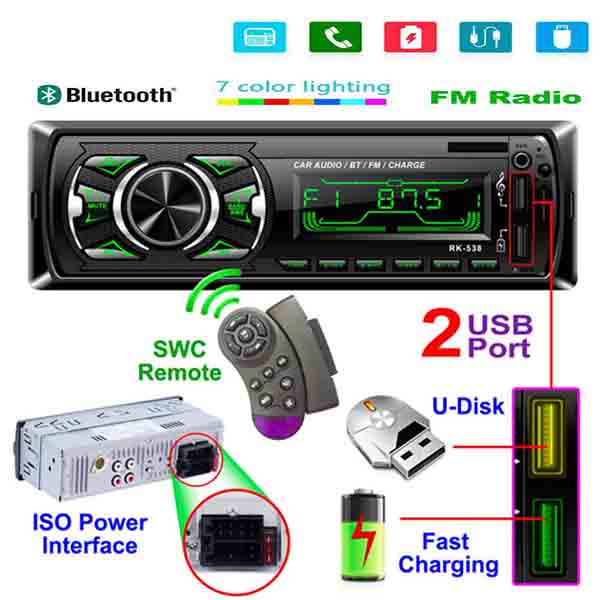

Features:

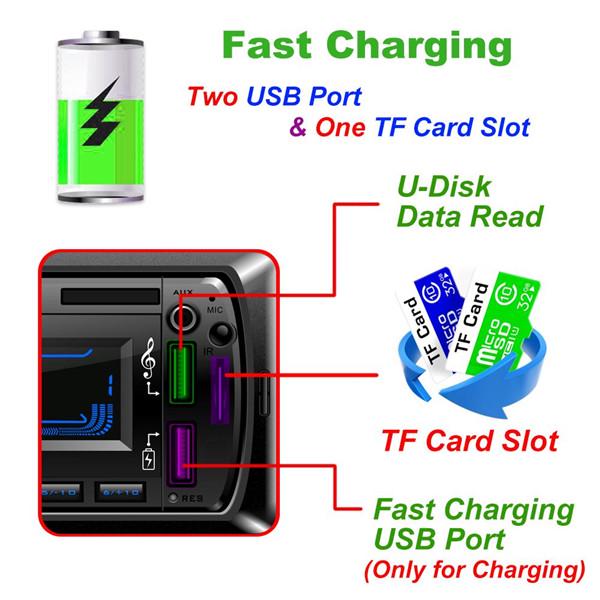

1.Double USB interface support mobile phone fast charging and mobile phone music play, you only need to prepare a charging cable in the car

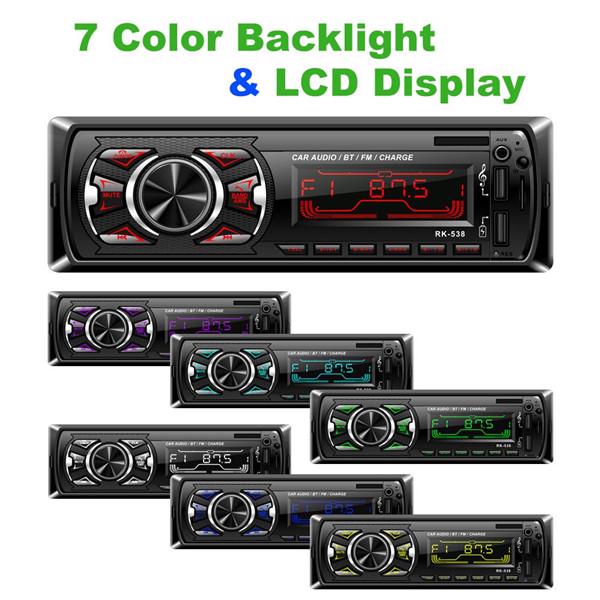

2.Seven color background lights and colorful LCD display can be adjusted choose by your heart
3.Built-in radio antenna socket
4.3'' large LCD display screen

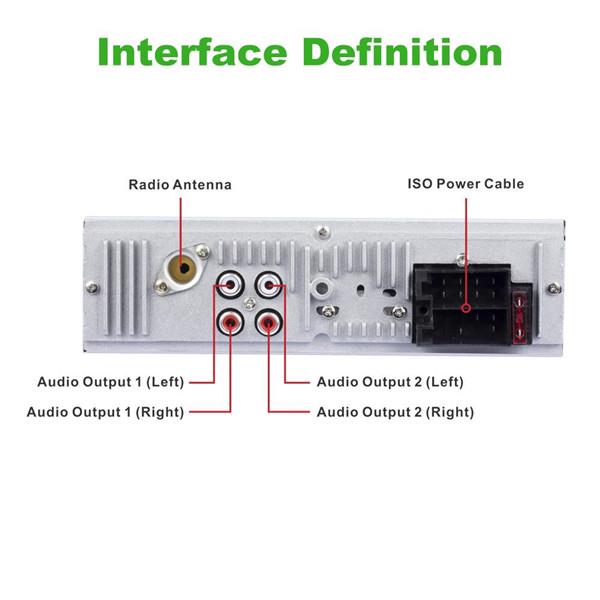

5.Power-off with auto-memory store function under radio or SD/USB/AUX Mode

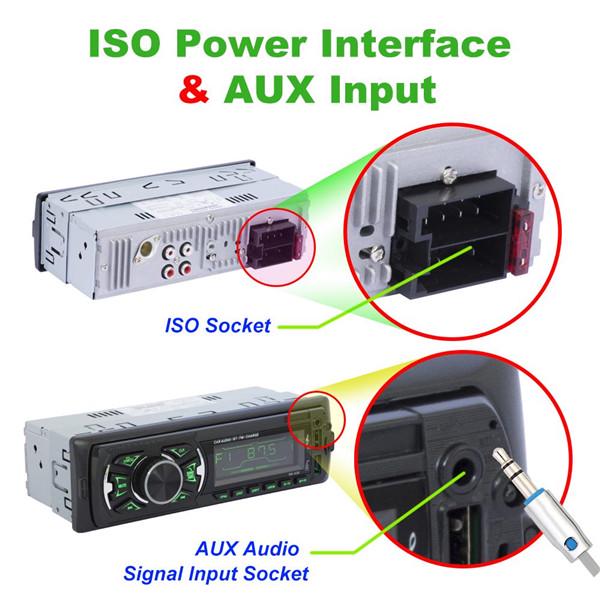

6.Support ISO connector with cable and 4 RCA audio output

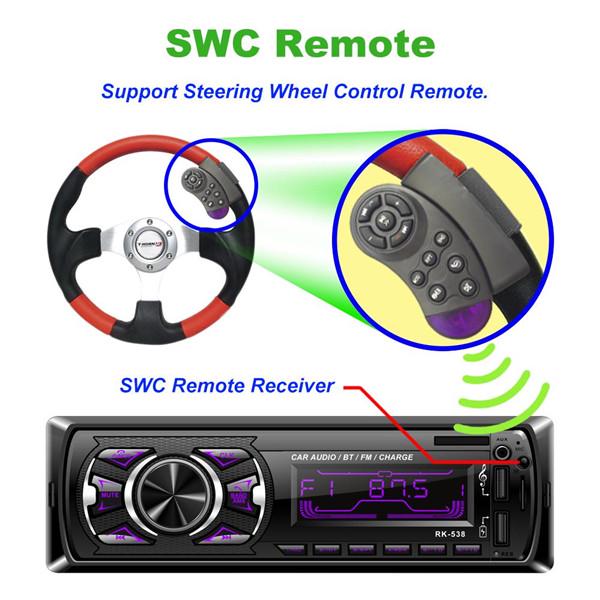

7.Multi-function IR steering wheel remote control, mute control

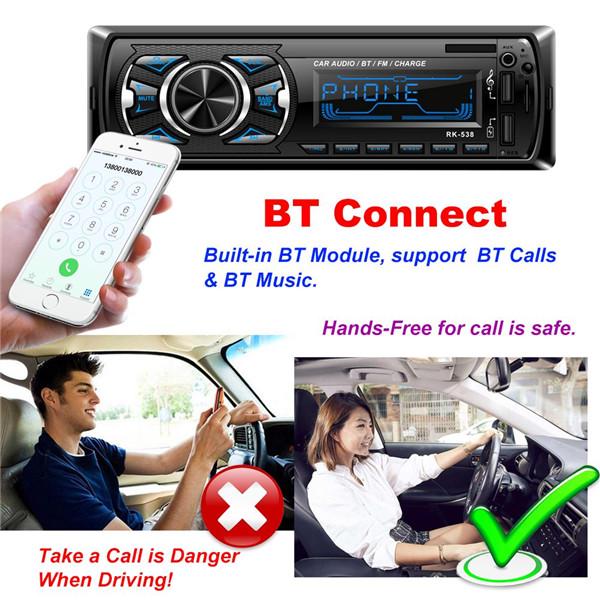

8.Bluetooth function: Can connect the phone to keep your hands free when a call is coming, besides, you even save a sum of money to buy a business earphone
9.Phone fast charging: Just connect the phone to the machine's USB interface and you can charge it. You only need to prepare a charging cable in the car
10.Stereo sound effects: Built-in powerful IC brings stereo sound effects, allowing you to experience driving pleasure
11.EQ sound effect, Volume adjustment, RCA audio input support

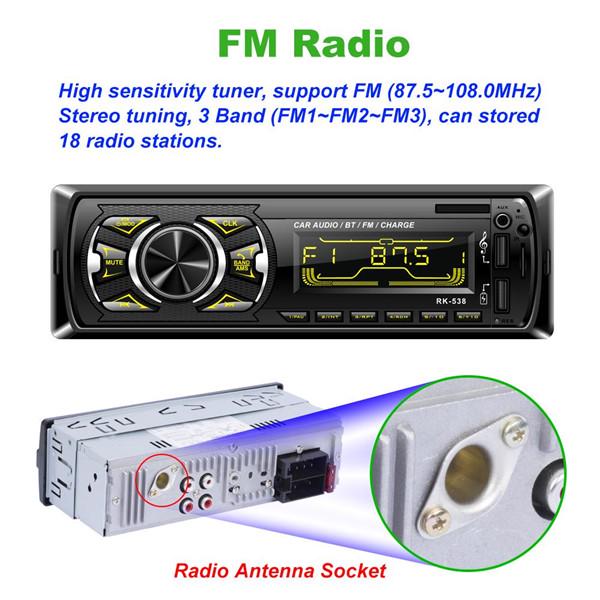

12.FM Radio: High sensitivity tuner, support FM (87.5~108.0MHz) stereo tuning, 3 Band (FM1~FM2~FM3), can stored 18 radio stations
Specifics:
Voltage: DC 12V
Maximum power output:4*50W
SNR: 65dB
Frequency response: 20Hz~20KHz
Tone control: Bass 100Hz /Treble 100Hz
Loudspeaker impedance: 4~8
FM frequency: 87.5MHz~108MHz
Terminal Antenna: External antenna connector
Medium frequency: 10MHz
Sensitivity: 22dB
Frequency response: 30Hz~15KHz
Audio format: MP3/WMA
Memory card extention: Max 32G
USB port:Dual USB
Mobile phone charging: Support
Radio band:FM1/FM2/FM3
Card slot:TF card
Quantity: 30PCS/CTN

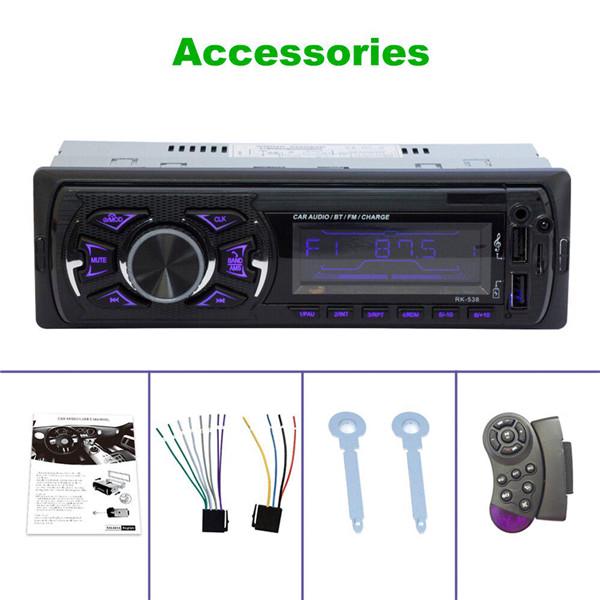

Product included
1 x Car MP3 Player
1 x User Manual
1 x Power Cable
1 x Speaker Cable
1 x Steering Wheel Control
2 x Dismantling key
Attention:
1. Please make sure all of the wires are connected well before installation. Check the device and all of the wire are fine then you can power on the device.
2. In order to install the device properly, please use our accessorics. If it needs to drill the installation process, please contact with the nearby dealer.
Dismantling:
Insert the dismantling key into the keyhole of device until the hook lock is open, then get the device and key out.
Note: Shipped without battery.
Tips:
1.Why car radio doesn't turn on, or car radio doesn't turn on after using for a while ?
1.1 Make sure the Red cable is with ignition positive, Yellow cable with Battery Positive (12V +), Black cable with Battery Negative (12V -). Please use the Radio in 12V output vehicle. We do not recommend you using voltage adapter to power up the radio.
1.2 If the radio is still off after you confirm all the wires are wired correctly, please try to joint the yellow and red cable together and wire it with the 12V positive.
1.3 After the two steps, if the radio is still not on, please check if the fuse is burned or not.
2.Why car radio can turn on, but the radio is no sound, or sound disappear after you play the radio for a while.(it can play USB Flash or SD card, just no sound) ?
Notice: There are two main reason that would cause 'no sound'
A.Speraker negative cable is grounded.
B.The amplifer chip is burned when the item is shorted in wiring.
2.1 Please check if your speaker cable is shorted or not, please make sure every one of them is isolated wired.
2.2 If you confirm that the wire is correctly wired, you can find a speaker elsewhere to do an extra test, which could easily confirm the problem is from the radio or your car's system.
3.Why car radio's Bluetooth is not working, or it work for a while then disconnect itself ?
3.1 Try to 'forget' the device first, and then search for Bluetooth signal again, you may need to input the PIN code which should be "0000".
3.2 If the last step can't make the Bluetooth back, try to find the 'reset hole' on the front panel and do the reset for a try. If it's convenient enough, you can also try to unhook the power connector behind for a few minutes and replug it in later.
4.Why car radio's mic is not working, phone call from the other side can't hear clearly ?
4.1 Try to check if the bluetooth volume setting.
4.2 Try to check if the dashboard is too low (the mic is too far for you) for the radio's MIC to collect your voice.
5.Why car radio cannot read your USB flash disk or SD/TF card ?
Please confirm what's the capacity of the USB flash disk or SD memory card. It can read lower than 32GB disk normally. Please use the other flash disks with fewer songs to test again. (Please confirm if you insert the SD/TF card in a correct side).
6.Why car radio's remote control doesn't work ?
Please check if the remote have the correct battery inside, the correct model is CR2025 model.
7.Why car radio has noise problem ?
7.1 For some cars, there might be some noise generated in the playing. Especially when you are using amplifier. Usually, this kind of problem is related with interference. Please make sure all the cables are wrapped well in case of any contact with each other.
7.2 You can find a speaker elsewhere to do an extra test, which could easily confirm the problem is from the radio or you car's system.
8.Why car radio cannot save the time or radio station setting
Check if the Yellow cable is wired with your car's battery 12V + (constant positive) or not, it provide constant power to the unit and save the setting.
Product type: Car Radios & Spare Parts
Power: 4*45W
Wi-Fi version: WIFI-5
