Description:
It is a learning code wireless remote control switch (receiver), the output way /working way can be changed as you like, it is easy to match the transmitter.
It has 4 Relays which can make the equipment turn or reverse, on/off and so on come true.
The volume is small and the performance is stable and reliable, high receive sensitivity.
Features:
.
1. It covers application ranging from simple domestic remote control to autonomous control, like auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc.
2. These remote controls are designed to control a wide variety of electronic devices with a wireless signal.
3. Extremely easy to set up and use.
4. Compatible with 2262 / 2260 / 1527 / 2240 etc chip and several code wireless remote control.
Instructions:
1. Press the learning code, the indicator flash, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it means you learn it successfully.
2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control.
3. Remove/clean: press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully.

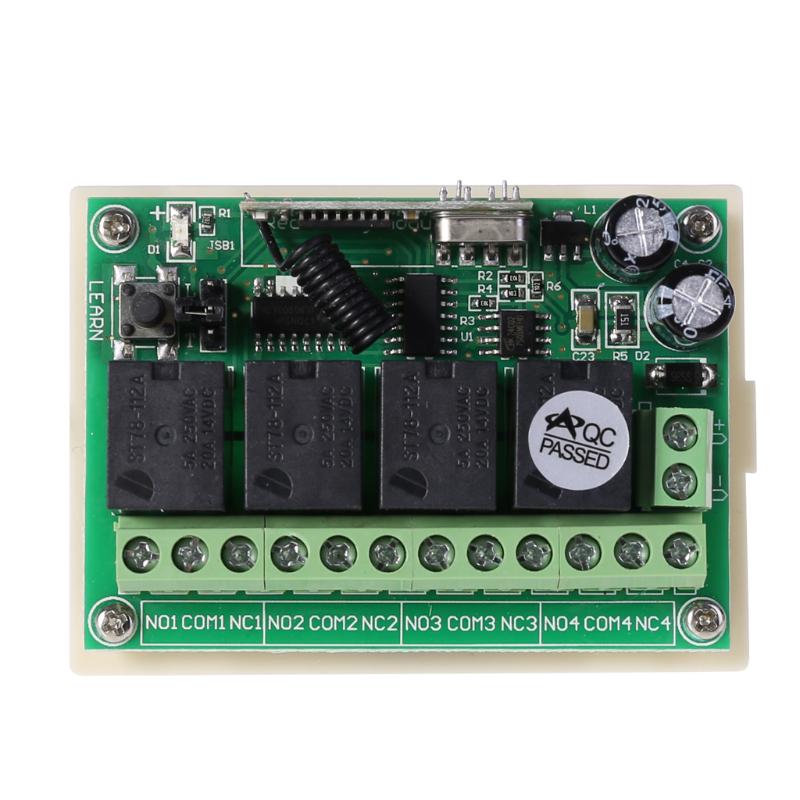

Output working way:
1. Self-lock: connect the JP1 with the cutting out cap.
2. Jog: the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.
3. Inter-lock: Connect the Jp2 with the Cutting out cap.
Jog: press one button is ON, loosen your finger on the same button is OFF. (need one channel switch and one buttons remote control).
Self -lock: press one button for one time is ON, press the same button again is OFF (need one channel switch and one buttons remote control).
Inter-lock: press one button is ON, press another button is OFF (need one channel switch and 2 buttons remote control).
Specifications:
1. Receiver:
Material: Plastic + Metal
Color: Gray

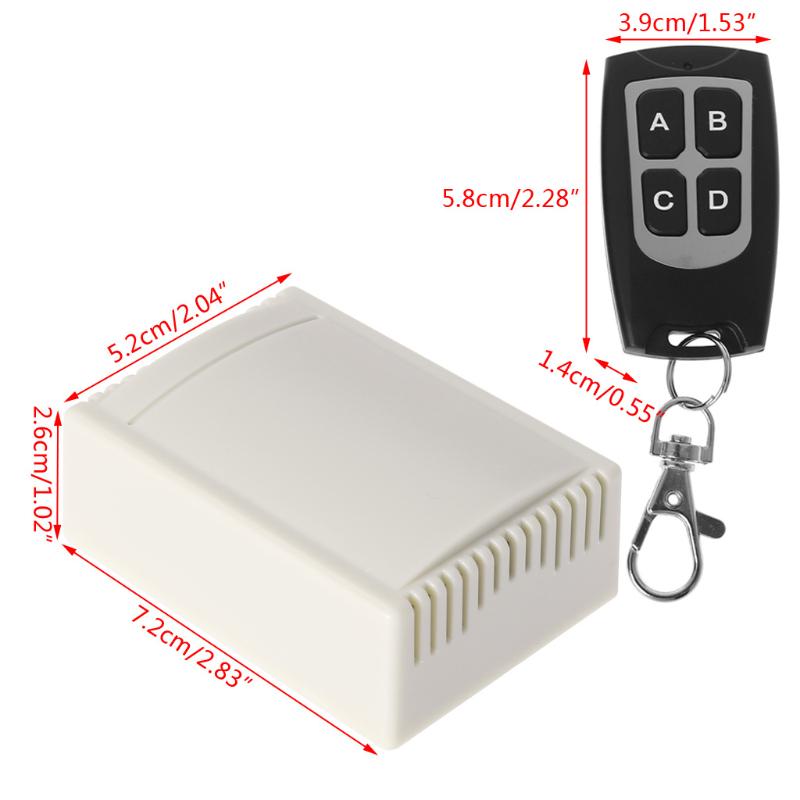

Size: 72 x 52 x 26mm/2.83 x 2.05 x 1.02in (Approx.)
Working voltage: DC12V
Quiescent condition: less than 6mA
Working temperature: -40 to +80
Receiver sensitivity: more than -105dBm
Working frequency: 433MHz
(Here is in set, we have made it work together, so you don't have to care about what frequency they are.)
Output voltage: for DC and AC is optional
Output current: less than 3A
Max load current: 10A

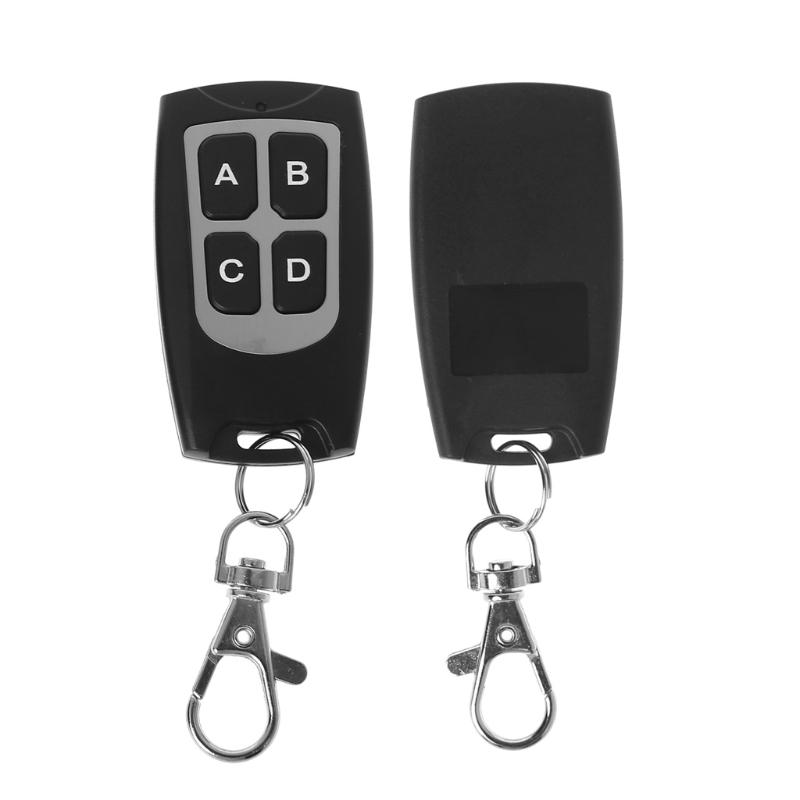

2. Remote control (transmitter):
Material: Plastic + Metal
Color: Black
Size: 58 x39 x14mm/2.28 x 1.54 x 0.55in (Approx.)
Operating Voltage: for DC 12V
Frequency: 433MHz
Operating Current: 13 mAh
Code Type: Fixed code / Learning code
Remote Distance: About 100M (at barrier-free place)
Quantity: 1 Set (other accessories demo in the picture is not included)
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
2 X Remote Control Transmitter(including battery) (No retail package)
1 X Receiver (including Shell)
