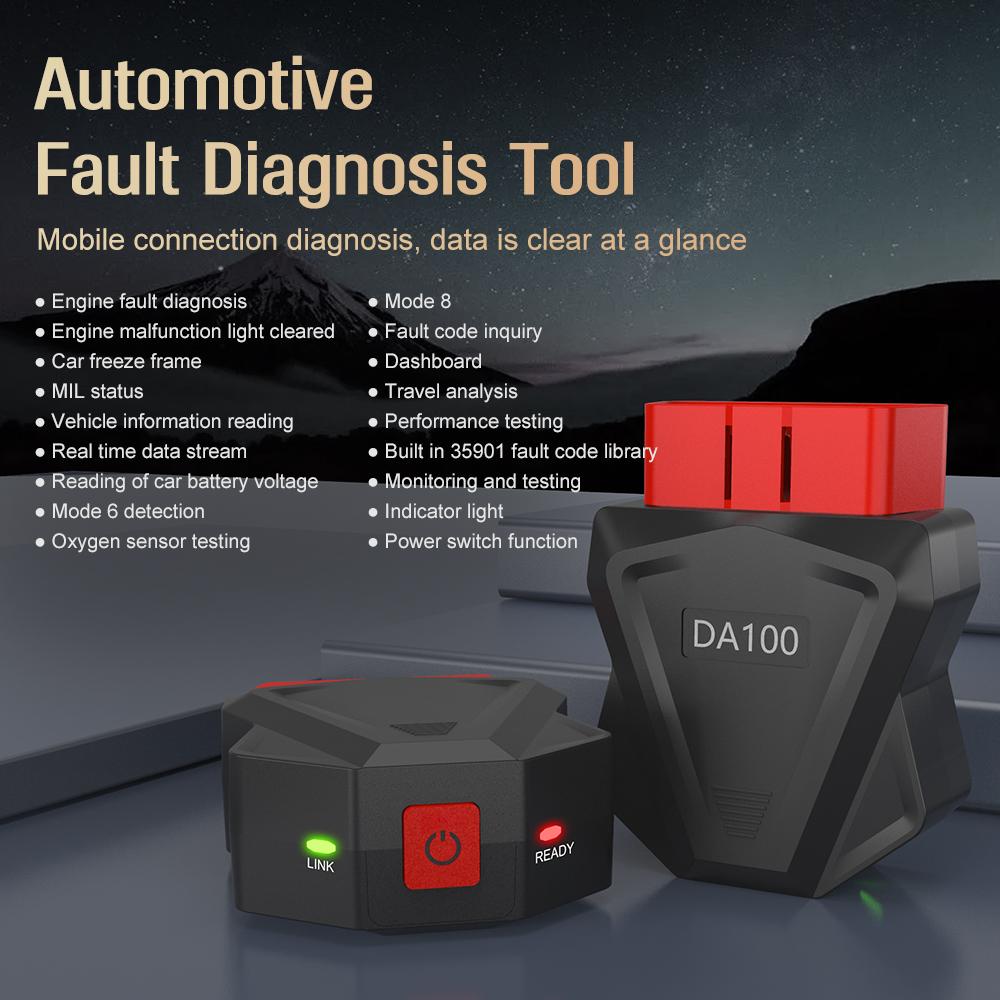

Feature:
Engine fault diagnosis
Engine malfunction light cleared
Car freeze frame
MIL status
Vehicle information reading
Real time data stream
Reading of car battery voltage
Mode 6 detection
Oxygen sensor testing
Mode 8
Fault code inquiry
Dashboard
Travel analysis
Performance testing
Built in 35901 fault code library
Monitoring and testing
Indicator light
Power switch function
Specifications:
Name: Car OBD2 Diagnostic Tools
Model: DA100
Main control chip: 25K80.
Color: black & red
Material: plastic & matel
Bluetooth-Compatible: Yes
APP dowload: for Android / iOS.
Working voltage: 9V-16V
Working/Storage temperature: -20℃ to +60℃.
Support 10 languages: English, Spanish, Korean, Russian, Japanese, Italian, Portuguese, German, French,Chinese.

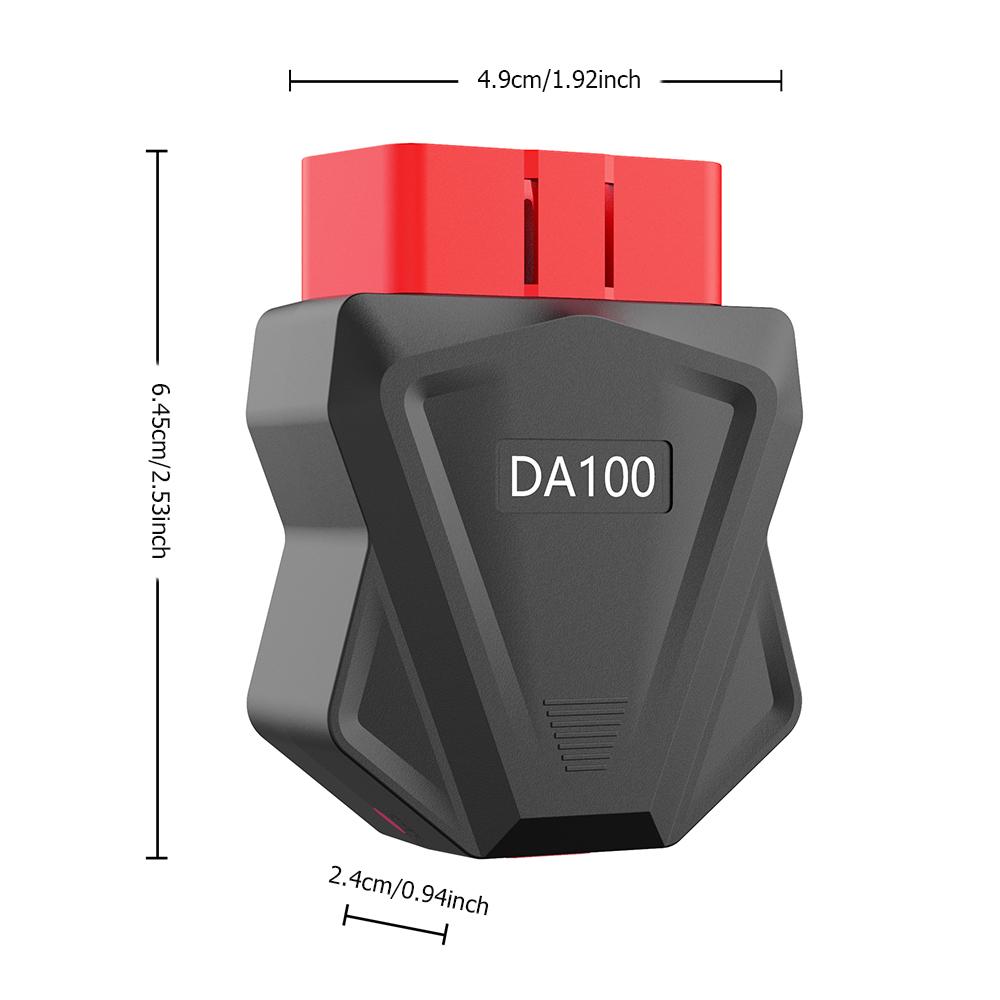

Size:As shown in pictures
Protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Package Included:
1 x Car OBD2 Scanner
1 x Manual
The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom’s policies and EU Product Safety and Compliance laws.
Voltage: 9–16 V
