4-8V 2S Electric Speed Controller Brake Function RC Motor Micro ESC Durable 30A Brushed ESC RC Car

Label:Yes Function: forward, reverse, brake Forward 30A Instantaneous peak: 40A Material: Synthetic Material Current Parameters: Voltage support: 4.8~ 8.4v can be directly on the 2s lithium (7.4V) UBEC Output: Voltage 5.7V, Current 1A (Supply receiver, servo power) Package Includes: 1pc 30A Brushed ESC(30A is also suitable for 10A 20A) Back: 20A Name: 30A brushed speed controller(Red) Color: Red Brake: 40A Size: 2.3*3cm(0.91*1.18in)

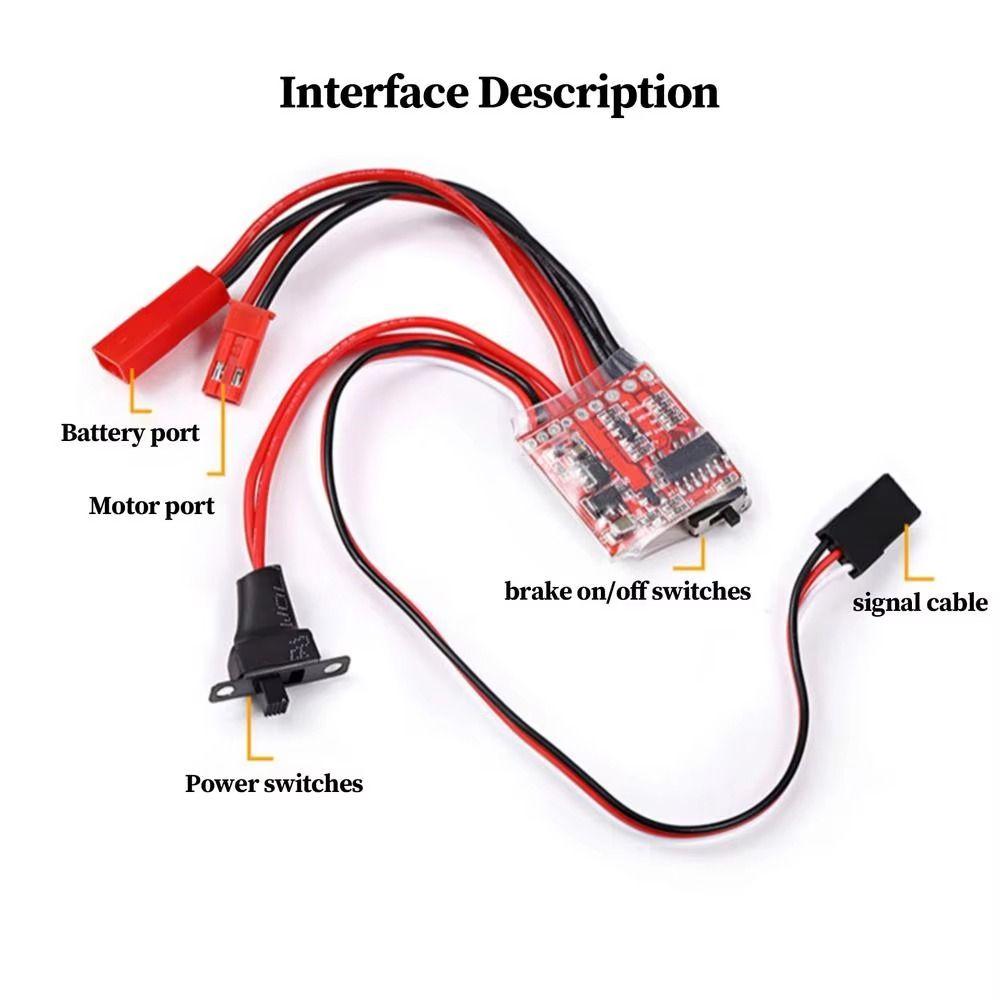

1. Micro ESC: Compact and lightweight, easy to install and use.It's bidirectional 30A miniature brushed ESC with brake for DIY mosquito/mini-z car.Designed for receiver and steering SERVO 2.Brushed ESC 2S: Suitable battery type: 2S Li-ion(7.4V) (not included) 3.Brushed ESC 1/24: For 1/16 1/18 1/24 RC Car Boat Tank RC Quadcopter, helicopter, multicopter and airplane.Function: forward, reverse, brake 4.Brushed Motor ESC: 20A ESC can work with 130/180/260/280/380 Brush Motor 5.RC ESC Connecting Rod: Short red (positive) and black (negative)------battery; Long red and black(positive or negative is random)------motor; Black red and white three-one line------CH2 of receiver
