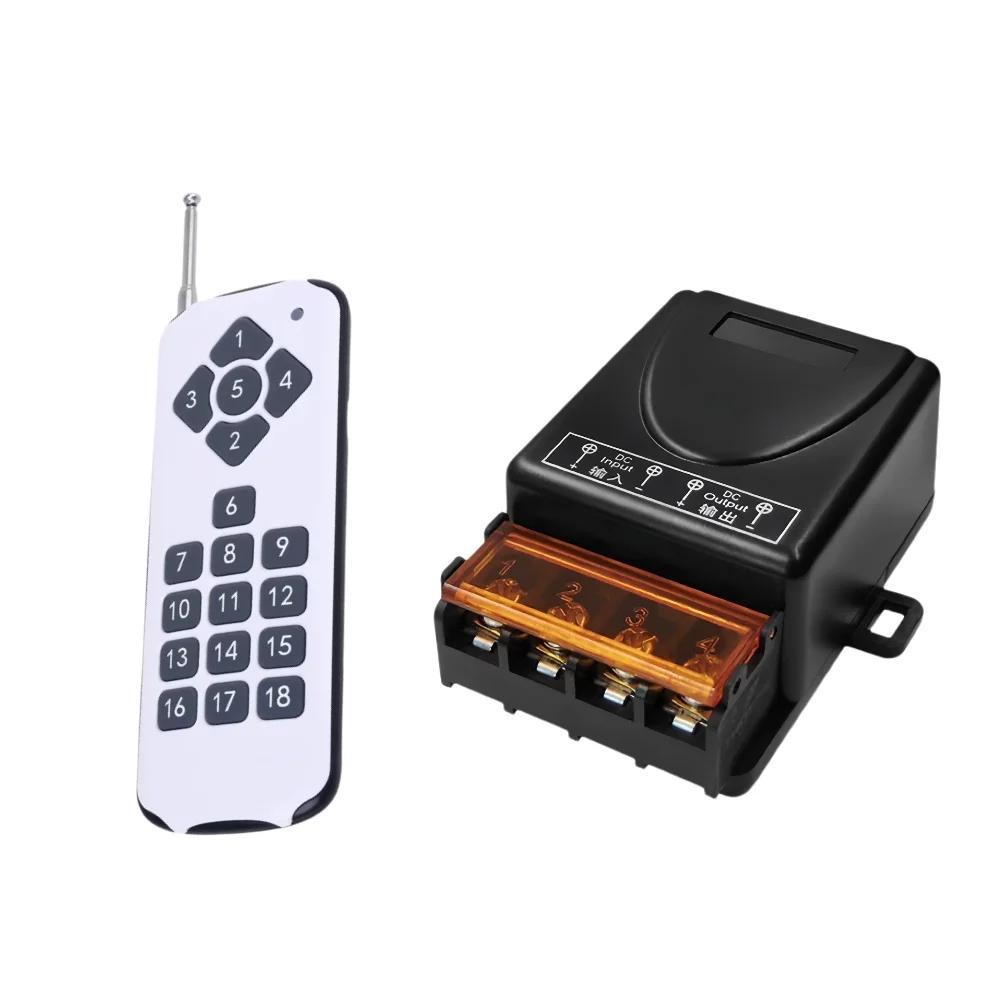

433 Mhz RF Wireless Universal Remote Control Switch DC 12V 24V 72V 30 Amp Relay 1000 Meters Remote ON OFF Home Appliances for Pump Lamp Fan DIY

Welcome to my store, I hope you like it!

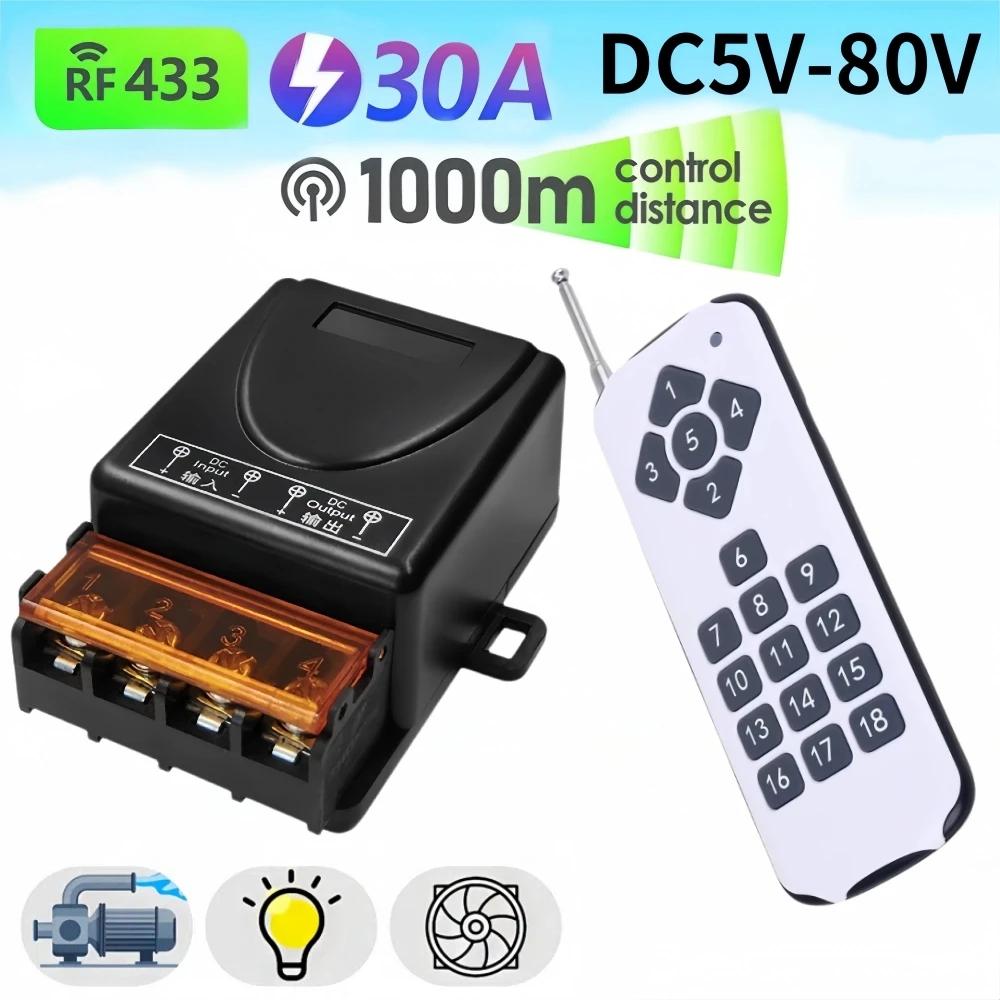

Specifications: Remote control Transmitter Operating voltage: DC12V (23A/12V battery x1)Transmitting frequency: 433MHzEncoding Type: Learning code Receiver sensitivity: > -105dB Transmission distance : 100M (Open field) Receiver boardOperating voltage: DC 5V-80V Output voltage = Operating voltage Operating frequency: 433MHz(Same with Remote control) Encoding Type: learning code Box size: About 65 x 45 x 28mm

Learn to code: 1. Jog learning method: Press the learning button of the controller once, the indicator light flashes quickly and it is in the learning state, and then press any button of the remote control you want to learn to send a code. At this time, the indicator light flashes three times and goes out, and the code matching is completed. 2. Self-locking learning method: Press the controller learning button twice, the indicator light flashes twice quickly in the learning state, and then press any button you want to learn on the remote control to send a code. At this time, the indicator light flashes three times and goes out, and the code matching is completed. 3. Interlocking learning method: Press the controller learning button three times, the indicator light flashes three times quickly in the learning state, at this time press the remote control A button, the indicator light flashes three times, and then press the remote control B button again, the indicator flashes three times and goes out, and the code matching is completed . 4. Learning method with a 5-second delay: Press the controller learning button four times, the indicator light flashes four times and then press the remote control to send a code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, the relay will automatically disconnect after 5 seconds of closing. 5. Learning method with a 10-second delay: Press the controller learning button five times, the indicator light flashes five times and then press the remote control to send the code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically disconnect after 10 seconds. 6. Learning method with 15 seconds delay: Press the controller learning button six times, the indicator light flashes six times and then press the remote control to send a code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically disconnect after 15 seconds of closing. 7. Learning method with a delay of 20 seconds: Press the controller learning button seven times, the indicator light flashes seven times and then press the remote control to send the code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically turn off after being closed for 20 seconds.

Clear data: Press and hold the learning button for 8 seconds without letting go, the indicator light flashes once until the receiver indicator flashes 6 times quickly, the code clearing is successful

Package Includes: AS the picture
