Extractor ‑ Extract the signal from the signal to the power amplifier system to achieve high quality effects that are difficult to achieve with TV speakers
Converter ‑ Convert 1 input to 1 + 1 (SPDIF) output + 3.5mm analog output

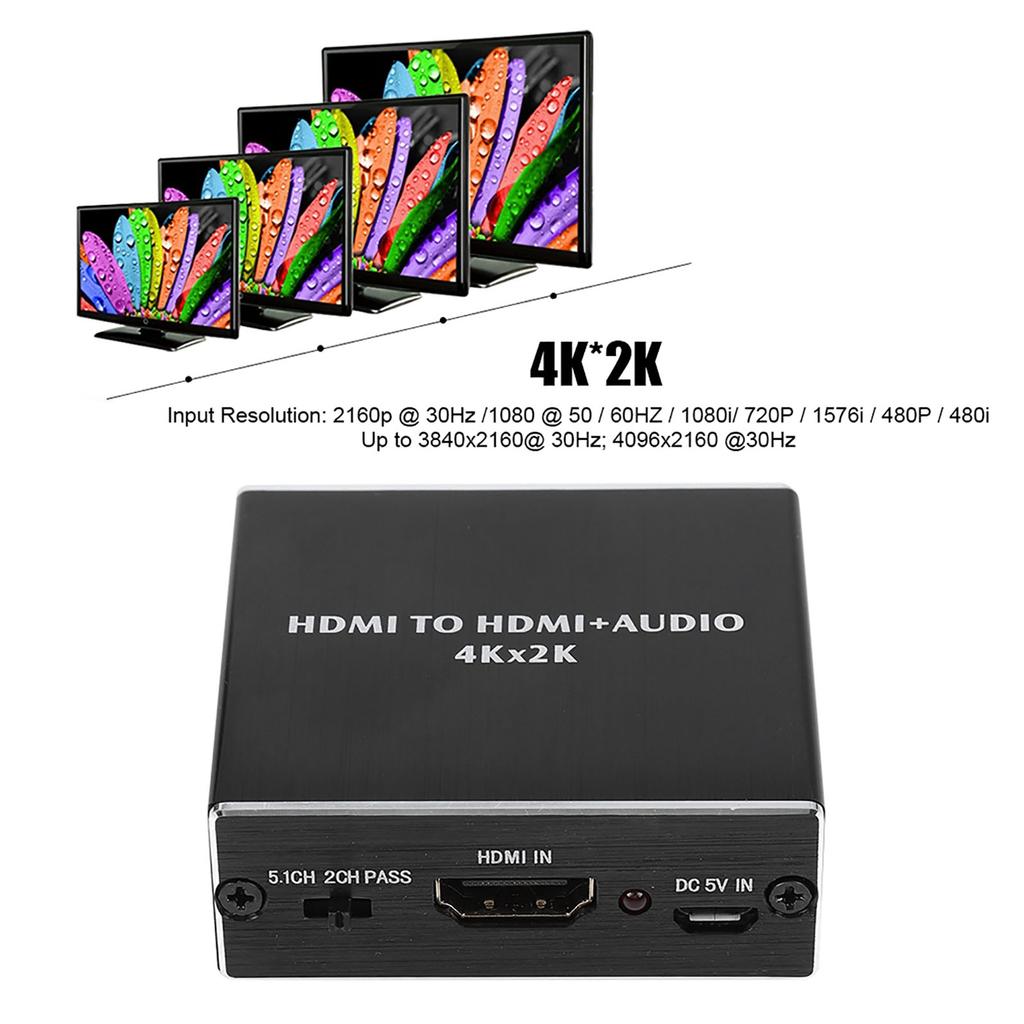

4K*2K ‑ Input resolution is up to 3840x2160@ 30Hz; 4096 x 2160 @30Hz.
Features:
Extractor - Extract the signal from the signal to the power amplifier system to achieve high quality effects that are difficult to achieve with TV speakers
Converter - Convert 1 input to 1 + 1 (SPDIF) output + 3.5mm analog output
4K*2K - Input resolution is up to 3840x2160@ 30Hz; 4096 x 2160 @30Hz.
3 mode( PASS Celsius 2.0CH Celsius 5.1CH) for your selection - enables synchronization of signal separation.
LED indicator - The LED clearly indicates the operating status.
Specification:
Type: Splitter
H P version: H P1.4
version: 1.4b
resolution: 2160p @ 30Hz Celsius1080 @ 50 Celsius 60HZ Celsius 1080iCelsius 720P Celsius 1576i Celsius 480P Celsius 480i
Support Video Color Format: 24bits Celsius Dark color 30bit, 36bit
Output: SPDIF + 3.5mm
Band Width: 340MHz
Baud Rate: 10.2Gbps
InputCelsiusOutput TMDS Signal: 0.5-1.5Volts p-p;TTL:
InputCelsiusOutput D Signal: 5Volts p-p;TTL:
Input Cable Distance: less than 7m (AWG26 standard cable )
Output Cable Distance: less than 8m (AWG26 standard cable )
Working voltage: + 5V
Operating temperature range: - 15 - 55 celsius
Operating humidity range: 5- 90% (no condensation)
Weight: Approx. 100g
Size: Approx. 58 x 53 x 21.9mm Celsius 2.3 * 2.1 * 0.9in
Package list:
1 * Splitter
1 * Power Cable
1 * User Manual
Note:
1. Please allow slight error due to manual measurement. Thanks for your kind understanding.
